Product Description

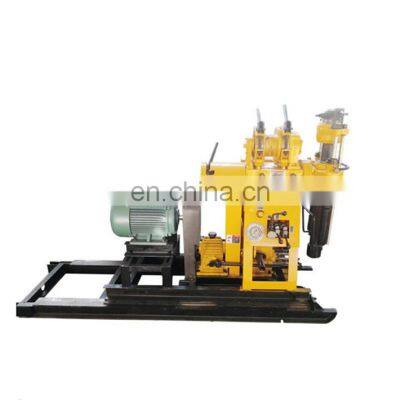

Hydraulic water well drilling rig

Water well drilling rig is mainly used for geological general investigation and exploration, road and tall buliding foundation exploration, kinds of hole in concrete structure, river levees, subgrade grouting hole ,drilling and driect grouting, civil wells and earth temperature central air-conditioner,etc


Model
HWXY-160
HWXY-230
HWXY-3
Drilling depth
160m
230m
600m
Drilling  diameter
75mm-160mm
75-273mm
75mm-325mm
Drill rod diameter
42mm,50mm
42mm,50mm,60mm
50mm,60mm
Drill angle
90-75
90-75
90-75°
Engine power
15kw
18KW
39kw
Machine Dimension
2.4*0.8*1.3m
2.7*0.9*1.5
2.6*0.9*1.75m
Drill mast height
6.5m
6.5M
11m
mud pump flow
95l/min
145l/min
250l/min
Mud pump max. pressure
1.2Mpa
2 mpa
3mpa

High pressure 200m deep well drilling rig machine price, Borehole core Drilling Machine for Sale

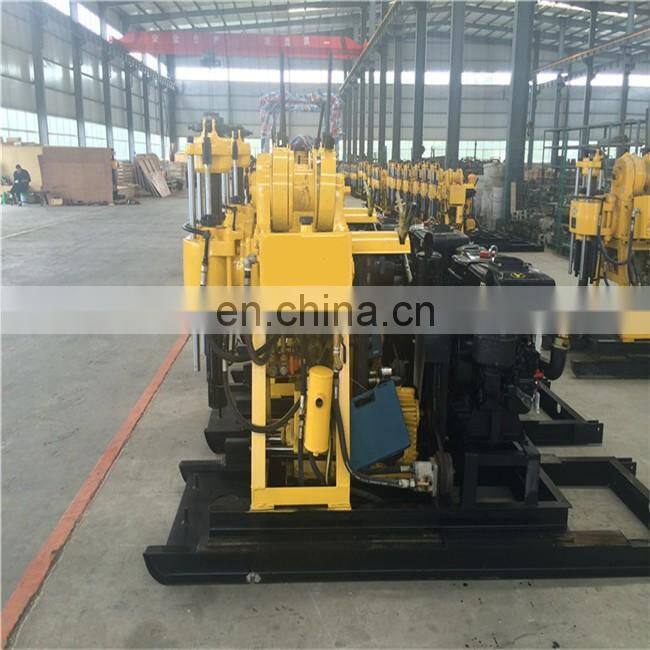

Detailed Images

Our company is group company , we manufacture drilling rig , we have many model and type , following you can reference:

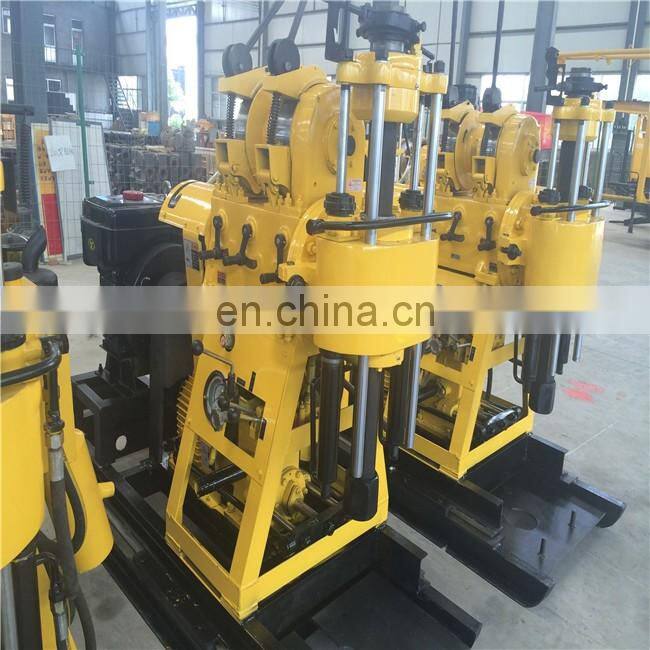

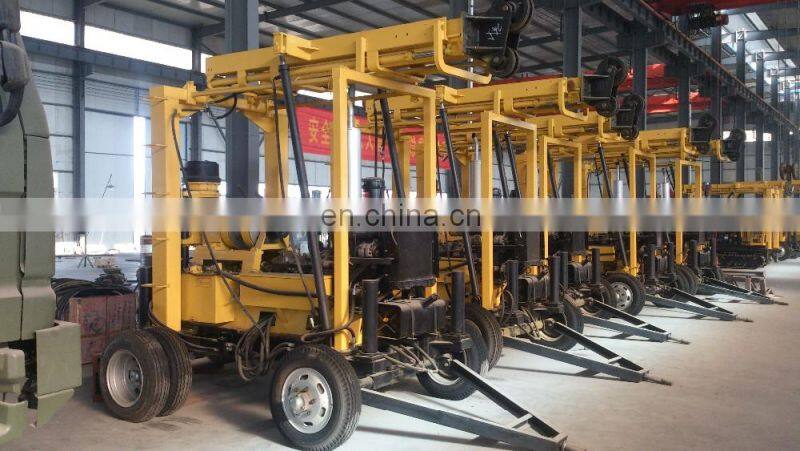

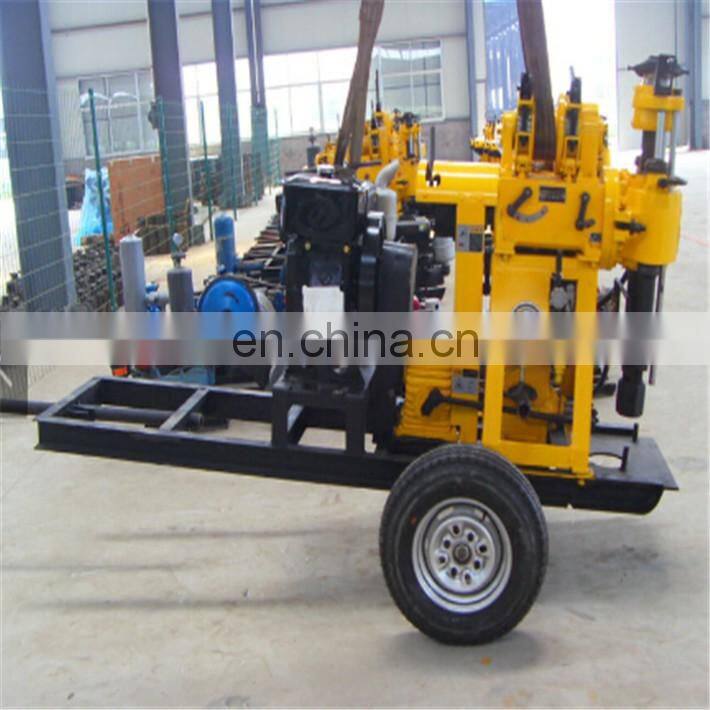

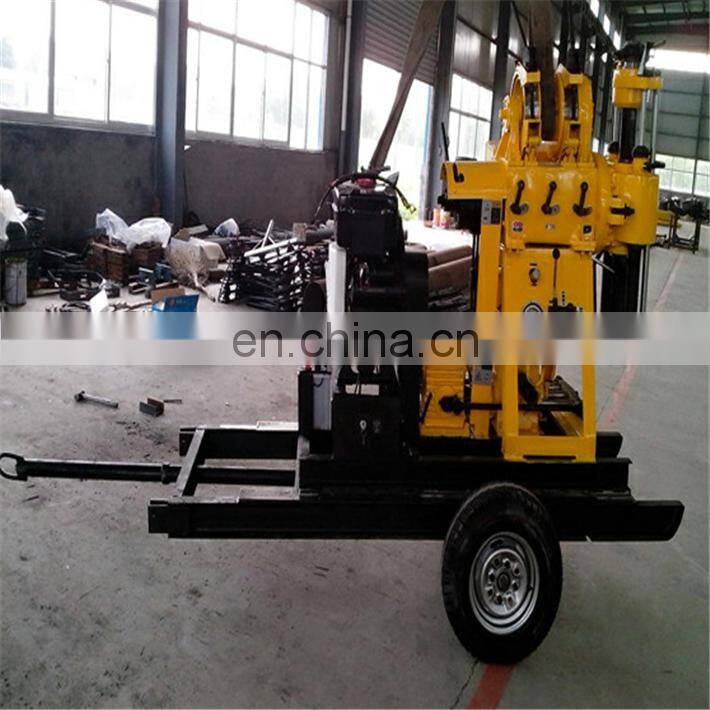

HWXY-160 /230 drilling rig with wheels


160 model and 230 model can add the wheels ,then you can moving easy

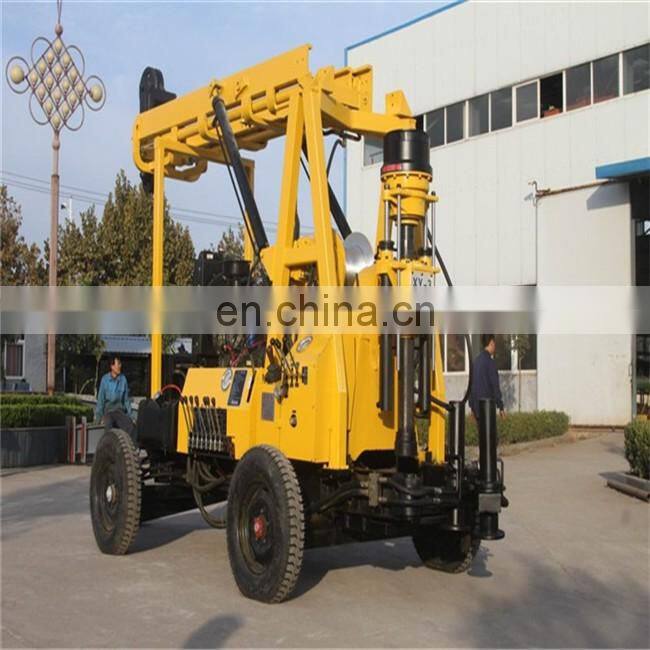

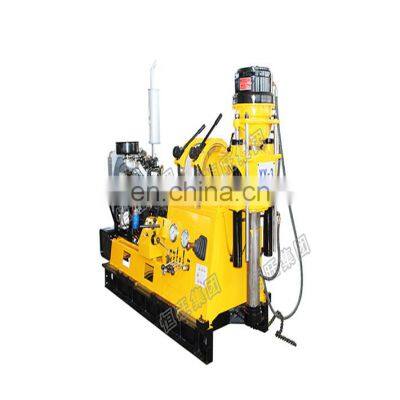

XYX-3 drilling rig with wheels and hydraulic drill mast


This model can drilling 600M ,and moving easy

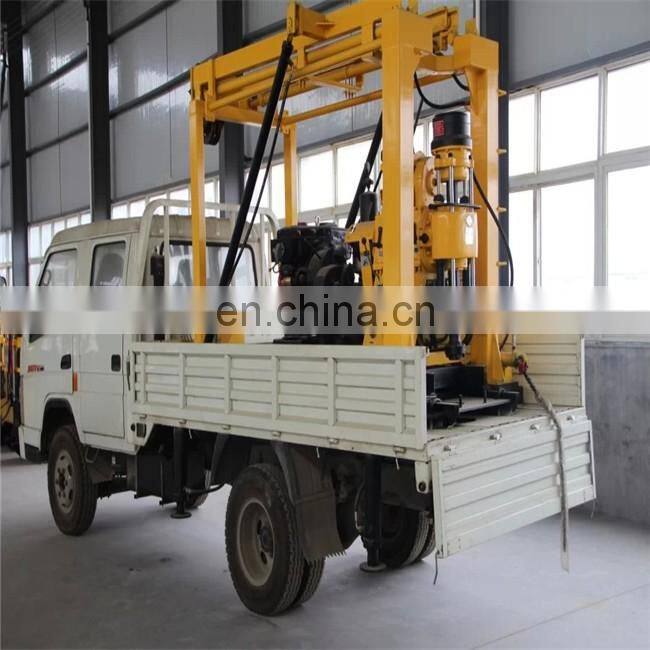

Truck mounted hydraulic drilling rig

The machine is reasonable in structure , simple in operation, convenient in maintenance and convenient in transportation and no need to lift by crane after it is transported to the site .

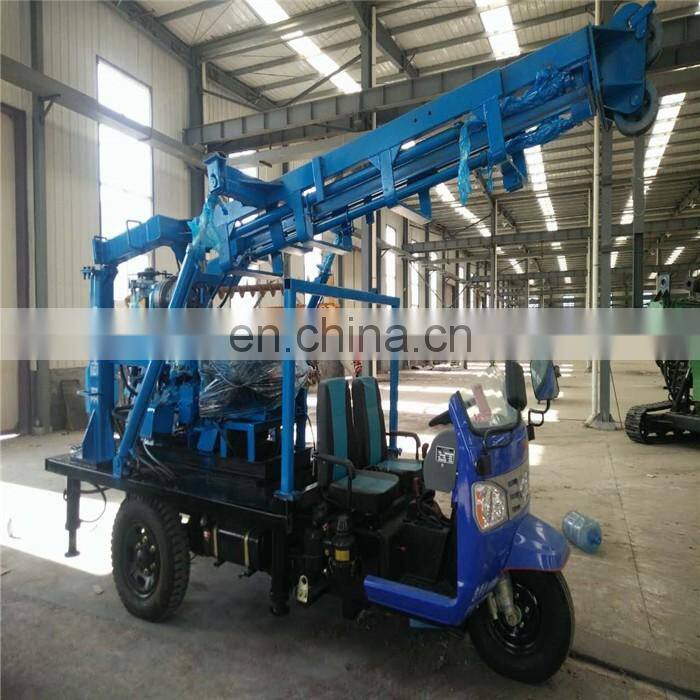

Tricycle water drilling rig

It is suitable for geological survey exploration,basic exploration of roads and high rise buildings ,various structural inspection holes on concrete , river embankments , subgrade grouting hole and direct grouting ,civil water wells and ground temperature central air conditioning.

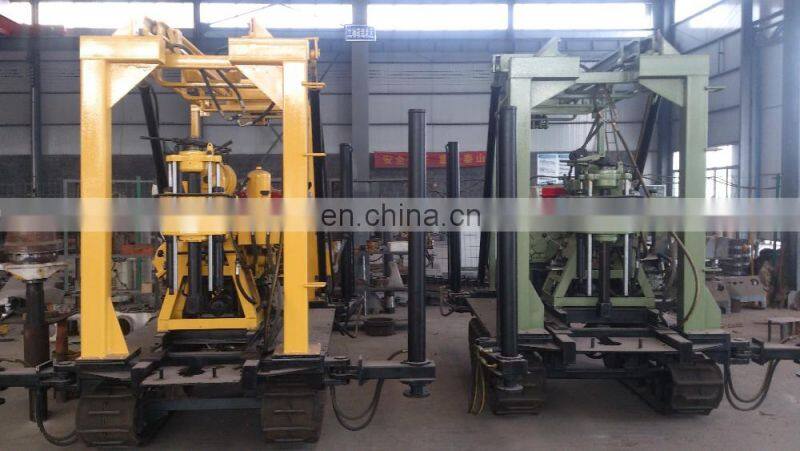

Crawler hydraulic drilling rig

This drilling rig use the automatic telescopic drilling tower , supported by two high strength cylinder and s set of hydraulic value control the drilling tower up and down .The operation saves of time and labor , safety and reliable ,to create the maximize benefits for users

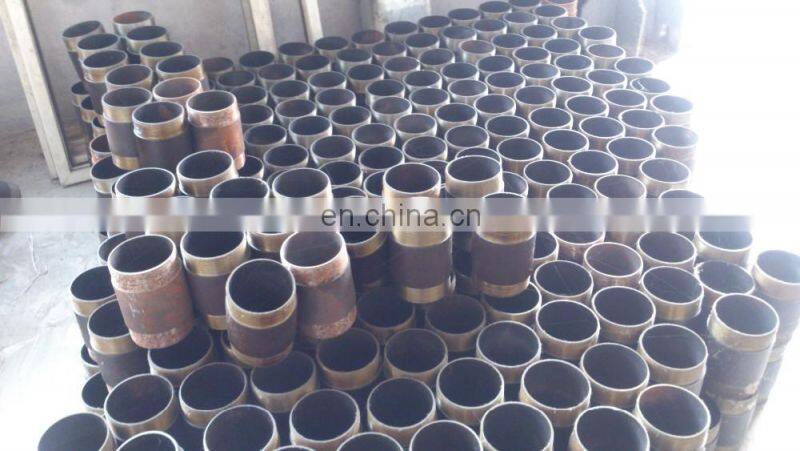

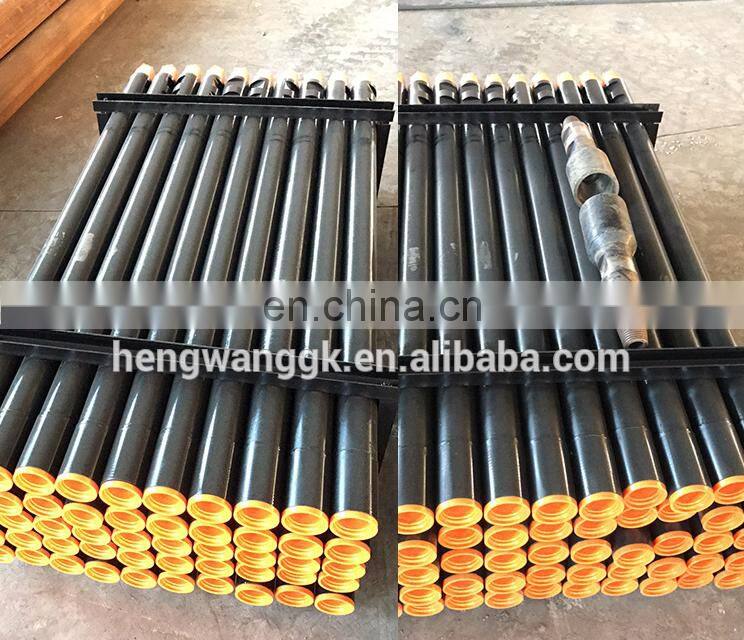

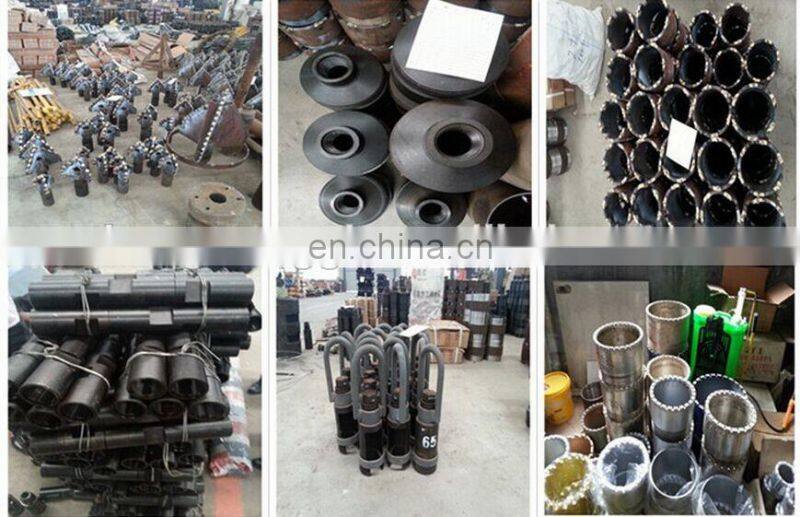

Spare parts :
