HW230 Hydraulic Geotechical /water Drilling Rig Machine Price

Shandong Hengwang Group Co., Ltd.
HW230 Hydraulic Geotechical /water Drilling Rig Machine Price thumbnail-1
HW230 Hydraulic Geotechical /water Drilling Rig Machine Price thumbnail-2
HW230 Hydraulic Geotechical /water Drilling Rig Machine Price thumbnail-3
HW230 Hydraulic Geotechical /water Drilling Rig Machine Price thumbnail-4
HW230 Hydraulic Geotechical /water Drilling Rig Machine Price thumbnail-5
HW230 Hydraulic Geotechical /water Drilling Rig Machine Price photo-1
HW230 Hydraulic Geotechical /water Drilling Rig Machine Price photo-2

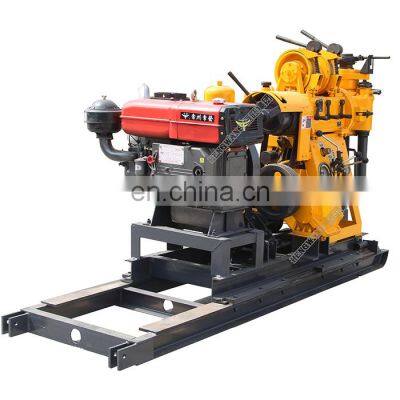

HW230 Hydraulic Geotechical /water Drilling Rig Machine Price photo-3
HW230 Hydraulic Geotechical /water Drilling Rig Machine Price photo-4
HW230 Hydraulic Geotechical /water Drilling Rig Machine Price photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
1998
Annual Export Value:
Below US$1 Million
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description

BEST QUALITY!!!BEST PRICE!!!HW-DRILLING RIG!!!!

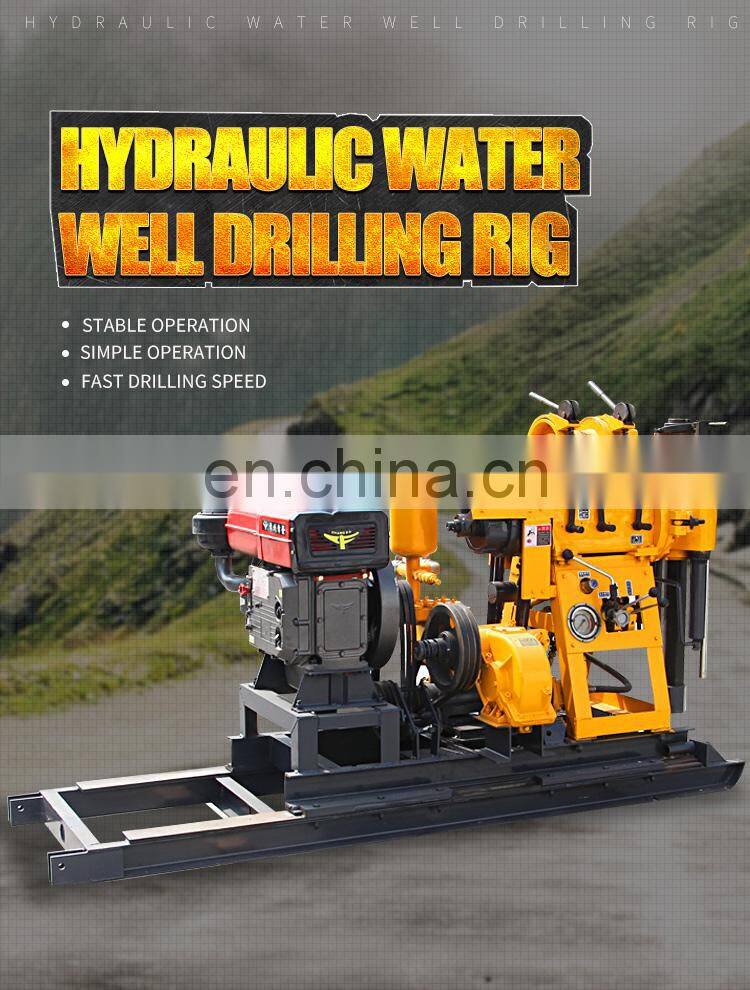

HWseries hydraulic drilling rig is a kid of widely used portable drill machine. It is uitbale for drilling water well, geological survey, geological core drilling, small grouting holes, blasting holes of railway, water conservanc, bridges, dam foundation and other buildings. According to different strata, it drills by choosing different bits, such as, diamond composite films and alloy.

Main features

1.It improves drilling efficiency and reduces labor intensity with hydraulic automatic feeding mechanism.

2.It can be achieved without stopping to change rods, easy to operate, safe and reliable with ball clip holding mechanism or hydraulic chuck.

3.It has hole bottom pressure gauge to be easy tp master the situation in the hole.

4.It also has advantage of compact structure, concentrated handle, small footprint, light weight, strong decomposition, easy to move.It can be operated in plains and mountain areas.

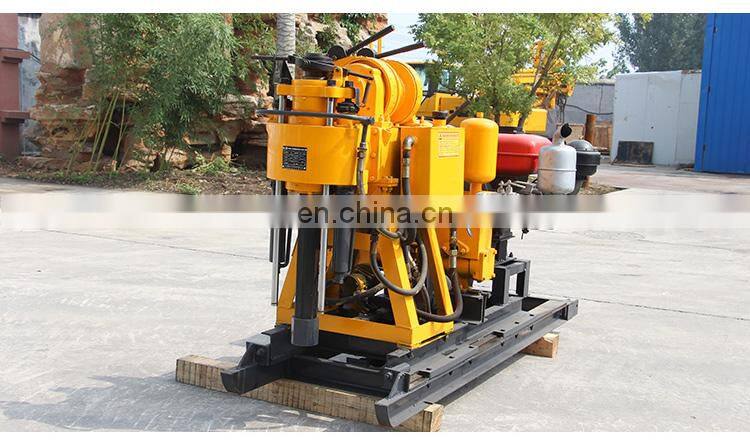

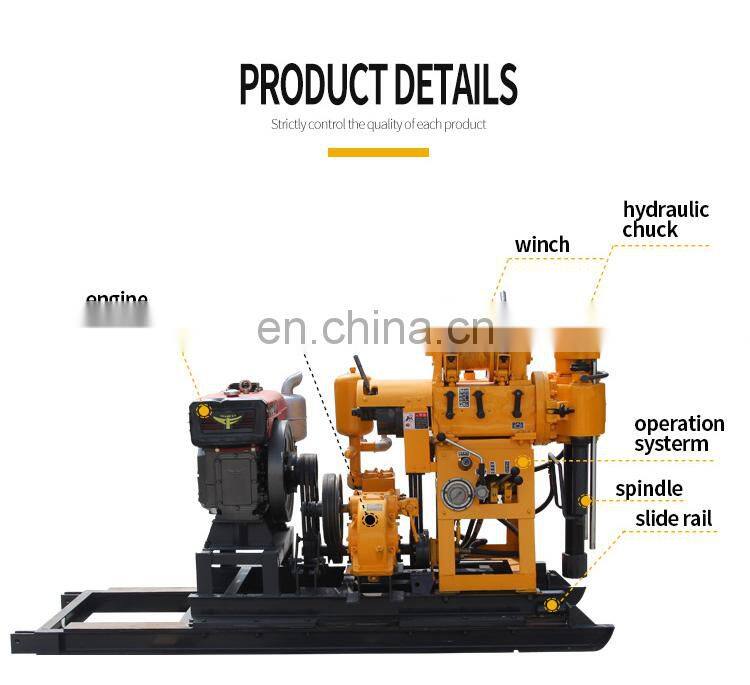

Detailed Images

There are also moving slipway type HW190YY / trailer mounted type HW190T / crawler type HW190L / tricycle type HW190S

Meet your different needs!!!!

Model
HW-230
Drilling depth
230m
Open ole dia.(Soil/Rock)
5000mm/273mm
End hole dia.
75mm
Drill rod dia.
42/50/60
Drill angle
90-75°
Matching engine power
15KW
Weight without engine
880kg
Dimension
2.7*0.9*1.5m
spindle speed
64128/287/557(r/min)
spindle stroke
450mm
Winch Single rope lift force
2500kg
Winch single rope lift speed
0.12-0.95m/s
Winch Rope dia.
12.5mm
Winch Rope capacity
35m
drill mast Rated load
18T
drill mast Effective height
6.5m
mud pump Flow
145L/Min
mud pump ure
2Mpa
mud pump back and forth frequency
93/min
Inlet hose dia.
51mm
Oulet hose dia.
32mm
Application
