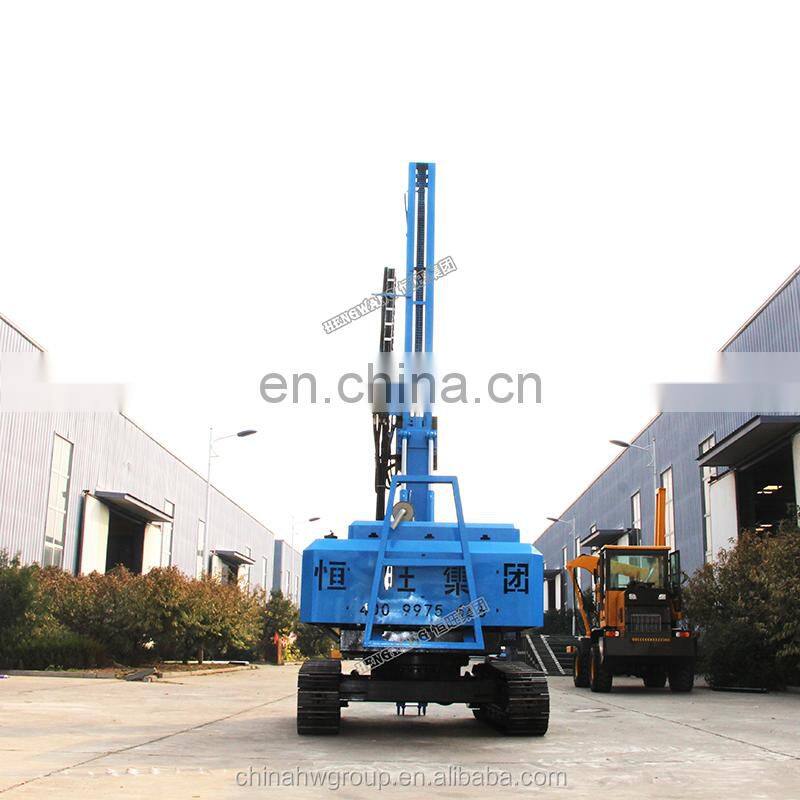

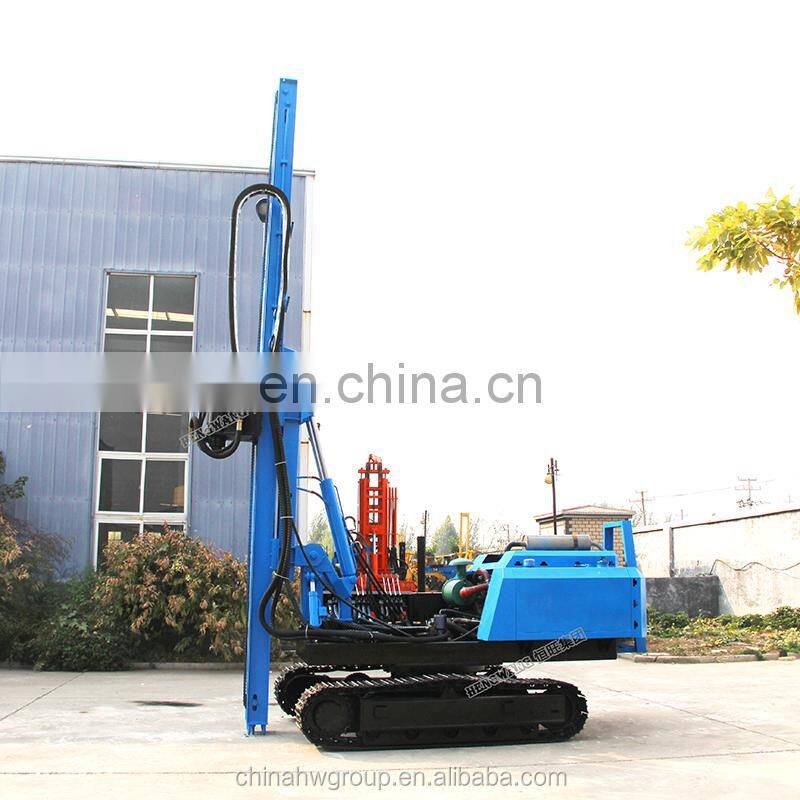

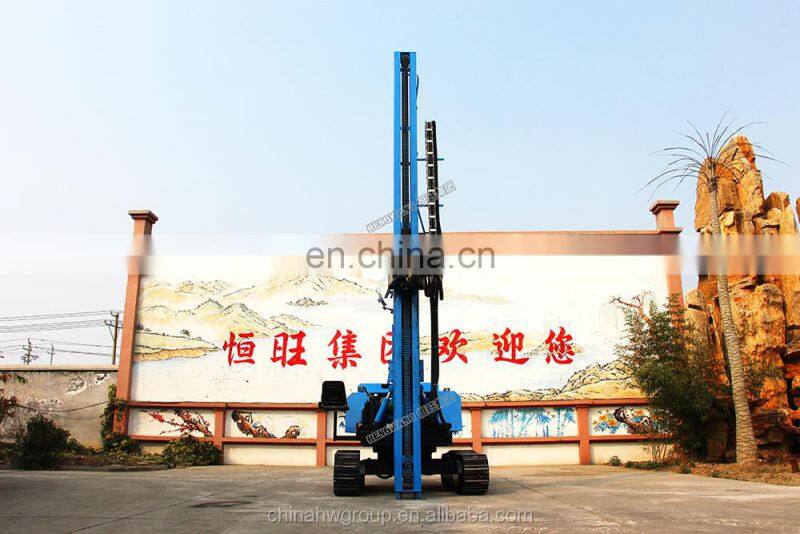

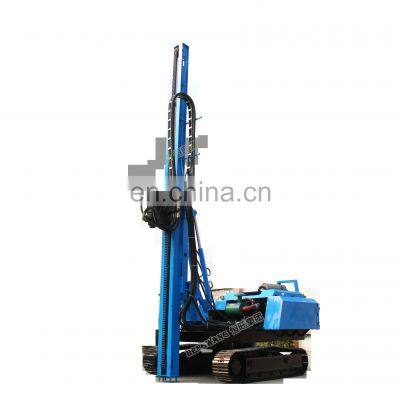

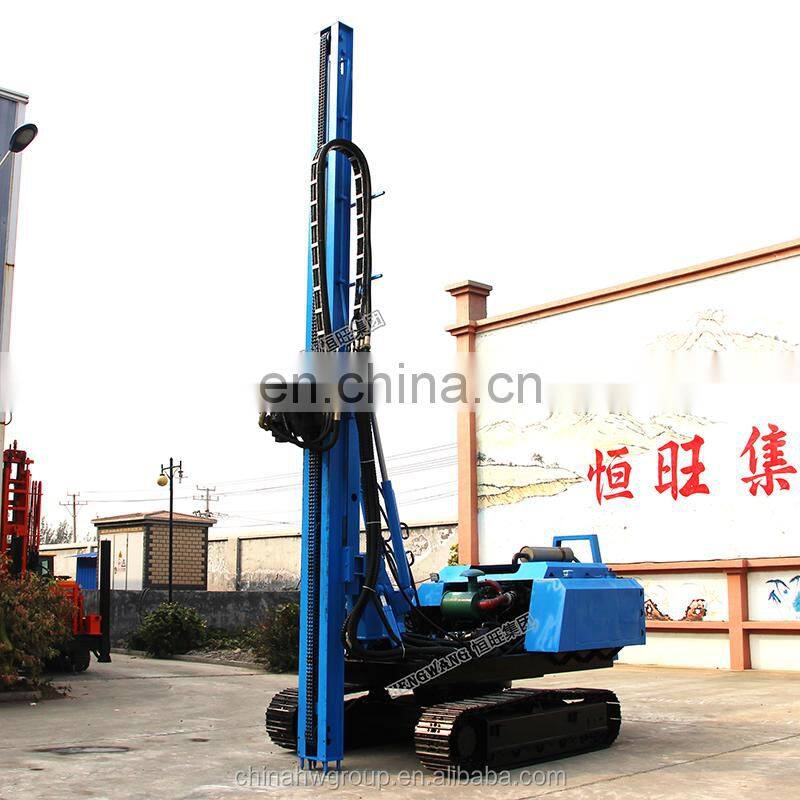

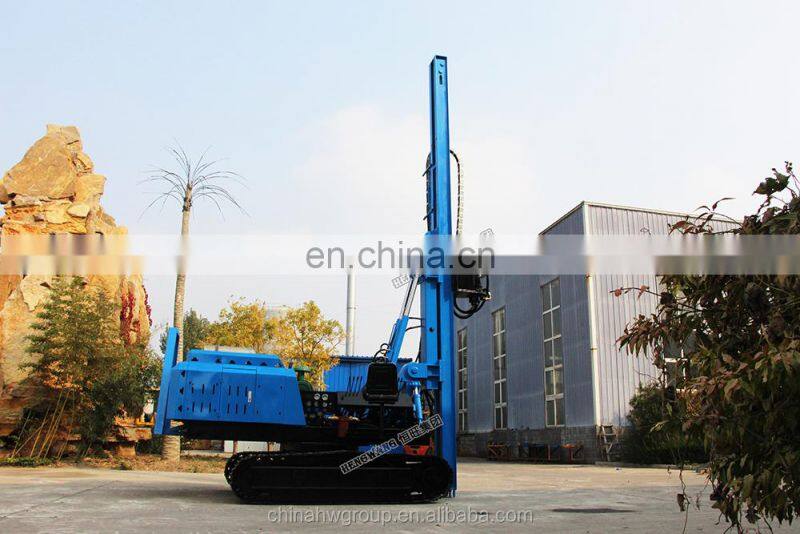

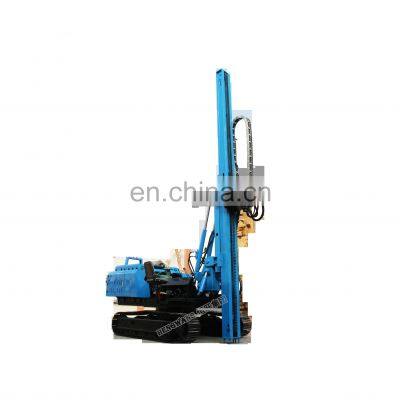

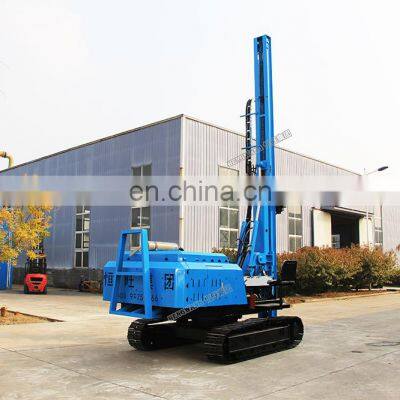

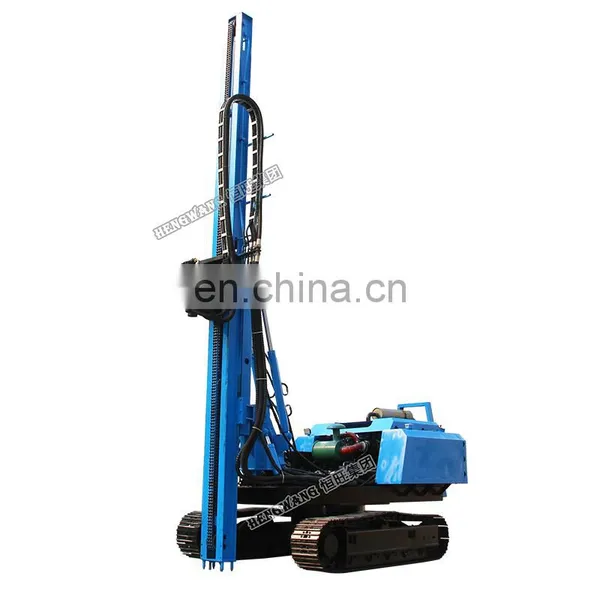

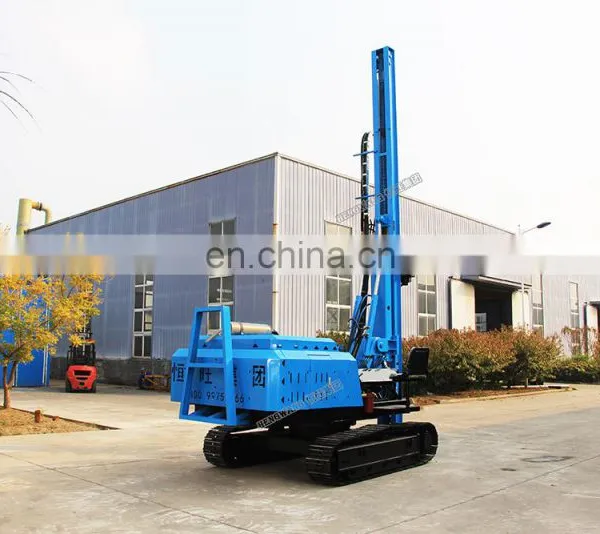

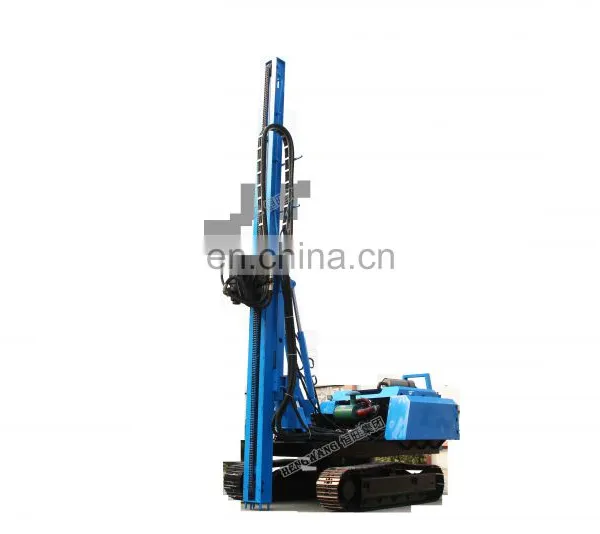

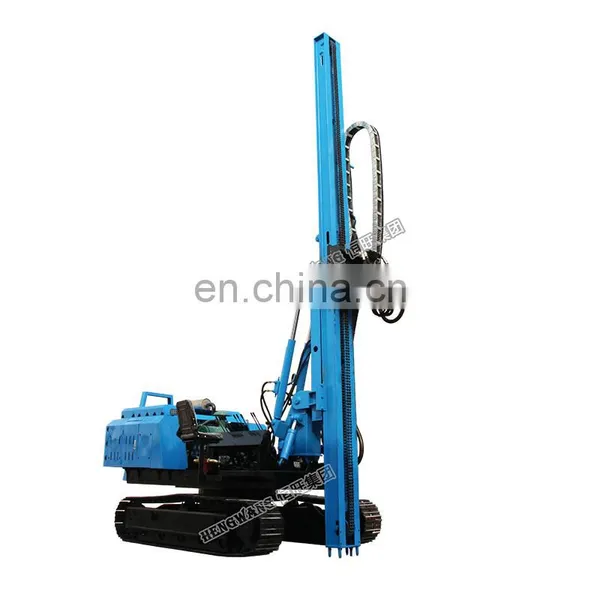

2020 HengWang Pile Driver Machine/Foundation Construction Equipment/ Solar Pile Driver
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
1998
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2020 Pile Driver for Sale Solar Pile DriverNegotiableMOQ: 1 -
Medium Excavator Loader Multi-function Loader Attachment Pile Driver Drilling Machine for SaleNegotiableMOQ: 1
-
Solar Farm Highway Guardrail Post Installation Safety Barrier Road Fence Pile Driver Machine PhotovoltaicNegotiableMOQ: 1
-
Wheeled Multifunction HWZG Hydraulic Guardrail Post Pile Driver for SaleNegotiableMOQ: 1
-
Soil Nailing Anchoring Drill Machine With Anchor Bolt Hole for HW- MXL150NegotiableMOQ: 1
Product Description
We are manufacturer welcome to visit our factory--HengWang Group!
High quality and cheap price！
High quality and cheap price！
Please kindly contact Ms Andy Whatsapp/Mobile/Wechat: +0086 17686192616

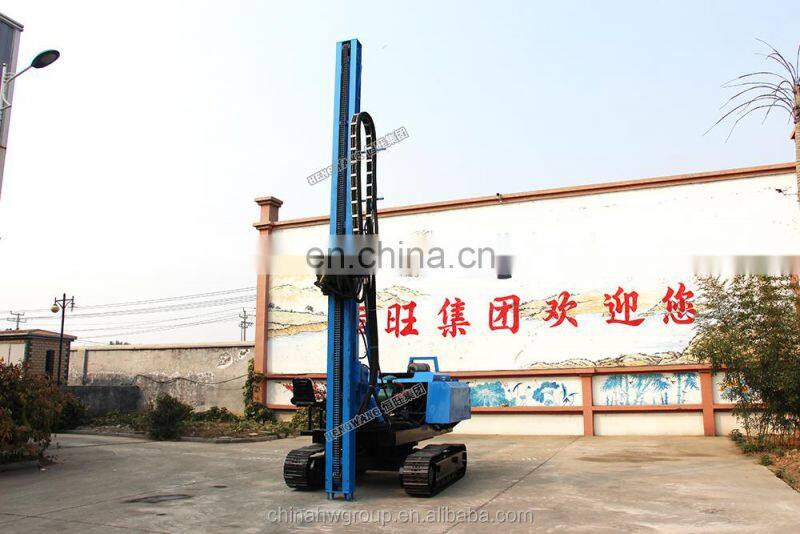

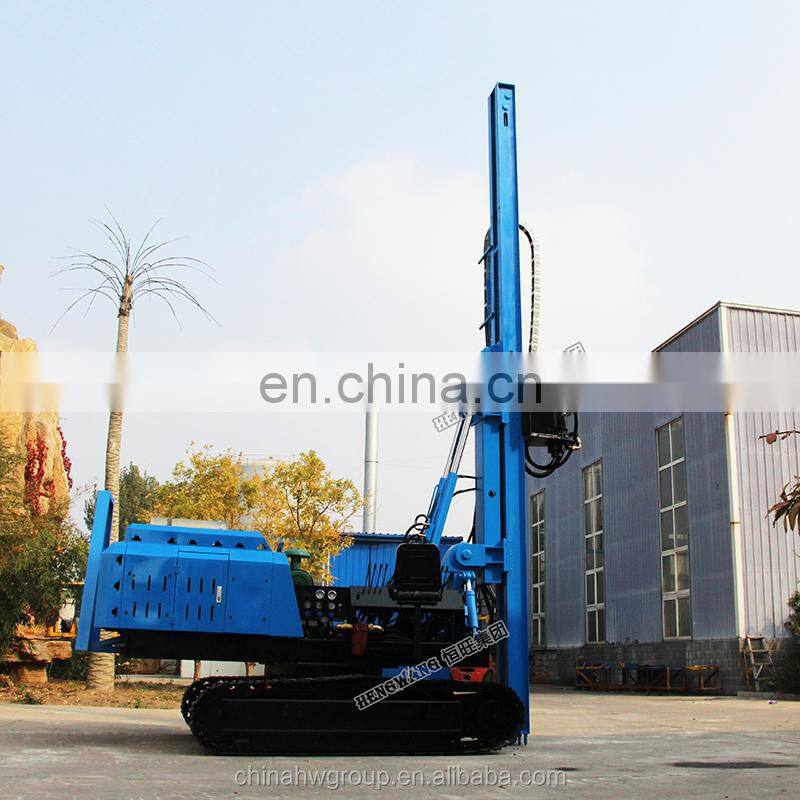

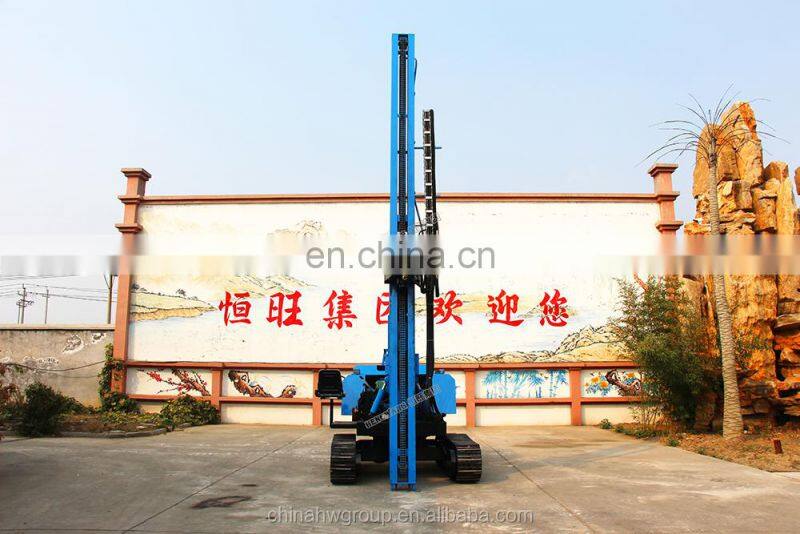

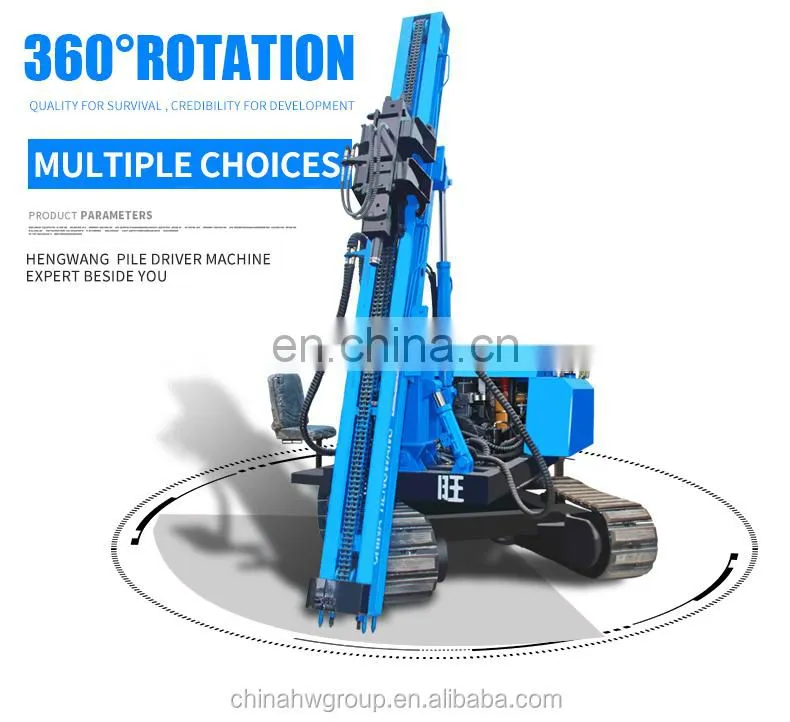

3m/4m/6m hydraulic rotary press piling machine is multifunctional pile driving machine for mine, with 360 degrees of freedom to
rotate, multi angle pile function. The machine with diesel powered, hydraulic mechanical transmission, with high efficiency,
convenient shift, multi angle multi angle pile, high precision, durable, time-saving, labor-saving and, especially for engineering
construction in the field.
Full hydraulic rotary press piling machine by R & D engineers and field service member composed of hypercoagulable cohesion,
high-quality elite team of engineers, according to the situation of equipment used in various kinds of working conditions of
practice, through constant revision and improvement to under various complex site and all kinds of soil in a state of the
equipment. Can be adapted to round pile, square pile, rectangular pile and various special-shaped pile.
QC coupled with strict detection means for the product to provide first-class quality assurance, piling machine is now is the
national quality the first, market share rate of the first brand.
rotate, multi angle pile function. The machine with diesel powered, hydraulic mechanical transmission, with high efficiency,
convenient shift, multi angle multi angle pile, high precision, durable, time-saving, labor-saving and, especially for engineering
construction in the field.
Full hydraulic rotary press piling machine by R & D engineers and field service member composed of hypercoagulable cohesion,
high-quality elite team of engineers, according to the situation of equipment used in various kinds of working conditions of
practice, through constant revision and improvement to under various complex site and all kinds of soil in a state of the
equipment. Can be adapted to round pile, square pile, rectangular pile and various special-shaped pile.
QC coupled with strict detection means for the product to provide first-class quality assurance, piling machine is now is the
national quality the first, market share rate of the first brand.
Product's Technical Parameters | ||||||||
Model | HWL600R | Remark | ||||||
Hammer impact | 780J | Joule,we can make more powrful impact as your demand | ||||||
Pile length | 0-6000 | mm | ||||||
Duplex gear pump pressure | 20 | Mpa | ||||||
Duplex gear pump displacement | 40 | ml/r | ||||||
Hydraulic system pressure | 20 | Mpa | ||||||
Main valve flow | 120 | L/Min | ||||||
Overall Machine weight | 6 | T | ||||||
Diesel engine power | 80 | KW | ||||||
Rated Speed | 2400 | R/min | ||||||
Starting Voltage | 24 | V | ||||||
Rotation angle | 360 | ° | ||||||
Rotation semi diameter(rotating shaft to Pod distance) | 1925 | MM | ||||||
Effective press pile stroke | 0-3000 | MM | ||||||
Dimension(LXWXH) | 6200×2200×2850 | MM | ||||||
Track shoe | 350 | MM | ||||||
Walking motor total displacement | 1575 | ml/m | ||||||
Walking motor rated pressure | 18 | Mpa | ||||||
Walking motor output torque | 4300 | N.M | ||||||
Walking motor rotate speed | 50 | r/min | ||||||
Press Pile Diameter | 0-600 | MM | ||||||
Drilling Depth | 0-6000 | MM | ||||||
Operating Speed (m/min) | 1.5 | 90s/per pile | ||||||
Number of impacts / strokes per 1 minute | 900 | times/min | ||||||
Maximum lengh of Piles to be rammed | 6 | M | ||||||
Walking speed | 5-10 | Km/hr | ||||||
Gradeability | 0-35 | ° | ||||||
Oil tank capacity | 200 | L | ||||||
Hydraulic tank capacity (L) | 500 | L | ||||||
Certifications
After-Sales Services

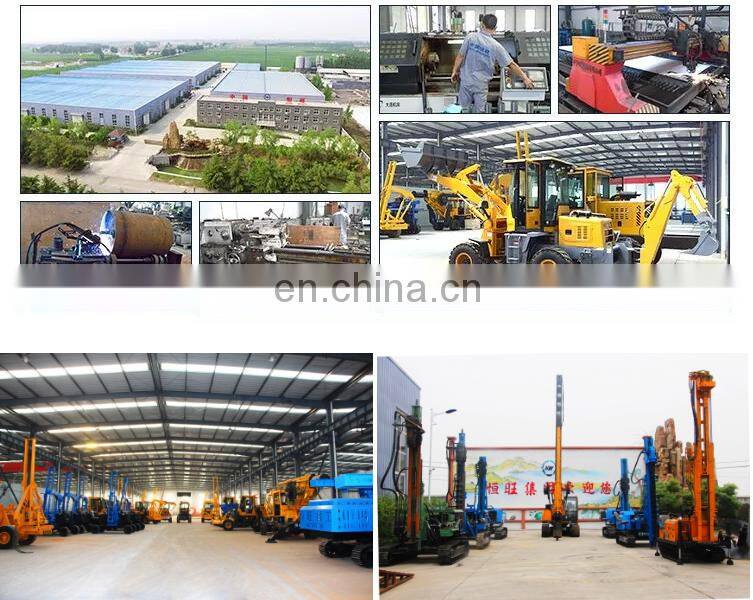

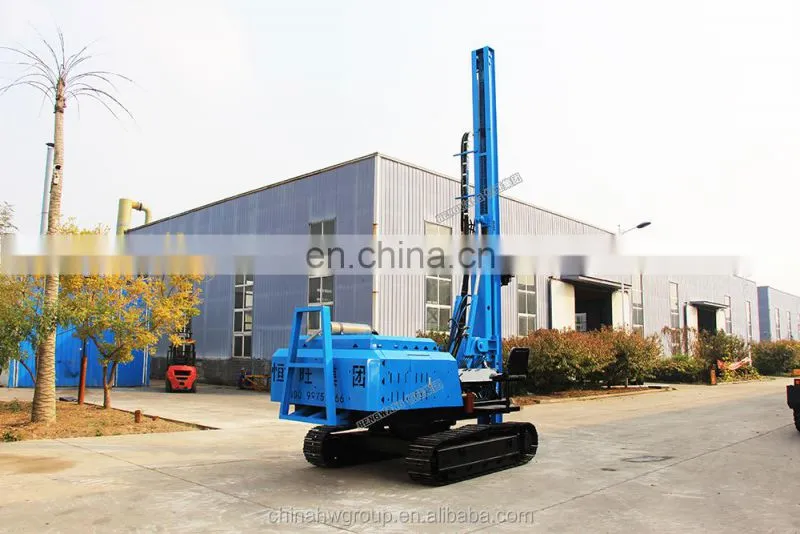

Factory
Our Team
Packing and Delivery
Exhibition
contact information：
Sales representative：
Andy Zhao
Whatsapp/Mobile/Wechat: +0086 17686192616
Email: hw020@hengwanggk.com
SHANDONG HENGWANG GROUP CO.,LTD
Website-
Andy Zhao
Whatsapp/Mobile/Wechat: +0086 17686192616
Email: hw020@hengwanggk.com
SHANDONG HENGWANG GROUP CO.,LTD
Website-
