Product Description
HWDR150L Wheel Rotary Pile Driver
Rotary drilling rig is a kind of construction machine suitable for hole formation in building foundation engineering. Mainly suitable for sandy soil, cohesive soil, silty soil and other soil construction, widely used in cast-in-situ piles, continuous walls, foundation reinforcement and other ground foundation construction. The output torque is 120 ~ 400kN • m, the maximum hole diameter can reach 1.5 ~ 4m, and the maximum hole depth is 60 ~ 90m, which can meet the requirements of various large foundation constructions.
Rotary drilling rig is a kind of construction machine suitable for hole formation in building foundation engineering. Mainly suitable for sandy soil, cohesive soil, silty soil and other soil construction, widely used in cast-in-situ piles, continuous walls, foundation reinforcement and other ground foundation construction. The output torque is 120 ~ 400kN • m, the maximum hole diameter can reach 1.5 ~ 4m, and the maximum hole depth is 60 ~ 90m, which can meet the requirements of various large foundation constructions.

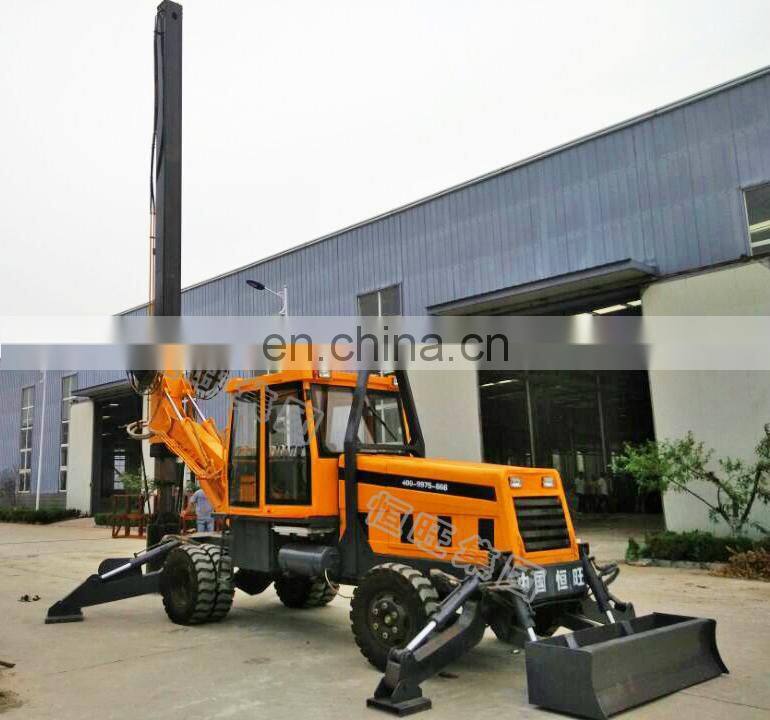

Large hole drilling wheeled rotary screw pile driver
The feature for our rotary pile driver :
1. It is economical and efficient, mainly used in media and small-diameter pile civil construction
3. 5-level anti-vibration technology absorbs drilling vibrational frequency all-directionally to guarantee high stability;
4. The special lubricating system makes sure that it can work under high-temperature environment;
5. The removable and symmetrical structure design doubles the service life of rotary drive;
6. Crowd cylinder has two operation modes-normal lifting and fast lifting to improve push efficiency;
7. Optional chassis incline alarm enhances construction safety;
8. Mast verticality auto-adjusting technology promises the pile accuracy.
2. Diesel engine has load induction and output power auto-control; the fuel consumption drops 5-10%;
3. 5-level anti-vibration technology absorbs drilling vibrational frequency all-directionally to guarantee high stability;
4. The special lubricating system makes sure that it can work under high-temperature environment;
5. The removable and symmetrical structure design doubles the service life of rotary drive;
6. Crowd cylinder has two operation modes-normal lifting and fast lifting to improve push efficiency;
7. Optional chassis incline alarm enhances construction safety;
8. Mast verticality auto-adjusting technology promises the pile accuracy.
Technical Parameters
Technical data for Hengwang wheel rotary drilling rig/pile driver | ||||||||
Model | HWDR150L | |||||||
Engine | Weichai(Weifang diesel engine) 6105 | |||||||
Power | 125KW | |||||||
Gear pump | CBJT2080 | |||||||
Drilling Diameter | Max.2000mm | |||||||
Max. Drilling Depth | 15m | |||||||
Power head | 125 | |||||||
Transmission | 140 | |||||||
Lifting capacity | 4-5T | |||||||
scaling rod | 40/16 | |||||||
Whole Machine weight | 9000KGS | |||||||
Overal Dimension | 8700mm*2300mm*3200mm | |||||||
Rotary angle/ Big arm | 180° | |||||||
Fuel consumption | 8-10L/h | |||||||
Travel speed | 50Km/h | |||||||
Hydraulic system working pressure | 20-25Mpa | |||||||
Displacement | 80ml/r | |||||||
Tyre size | 900-20 | |||||||
Front and rear axle | Dongfeng 140 | |||||||
Pressure mode | Double cylinder pressurization | |||||||
distance between shafts | 3250mm | |||||||
The wheel base | Front 1600mm rear 1260mm | |||||||

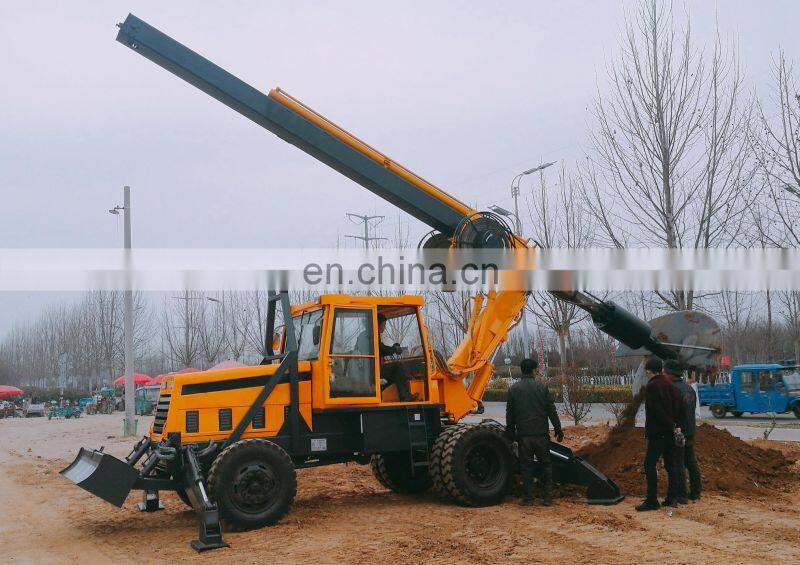

Large hole drilling wheeled rotary screw pile driver
Detailed Images

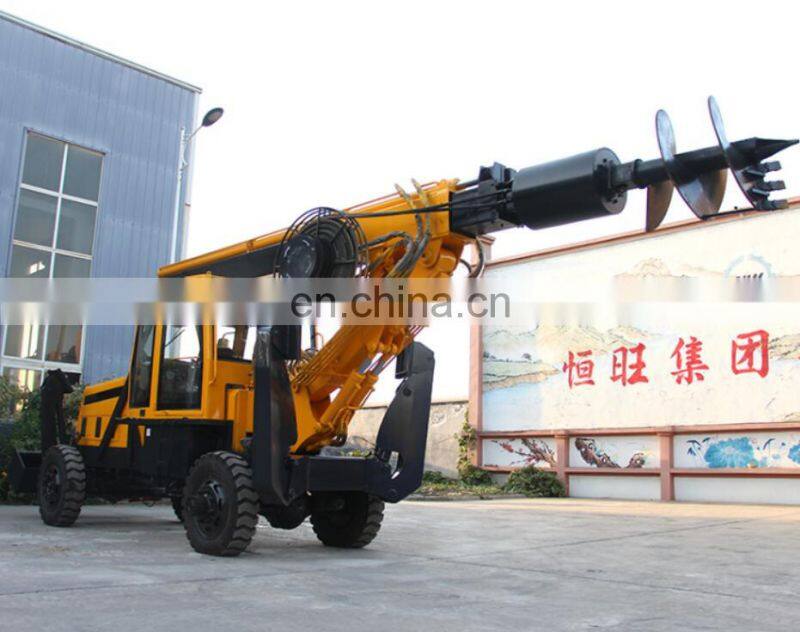

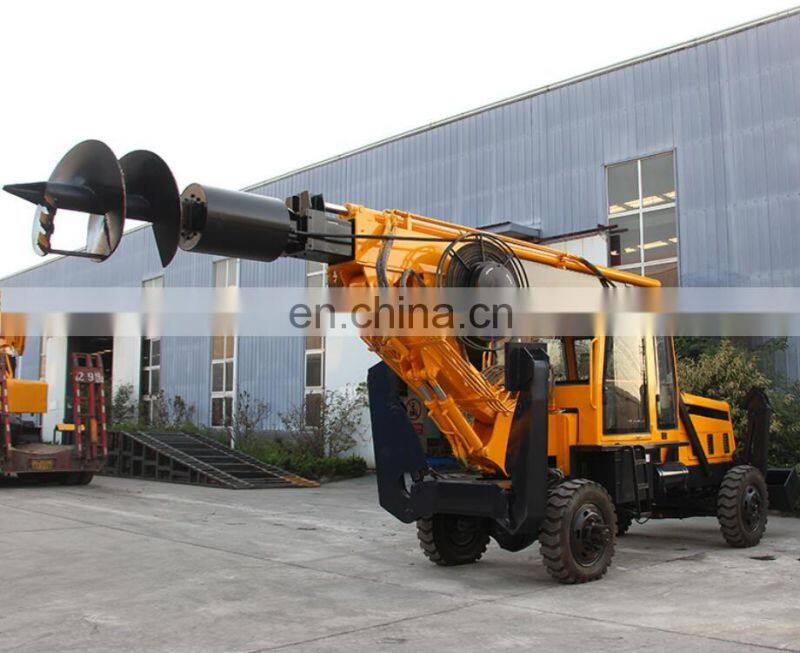

Large hole drilling wheeled rotary screw pile driver
Manufacturing Technique
Customer feedback

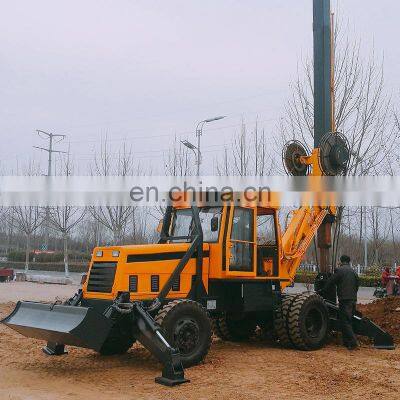

Large hole drilling wheeled rotary screw pile driver
Company Introduction
Large hole drilling wheeled rotary screw pile driver
