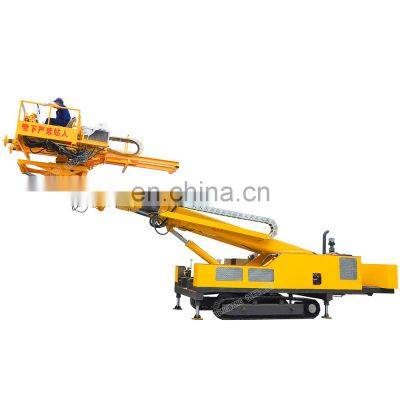

12m High Altitude Crawler-type Anchor Drilling Machine photo-4
12m High Altitude Crawler-type Anchor Drilling Machine photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
1998
Annual Export Value:
Below US$1 Million
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

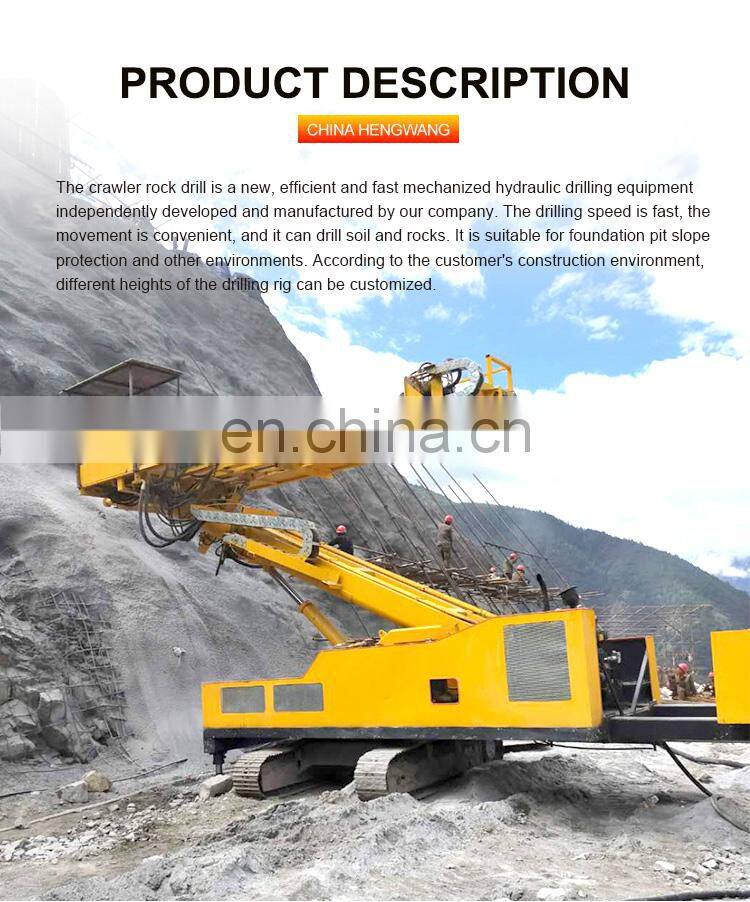

Product Description

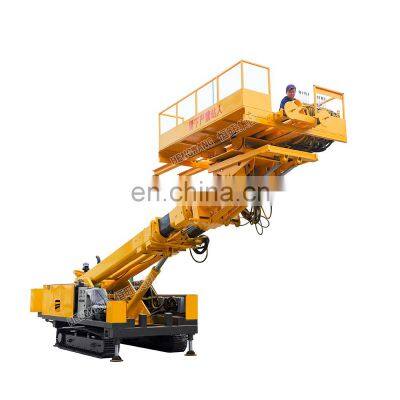

12m high altitude crawler-type anchor drilling machine

Hengwang high anchor drilling machine from 6m to 20m height, max. depth can be 50m

Anchor drlling rig, in some places, ,is also known as anchor rod drilling machine. This hydraulic anchor drill machine. is a kind of necessary, .engineering machinery in infrastructural project. lt is a drilling tool in coal mine roadway for supporting anchor rod.

It has outstanding advantages, such as automatic drilling experience, improving supporting effect, reducing the cost,speeding up the lane, lessening auxiliary traffic, decreasing labor intensity, increasing the utilization rate, of roadway section. Anchor drilling rig is the key equipment to rock bolting. If influences the quality of bolt support, such as the orientation of the bolt hole, the depth' accuracy, the diameter and anchor installation quality. It also affects the personal safety of the operator, labor intensity, work conditions etc.

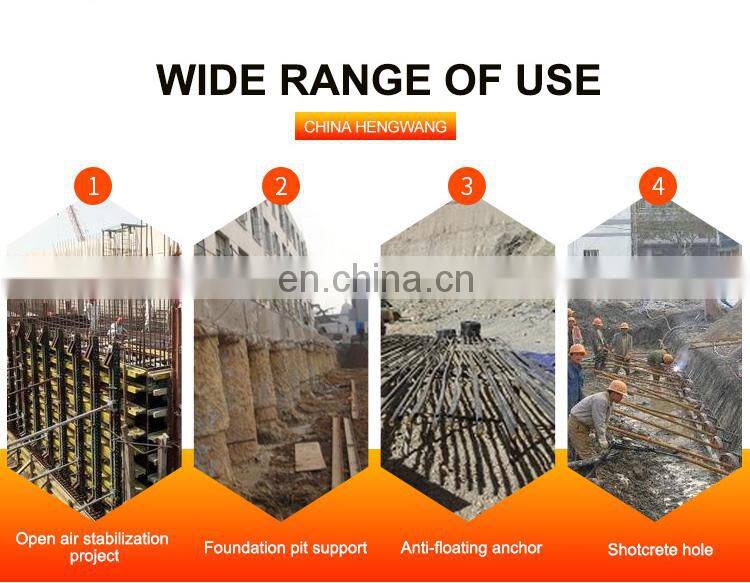

Range of use
Technical Parameters
12m high altitude crawler-type anchor drilling machine
Model
HWM6
HWM8
HWM10
HWM12
HWM15
HWM20
Crawler size
3000*2200mm
3000*2200mm
3200*2300
3200*2300
4600*2800
4600*2800
Crawler width
400mm
400mm
400mm
400mm
600
600
Rotation
360°
360°
360°
360°
360°
360°
Big arm
2 big arms and 2 sections
2 big arms and 3 sections
Power head type

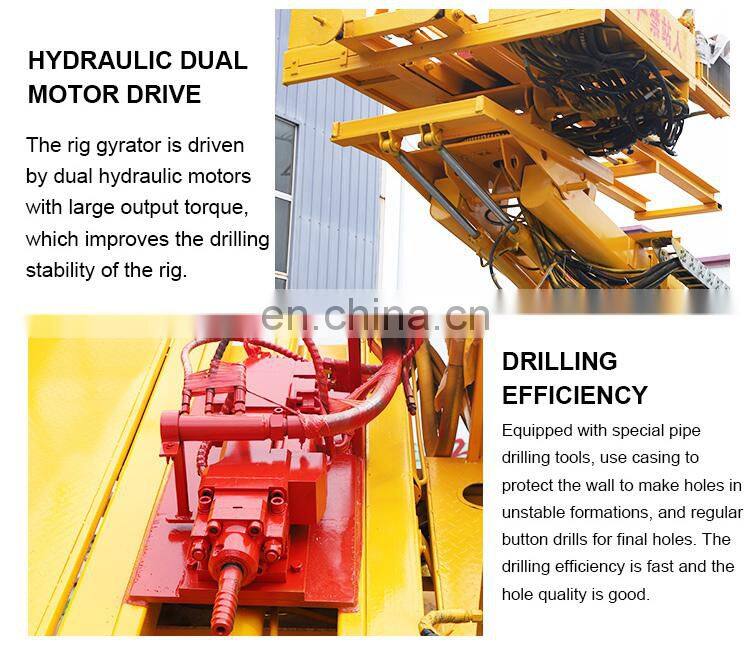

Double motor hydraulic reducer
Electric motor
45KW
45KW
45KW
45KW
45KW
45KW
Reducer torque
4500N.m
4500-7000N.m
5000-7000N.m
5000-7000N.m
Drilling hole angel
Vertical, horizontal, inclined
Oil pump
50/50
50/50
63/63
63/63
63/63
63/63
Pressure of pump
16.5Mpa
16.5Mpa
25Mpa
25Mpa
25Mpa
25Mpa
Drillling diameter
0-150mm
0-150mm
0-250mm
0-300mm
0-200mm
0-200mm
Drilling depth
0-20m
0-20m
0-40m
0-40m
0-50m
0-50m
Diesel engine
4105 turbocharged
4105 turbocharged
4105 turbocharged
6105turbocharged
6105turbocharged
6105turbocharged
Hydraulic radiator
Enlarged dual fan
Hydraulic leg
2
4
4
4
6
6
Rear balancer
stretching 1 m
stretching 1 m
stretching 1 m
stretching 1 m
1m
1m

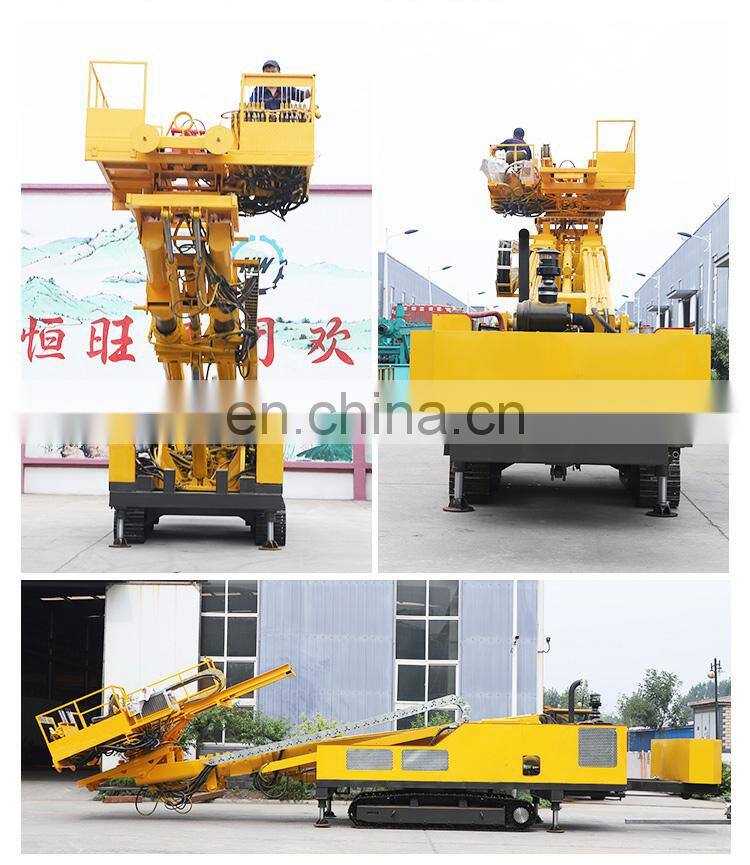

Details Photo
12m high altitude crawler-type anchor drilling machine
