Drilling Depth 450 Meter Crawler Mine Pneumatic Rotary Water Well Drilling Rig Machine Prices For Sale

Drilling Depth 450 Meter Crawler Mine Pneumatic Rotary Water Well Drilling Rig Machine Prices For Sale photo-1
Drilling Depth 450 Meter Crawler Mine Pneumatic Rotary Water Well Drilling Rig Machine Prices For Sale photo-2
Drilling Depth 450 Meter Crawler Mine Pneumatic Rotary Water Well Drilling Rig Machine Prices For Sale photo-3
Drilling Depth 450 Meter Crawler Mine Pneumatic Rotary Water Well Drilling Rig Machine Prices For Sale photo-4
Drilling Depth 450 Meter Crawler Mine Pneumatic Rotary Water Well Drilling Rig Machine Prices For Sale photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
1998
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
To Customers
1. We are factory in Construction Machines for more than 10 years with CE, ISO, BV, TUV.
2. Machine could be equipped with EPA engine;
3. Specialized After-Sales Service Team for 24h aborad site serving;
4. 3 Overseas Spare Parts Center, gurantee the sufficent spare parts locally.
Product description
Hard rock mining water well drilling rig blasting hole 300m 400m well drilling rig machine

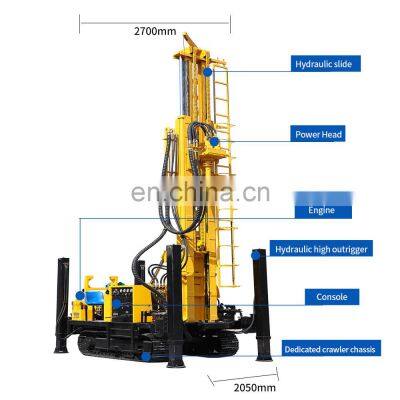

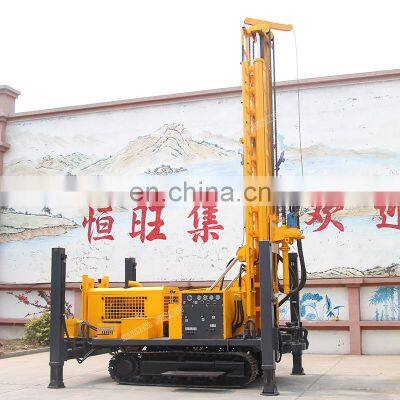

HQZ-450L Pneumatic Drill Rig
Drilling depth: 450m
Drilling diameter: 130-400mm

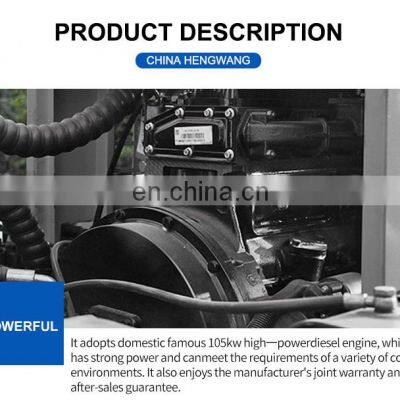

Engine Power: 105Kw
Technical Parameters
The technical parameters of Hard rock mining water well drilling rig blasting hole 300m 400m well drilling rig machine
Model
HQZ-450L
Total Weight(T )
8/10
Dimensions(mm )
5300*2050*2700
Drilling Diameter(mm)
130-400
Drilling Depth(m)
450
One-time Advance Length of the Drill(mm)
3000/6000
Walking Speed(km/h)
6
Climbing Ability(max )
25
Min.Ground Clearance(mm )
300
Working Air Pressure(Mpa )
1.7-3.5
Air Consumption(m3 /min )
17-35
Main Power(kw)
110KW  / 6 cylinder
Rotation(rpm)
45-75
Rotary Torque(N.m )
9000-10000
Product Details

Swivel for water well drilling rigs deep portable penumatic exploration drilling rig

Top drive rotary drilling: easy to install and remove the drill rod, shorten the auxiliary time, and fasten the drilling of
follow-pipe.
Multi-function drilling: A variety of drilling processes can be used on this rig, such as: DTH drilling, mud drilling, roller cone
drilling, drilling with the follow-pipe and the being developed core drilling, etc. This drilling machine can be installed,
according to user needs, mud pump, generator, welding machine, cutting machine. Meanwhile, it also comes standard with a variety of winch.
Packing and Shipping
Hard rock mining water well drilling rig blasting hole 300m 400m well drilling rig machine
