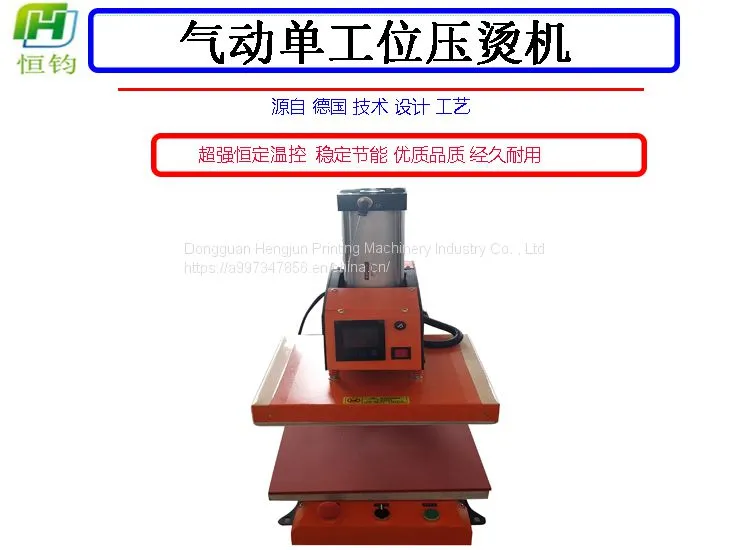

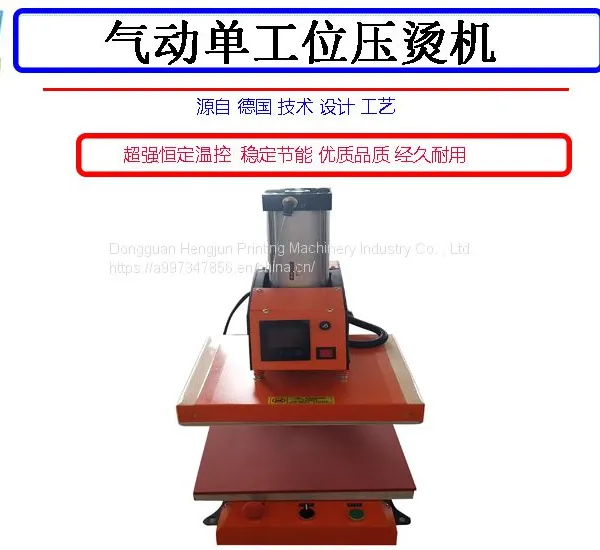

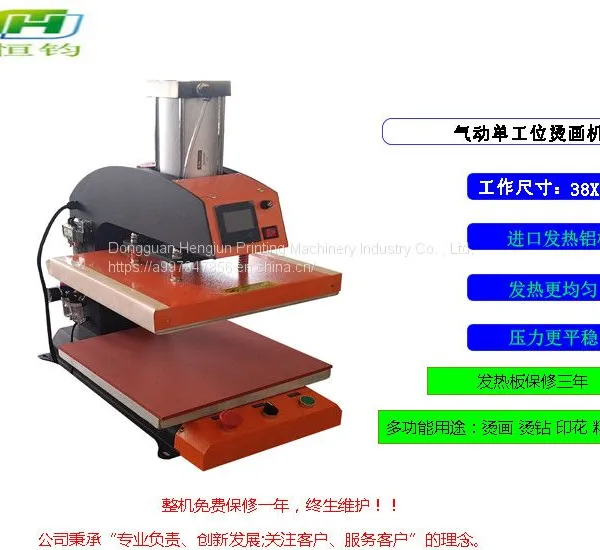

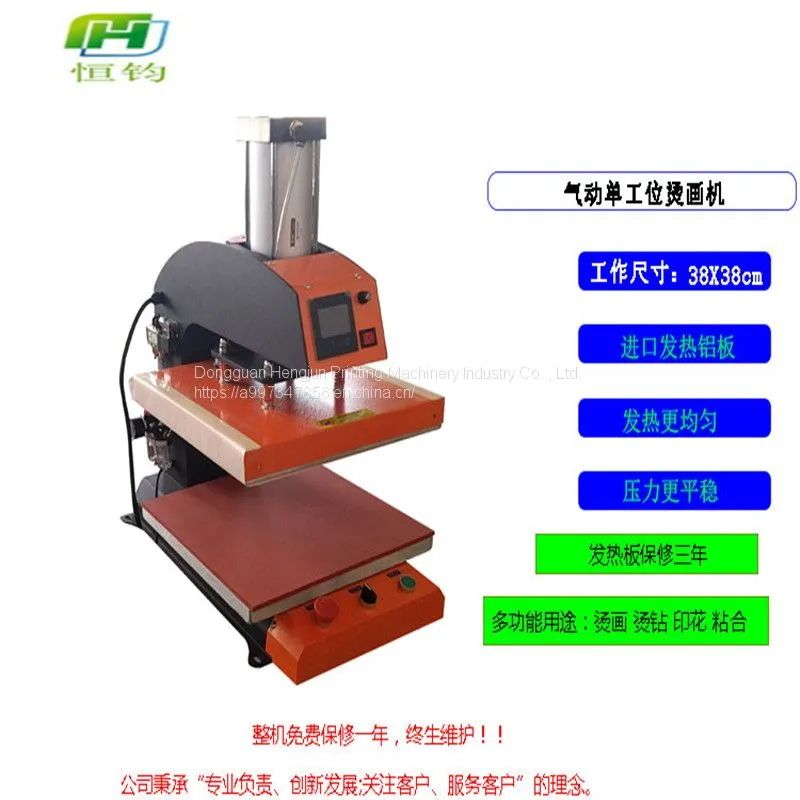

Pneumatic single position T-shirt ironing drill single position clothing printing machine small hengjun digital ironing machine

Pneumatic single position T-shirt ironing drill single position clothing printing machine small hengjun digital ironing machine

This machine can be a variety of hot drilling, pyrograph (including color printing on the thermal transfer paper pattern) by thermal transfer, hot on the fabrics such as cotton, hemp, chemical fiber, but also for silk screen printing, mucilage, foaming process such as heat treatment, can also be labelled color color, portrait, landscape pattern such as baked on the porcelain plate, plate, especially suitable for making MEDALS, commemorative ZhengPai, tombstone, t-shirts, etc., Economical and practical.

Features:

Energy saving: according to the small logo design, save energy consumption, easy to use;

High efficiency: with foot switch, cylinder brake working speed;

* * *; Temperature and time integrated intelligent control, according to the temperature feedback value can intelligently adjust the internal parameters, the control is more accurate;

Brand: the whole machine is manufactured by the national standard brand raw materials, chip electronic and electrical components are also adopted by the first domestic manufacturers of the first, the whole machine can pass the relevant departments of detection, can be safe export.

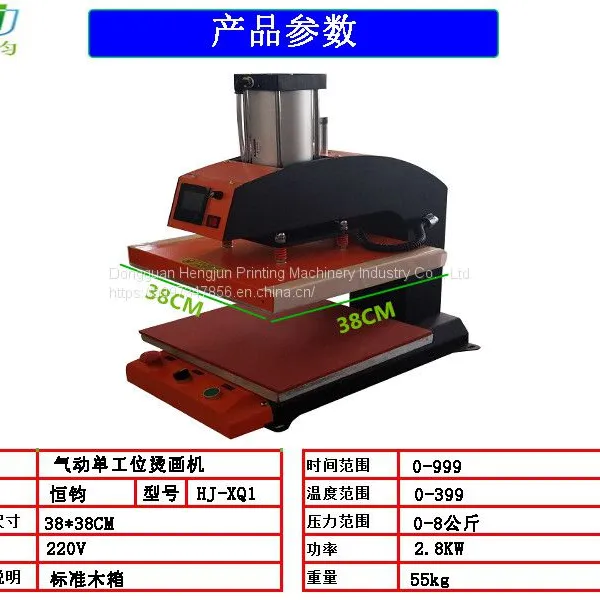

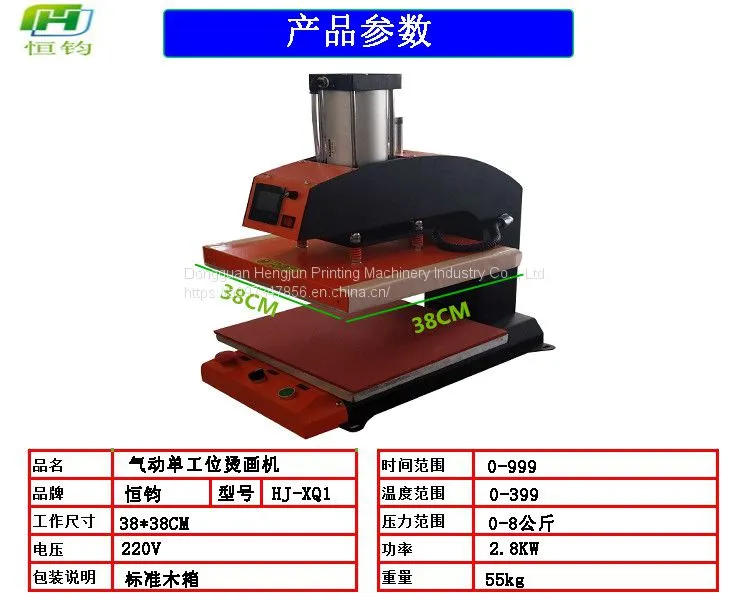

Temperature range 0-399 °C

Time range 0-999sec

Power 1200 w to 600 w

Voltage 110 v / 220 v

Machine weight 50kg 45kg

Packing size 41*62*90cm 41*62*90cm

Volume 0.23 square 0.23 square

Working size 23*30cm 15*15cm>>

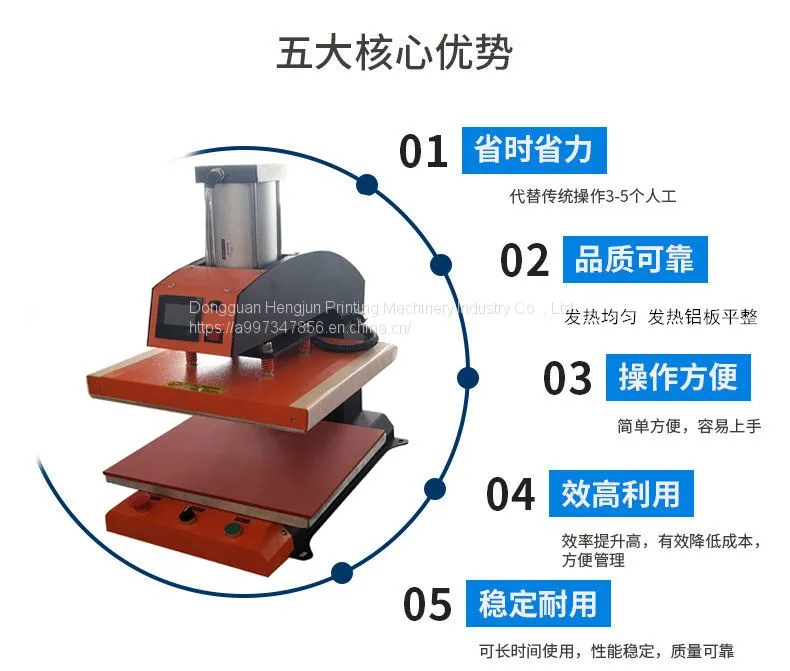

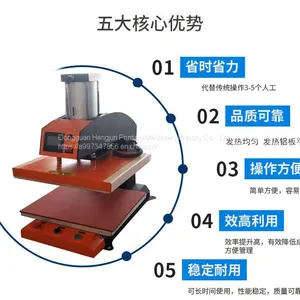

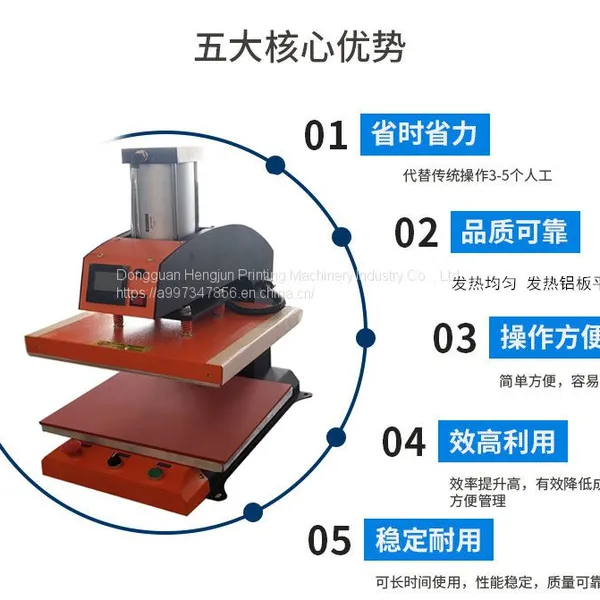

Product features:

1. High efficiency: air driven, fast working speed, perfect performance. Press the "hand start switch" button on both sides at the same time, the heating plate will be automatically pressed down and automatically lifted after the process is completed.

2. Safety: the original "foot switch" is improved to double "hand start button", making your operation more accurate.

3.*** : 2-in-1 intelligent LED display temperature and time, higher accuracy;

4. Worry less: signal indicating process completion, automatic ***, work alarm, heating plate automatically lift, more worry about operation

5. Excellent quality: heating tube and heating plate injection into one, short heating time, safe, accurate, uniform temperature, suitable for factory assembly line. Heating plate peptide fluorinated anti-stick coating, long service life, easy to clean;

* * * 6. Solid: streamlined appearance design, new style exquisitely deft, machine appearance more beautiful, more convenient operation, the machine structure is more stable.

7.*** ironing machine with counter, convenient for you to statistics data, is conducive to factory assembly line mass production. Our factory all equipment can be customized according to need, welcome to consult and negotiate.

1. Pressure: if the pressure is not enough or too large, adjust the pressure regulating handle above the pressure transition device, the pressure increases clockwise, and the pressure decreases on the contrary.

2 time: when the hot stamping time and the machine can not automatically rise, then:

1) Check whether the air pressure is normal.

2) Whether the electrical wiring is damaged.

3. Temperature: When the set temperature indicator is off, if the power indicator is on and the heating plate is not hot, please check the circuit.

1. Sublimation lithography -- Temperature :220℃, time :20 seconds

2. Film bronzing -- temperature :160~180℃, time :8~10 seconds

3. Foaming hot stamping -- temperature :140~160℃, time :5~8 seconds

4. Hot drilling - temperature :180℃, time :10~12 seconds
