Bs 215 Wolf Acsr Stranded Hda Types Of Acsr Conductor Prices Aluminum Conductor Overhead Medium Voltage Power Cable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Description

bs 215 wolf acsr stranded HDA types of acsr conductor prices aluminum conductor overhead medium voltage power cable

Products Description

1. Applications:

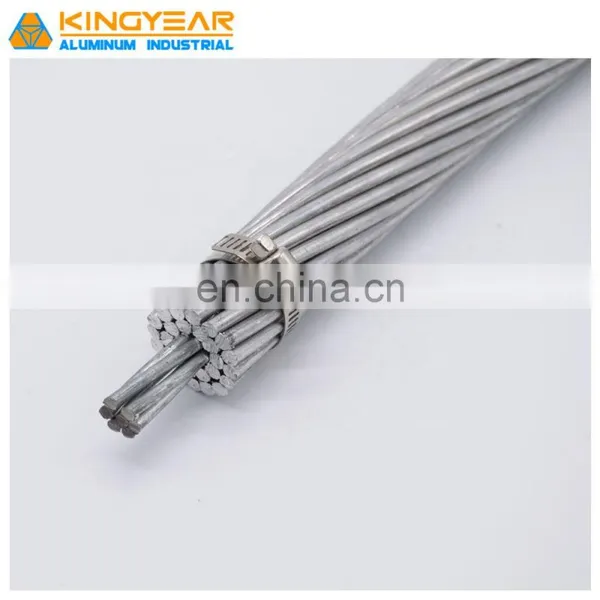

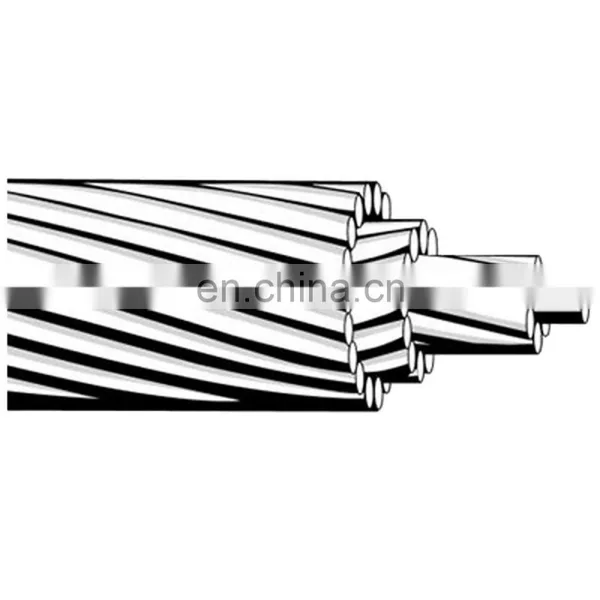

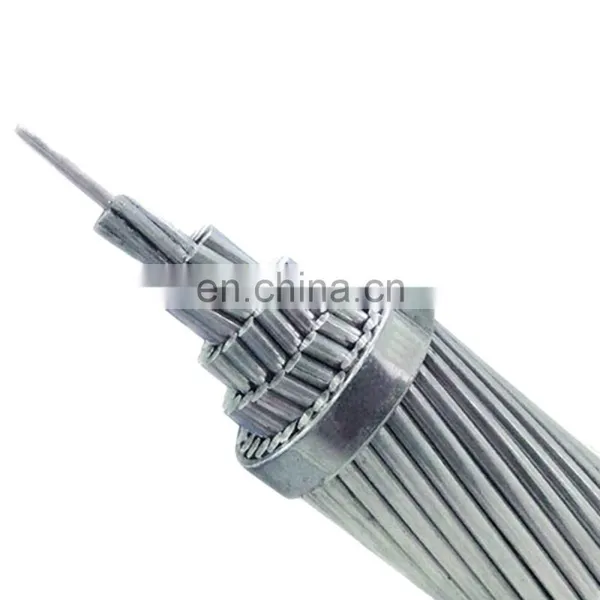

ACSR conductors are formed by several wires of aluminium and galvanized steel, stranded in concentric layers. The wire or wires which form the core, are made of galvanized steel and the external layer or layers, are of aluminium. Galvanized steel core consist normally of 1, 7 or 19 wires. Aluminum 1350 wires and the steel cores are concentrically stranded and wrapped helically around a central wire. The additional corrosion protection is available through the application of grease to the cores or infusion of the complete cable with grease.

2. Standard:
IEC61089, BS 215, ASTM B232, CSA C49, DIN48204, JIS C3110

3. Construction (Aluminum/Steel):

6/1, 7/1, 8/1, 12/7, 16/19, 24/7, 26/7, 30/7, 30/19, 36/1, 45/7, 54/7, 30/19, 72/7, 76/19, 84/196.

4. Galvanization:

Class A, B or C.

The technical data of ACSR(Aluminum Conductor Steel Reinforced) Bare Conductor Cable as below for reference, any customized is available.

Product parameters

ASTM B 232
ASTM B 232
Code Name	Size	No./Dia.of Stranding Wires			Approx. Overall Dia.	Approx. Weight
		AWG or MGM	Alum.	ST.	Approx. Overall Dia.	Approx. Weight
		AWG or MGM		No./mm	No./mm	mm	kg/km
Swanate	4	7/1.96	1/2.61	6.53	93
Sparrow	2	6/2.67	1/2.67	8.01	129
Sparate	2	7/2.47	1/3.30	8.24	148
Robin	1	6/3.00	1/3.00	9	163
Raven	1/0	6/3.37	1/3.37	10.11	206
Quail	2/0	6/3.78	1/3.78	11.34	259
Pigeon	3/0	6/4.25	1/4.25	12.75	327
Penguin	4/0	6/4.77	1/4.77	14.31	412
Waxwing	266.8	18/3.09	1/3.09	15.45	422
Merlin	336.4	18/3.47	1/3.47	17.35	532
Linnet	336.4	26/2.89	7/2.25	18.31	656
Oriole	336.4	30/2.69	7/2.69	18.83	737
Chickadee	397.5	18/3.77	1/3.77	18.85	629
Ibis	397.5	26/3.14	7/2.44	19.88	775
Lark	397.5	30/2.92	7/2.92	20.44	871
Pelican	477	18/4.14	1/4.14	20.7	754
Flicker	477	24/3.58	7/2.39	21.49	877
Hawk	477	26/3.44	7/2.67	21.8	931
Hen	477	30/3.20	7/3.20	22.4	1044
Osprey	556.5	18/4.47	1/4.47	22.35	880
Parakeet	556.5	24/3.87	7/2.58	23.22	1023
Dove	556.5	26/3.72	7/2.89	23.55	1085
Eagle	556.5	30/3.46	7/3.46	24.21	1219
Peacock	605	24/4.03	7/2.69	24.2	1112
Squab	605	26/3.87	7/3.01	24.51	1180
WoodDuck	605	30/3.61	7/3.61	25.25	1325
Kingbird	636	18/4.78	1/4.78	23.88	1007
Rook	636	24/4.14	7/2.76	24.84	1170
Grosbeak	636	26/3.97	7/3.09	25.15	1240
Scoter	636	30/3.70	7/3.70	25.88	1393
Swift	636	36/3.38	1/3.38	23.62	947
Flamingo	666.6	24/4.23	7/2.82	25.4	1226
Gannet	666.6	26/4.07	7/3.16	25.76	1300
Stilt	715.5	24/4.39	7/2.92	26.31	1316
Starling	715.5	26/4.21	7/3.28	26.68	1396
Redwing	715.5	30/3.92	19/2.35	27.43	1553
Tern	795	45/3.38	7/2.25	27.03	1300
Condor	795	54/3.08	7/3.08	27.72	1461
Cuckoo	795	24/4.62	7/3.08	27.74	1461
Drake	795	26/4.44	7/3.45	28.11	1550
Coot	795	36/3.77	1/3.77	26.41	1184
Mallard	795	30/4.14	19/2.48	28.96	1728
Ruddy	900	45/3.59	7/2.40	28.73	1472
Canary	900	54/3.28	7/3.28	29.52	1554
Rail	954	45/3.70	7/2.47	29.61	1560
Catbird	954	36/4.14	1/4.14	28.95	1421
Cardinal	954	54/3.38	7/3.38	30.42	1753
Ortlan	1033.5	45/3.85	7/2.57	30.81	1690
Tanager	1033.5	36/4.30	1/4.30	30.12	1539
Curlew	1033.5	54/3.52	7/3.52	31.66	1900
Bluejay	1113	45/4.00	7/2.66	31.86	1821
Bunting	1192.5	45/4.14	7/2.76	33.12	1949
Grackle	1192.5	54/3.77	19/2.27	33.97	2190
Bittern	1272	45/4.27	7/2.85	34.17	2080
Pheasant	1272	54/3.90	19/2.34	35.1	2335
Skylark	1272	36/4.78	1/4.78	33.42	1895
Dipper	1351.5	45/4.40	7/2.92	35.16	2210
Martin	1351.5	54/4.02	19/2.41	36.17	2481
Bobolink	1431	45/4.53	7/3.02	36.24	2342
Plover	1431	54/4.14	19/2.48	37.24	2628
Nuthatch	1510.5	45/4.65	7/3.10	37.2	2470
Parrot	1510.5	54/4.25	19/2.55	38.25	2773
Lapwing	1590	45/4.77	7/3.18	38.16	2599

COMPANY PROFILE

HENAN KINGYEAR GROUP was founded in 2006,located in the Gongyi industry area of Henan Province.Occupies more than 1200,000 square meters,more than 800 employees.Our company consists of 3 main subsidiaries,Business specialized in development,manufacture and distribution of aluminum and cable products.Mainly including aluminum plate,aluminum coil,bare aluminum conductor,aerial bundled cable,Low voltage and medium voltage power cable,Electrical wire,control cable,etc... _{CLICK MORE}

PLANT AND OFFICE SHOWN:

3 workshops of ABC Cable,Bare Conductor. 1 office building of international trade.

TESTING MACHINE SHOWN: ABC Cable,Bare Conductor testing :

CERTIFICATE SHOWN:

ISO,CE,CCC,ROHS,UL,VDE

CUSTOMER

After more than 20 years of development, our customers have spread to more than 40 countries and regions around the world, And more than 50% are old customers.The power cable,control cable,ABC cable,bare conductor(AAC/AAAC/ACSR) are more favorited by them.We are proud of our good quality---KINGYEAR CABLE.

PACKAGE

PACKAGING FLOW of aaac/aac /acsr aluminum bare conductor as below, customized is accepted.

Some of our products packaging records shown:

They are about ABC cable,bare conductor and power cable.

FAQ

Q:I didn't find the acsr overhead power transmission line which I need in this page?

A:If you didn't find the species of cables you need, please contact us directly, we will reply you quickly.

Q:What's your minimum order quantity?

A:It is not so sure, you can confirm it with us. Normally, it will be 1000 meters.

Q:What's your delivery time?

A:It depends on whether we just has the stock for your type.Normally,it takes about 7-15days to achieve production.

Q:How can I get a sample from your company? Is the sample free?

A:If you need the sample to check the quality, please contact us,we will send you the free sample, but the freight charge should be paid.

Q:How to ensure quality ?

A:For any quality problems, we will arrange the technical personnel to solve or return the goods as soon as possible, and bear the corresponding customer losses.

Q:What if the cable which we need have some differences on specifications from yours?

A: Any difference, we can design and produce according to your requests, which include cable, color, material, processing requirement etc.
