No pollution vertical ring die mini pellets production

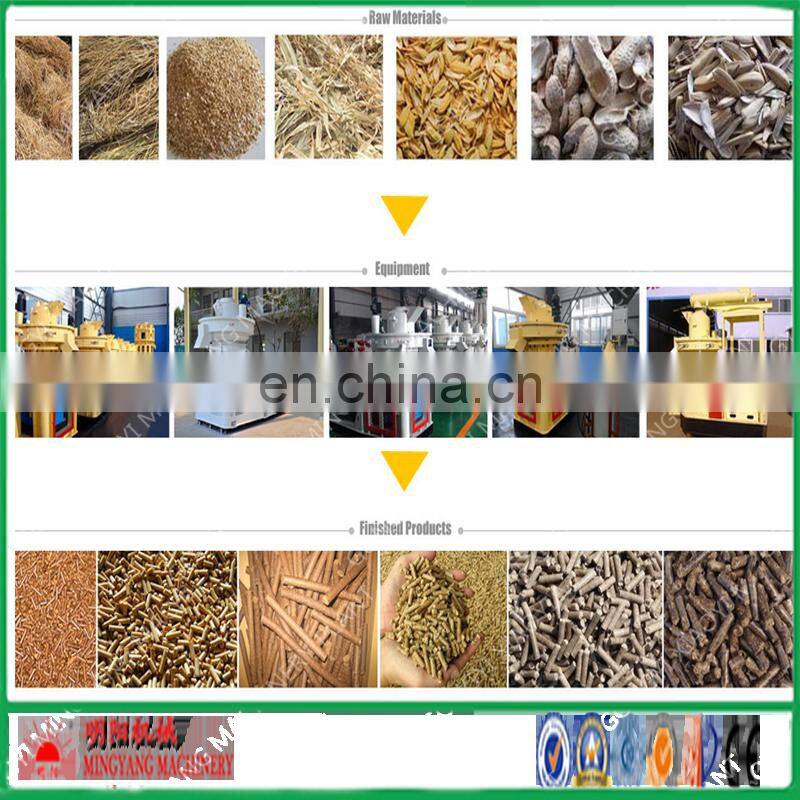

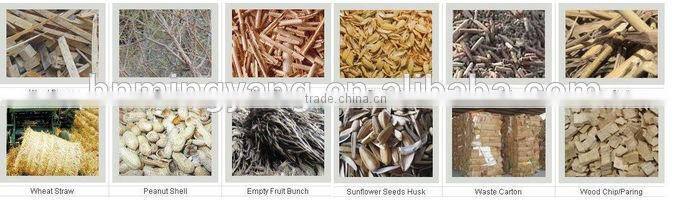

raw materials of No pollution vertical ring die mini pellets production
sawdust,straw,cotton stalk, rice husk, peanut shell,bamboo powder,palm and other plant waste
;cement,ash, carbon powder,paper and other chemical raw materials of various kinds of difficult
adhesive,molding difficult.
The finished pelle of No pollution vertical ring die mini pellets production
The finished pellet is featured with high intensity, high combustion values, low water and low a
sh content The final pellet can be used for industrial boilers and large power plants as well as home heating .
3.Advantage of No pollution vertical ring die mini pellets production
(1). Formation rate:98%,high output and low investment.
(2).Double layer die can use twice,reduce cost for customers.
(3). Machine run stale.
(4). Auto lubricate system,low consumption.
(5). Finished pellets satisfy Europe standard.
4.Application of No pollution vertical ring die mini pellets production
1.The material is transferred to the conditioner by a screw feeder, then the conditioner can make dif
ferent materials fully mixed.
2.The conditioner plays a key role in softening raw materials by utilizing water or steam.

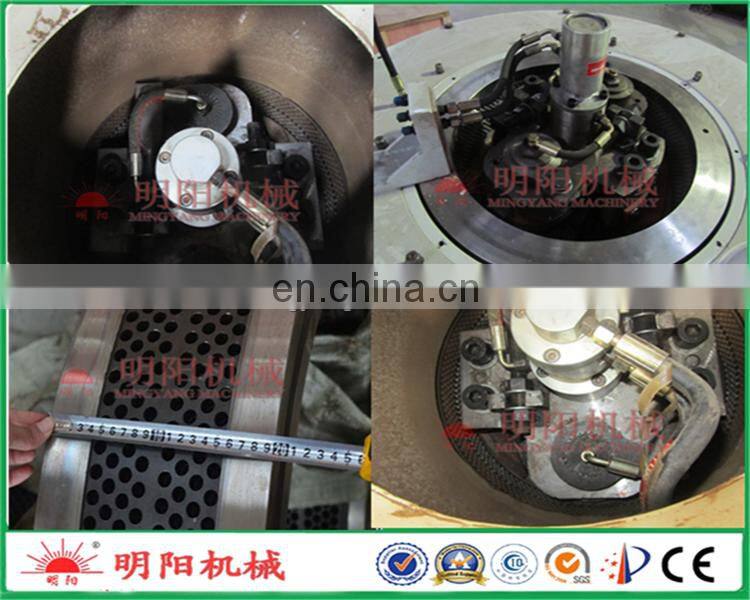

3.After softening, the raw material is sent by a feeder to the pelleting chamber. By spinning rollers in the cha
mber force the material through the holes of the die, thus pellets are formed.
4.After pelleting, the length of the pellet can be cut according to different user's request
5.Main feature of No pollution vertical ring die mini pellets production
1.vertical feed,directly in place;
2.mold static pressure wheel rotation,the material of centrifugal , unformly distributed around;
3.abrasive layer ,up and down dual-use,reduce cost,increase benefit;
4.circular mould,made to the structure,conductive to granulating chamber radiator cooling;
5.independent frequency conversion discharge device,to ensure that the particles forming rate;
6.independent lubrication,high pressure filter,clean clear.
6.Parameter of No pollution vertical ring die mini pellets production
| Model | Capacity | Power | Size of finished pellets | Weight | Size |
| HKJ-350 | 0.4-0.8t/h | 35kw | 4-12mm | 2.8ton | 2000*1000*1380mm |
| HKJ-450 | 0.8-1.0t/h | 55kw | 4-12mm | 4.2ton | 2200*1000*1580mm |
| HKJ-550 | 0.8-1.2t/h | 75kw | 4-12mm | 4.8ton | 2300*1000*1780mm |
| HKJ-560 | 1.0-1.5t/h | 90kw | 4-12mm | 5.8ton | 2600*1300*2300mm |
| HKJ-650 | 1.5-2.5t/h | 160kw | 4-12mm | 6.5ton | 2900*1300*2400mm |
| HKJ-880 | 3.0-4.0t/h | 315kw | 4-12mm | 12.6ton | 3750*1650*3250mm |
Gongyi xiaoyi Mingyang Machinery Plant is located in Zhengzhou City,which is the biggest manufacturing base of charcoal making machinery. And we are the one of the earliest and largest manufacturers of renewable fuel & energy equipment and related machinery. After 15 years development, now our company becomes an independent economic entity with the integration of science, engineering and trading department. Our products are widely accepted in both domestic and world markets, and also are exported to more than 30 countries. We have lots of experience to export and cooperate with all over the world, and we also sincerely welcome you to come to our factory to visit and watch our products and factory.
We have many kinds of certifications, famous in domestic and overseas, such as ISO Approved, CE Approved, SGS, BV and other certifications in our country. Such as Alibaba certifications, Made-in China, etc. You can find our factory and watch our products in many websites, We win in the strength, win in the quality and win in the service. This is why our clients choose us.
We insist on "Quality is the soul of company", we own outstanding R&D team with the sense of innovation and cooperation.
Our professional service includes: Free training, Guidance Installation and Debugging.
Guaranteed Time: One Year (Calculated from the goods arrived the destination port.)
1. Pre-sale service: according to your special needs, design and manufacture products for you, provide you with project design, process design, purchase program.
2. On sale: accompany you to check the performance of the machine.
3. After-sale service: we will send engineers to install the equipments to put them into use as soon as possible, commissioning and training operators on site.
If there is any doubts about our machines, please feel free to contact me or clike send to me directly.
