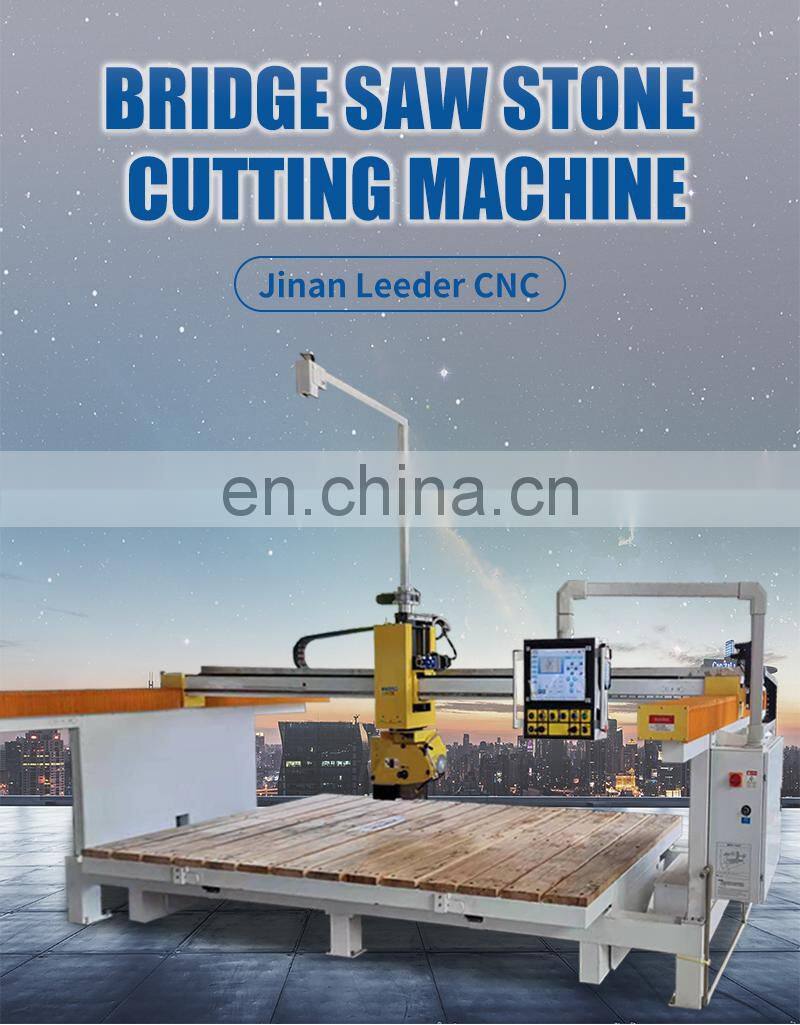

Multi Function 3020 5axis Cnc Bridge Saw Stone Cutting Machine Stone Cutter Polishing Cutting Edging

Multi Function 3020 5axis Cnc Bridge Saw Stone Cutting Machine Stone Cutter Polishing Cutting Edging photo-1
Multi Function 3020 5axis Cnc Bridge Saw Stone Cutting Machine Stone Cutter Polishing Cutting Edging photo-2

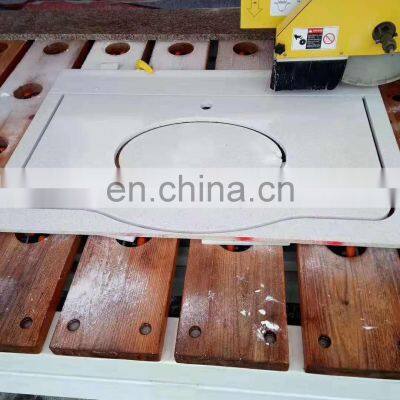

Multi Function 3020 5axis Cnc Bridge Saw Stone Cutting Machine Stone Cutter Polishing Cutting Edging photo-3
Multi Function 3020 5axis Cnc Bridge Saw Stone Cutting Machine Stone Cutter Polishing Cutting Edging photo-4
Multi Function 3020 5axis Cnc Bridge Saw Stone Cutting Machine Stone Cutter Polishing Cutting Edging photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2004
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Multi function 3020 5axis cnc bridge saw stone cutting machine stone cutter polishing cutting edging

Product Description

Multi function 3020 5axis cnc bridge saw stone cutting machine stone cutter polishing cutting edging

Technology Parameter



NO.

Description

Parameters

1

Working area

3000*2000*350mm

2

Table size

3000*2000mm

3

Transmission

X/Y rack and pinion, Z ball screw

4

Table structure

T Slot

5

Spindle power

4.5KW

6

Spindle speed

24000r/min

7

Working speed

8m/min

8

Working Delicacy

0.005mm

9

Driving Motor

Servo brand

10

Control System

5Axis cnc control System

11

Voltage

AC380/50HZ

12

Tilting table

With

13

Software

Artcam/Type3,other CAD/CAM

Packaging & Shipping

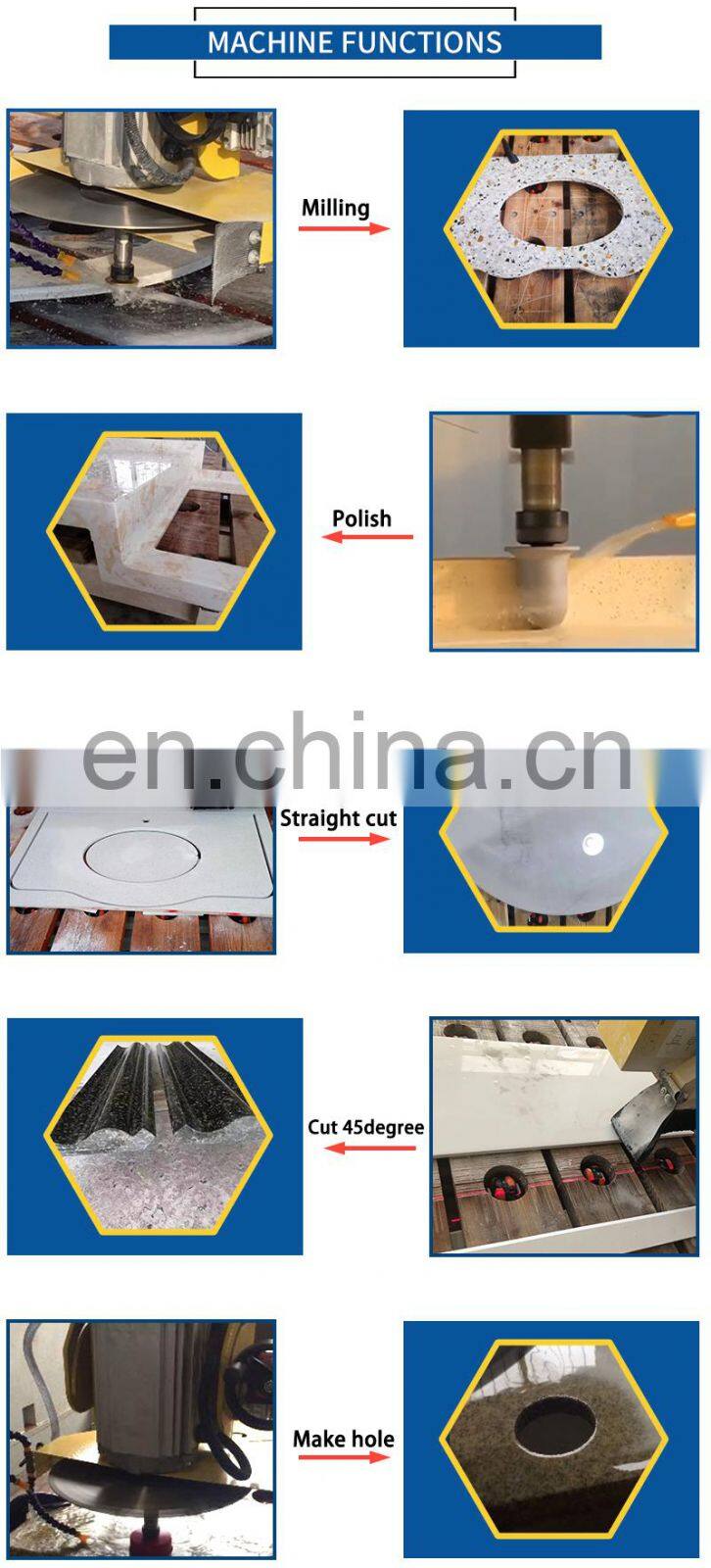

Machine Features

Cutting head: The head can rotation 360 degree, realize multi-angle cutting.

Control system: We adopt the touch screen design, the system is upgraded and   the operation is simpler, zero distance control system interface.

Camera: We add the Camera on the machine, its connected to the computer       system, the position of the stone plates on the table can be viewed directly on the     computer, which is conducive to typesetting.

Cutting: Its can cut straight and 45 degree. (planes and bevels cutting).

Polishing: The machine can polish various edges automatically.

Grinding/drilling: It can grind irregular cutting surfaces and always reach a smooth effect.

Make Hole: The machine can make small or big hole, especially making hole for water-tap in the wash basin.

The tilting table: The table can be turned 87 degree, Iteasy to loading the materials.

Operate wheel: The operate wheel is like the remote, you can operate the machine at any time when you are far away from the machine.

Multi-functions: Cutting straight and 45 degree, Polishing, Edging, Grinding, Making hole.With Camera, tilting table.

Multi function 3020 5axis cnc bridge saw stone cutting machine stone cutter polishing cutting edging

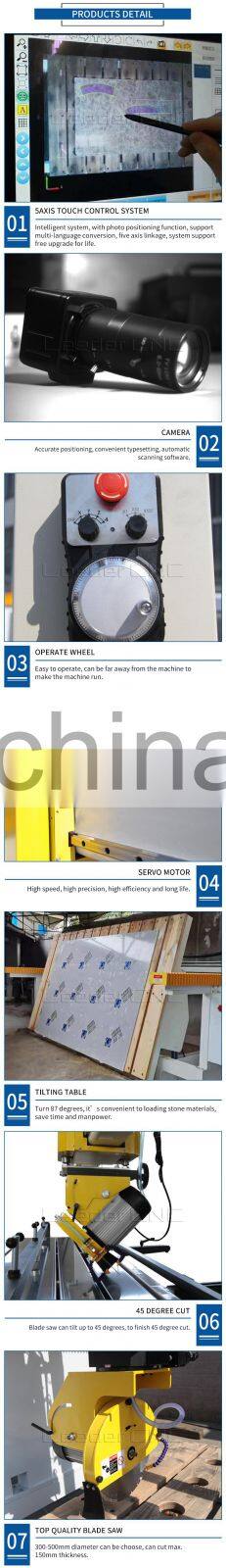

Details Picture
Multi function 3020 5axis cnc bridge saw stone cutting machine stone cutter polishing cutting edging
Sample&Pictures

Multi function 3020 5axis cnc bridge saw stone cutting machine stone cutter polishing cutting edging

Packing and Shipping

Multi function 3020 5axis cnc bridge saw stone cutting machine stone cutter polishing cutting edging

Company Information

Multi function 3020 5axis cnc bridge saw stone cutting machine stone cutter polishing cutting edgingMulti function 3020 5axis cnc bridge saw stone cutting machine stone cutter polishing cutting edgingMulti function 3020 5axis cnc bridge saw stone cutting machine stone cutter polishing cutting edging
