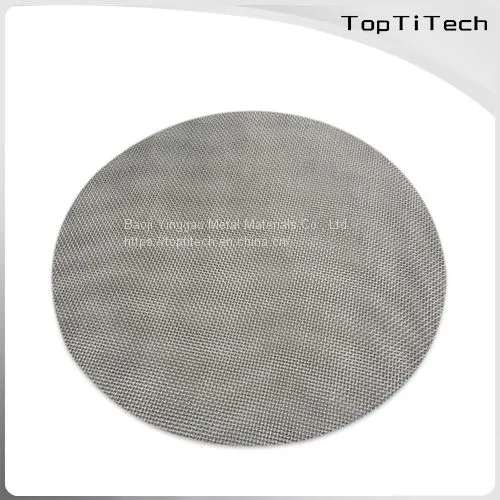

5-Layer Sintered Wire Mesh

5-Layer Sintered Wire Mesh

[5-layer sintered wire mesh] is produced by a vacuum sintering process, which has the characteristics of high-pressure resistance, uniform filtration aperture, and excellent corrosion resistance.

• Porosity: 37%

• Thickness: 1.7mm

• Filtration accuracy: from 0.5 to 300μm.

• Temperature: withstand -200°C-600°C.

• Mesh size: 600*1200mm, 1200*1200mmas standard.

[5-layer sintered wire mesh] has 5-layer structure:

The protective layer, dispersion layer, filter control layer, support reinforcement layer, and reinforcement layer.  Therefore, it can always achieve a higher filtration precision with 0.5-300μm and a longer service time than traditional wire mesh.

The 5 layers of sintered wire mesh can be reused and cleaned. After a period time of use, we recommend cleaning it by physical or chemical methods, such as backflushing or ultrasonic.

Contact us today for more information about 5-layer sintered wire mesh and an instant quote!

Specification

The 5 - layer sintered mesh is available in a variety of accepted standard sizes.

They include;

• 480 mm x 480 mm

• 480 mm x 980 mm

• 500 mm x 1000 mm

• 600 mm x 1200 mm

• 610 mm x 1219 mm

• 610 mm x 1250 mm

• 1000 mm x 1000 mm

• 1200 mm x 1200 mm

We can make the required size according to the customer's requirements.

Five-layer sintered materials are used in a variety of industries. Let's see what they are.

• Powder industry

• Mechanical industry

• Steel industry

• Electrical industry

• Pharmaceutical industry

• Chemical fiber film industry

• Petrochemical industry

The applications of 5-layer sintered wire mesh:

• Filtration and purification of polymer melts

• Filtration of water

• Filtration of chemicals

• Production of sulfur plates

• Gas homogenization

• Filtration of hydraulic fuels

• Sound splitters fabrication

• Drying of several materials

• Breather vents

• Solid particles separation

• Transpiration cooling in high-temperature situations

• Used to limit current

The 5-layer sintered wire mesh has many benefits. So, let’s see what they are;

• The 5 layers of sintered wire mesh will not rust.

• It is widely used in bending, stretching, welding, punching, and cutting.

• The 5-layer sintered mesh has a long service life.

• The high viscosity and pressure environment do not limit the filtration performance of the 5-layer sintered wire mesh.

• Because it has two protective layers, the filter does not deform.

• 5 layers of sintered wire mesh cleaning are very convenient.

• Resist high temperatures.

• You can customize 5 layers of sintered wire mesh to suit a variety of operating conditions.

• The 5 - layer sintered wire mesh is very useful.

•


•
