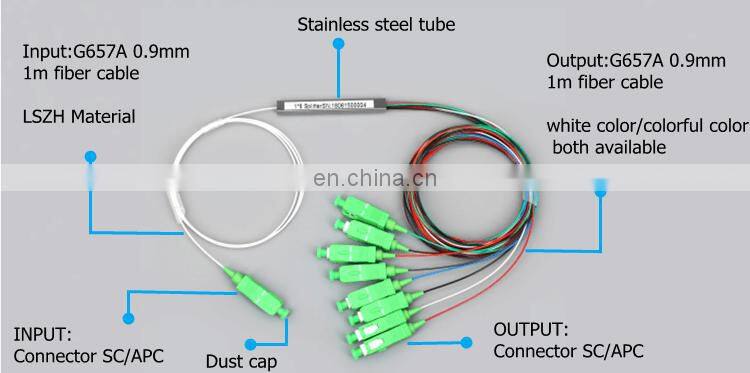

1*4 Steel Tube Optical PLC Splitter with Sc/APC Connector
- 1000 per Month
- T/T Credit Card
You May Like
-
Factory direct sc/apc connector steel tube mini type 2x8 optic fiber plc splitter
-
ftth 1x4 sc/apc box package Fiber PLC Steel Tube type splitter
-
FTTH Mini Steel Tube Module 1X16 Fiber Optic PLC Splitter with Sc APC Connectors
-
1*2/1*4 /1*8 /1*16 plc splitter 0.9mm mini type optical fiber splitter with SC APC Connector
-
Fiber Optic 1 to 2 plc 1x2 1x4 1X8 2x8 Optical FTTH splitters
-
FTTH Passive Fiber Optical Cable Splitter 1x2 1x4 1x8 1x16 1x32 1x64 PLC Splitter
Product Description
1).Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology.
2).It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.
3).We provides whole series of 1xN and 2xN splitter products that are tailored for specific applications.
4).All products meet GR-1209-CORE and GR-1221-CORE requirements.
|
Parameter |
Specification |
||||||||
|
Operating Wavelength (nm) |
1260 ~ 1650 |
||||||||
|
Type |
1x4 |
1x8 |
1x16 |
2x4 |
2x8 |
2x16 |
1x32 |
2x32 |
1x64 |
|
Insertion Loss (dB) Max. * |
<7.3 |
<10.5 |
<13.5 |
<7.6 |
<11.2 |
<14.5 |
<16.2 |
<18.2 |
<20.5 |
|
Uniformity (dB) Max.* |
<0.8 |
<1.0 |
<1.5 |
<1.0 |
<1.5 |
<2.0 |
<2.0 |
<2.5 |
<2.5 |
|
PDL(dB)Max.* |
<0.2 |
<0.2 |
<0.3 |
<0.3 |
<0.3 |
<0.4 |
<0.3 |
<0.4 |
<0.3 |
|
Directivity (dB) |
≥55 |
||||||||
|
Return Loss (dB) |
UPC ≥55 APC ≥60 |
||||||||
|
Operating Temperature (°C) |
-5~ +75 |
||||||||
|
Storage Temperature (°C) |
-40 ~ +85 |
||||||||
|
Fiber length |
1m or custom length |
||||||||
|
Fiber Type |
Corning SMF-28e fiber |
||||||||
|
Connector Type |
Custom specified |
||||||||
|
Power Handling (mW) |
300 |
||||||||
`
