Hot Sale FTTH 24 Ports Fiber Optic Termination/Distribution Box
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
16 / 24 Cores Fiber Optic Cable Distribution Box
-
FTTH Mini Optical Terminal Box Plastic 86 Face Box Wall Outlet Fiber Optic Distribution Box
-
FTTH Box 16 Port Optical Fiber Junction Terminal Box PLC Splitter
-
Nice Price 4 Ports Terminal Box Fiber Optic Distribution Box with Splitter FTTH Box
-
Hot Sale 16 port Fiber Patch Panel Distribution Terminal FTTH Box FTTH Box
-
Indoor Outdoor 16 Cores Ports IP66 Nap FTTH Solution Wall Mount Distribution box FTTH Box
Product Description
Product Description

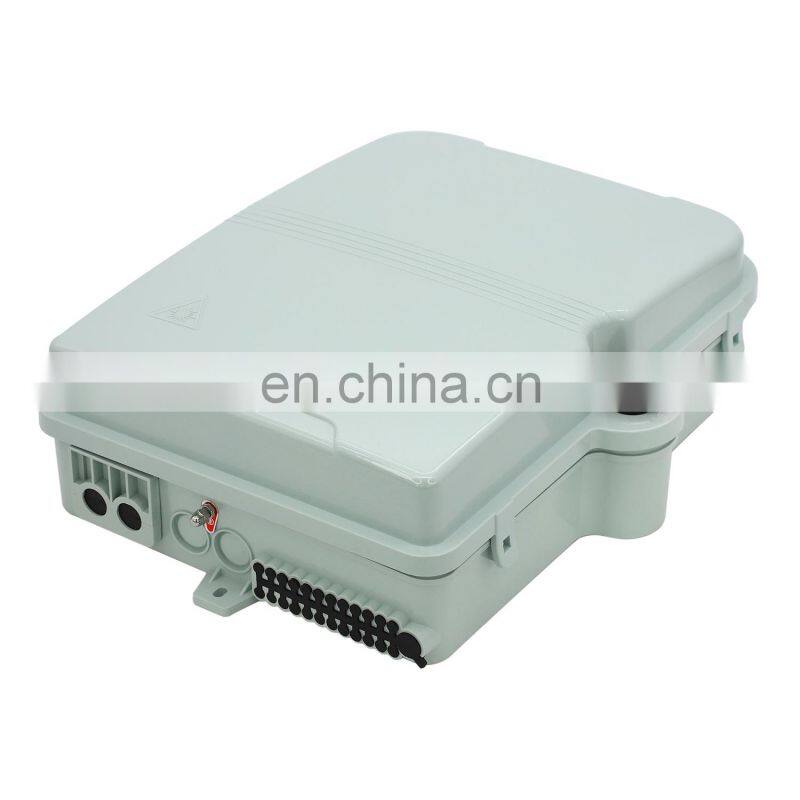

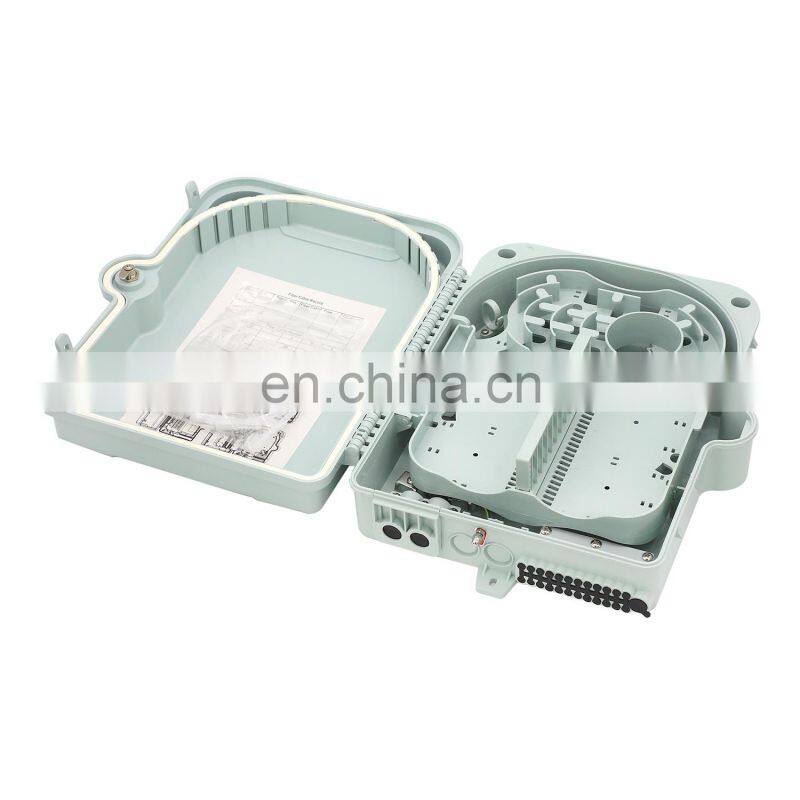

FAT-16A fiber access termination box is able to hold up to 16 subscribers. It is used as a termination point for the feeder cable
to connect with drop cable in FTTx networksystem. It integrates fiber splicing, splitting, distribution, storage and cable
connection in one solid protection box.
to connect with drop cable in FTTx networksystem. It integrates fiber splicing, splitting, distribution, storage and cable
connection in one solid protection box.
Features:
1.Total enclosed structure.
2. Material: PC+ABS,wet-proof,water-proof,dust-proof,anti-aging,protection level up to IP65.
3. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
4. Cable,pigtails,patch cords are running through own path without disturbing each other,cassette type SC adaptor installation,
easy maintenance.
5. Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
6. Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.
1.Total enclosed structure.
2. Material: PC+ABS,wet-proof,water-proof,dust-proof,anti-aging,protection level up to IP65.
3. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
4. Cable,pigtails,patch cords are running through own path without disturbing each other,cassette type SC adaptor installation,
easy maintenance.
5. Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
6. Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.
Specification
Material | Size(Pic 1) | Max Capacity | Weight | ||
AxBxC(mm) | adapter SC | PLC | (kg) | ||
PC+ABS | 295*220*85 | 16 | 1/8*2(SC) | 1.57 | |
