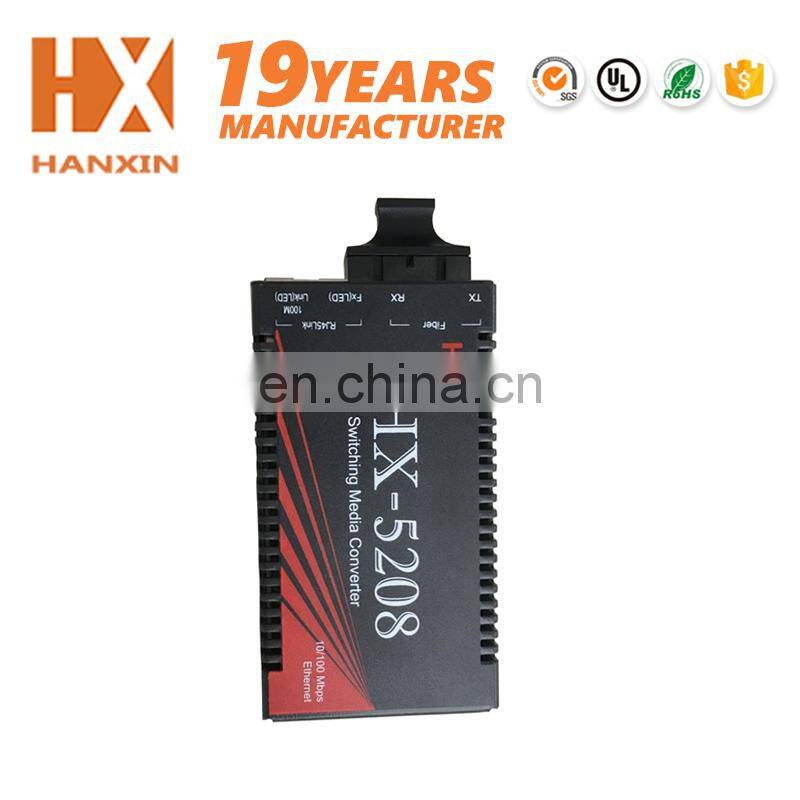

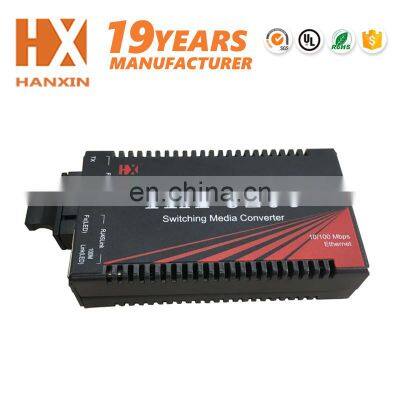

Hanxin 19 years manufactory supply 4 8 16 port fiber optic media converter

Description:

  Media convector used for the exchanging between Ethernet and fiber.The machine comprises 1 Ethernet port and 2 fiber port,and expanded the LAN cable transmission distance from 100 meters to 2 kilometers. It realized the inter connections between different telecom equipment and widely been used in Telecommunication,CATV,Bandwidth network,CCTV where demands high performance and reliability network environment.

Characteristics

· Special used for exchanging between Ethernet LAN cable and Fiber.

· Special maded chip with low consumption,supporting over longtime frame.

· Superior Photoelectric integrated module which provide good optical and electrical performance.

· Ensure the reliability of data transmitting,long operating life span.

· Support Internal and External:1.5U rack mount,optional installation method.

· Average of No trouble working time to 50000 hours,meet the ITU-T standard.

· Integrated after selling services, 3 years warranty, lifetime Maintenance Service.

Technical Parameters

· Standard:IEEE 802.3 10BaseT,IEEE 802.3u 100Base-TX,100Base-FX,IEEE 802.3z/AB 1000Base-T/SX/LX/ZX.

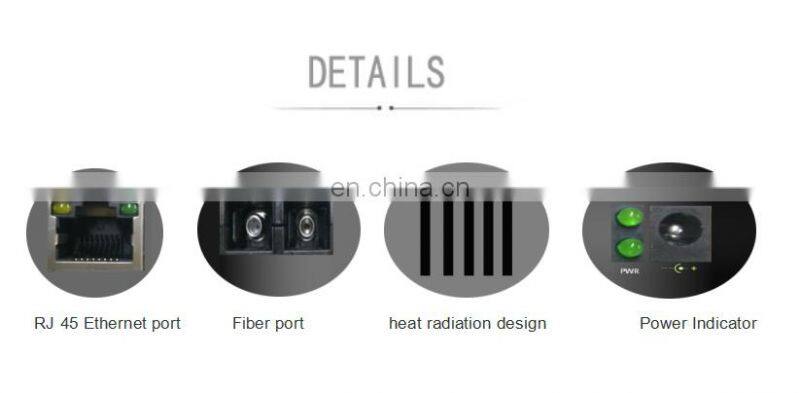

· Interface:Twisted pair cable:RJ45;Fiber:SC/ST/FC.

· 100 base LED:PWR, FX 100,FX Link/Act,FDX,TX 100,TX Link/Act.

· Transmission Speed: LAN cable:10Mbps,100Mbps,Fiber:100Mbps.

· Duplex Way: Ethernet duplex or half duplex.

· Flow control: Full duplex IIEEE 802.3x flow control:Half duplex back flow control.

· LAN Cable: Category 5,Category 5E,Category 6.

· Fiber Type: Multimode 50/125,62.5/125u.

· Power:AC:110v-240v wide voltage input,50Hz;DC:12V 0.5A(Compatible 5-19V,6W),equipped with USA,British,Europe,Austria total 4 types changeable plug.

· Environment Temperature:-20~65℃.

· Storage Temperature:-20~70℃.

· Humidity:5%~90%.

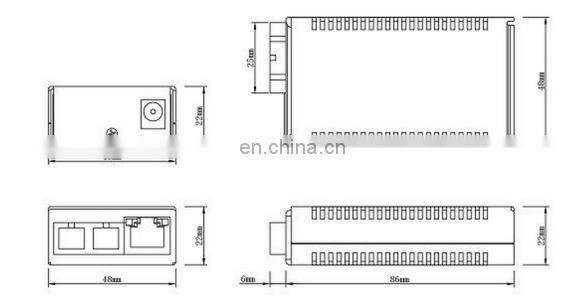

· Size:86×48×22mm((H×D×W).

1.Are you the real manufacturer?

Yes.  We are the real manufacturer  with 19 years’ history.

2.Can you accept small order?

Yes, small order is available .We support new project of our customers as we know business is always from small order.

3.What is your warranty period?

25 years for fiber optic cable,10 years for Fiber Media Converter

4.Which kind of certification you have ?

ISO9001, SGS, UL, RoHs.

5.What is your delivery time?

Usually within 2-3 working days

6.What about your annual production capacity?

50000 sets Media Converter

7.What is your payment way?

 T/T, L/C, Western Union and Paypal.

8.Can you supply customized products and logo?

-Yes. We supply OEM&ODM service. You can send us your drawing.
