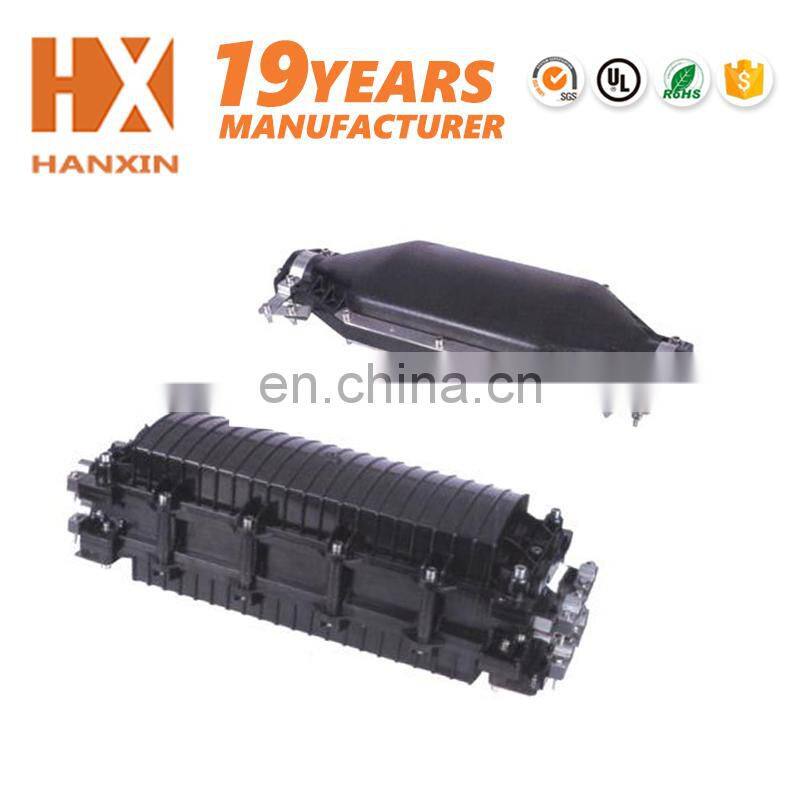

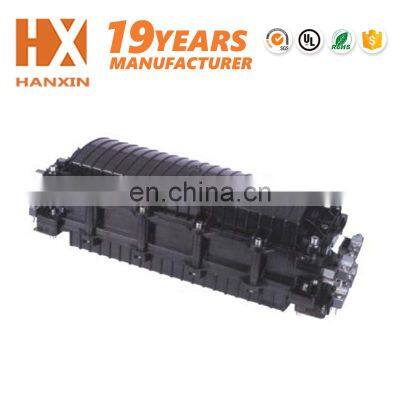

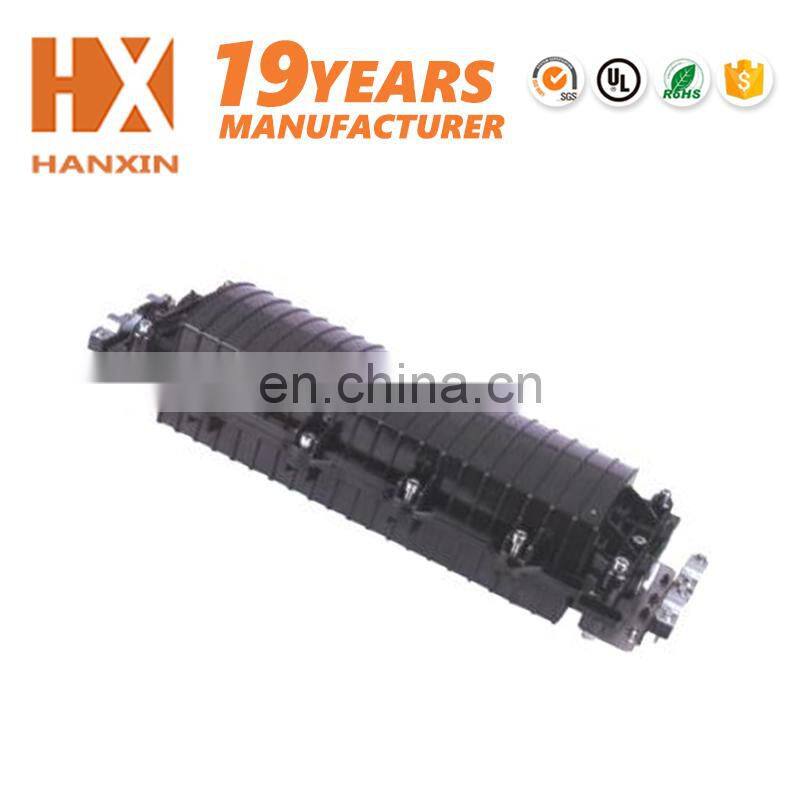

OEM manufacturer supply high quality Fiber optic terminal box
We are 19 years fiber optic cable manufactory!
Welcome to go to the factory tour!
We focus on the quality of the fiber optic cable!
Send message to us can get free samples.
Features:
These fiber optic splice closure can be used in underground, aerial, and wall-mounting applications. The open typed box is made from the high-quality pc and with the mechanical sealing structure filled with the sealing material. Besides, the external component and fastening piece are all made from the high-quality stainless steel. It can be opened after sealing and can be reused after renewing the sealing material.
|
Item No. |
In-Out No. |
Max Capacity (Fibers) |
Dimension (mm) |
Cable Diameter (mm) |
Sealing structure |
Normal Configure |
|
1 |
2-2 |
72(6*12) 96(6*16) |
260*500 |
7-20 |
Silicon rubber |
24 |
|
2 |
3-3 |
48(4*12) |
210*460 |
7-22 |
Silicon rubber or heat Shrinkable protective sleeve |
24 |
|
3 |
3-3 |
72(6*12) 96(6*16) |
260*500 |
7-20 |
heat Shrinkable protective sleeve |
24 |
|
4 |
4-4 |
216(6*36) |
278*500 |
7-23 |
heat Shrinkable protective sleeve |
36 |
|
5 |
3-3 |
96(4*24) |
210*567 |
7-23 |
heat Shrinkable protective sleeve |
24 |
|
6 |
4-4 |
252(7*36) |
278*580 |
7-23 |
heat Shrinkable protective sleeve |
36 |
|
7 |
3-3 |
216(6*36) |
278*580 |
7-23 |
heat Shrinkable protective sleeve |
36 |
|
8 |
2-1 |
72(6*12) 96(6*16) |
260*590 |
7-23 |
Silicon rubber |
24 |
Description:
- Mechanical seal: Excellent sealing performance,reusable. Protection grade is IP 68.
- Installation Method: wall-mounted, Pole mounting,manhole
- Feature:
- The design of spinning mechanical seal receives creatively practical patents and brings easy operation compared with heat shrink seal.
- It applies to the seal demand of Φ10~17.5 cable.
- Multiple seal accessories of soft cable are applicable.
