CDOCAST Vacuum Gold Silver Copper Rod Plate Wire Continuous Casting Machine for Precious Metal
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2008
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1kg 2kg 4kg Mini Gold Silver Bullion Casting Machine for Laboratory and FactoryNegotiableMOQ: 1 -
Three Phase 380V Top Quality Vacuum Gold Bar Silver Bullion Casting EquipmentNegotiableMOQ: 1
-
Fast Delivery Low Price 1-15kg Gold Silver Bullion Metal Bar Making MachineNegotiableMOQ: 1
-
Handheld Portable Ore Mineral Metal Spectrometer Analyzing Machine of 0.01%-99.99% PrecisionNegotiableMOQ: 1
-
Gold Silver Jewelry Purity Analyzer Spectrometer Gold Purity TesterNegotiableMOQ: 1
Products Description

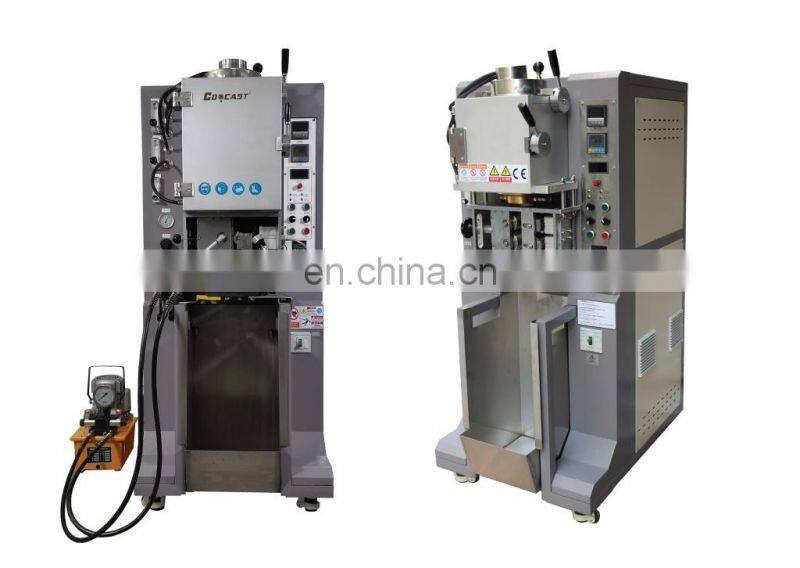

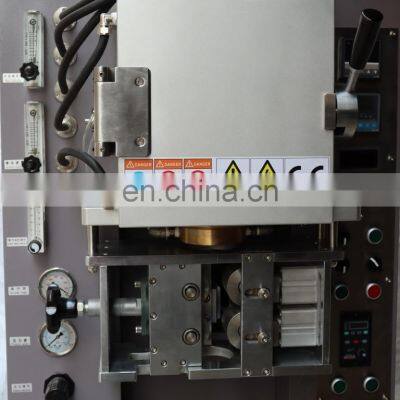

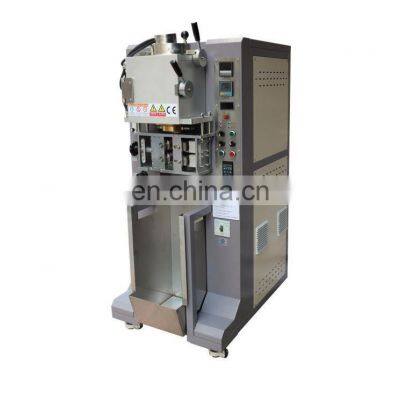

CDOCAST Vacuum gold silver copper rod plate wire continuous casting machine for precious metal
CDOCAST Jewelry Continuous Casting machine is used to draw small volumes of different shapes of precious metals, such as gold,silver, carat gold, copper alloy, etc. The continuous casting machine is a pull-down type. Only one continuous casting machine can get the required semi-finished products.The semi-finished products can be made into rectangles, cylinders, circles and rods. And can be in wire, sheet or tube.
Details Images
Product Paramenters
Model | CDO-JC15 | CDO-JC25 | CDO-JC30 | CDO-JC35 |
Power | 15kw | 25kw | 30kw | 35kw |
Voltage | Three phase 380V, 50/60Hz | Three phase 380V, 50/60Hz | Three phase 380V, 50/60Hz | Three phase 380V, 50/60Hz |
Suitable Metal | Gold, Silver, Copper, Brass, Bronze, and their alloys | Gold, Silver, Copper, Brass, Bronze, and their alloys | Gold, Silver, Copper, Brass, Bronze, and their alloys | Gold, Silver, Copper, Brass, Bronze, and their alloys |
Melting Time | 10min | 10-12min | 10-15min | 12-16min |
Casting speed | 10-20cm/m | 10-20cm/m | 10-20cm/m | 10-20cm/m |
Capacity | Gold:3.0 kg Silver: 2.0kg Copper:1.5kg | Gold:6.0 kg Silver: 4.0kg Copper:3.0kg | Gold:10.0 kg Silver: 6.0kg Copper:5.0kg | Gold:20.0 kg Silver:16.0kg Copper:10.0kg |
Gas | Argon Gas or Nitrogen | Argon Gas or Nitrogen | Argon Gas or Nitrogen | Argon Gas or Nitrogen |
Temperature | 1500℃ | 1500℃ | 1500℃ | 1500℃ |
Overall Size | 800*600*1650mm | 900*700*1750mm | 1000*800*1850mm | 1000*800*1850mm |
Machine Weight | 200kg | 220kg | 240kg | 250kg |
Application

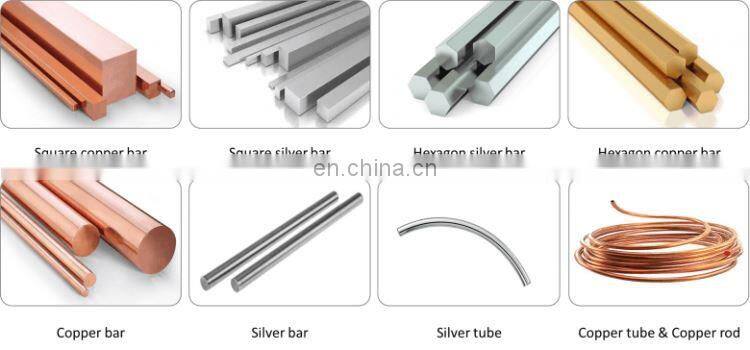

The application and finished products of continuous jewelry casting machine
Feature

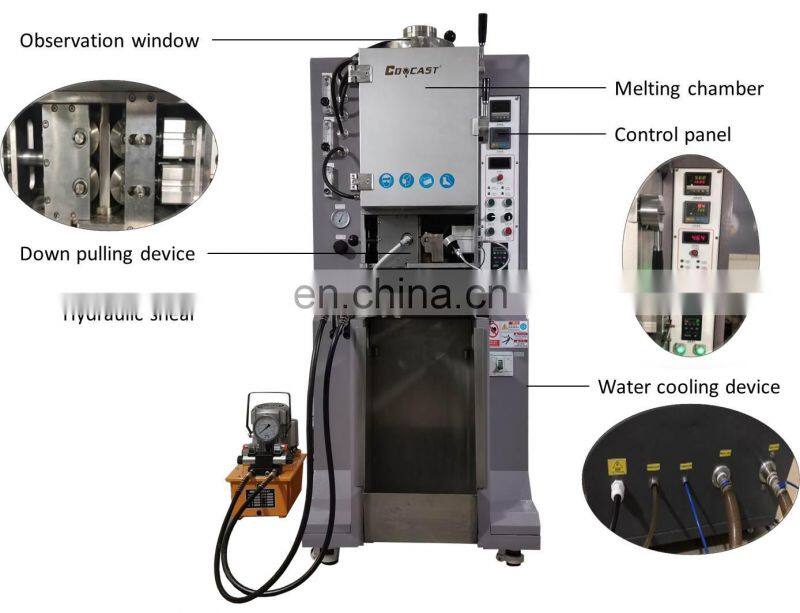

1:CDOCAST Jewelry Continuous Casting Machine Adopt intermediate frequency induction heating technology, it has strong intermediate frequency stirring force, which can lead to a high degree of uniformity of the metal, which is especially helpful for the casting of some alloys
2: Equipped with independent temperature control to continuously monitor the temperature during the entire draw process.
3:Comes with the continuous temperature monitoring system which leads to the best density and quality of the final product.
4: Design With the ability to work 24 hours per day, this function ensures maximum productivity to meet the high production demands of some customers.
5:Customized size wires, sheets or tubes Can be cast in our Jewelry Continuous Casting Machine

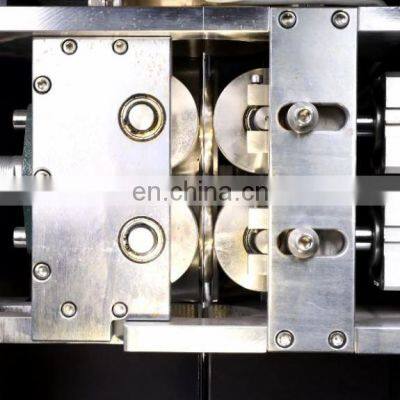

6:Special device is designed in the Pulling for automatic detection of slippage phenomena between the roller and the semi-finished product.
7:If a rapid cooling process is required, a water spray system can be installed to cool the semi-finished product directly.

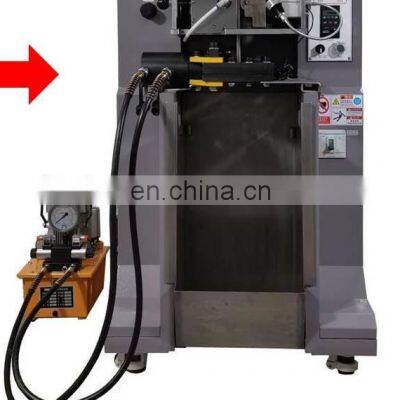

8:Each continuous casting machine is equipped with advanced hydraulic shears for easy cutting of semi-finished products.
2: Equipped with independent temperature control to continuously monitor the temperature during the entire draw process.
3:Comes with the continuous temperature monitoring system which leads to the best density and quality of the final product.
4: Design With the ability to work 24 hours per day, this function ensures maximum productivity to meet the high production demands of some customers.
5:Customized size wires, sheets or tubes Can be cast in our Jewelry Continuous Casting Machine
6:Special device is designed in the Pulling for automatic detection of slippage phenomena between the roller and the semi-finished product.
7:If a rapid cooling process is required, a water spray system can be installed to cool the semi-finished product directly.
8:Each continuous casting machine is equipped with advanced hydraulic shears for easy cutting of semi-finished products.
Packaging & Shipping
Our services
I.Commissioned from the furnace after delivery, into the warranty period, the warranty period of 12 months.Regardless of the warranty period or warranty period, the furnace, such as failure, received a notice, we are committed to 36 hours to send to the scene to deal with.
II.In the warranty period by our cause failure, we carried out unconditional maintenance and replacement.Due to other causes ofthe failure, we only charge the cost of paid maintenance
III.After the warranty period, we will, as always, do a good job after-sales service, so that users no worries.
I.Commissioned from the furnace after delivery, into the warranty period, the warranty period of 12 months.Regardless of the warranty period or warranty period, the furnace, such as failure, received a notice, we are committed to 36 hours to send to the scene to deal with.
II.In the warranty period by our cause failure, we carried out unconditional maintenance and replacement.Due to other causes ofthe failure, we only charge the cost of paid maintenance
III.After the warranty period, we will, as always, do a good job after-sales service, so that users no worries.
Customer Photos
FAQ
1. What is your advantage compared to others?
First, we provided turnkey solution, Cost-effective, highly efficient, durable, and easy-to-operate machine is what we deliver.Second, we have a Strict Quality Control System, Before Being dispatched from our factory all of our equipment will undergo a series of strict test, including the appearance quality test, voltage electrical test, aging test also the package strength checking.
2. If our machine meets fault, how could you help us to solve it?
For failures caused by using process, we will send our aftersales engineer to discuss with you, and you should provide the video of how the machine is broken, we will find out which part of the machine is broken, and then we will send you the broken part By DHL.
3. what is your warranty?
Our warranty period comes from the machine begin to run normally and we will provide the whole life technology support to you for free.
All products sold by COOLDO In the warranty period, we will provide you the spare parts for free. Our engineer will help you do the aftersales through our remote control system. When out of one year warranty time, we will provide the spare parts with the cost price for the whole machine lifetime.
First, we provided turnkey solution, Cost-effective, highly efficient, durable, and easy-to-operate machine is what we deliver.Second, we have a Strict Quality Control System, Before Being dispatched from our factory all of our equipment will undergo a series of strict test, including the appearance quality test, voltage electrical test, aging test also the package strength checking.
2. If our machine meets fault, how could you help us to solve it?
For failures caused by using process, we will send our aftersales engineer to discuss with you, and you should provide the video of how the machine is broken, we will find out which part of the machine is broken, and then we will send you the broken part By DHL.
3. what is your warranty?
Our warranty period comes from the machine begin to run normally and we will provide the whole life technology support to you for free.
All products sold by COOLDO In the warranty period, we will provide you the spare parts for free. Our engineer will help you do the aftersales through our remote control system. When out of one year warranty time, we will provide the spare parts with the cost price for the whole machine lifetime.
