TOP sale popular interlocking shingles french porcelain roof tile

Construction method

A, roof tile material name and specifications:

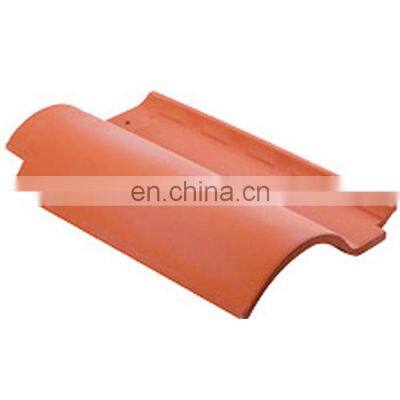

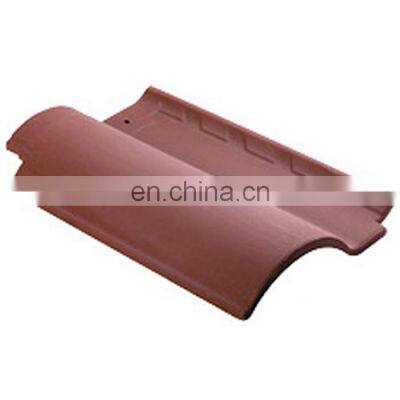

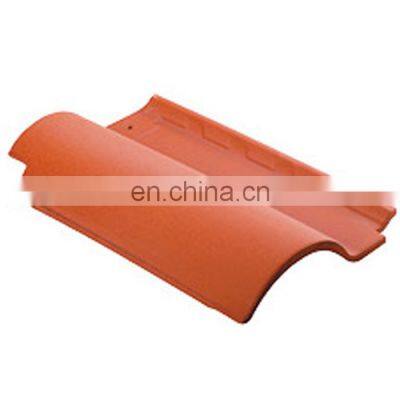

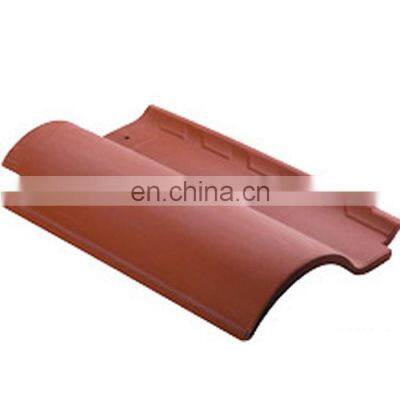

1, name: Roman watts

2, specifications: 260 X385X13mm

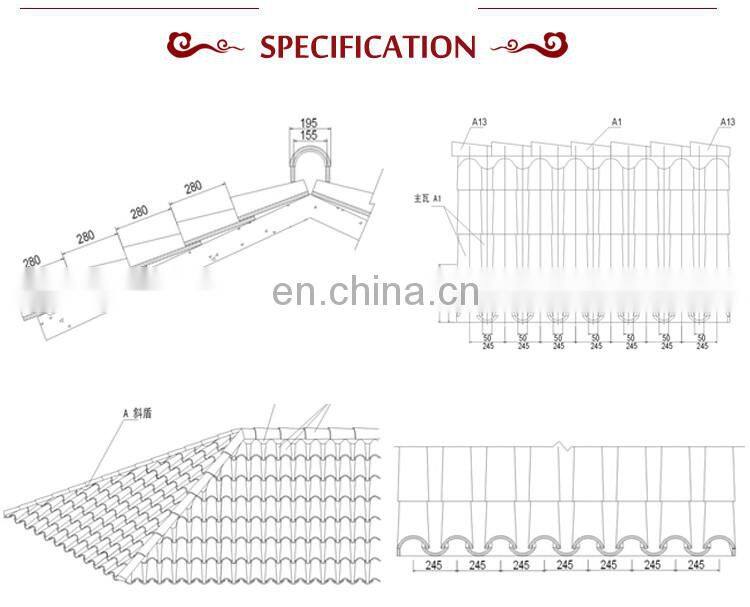

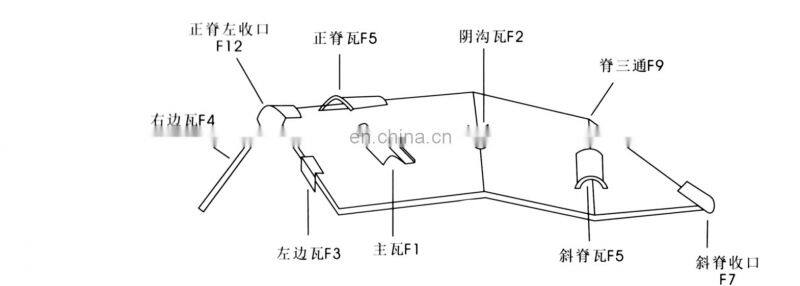

Second, roof tile configuration chart:

Three, construction the auxiliary material:

1, cement mortar.

2, cement steel nails, tapping gongs nail.

3, article renzi, hang article watts.

(1) conifer (Chinese fir a) processed into the article renzi and hang article watts (subject to the asphalt oil anticorrosive processing).

(2) the cement workpieces article renzi, hang article watts.

(3) stainless steel or other material article renzi, hang article watts.

Four, roofing construction method:

1, cement mortar construction method process:

Cast-in-situ roofing make level-doing waterproof layer (vinyl waterproof paper or cement base waterproof)-do 2 cm thick waterproof layer protection surface-roofing cement mortar pay-with fixed install the tile-install fittings watts-convergent cement mortar.

2, hang tile banding technique process (dry hanging construction method) :

Cast-in-situ roofing make level-doing waterproof layer (vinyl waterproof paper or cement base waterproof)-do 2 cm thick layer-roof waterproof layer-the installation drawing article renzi-the installation hang article watts-install the tile-install fittings watts-convergent cement mortar.

Five, roof size calculation:

1, horizontal: effective size 235 mm multiples, finally a tile cutting according to the actual size.

2, the longitudinal direction: (water)

(1) the first row of 305 mm (tile pieces out of 50 mm eaves) + Lord tile size 355-360 mm effective multiples of + 15 mm decided the ridge.

(2) the last row watts when insufficient a according to roofing tiles to adjust the size cut.

ix, before construction preparation:

1, roof ask for smooth, diamond tiles same size, with flat roof bedding, roofing if bump rugged, causing the roof tile fluctuation, left and right sides lap good, influence the overall appearance and function of the tiles.

2, retain the scaffold, water, electricity to construction.

3, keep enough space channel and piled up watts and hang watts.

Seven, roof of pay:

1, construction of pay, cast-in-situ concrete roof is in the screed-coat pay.

(1) the position of the ditch pay, according to the centerline of the drain, the center in 160 on both sides mm pop-up parallel lines, the line is to install additional times to MoXian article basis.

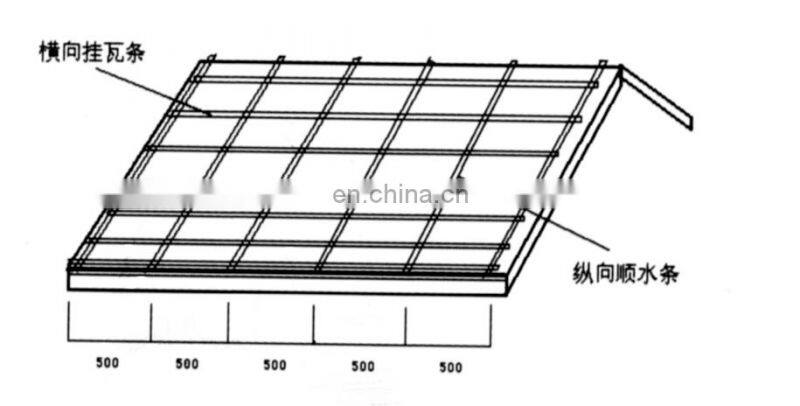

(2) article renzi to position spacing: 500 mm vertical in roof cornice are arranged in distribution, double slope roof for suspension structure of a mountain, to MoXian article renzi from mountain eaves side shall be 150 mm.

(3) hang article watts position spacing: according to the size of the slope roof, the determination of minimum lap length, inclined roofing lap length of 50 mm.

Eight, the article renzi fixed:

1, roof longitudinal line was the article renzi (size 23-30 mmX33-40 mm), with 4 X60mm cement steel nails, according to MoXian position will be fixed in the article renzi roof on both sides of the spacing between article water in 500 cm), all of the nail fixed article renzi biggest space for 450 mm.

ine, hang article watts of fixed:

Article 1, hang tile size: 23-30 mmX33-40 mm, use 3.3 X50mm cement steel nail fixed in the article renzi, hang watts with each article times article root crossings are application nail fixed. Hang article, shall be installed level, firm, should be in a straight line on spindle, joint should be in the upper and article renzi between each other to stagger.

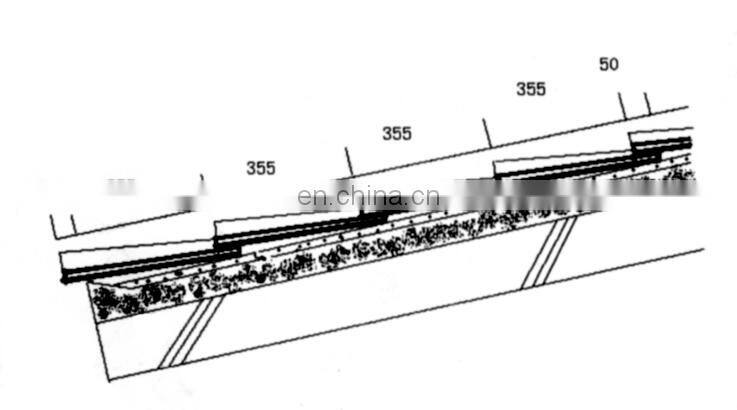

Article 2, hang watts interval as follows, specific size for different slope surface construction must be in battle quantity, hang article, line spacing to Roman watts center and lap length shall prevail. Roman watts lap length and 355-360 mm, so hang article tile lines for 355-360 mm intervals.

Ten, install the watts:

1, hang article watts for anticorrosion batten:

(1) in order to ensure tiles after shop outline tinggua, when hang article watts after installation fixed in the shop before earthen should take the longitudinal straight line, practice as follows, hang in the article, the left and right sides of the mountain house 50 mm take place reserved coping with the line at right angles, cornice line, and then from the eaves and roof to reserve two pieces of respectively line to the side of the watts reinforced location is the vertical line or take according to two pieces of the width dimension of the watts, according to determine the pop-up longitudinal straight line, the shop with line, line, making roof tile reach level, tile seam vertical, diagonal three to standard together.

(2) in the shop in the process of watts, especially large areas of double slope roof, roof of the transverse length to stall the effective width watts points, as far as possible into a terminal adjusting the width of the watts.

(3) in the first row of shop, should all adopt the cement mortar hang on strengthening article, combined with the shop is stuck.

FEATURES:

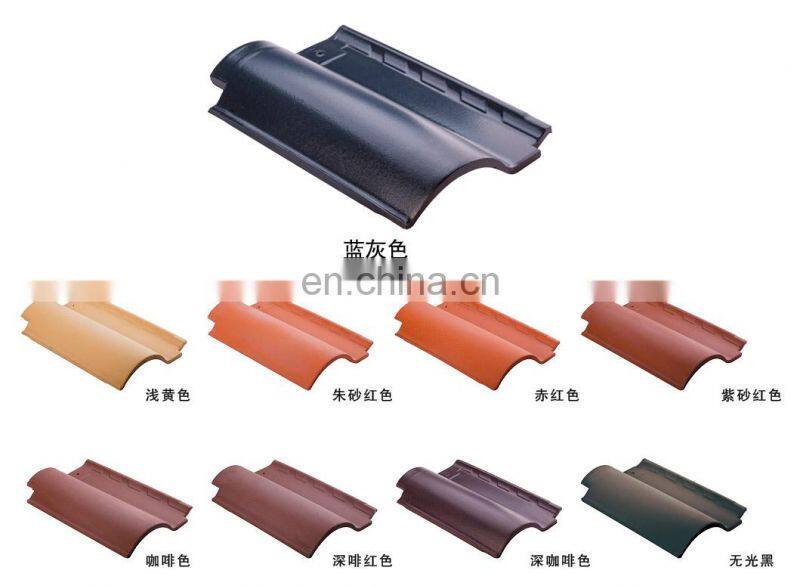

1. the color is rich, able to support strong architectural color choices.

2. light, fashion, not easy to step on, long life.

3. the line structure is smooth, with the trend of traditional and cutting-edge structure.

4. the construction is convenient, the mountain tile does not need to be allocated separately, and the villa roof tile products are integrated.
