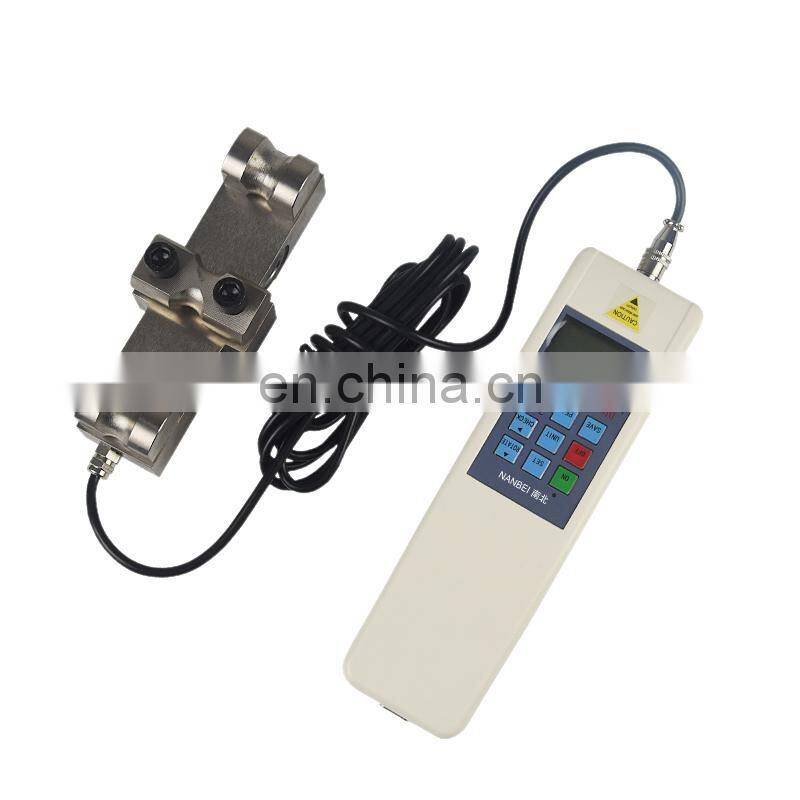

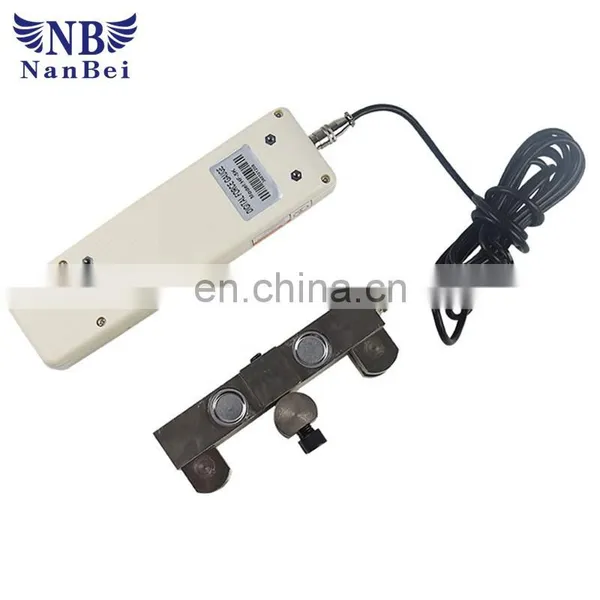

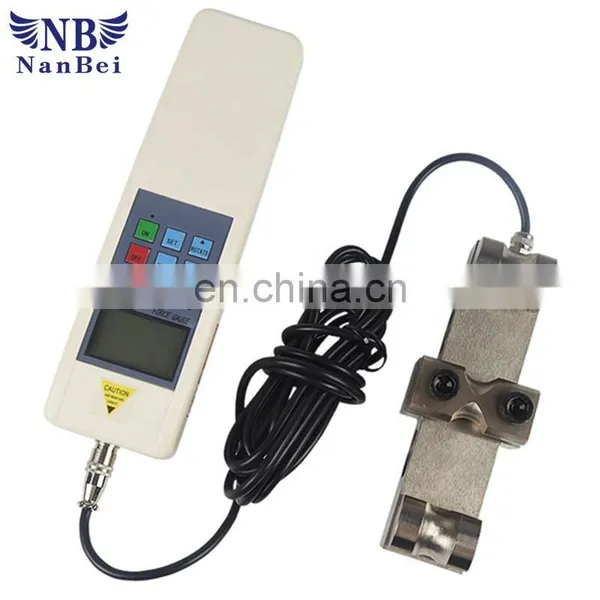

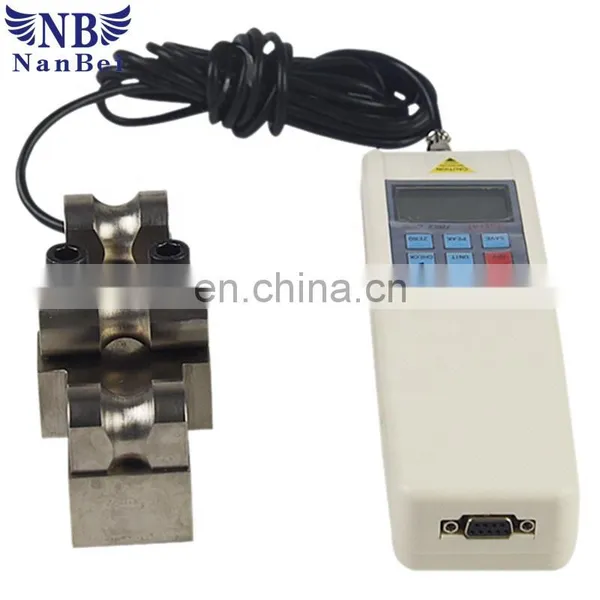

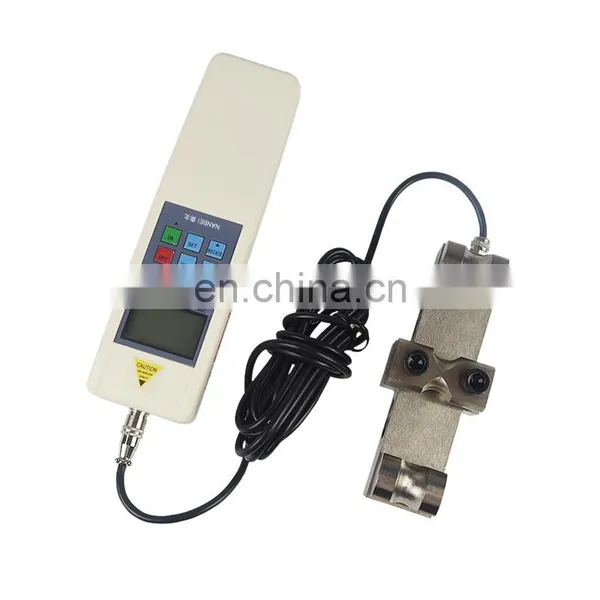

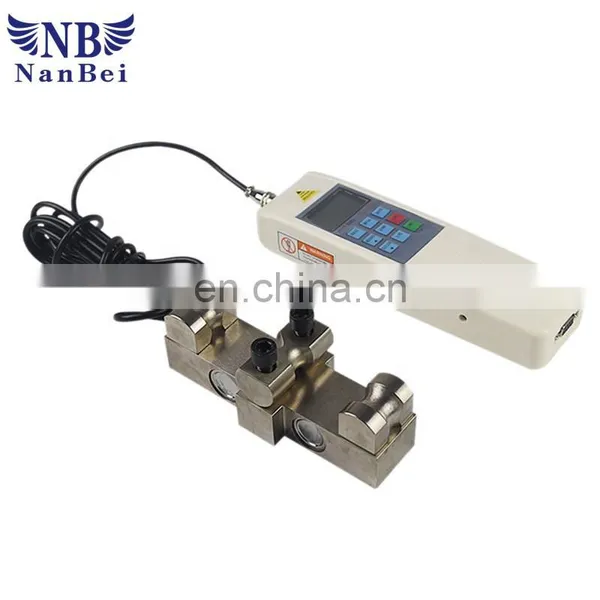

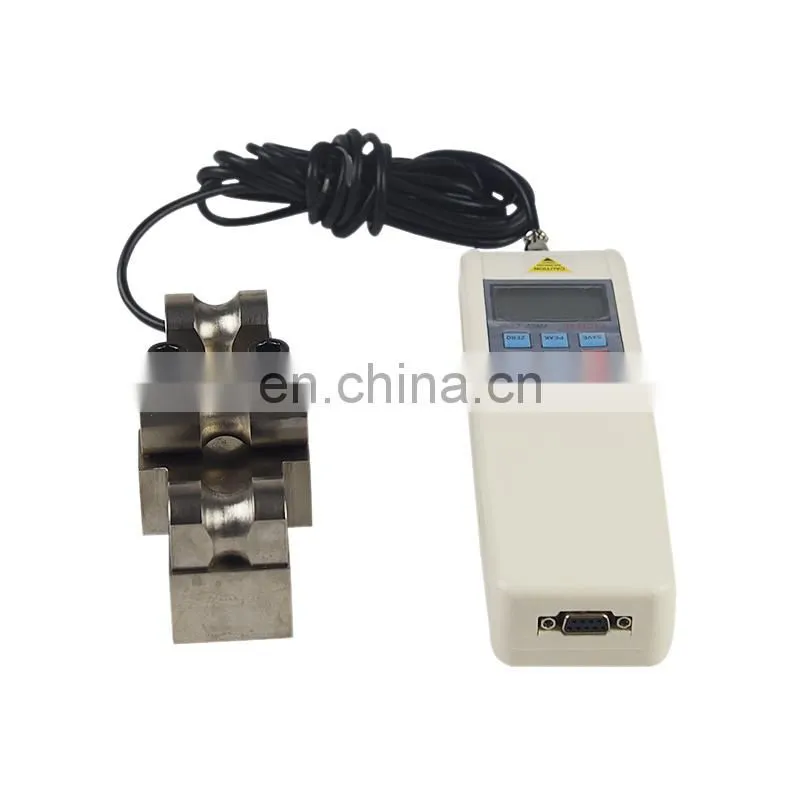

Introduction

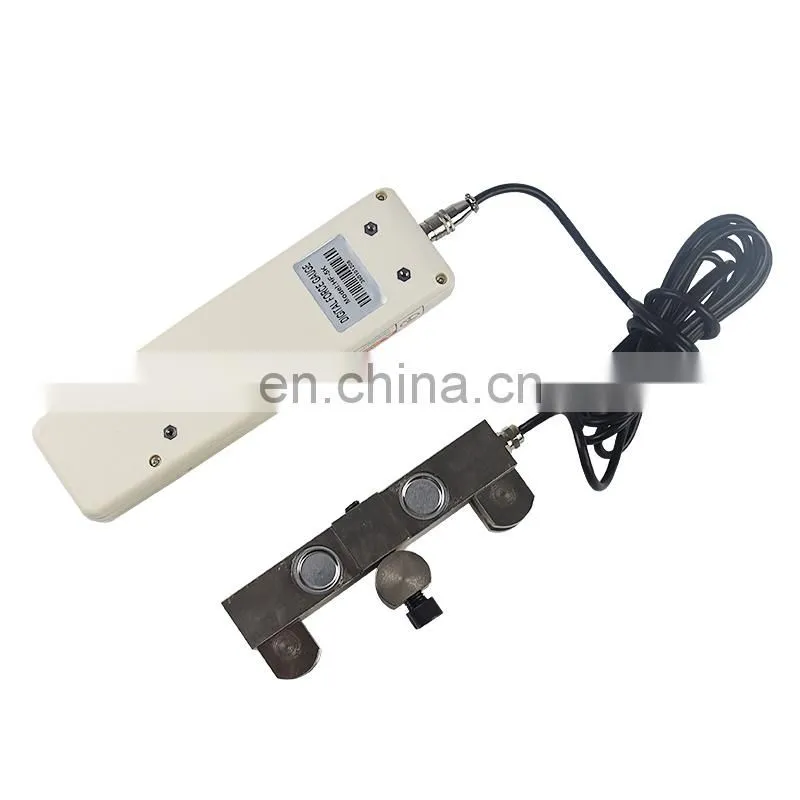

Digital pressuremeter tension tester is a kind of special equipment to measure wind towers, signal transmission and power transmission systems rope tension. It has characters of high precision, easy to operate, easy to carry, etc. also it has many kinds of test modes, convenient to testing. Users can also input gravity acceleration value to make the test more accurately.
u Function Characteristics
1. High precision, high resolution.
2. Five kinds of test modes, three kinds display modes---To improve test efficiency to the greatest extent.
3. N (Newton), kg (kg), lb (lb) three testing units for selection, mutual conversion.
4. Gravity acceleration setting function---Users can input the precise gravity acceleration value of testing place, make the testing and unit conversion more accurate.
5. Peak holding function---Maintain peak display until manual reset.
6. Automatic peak function---Maintain peak value can be removed automatically after 2 seconds.
7. Can set upper and lower limit value to make statistical analysis, the value more than comparative value, the alarm buzzer will alarm.
8. Data stored function, we can store 896 test values.
9. 10 minutes without operating automatic shutdown, green initiative.
10. High quality charging power,charge voltage from 240V to 100V, can adapt to domestic and foreign most areas,also have short circuit, leakage, overload protection function.
11. 2 sets of installation dimensions, adapt to domestic and foreign most test machines,convenient to installation and using.
12. Six digit Big screen display.

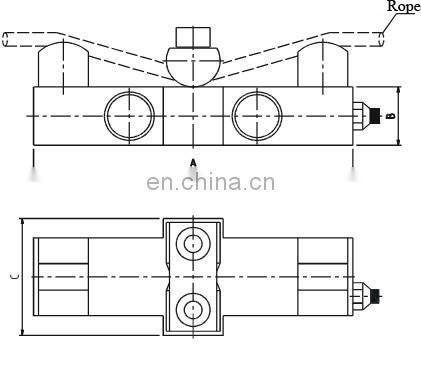

u Sensor specification table 1, force gauge specification table 2
|
Rope Tension |
Rope Diameter(mm) |
A |
B |
C |
|
1T |
Φ 6~Φ 14 |
160 |
30 |
60 |
|
2T |
Φ 10~Φ 18 |
160 |
30 |
60 |
|
5T |
Φ 16~Φ 26 |
180 |
34 |
68 |
|
10T |
Φ 24~Φ 36 |
200 |
40 |
80 |
|
20T |
Φ 24~Φ 36 |
240 |
46 |
90 |
|
Type/Specification |
ND1T |
ND2T |
ND5T |
ND10T |
ND20T |
|
Maximum load value |
10KN |
20KN |
50KN |
100KN |
200KN |
|
Load division value |
0.01KN |
0.01KN |
0.01KN |
0.1KN |
0.1KN |
|
0.001Mg |
0.001Mg |
0.001Mg |
0.01Mg |
0.01Mg |
|
|
0.001Klb |
0.001Klb |
0.001Klb |
0.01Klb |
0.01Klb |
|
|
Error of indication |
|
+-0.5% |
|
+-1.0% |
|
|
Accuracy |
According to the ropes characteristics of different forms, precision is the 2%-6% of the full range. |
||||
|
Unit |
N(KN) Kg(Mg or T) Lb(Klb) |
||||
|
Output interface |
Rs232 Nine holes socket |
||||
|
Power |
Rechargeable batteries Battery voltage(100V-240V) |
||||
|
Sensor structure |
S type or cylinder shape high-accuracy sensor (External) |
||||
|
Operating temperature |
-20℃~+60℃ |
||||
|
Transportation temperature |
|
-20℃~+60℃ |
|||
|
Relative temperature |
10%-90% RH |
||||
|
Work environment |
No seismic focus and corrosive medium around |
||||
|
Net weight |
About 400g+weight of sensor |
||||
|
Size |
230 X 66 X 36mm |
||||
|
|
|
|
|
Pre-sale service
² 24hours online to ensure quick response to customers' inquiry or online message;
² Guide customers to choose the best suitable machine model;
² Offer detailed specification and competitive prices;
Contract execution
² Machine production will be arranged strictly according to the contract;
² Machine photos will be sent to you for inspection during production;
² Send customs clearance documents by DHL;
² Update latest news after delivery and prepare customs clearance;
After-sale service
² 12 months warranty except for wear parts;
² Broken spare parts (except for wear parts) will be sent for free due to quality problems;
² In time response to customers technical problems;
² New products update for customers' reference
1.How can I choose the suitable one?
Dear customer, please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.
2.Does your price is competitive?
Dear customer, we make sure to offer you the best quality with competitive price.
3.How can I pay?
Dear customer, we accept many payment term, such as T/T, Western Union…
4.When I receive it after pay?
Dear customer, normal models can be delivered with 5-7days, please contact us to check transport time to your address.
5.How to deliver?
Dear customer, we can send by Express, by Sea and by Air.
6.Is will be broken during transport?
Dear customer, please do not worry, we do standard export package.
7.What should I do if I do not know how to use?
Dear customer, please do not worry, manual user will be sent together, you can also contact us with more technological support.
8.What should I do if some parts broken?
Dear customer, please do not worry, we have 12months warranty except wear parts. You can also buy parts from us after 12months.
