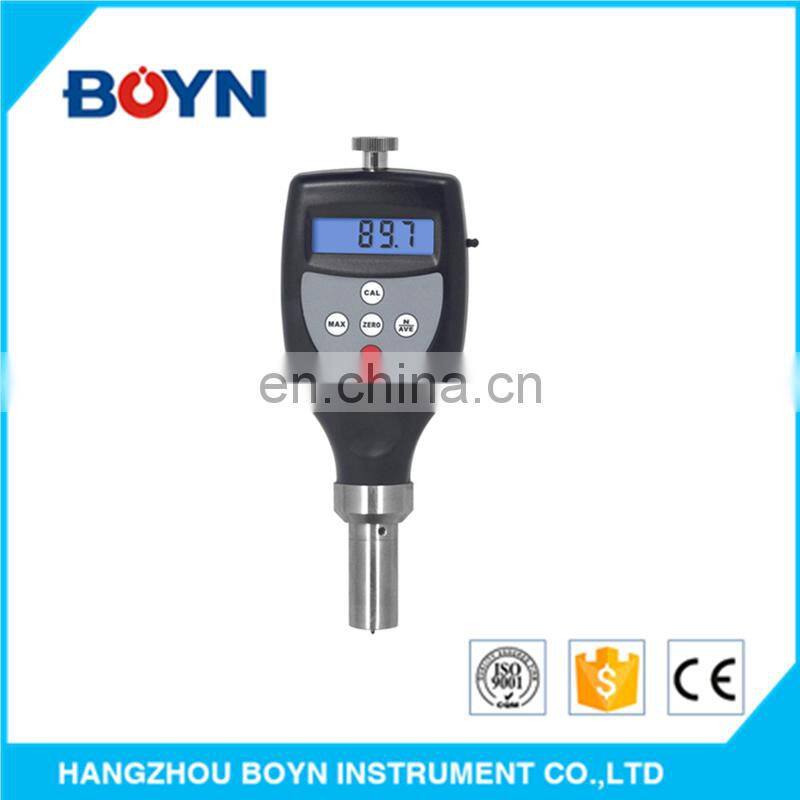

HT-6510A Cellular Products/rigid Plastics/shore Hardness Tester

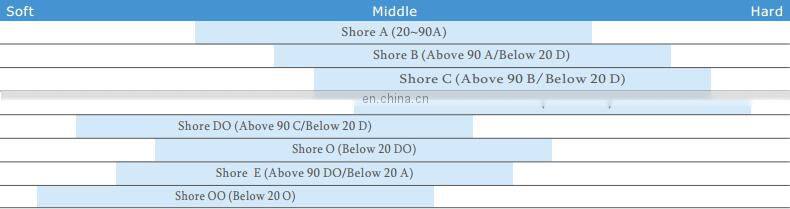

Model

Indenter

Tested Materials

Hardness Value

A

0.79 Truncated Cone

Soft Rubber, Elastomers, Natural Rubber Products, Neoprene, Resin, Polyester, Soft PVC,Lleather, etc.

20 ~ 90 A

B

R 0.1 Cone

Middle Hard Rubber Materials, Typewriter Rollers, etc.

Above 90 A,  Below 20 D

C

0.79 Truncated (Frustum) Cone

Plastics and Middle Hard Rubber Materials

Above 90 B, Below 20 D

D

R 0.1 Cone

Fibre Plastics, Hard Rubber, Hard Plastic Materials, Plexiglas,Stiff Thermo Plastics, Formica, Print Roller, Vinyl-plate, Cellulose Acetate, etc.

Above 90 A

DO

R 1.2 Spherical Radius

Plastics and Middle Hard up to Hard Rubber Materials

Above 90 C, Below 20 D

O

R 1.2 Spherical Radius

Soft Elastic Materials, Print Rollers, Middle Firm Textile Fabrics, Nylon, Orlon, Perlon, Rayon

Below 20 DO

OO

R 1.2 Spherical Radius

Sponge- and Cellular Rubber, Foam Rubber, Silicone, Gel-like Materials

Below 20 O

E

R 2.5 Spherical Radius

Hard Sponge, EVA

Above 90 DO, Below 20 D

Model

HT-6510(A/B/C/D/E/O/DO/OO)

Parameters

Tested Result/Mean Value/Max.Value

Unit

HA/HB/HC/HD/HE/HDO/HO/HOO

Range

10~90HA(HB/HC/HD/HE/HDO/HO/HOO)

Accuracy

≤±1H

Resolution

0.1H

Battery Indicator

Low Battery Indicator

Auto Switch Off

√

Operating

Temperature:0~50ºC   Humidity:<80%RH

Power Supply

4x1.5V AAA(UM-4)Battery

2x1.5V AAA(UM-4)Battery(Stand Available)

Dimensions

162x65x28 mm

Weight

170g

Standard

Main Unit

Accessories

Pin Length Teat Block

Carrying Case(B04)

Operation Manual

Optional

Shore Hardness Tester Measurement Stand

Accessories

Rubber Hardness Test Block(A/D Type)

RS-232C Data Cable with Software

blue tooth Data Adapter with Software
