Product Description

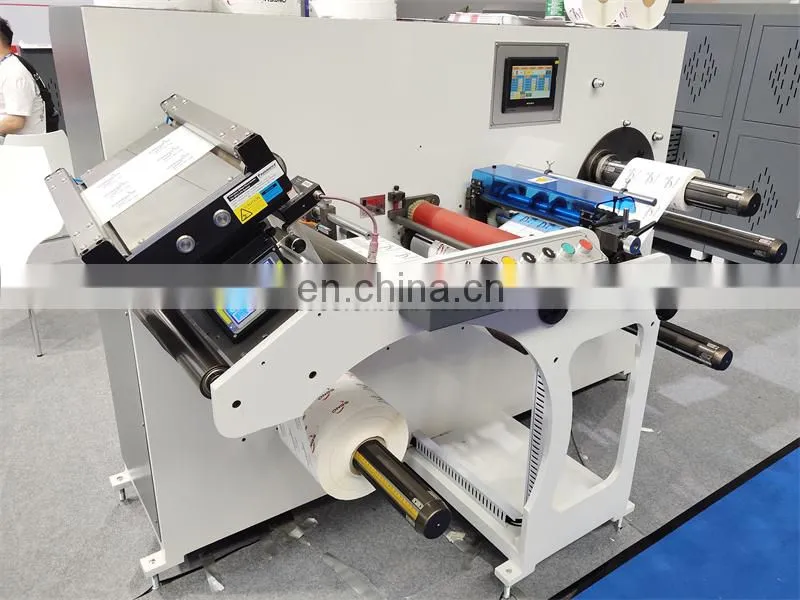

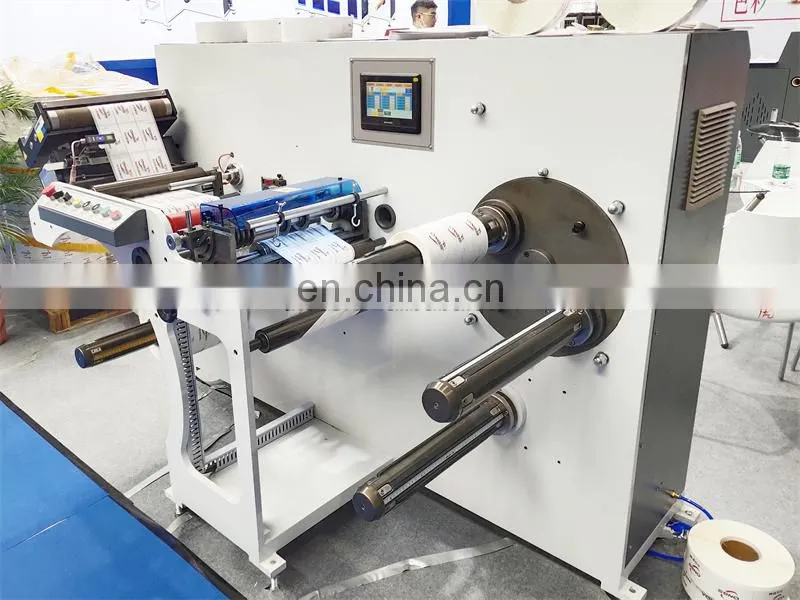

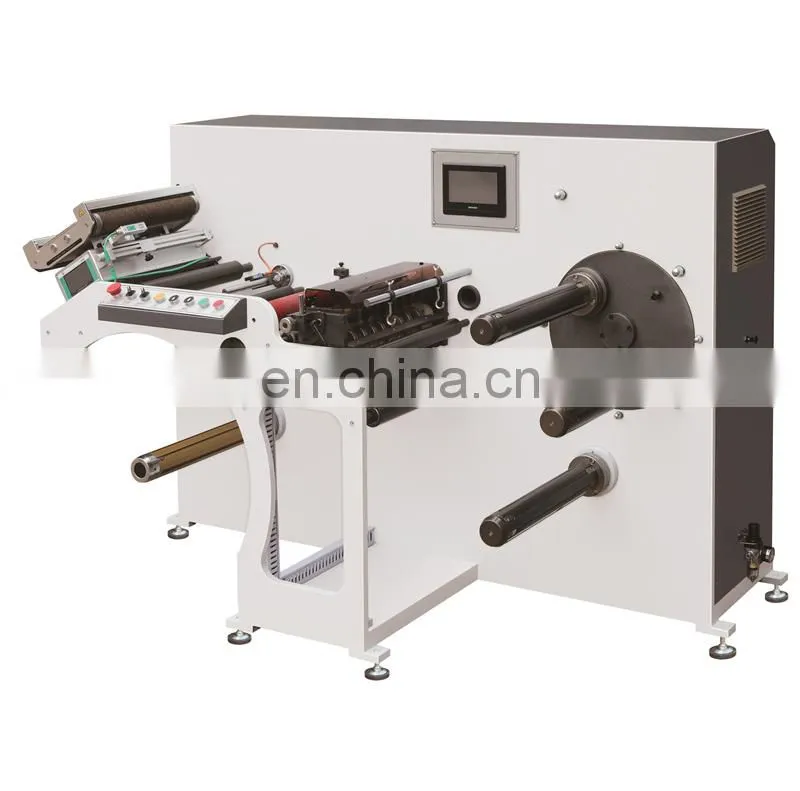

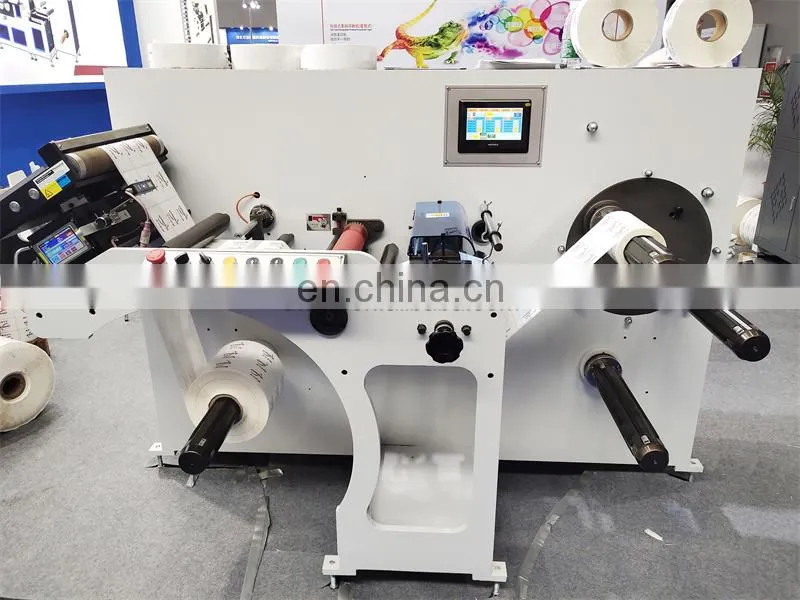

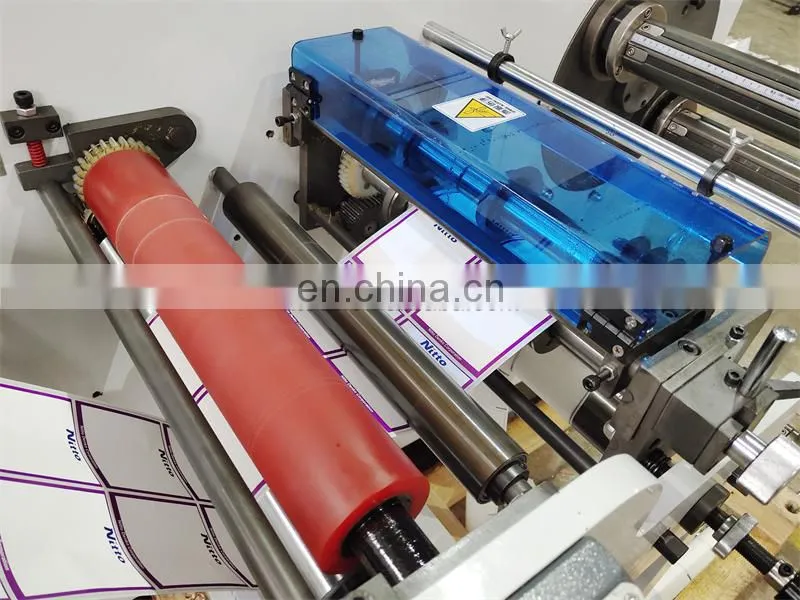

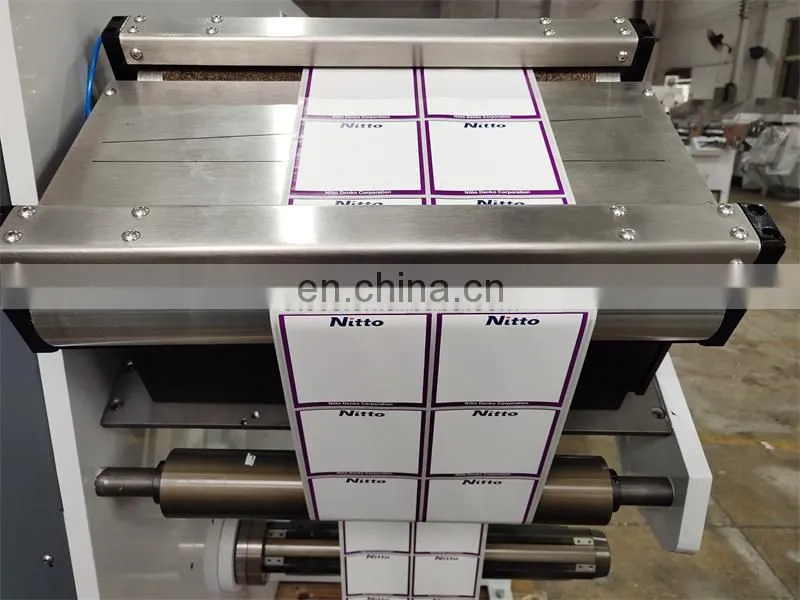

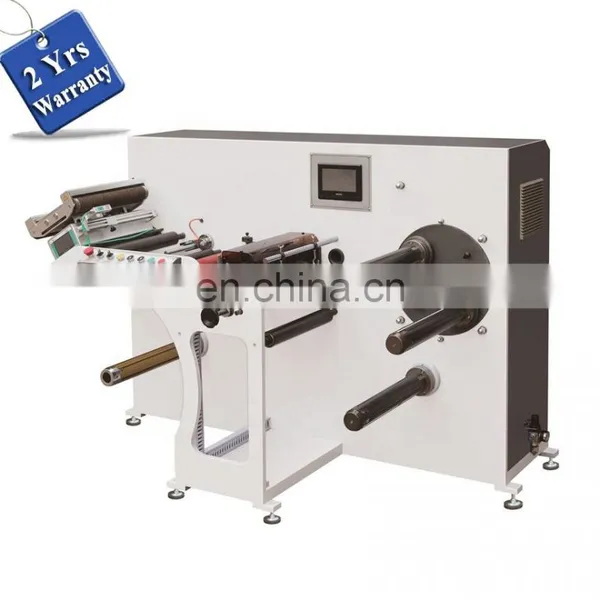

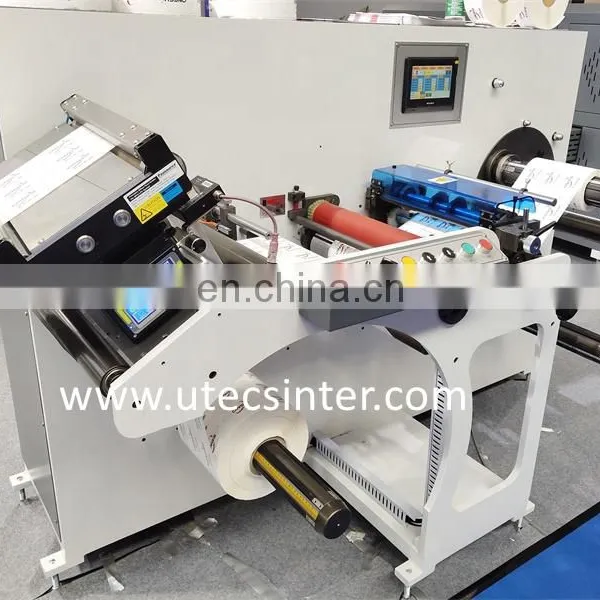

UTS420H Turret Type High Speed Automatic Label Cutting Machine, self-adhesive sticker cutter rewinder
Video demonstration only for reference
Video:/watch?v=bAKcY0GoRQE
Features:

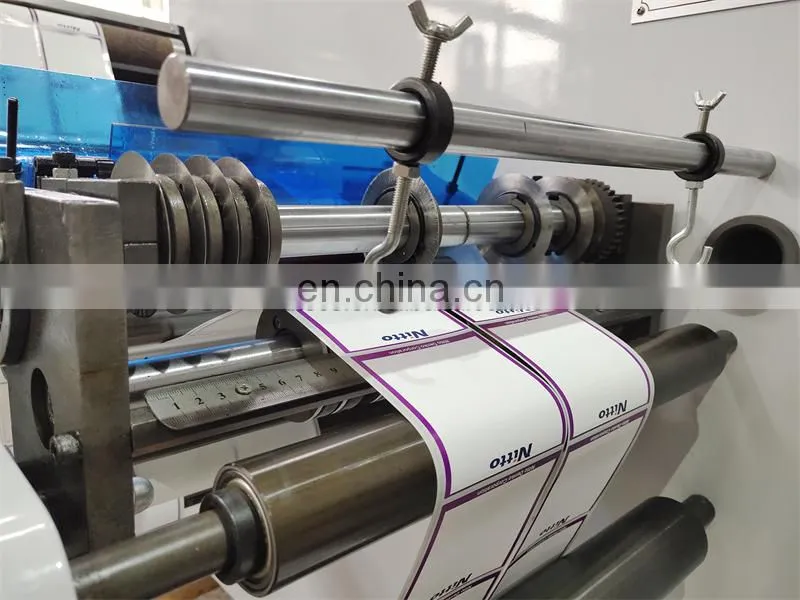

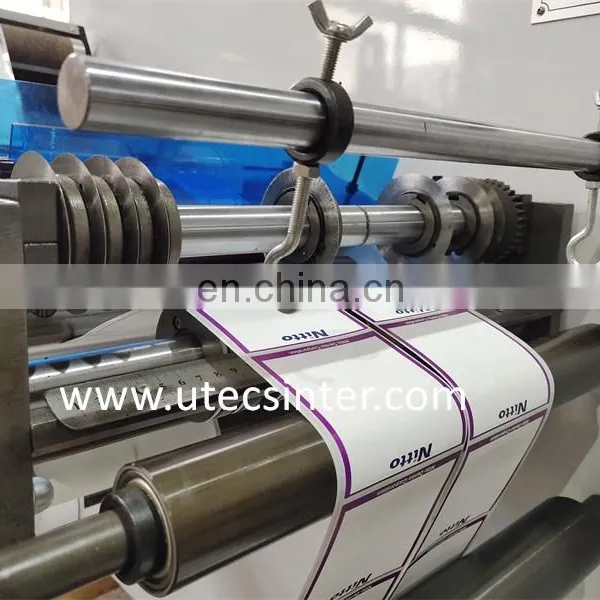

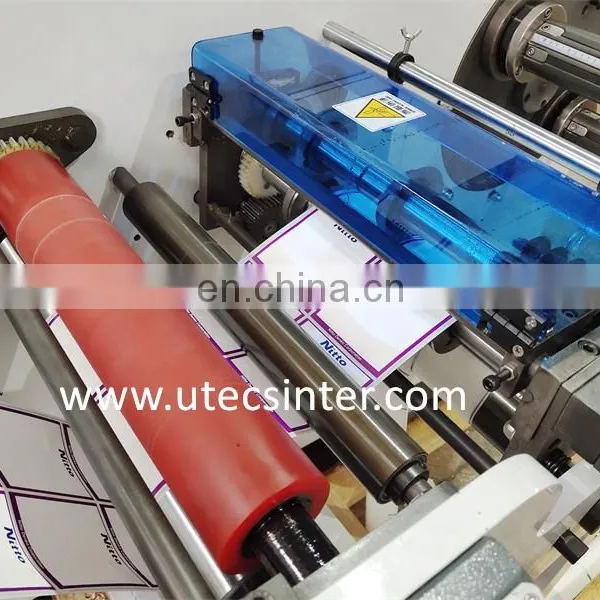

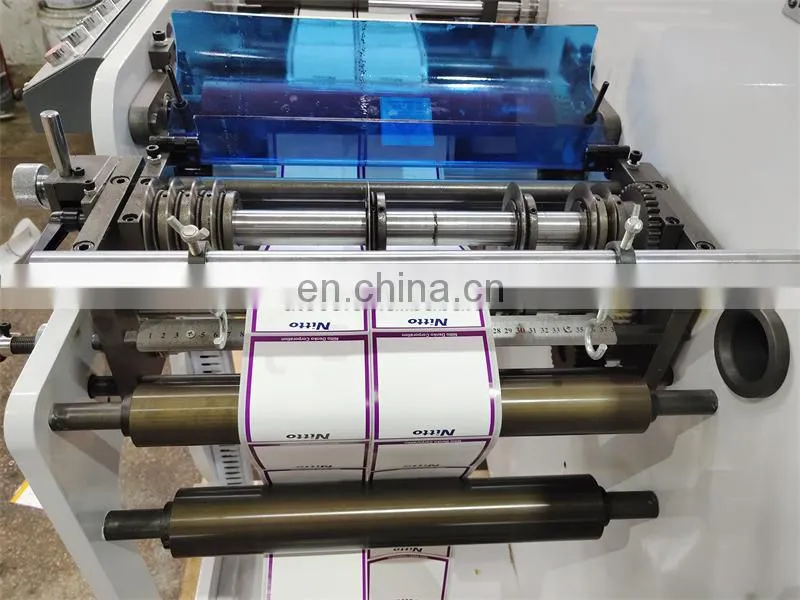

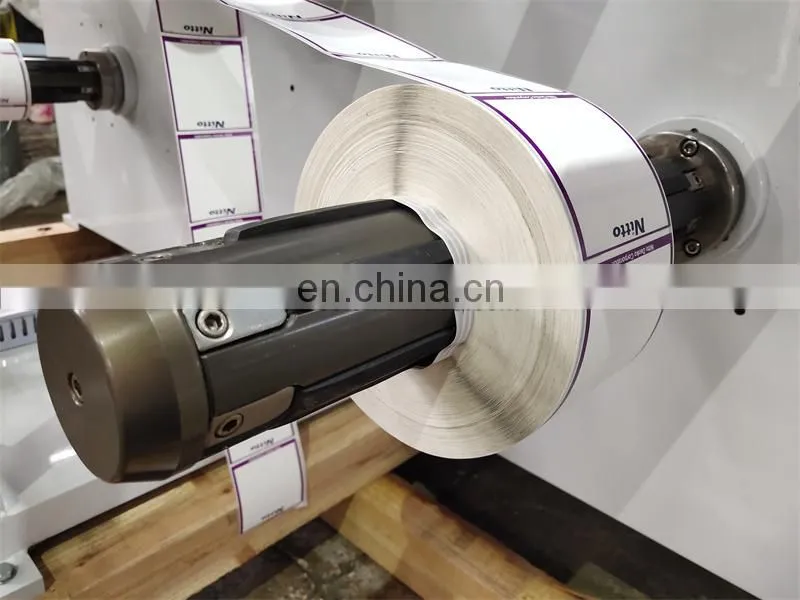

UTS320H/420H Automatic high speed slitting machine mainly for narrow web label slitting and rewinding. The machine is equipped with full servo motor drive system, automatic tension control system, EPC web guide system and turret rewinder. It is suitable for slitting and rewinding different diameter cores label.
Parameter:
|
Model |
UTS320H |
UTS420H |
|
Max Speed |
350m/min |
350m/min |
|
Max unwind width |
350mm |
450mm |
|
Max unwind diameter |
700mm |
700mm |
|
Max rewind diameter |
500mm |
500mm |
|
Min slitting width |
16mm |
16mm |
|
Razor knife |
Optional |
Optional |
|
Circular knife |
8 pcs |
8 pcs |
|
Slitting precision |
±0.1mm |
±0.1mm |
|
Total power |
8kw |
10kw |
|
Dimension (mm) |
1850*1200*1350 |
1850*1300*1350 |
|
Weight |
1200kgs |
1400kgs |

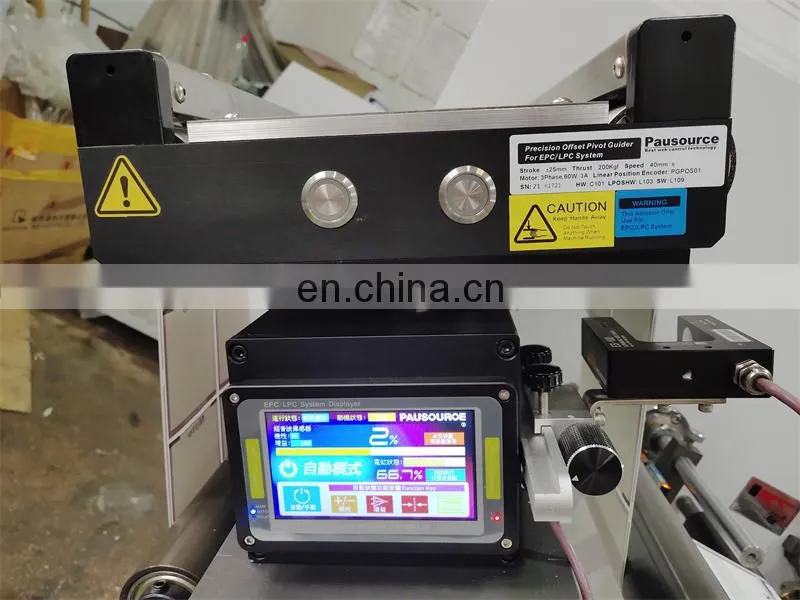

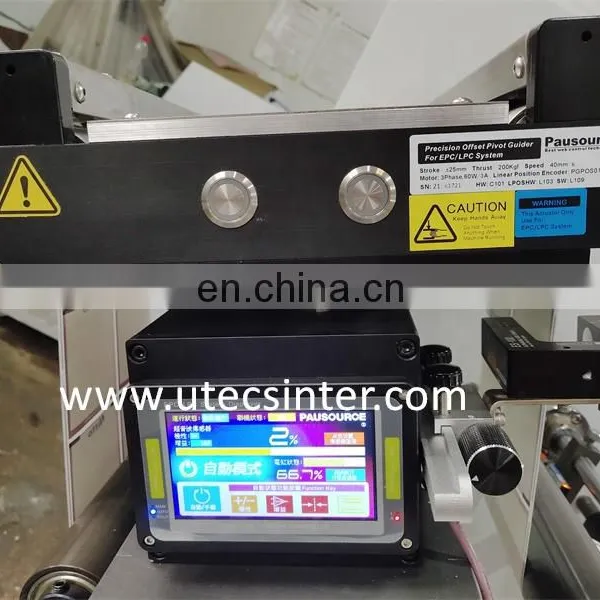

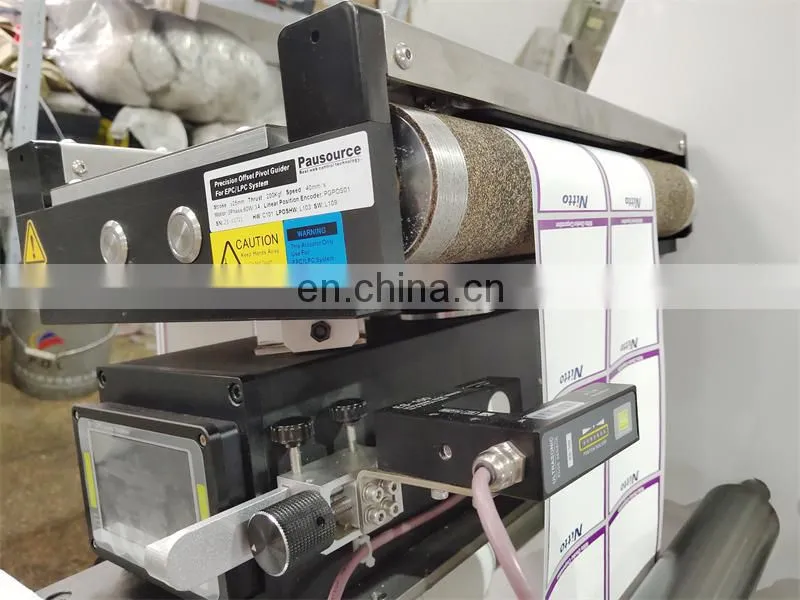

Web Guiding System
Pre-sale Service After-sale Service
A: Inquiry and consulting support A: English manuel and video instruction
B: Sample testing support. B: Your technians can get trained in my factory
C: Invoice and Contract confirmation. C: Engineers available for overseas if necessary
1.Q: What information should i let you know if i want to get a quotation?
A: What is your Max and Min product size in mm?
B: What is your paper thickness in GSM?
C: Some photos of your finished products
2.Q: Are you a manufacturer?
A: Yes we have been manufacturing such machines over 20 years and also we are a professional exporter.
3.Q: What about the payment term?
A: Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents..
4.Q: What is the warranty?
A: Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)
5.Q: What is your aftersale service?
A: Any questions will be responded within 24 hours by email, skype, phone call or Whatsapp/Wechat (+86-18258286679). In addtion, we have professional engineer available for overseas service..
6.Q:What is the delivery time?
A: Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.
