Servo Battery Hot Plate Heat Sealing Machine Plastic Welding Equipment

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Description

Products Description

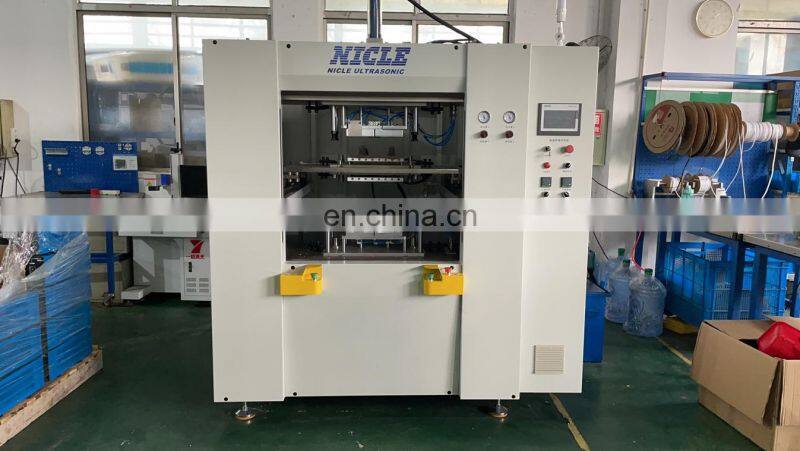

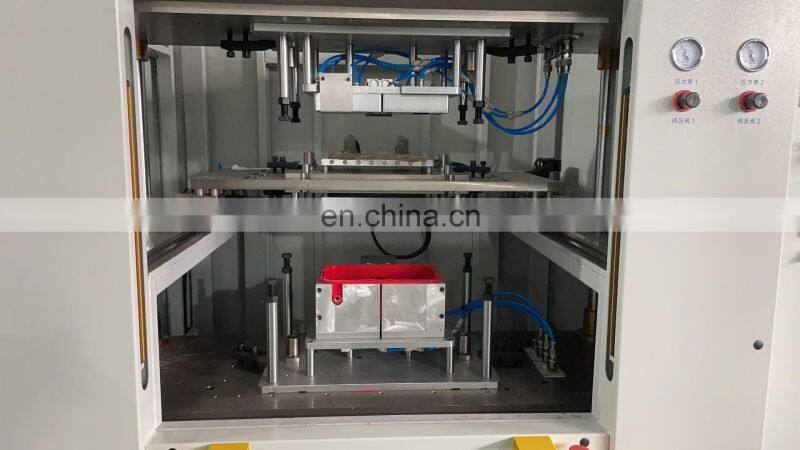

Servo Battery Hot Plate Heat Sealing Machine Plastic Welding Equipment

DIZO company is a professional engaged in ultrasonic industrial equipment, plastic welding equipment, hot riveting welding equipment research and development, production, sales, service as one of the modern high-tech enterprises. Can provide you with ultrasonic plastic welding machine, hot riveting welding equipment, plastic hot melt welding machine, plastic hot plate welding machine, high frequency welding machine, automobile special welding machine, non-woven special welding machine, non-standard welding machine and ultrasonic welding mold.

Parameter :

Model:	DZ-NC-2040/DZ-NC-6040/DZ-NC-3040
Service:	OEM/ODM
Power supply:	380VAC 3P 50/60Hz
Hot plate advance and retreat stroke：	0-700mm
Maximum area of welding parts：	600*400 mm/denpend on use
The distance between the upper pressing plate and the lower pressing plate:	0-650 mm/denpend on use
Applied range:	PP/ABS/PA66 / PE material, Oil can, water tank, agricultural sprayer, battery shell, sprayer and other products welding
Heating power:	1-15KW(denpend on use)
Consumed power:	1-5KW(denpend on use)
Weight:	1000-2000KG

Details Images

Machine Advantage:

1, Can be used for workpieces of different sizes, without area limitation. 2, Can be applied to any welding surface, no special requirements (such as flat, curved surface can be). 3, The welding surface can be allowed to compensate for the plastic residual, and the welding strength is guaranteed. 4, The welding process can be shaped by the fixture,the deformation of the product is not very high requirements. 5, Welding process is simple,(mainly temperature,time, depth,etc.) 6, After welding,the product has better air tightness, reliable interface and high strength. 7, Driving method can be selected from pneumatic, hydraulic and servo motor drive

Company Profile

Q1: Are you a manufacturer?

A1: For over 15 years DIZO have developed an expertise in plastic joining, we master the design, the manufacturing and the maintenance of molds.

Q2: Where is your factory? Can I visit your factory?

A2: Dizo located in the city of Wuxi.

Q3: How to buy your machine?

A3: Please advise specific by mail, after confirm with machine model and price, we will sign a PI for confirming when the first deposit was done, machine manufacture begins, When the balance is complete we will ship out and provide the tracking number.

Q4: Are we still need to install the machine after we got?

A4: All of the machines will be tested ready before shipping, video, and manual will attached for use and master the machine well.

Q5: How about your warranty?

A5: 1. All of our products for one year warranty; 2. 24-hour telephone service; 3. A large stock of components and parts, easily worn parts; 4. Toolkit will attach with Machine.

Q6: How can you guarantee we receive a good performance product?

A6: Dizo applied series inspection process during production When the machine was finished. QC will provide inspection video and pictures for double check the quality control, and we will send the troubleshoot and solutions if needed; Also third part or customers come to the factory have field inspection is welcome.

Q7: How soon can you deliver the equipment?

A7: Dizo will deliver your equipment by within 7 days(stock available); Customized equipment or no inventory machine normally need 15-30days.

Q8: Who do I talk to when I want to start an application?

A8: Dizo has experiences of sales engineers to provide the assistance and support you require.

Q9: Can I get a discount or can you do something with the price?

A9: Dizo sales contact or Key Account Manager can answer your cost-related questions. Please email us. Thank you in advance.

Q10: Packaging & Shipping

A10: Provide sturdy plywood case packaging machines, safety and meet the international export standard.
