Customized digital industrial ultrasonic cleaning machine for machinery industry

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Description

Products Description

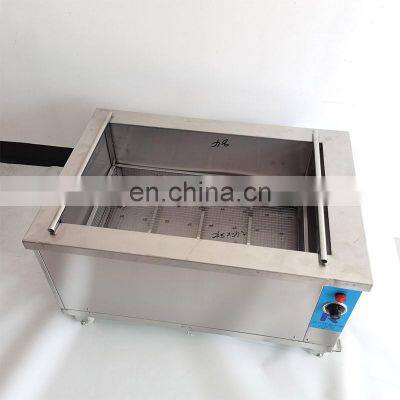

Customized digital industrial ultrasonic cleaning machine for machinery industry

Ultrasonic cleaning machine is widely used in plastic electronics, chemical industry, medical medicine, pharmaceutical, food, hardware, petroleum, environmental protection, aerospace, school, education, product certification institutions and other laboratories for cleaning and emulsifying mixing or efficient separation and extraction of water-based liquid substance molecules, excellent product performance. DIZO team will provide the most suitable machine equipment for you After confirming your material characteristics, thickness, size, application and other relevant requirements.

Parameter :

Service:	OEM/ODM
Voltage:	380V/220V
Power:	1500W/3000W/4500W/6000W/9000W Depend on Usage
Frequency:	18KHz/20KHz/22KHz/25KHz/28KHz/30KHz/33KHz/40KHz/60KHz/75KHz/90KHz/100KHz/133KHz Depend on Usage (Commonly used:28KHz,40KHz)
Application:	Automotive/Medical/Marine/Aero/Hardware industry
Capacity:	30L~5000L Depend on Usage
Time:	0~99h Adjustable
Ultrasonic Power(W):	0-10800 Depend on Usage
Heater power:	1500W-36000W Depend on Usage
Tank size:	Customized Depend on Usage
Heater:	20-95℃ adjustable

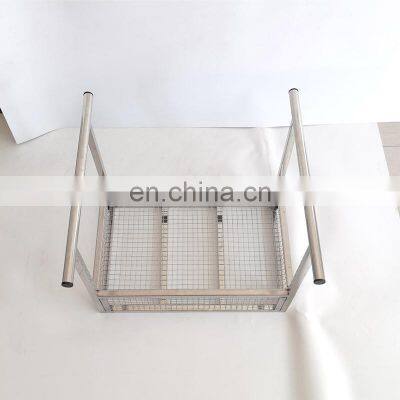

Cleaning basket:	SUS304/SUS316
Core selling points:	Fast Speed/Good Effect/High Cleanliness/High Cleaning Accuracy/Saving Solvent/Easy to Operate/Long Service Life/High Rigidity/High-accuracy

Details Images

Product Feature of Altrasonic Cleaning Machine:
Ultrasonic generator adopts the latest automatic frequency sweeping technology, and the main power components are Fuji from Japan and Semikrion from Germany.
-The control part adopts chips from Toshiba, Hitachi, Fuji, and Motorola.With the function of power stepless adjustment, the output power can realize 10% and 100% continuous adjustment.
-Overload protection and frequency tracking function. Power conversion efficiency can reach more than 90%, power output is stable and reliable. Digital display, the current size at a glance.
- Ultrasonic oscillators are made of wafers from the United States and manufactured by Rayleigh of the 715 Research Institute of China Shipbuilding Industry Corporation.
-The United States imported the original adhesive, so that the transducer and the vibration surface bonding firmly, not easy to fall off.
-The working voltage of ultrasonic generator is AC220S ,10V.
-Ultrasonic generator has over voltage, over current, output short circuit and other protective measures.

Application of Ultrasonic Cleaner :
1, Car service: Flushing carburetors, injectors, injectors, fuel filter mesh cleaning (petrol), individual parts, assemblies, and entire blocks. 2, Medicine: Washing and polishing of optics, sterilization and cleaning of surgical instruments, vials, dental and pharmaceutical industries; cleaner reusable, molds. 3, Engineering: Cleaning of parts, pipes, wires, etc. before finishing, machining parts and components to the preservation, processing of parts after reopening, welding, grinding, polishing, cleaning strainers in the fuel and hydraulic systems, deburring parts. 4, Instrumentation: Washing and polishing of optics, precision mechanics components, integrated circuits and printed circuit boards.

OEM&ODM
1, Ultrasonic power: It can be customized according to the cleaning tank capacity. The larger the capacity, the more ultrasonic power is needed. 2, Ultrasonic frequency: 20/25/28/35/40/60/68/80/168/200 KHZ can be choosed, 28/40 KHZ is the most commonly used. 3, Inner tank size: It can be customized according to customer's product size & cleaning quantity. 4, Ultrasonic direction: Bottom shock and side shock. Bottom shock is the most commonly used. Transducers can be installed at the bottom and side if the product is bigger and structure is more complex. 5, Stick Brand: We can stick the customer brand according to the authorization of the customer.

Ralated Products

Company Profile

Q1: Are you a manufacturer?

A1: For over 15 years DIZO have developed an expertise in plastic joining, we master the design, the manufacturing and the
maintenance of molds.

Q2: Where is your factory? Can I visit your factory?

A2: Dizo located in the city of Wuxi.

Q3: How to buy your machine?

A3: Please advise specific by mail, after confirm with machine model and price, we will sign a PI for confirming when the first deposit was done, machine manufacture begins, When the balance is complete we will ship out and provide the tracking number.

Q4: Are we still need to install the machine after we got?

A4: All of the machines will be tested ready before shipping, video, and manual will attached for use and master the machine well.

Q5: How about your warranty?

A5: 1. All of our products for one year warranty; 2. 24-hour telephone service; 3. A large stock of components and parts, easily worn parts; 4. Toolkit will attach with Machine.

Q6: How can you guarantee we receive a good performance product?

A6: Dizo applied series inspection process during production When the machine was finished. QC will provide inspection video and pictures for double check the quality control, and we will send the troubleshoot and solutions if needed; Also third part or customers come to the factory have field inspection is welcome.

Q7: How soon can you deliver the equipment?

A7: Dizo will deliver your equipment by within 7 days(stock available); Customized equipment or no inventory machine normally need 15-30days.

Q8: Who do I talk to when I want to start an application?

A8: Dizo has experiences of sales engineers to provide the assistance and support you require.

Q9: Can I get a discount or can you do something with the price?

A9: Dizo sales contact or Key Account Manager can answer your cost-related questions. Please email us. Thank you in advance.

Q10: Packaging & Shipping

A10: Provide sturdy plywood case packaging machines, safety and meet the international export standard.
