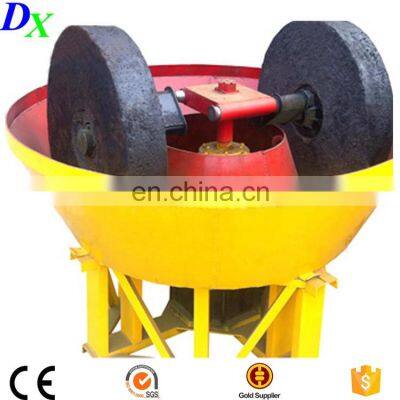

Hot Selling in Africa Sudan Zimbabwe Egypt Mauritania 1200 Wet Pan Mill for Gold

Introduction of 1000 1100 1200 1300 1500 1600 double rollers wet pan mill for gold ore grinding in Sudan Zimbabwe

Double rollers wet pan mill is named by the diameter of grinding roller. We have Diameter 850, 900, 1000, 1100, 1200, 1300, 1400, 1500, 1600,etc. Generally speaking, from 850 to 1200 model is used for gold grinding. Larger size from 1300 to 1600 model is used for iron ore, molybdenum ore, lead ore, zinc ore, antimony ore and so on.
It is the preferred production for alternative ball mill, and ideal choice for small and medium enterprises dressing.

Main Features of WET PAN MILL

1) Simple structure of wet pan mill ,easy in installation and maintation.
2) Low investment, high production capacity, good efficiency.

3) 24 hours continuous working.

4) The grinding wheels and grinding base are made of high manganese steel. They are very hard and rigid, thus using life doubled.

Working principle of wet pan mill FOR GOLD GRINDING ORE:

1.When inputting gold sand into the rolling drum, the rollers compress the sand over and over into tiny particles.
2.Add 1 kg mercury into the water. Meantime, add gold ore to the machine every 5-10minutes. After 24 hours, recycle mercury. The mercury can absorb the gold or other metals.
3. Using a high-density red cloth to wrap mercury up.
4.Then squeeze it, the mercury will be pressed out and pure gold will be left in the cloth.

As to the larger capacity, we can use mercury shaking machine and mercury steamer to replace the manual work.

Gongyi Dongxing Machinery development:

After nearly a decade of strive, Dongxing's customers cover more than 150 companies and 20 countries;Satisfying users is the measurement of Dongxing's pursuit of value. By the corporate endeavor of Dongxing people, the popularity of Dongxing brand has been established.

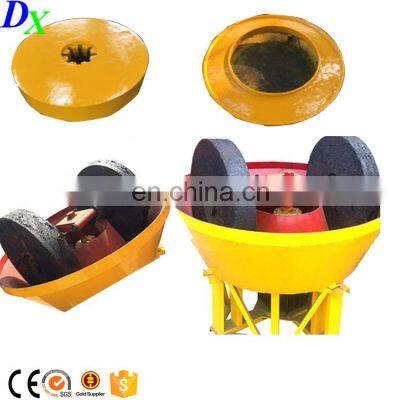

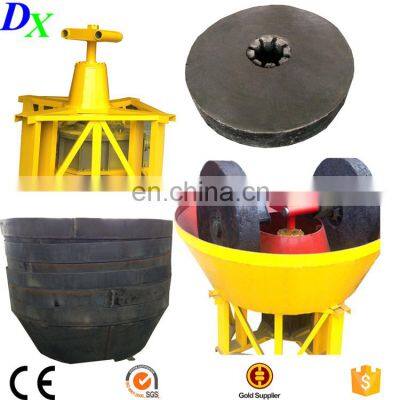

Machine Parts

Name: Grinding roller

Brand: Dongxing

Original: Henan

The material of roller is high Mn and White iron. For 1200 model grinding roller, the diameter is 1200mm, thickness is 200mm or 220mm, Weight is 1500kg/pcs.

Main Features

Name: Water pan
Brand: Dongxing
Original: Henan
The thickness of water pan is stronger than other factories, ours are 5mm or more than 5mm with longer service life. Others is 3mm.

in addition, the edge  is specially processed with the edge protecting.

Machine Parts

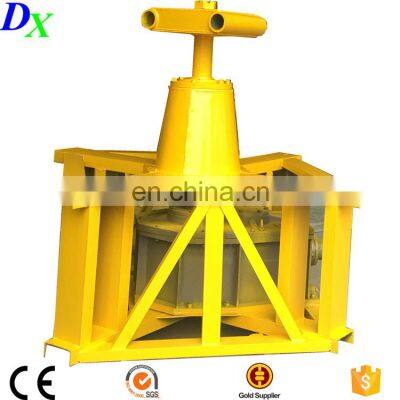

Name: Frame of Wet Stone Grinding mill machine
We use high thickness steel plate in strong structure to support grinding rollers and grinding base.

Main Features

Name: Grinding base

1200 model: the diameter of grinding base is 1800mm and the thickness is 100mm. The material could be high manganese steel.

Our aim is to supply the market with top quality Wet Stone Grinding mill machine equipment, and provide best service and best price for our customer!
