China Small Charcoal Coal BBQ Briquette Press Making Machine For Sale
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
1990
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Charcoal Briquette Making Extruder Machine for PriceNegotiableMOQ: 1 -
Sale Energy-Saving BBQ Biomass Wood Sawdust Charcoal Making MachineNegotiableMOQ: 1
-
Small 1-5tph Roller Pressure Coal Charcoal Briquette Making Machine PriceNegotiableMOQ: 1
-
Sale Small Charcoal Coal BBQ Briquette Press Making Machine For GermanyNegotiableMOQ: 1
-
Carbon Fines Pressing Machine for BBQ Briquette MakingNegotiableMOQ: 1
China Small Charcoal Coal BBQ Briquette Press Making Machine For Sale
Ball press machine is used for making coal fines, coke fines, charcoal powder, carbon black, carbon, salt, chemical salt, iron ore fines, silicon carbide, mineral powder, metal dust, cast iron dust, mill scale, manganese ore fines, fluorite powder, gypsum powder, ferrosilicon powder, and phosphor gypsum powder, nickel alloy, blast furnace ash, converter dust, coal gangue, Kaolin clay, MgO, NPK, graphite, oil shale, potash fertilizer, urea fertilizer, sea sand powder etc. Into briquettes. These briquettes ball can be designed of oval shape, egg shape, pillow shape etc. This ball press machine is widely used in coal industry, metallurgy industry, chemical industry etc.
(charcoal briquette making machine / coal briquette making machine / small briquette making machine)
Raw material:
Coal: Coal powder, middle coal, slime peat, coke powder, lignite etc.
Charcoal powder / charcoal dust: raw material powder, silicomanganese alloy, etc.
Other material: fireproof material, desulfurization gypsum, dolomite etc.
Tips:
1. The materials powder size must be less than 4 cm. If not, you should crush it firstly.
2. Any raw materials with metal is not allowed, otherwise it will damage the surface of rollers.
Coal: Coal powder, middle coal, slime peat, coke powder, lignite etc.
Charcoal powder / charcoal dust: raw material powder, silicomanganese alloy, etc.
Other material: fireproof material, desulfurization gypsum, dolomite etc.
Tips:
1. The materials powder size must be less than 4 cm. If not, you should crush it firstly.
2. Any raw materials with metal is not allowed, otherwise it will damage the surface of rollers.
Final briquettes produced by coal briquette press machine:
Shape: Can be round, pillow, oval.
Size: Changeable size 18mm-80mm, made according to clients requests.
Shape: Can be round, pillow, oval.
Size: Changeable size 18mm-80mm, made according to clients requests.
Material and final briquettes of coal briquette press machine

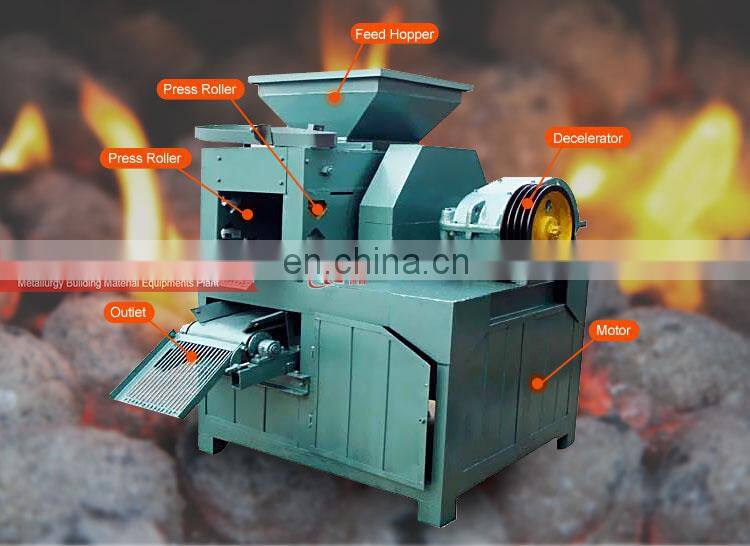

Coal briquette making machine parts:
Company Profile
Hengchang headquarters is located in the industrial park in Gongyi City. It covers a total area of 150,000 square meters,including 100,000 square meters of standarized workshop. There are more than 200 sets of various large and medium-sized metal processing lathe, riveting machine, welding equipment and assembly equipment. We have more than 300 workers, including more than 20 middle and senior technicians. Hengchang is mainly focus on 4 series products: stone crusher machines, sand making equipment,powder grinding mills, mineral processing equipment and their spare parts. Every year, Hengchang can turn out 1,000 sets of crushers and 10,000 tons of crusher parts.
Model | Roller Dia. (mm) | Roller Width (mm) | Motor Power (kw) | Shaft Speed (r/min) | Reducer Model | Capacity (t/h) | Roller Material |
YYQ-476 | 476 | 210 | 22/1.5 | 15 | ZQ500 | 3-6 | 65Mn |
YYQ -476 | 476 | 260 | 30/1.5 | 15 | ZQ650 | 4-8 | 9Cr2M0 |
YYQ -500 | 500 | 300 | 30/1.5 | 15 | ZQ650 | 5-9 | 65Mn/9Cr2M0 |
YYQ -650 | 650 | 336 | 45/1.5 | 15 | ZQ750 | 8-15 | 65Mn |
YYQ -672 | 672 | 275 | 75/1.5 | 13 | ZQ1000 | 8-15 | 9Cr2Mo |
YYQ -750 | 750 | 400 | 55/1.5 | 13 | ZQ850 | 15-20 | 65Mn/9Cr2Mo |
YYQ -850 | 850 | 500 | 75/1.5 | 10 | ZQ850 | 20-30 | 65Mn/9Cr2M0 |
YYQ-1000 | 1000 | 650 | 110/1.5 | 10 | ZQ1000 | 30-50 | 65Mn/9Cr2M0 |
(charcoal briquette making machine / coal briquette making machine / small briquette making machine)
Our customers / services
A.Pre-sale services:
Act as a good adviser and assistant of clients, enable them to get rich and generous returns on their investments.
1.Select equipment model;
2.Design and manufacture products according to clients' special requirement;
3.Train technical personnel for clients;
1.Select equipment model;
2.Design and manufacture products according to clients' special requirement;
3.Train technical personnel for clients;
B.Services during the sale:
Respect clients, devote ourselves to improving the total value of clients:
1.Pre-check and accept products ahead of delivery;
2.Help clients to draft solving plans;
2.Help clients to draft solving plans;
C.After-sale services:
Provide considerate services to minimize clients' worries:
1.Assist clients to prepare for the first construction scheme;2.Install and debug the equipment; 3.Train the first-line operators; 4.Examine the equipment; 5.Take initiative to eliminate the troubles rapidly; 6.Provide perfect service;7.Provide technical exchanges...
Our Workshop
1.We are factory and be able to give you the lowest price than market one;
2.Our products have been exported to over 80 countries and widely used in global mining and construction industry;
3.We have a professional after-sale service team to promptly and thoroughly solve your problems;
4.Provide free process design.

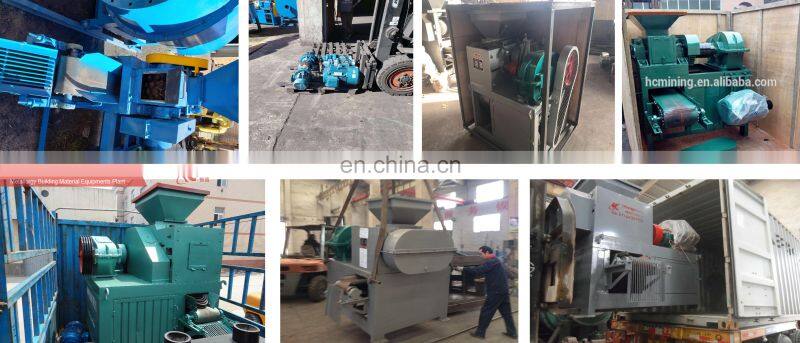

Shipment of coal briquette making machine
Packaging Details:
Standard export packing, Spare parts in wooden case, big machines loaded in container,large machines use nude packing, cover with plastic cloth. We export through QingdaoPort, also can be nominated by customer. We have superior cargo agent to arrange thesea shipment for each client, competitive price, secure transportation.
Delivery Time:
We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 10 to 20
working days.
FAQ
Q: For providing you the suitable quotation we need to know the following information:
A:
1. What is the raw material?
2. What is the capacity per hour you required ?
3. What is the maximum input size of the raw material ?
4. What is the final briquettes size and shape you want? Once we get your answers, I can provide you the best quotation immediately.
Remarks: The price will depend on different models.
Q: What about Warranty of the products ?
A: Gongyi hengchang machinary grants our customers a twelve-month-period warranty from the date of delivery for machines exported from us. During the warranty period, in case any defect of material or workmanship occurred with spare parts in norma operation,we will at our discretion replace or repair the defective parts freely.
A:
1. What is the raw material?
2. What is the capacity per hour you required ?
3. What is the maximum input size of the raw material ?
4. What is the final briquettes size and shape you want? Once we get your answers, I can provide you the best quotation immediately.
Remarks: The price will depend on different models.
Q: What about Warranty of the products ?
A: Gongyi hengchang machinary grants our customers a twelve-month-period warranty from the date of delivery for machines exported from us. During the warranty period, in case any defect of material or workmanship occurred with spare parts in norma operation,we will at our discretion replace or repair the defective parts freely.
