5-10t/H Gold Ore Processing Heavy Duty Rock Trommel Screen Small Mobile Trommer Drum Mini Gold Trommer Screen
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
1990
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Newly Designed Industrial Vibrating Sieve Machine Price Vibrating ScreenNegotiableMOQ: 1 -
Customize Mineral Vibrating Sieve Machine Price Vibrating Screen PriceNegotiableMOQ: 1
-
High Frequency Industrial Vibrating Sieve Machine Price Vibrating ScreenNegotiableMOQ: 1
-
Multi-Layer Vibrating Screen for Sand Stone SeparationNegotiableMOQ: 1
-
Iron Ore Circular Rotary Sand Screening MachineNegotiableMOQ: 1
Product Description

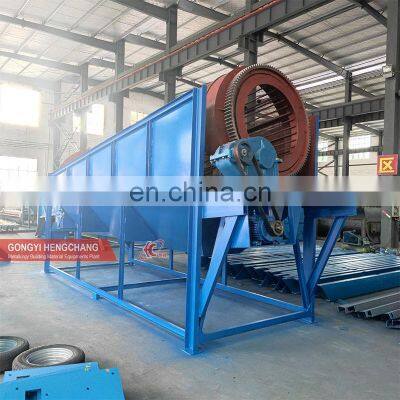

Gold Ore Processing Heavy Duty Rock Trommel Screen Small Mobile Trommer Drum Mini Gold Trommer Screen
A trommel screen, also known as a rotary screen, is a mechanical screening machine used to separate materials, mainly in the mineral and solid-waste processing industries.
[1] It consists of a perforated cylindrical drum that is normally elevated at an angle at the feed end.
[2] Physical size separation is achieved as the feed material spirals down the rotating drum, where the undersized material smaller than the screen apertures passes through the screen, while the oversized material exits at the other end of the drum
[1] It consists of a perforated cylindrical drum that is normally elevated at an angle at the feed end.
[2] Physical size separation is achieved as the feed material spirals down the rotating drum, where the undersized material smaller than the screen apertures passes through the screen, while the oversized material exits at the other end of the drum
Name | Gold Ore Processing Heavy Duty Rock Trommel Screen Small Mobile Trommer Drum Mini Gold Trommer Screen |
Capacity | Customized ( the trommel diameter and length can be customized). |
Your request | Click here to tell us your capacity and get your solution. |
Hopper size | |
Diesel engine | Avalibale, or you can also buy generator. |
Water pump | Avalibale. |
Detailed Images
Part name: Trommel
Brand:Hengchang
The trommel can be single layer or double layer. The external trommel is usually the waved type, while the internal one is always
made of steel bar.
The type and material of trommel can be customized, too.
Brand:Hengchang
The trommel can be single layer or double layer. The external trommel is usually the waved type, while the internal one is always
made of steel bar.
The type and material of trommel can be customized, too.

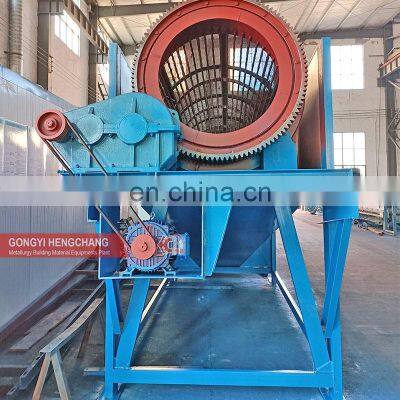

Part name: Drive system--gear drive
Brand: Hengchang
Brand: Hengchang
The drive can be sprocket type or gear type.
Usually the larger sizes are with gear drive as it is more durable.
Usually the larger sizes are with gear drive as it is more durable.
Part name: Motor
Brand: Hengchang
Brand: Hengchang
The machine can be equipped with diesel engine, elec motor, or diesel generator. Just tell us which one you prefer.
Part name: Mobile plant
Brand:Hengchang
Brand:Hengchang
The machine can be stationary type and mobile type.
For large scale mobile type trommel screen, there will be totally 6 wheels.
For large scale mobile type trommel screen, there will be totally 6 wheels.
Application Field
1.Processing minerals such as ferrous metals including hematite & magnetite And nonferrous metals including Lead, Zinc, Gold and Silver etc.
2.Quarry large stones for grading. And separating dirt and powder.
3.Gravel field for sand separation with our gold mining equipment.
4.Lump coal and the coal industry for the separation and washing (part of the washing machine)
5.Chemical industry, mineral industry and for the size of the lumps grade separation powdery substance.
The Most popular application is on Alluvial gold/River gold washing processing.
2.Quarry large stones for grading. And separating dirt and powder.
3.Gravel field for sand separation with our gold mining equipment.
4.Lump coal and the coal industry for the separation and washing (part of the washing machine)
5.Chemical industry, mineral industry and for the size of the lumps grade separation powdery substance.
The Most popular application is on Alluvial gold/River gold washing processing.
Working Principle
The trommel drum cylinder is tilted on the rack. The motor is driven by the reducer to rotate the drum unit around its axis.
After the material enters the drum device, due to the tilting and rotation of the drum device, the material on the screen surface is flipped and rolled so that the qualified material (the product under the screen) is discharged through the discharge port at the bottom of the trommel screen, and the unqualified material(the product on the screen) is discharged through the discharge port at the tail of the trommel screen.
Manufacturing Technique
Model | Sceen size (m) | Mesh Size (mm) | Max feeding size (mm) | Capacity (t/h) | Power (kw) | Weight (kg) | Dimension (mm) |
GT1030 | φ1.0*3.0 | 5-15 | ≤40 | 30-100 | 4 | 1300 | 4500*1358*2336 |
GT1040 | φ1.0*4.0 | 5-15 | ≤40 | 30-100 | 4 | 1500 | 5500*1458*2336 |
GT1230 | φ1.2*3.0 | 5-15 | ≤40 | 30-150 | 5.5 | 1500 | 4500*1585*2478 |
GT1240 | φ1.2*4.0 | 5-15 | ≤40 | 30-150 | 5.5 | 1700 | 5500*1685*2478 |
GT1540 | φ1.5*4.0 | 5-15 | ≤40 | 30-200 | 7.5 | 2500 | 5800*2100*4400 |
GT1560 | φ1.5*6.0 | 5-15 | ≤40 | 30-200 | 11 | 2700 | 6800*2200*4400 |
GT1860 | φ1.8*6.0 | 5-15 | ≤40 | 30-250 | 18.5 | 5010 | 8486*2100*4673 |
GT2160 | φ2.1*6.0 | 5-15 | ≤40 | 30-250 | 22 | 6360 | 8486*2500*5000 |
GT2460 | φ2.4*6.0 | 5-15 | ≤40 | 30-300 | 22 | 7000 | 8486*2860*5200 |
GT2480 | φ2.4*8.0 | 5-15 | ≤40 | 30-300 | 22 | 7500 | 8700*2860*5700 |
Features
1. The screen hole is not easy to block.2. Running smoothly and the noise is low.
3. The structure is simple and the maintenance is convenient.
4. The trommel drum cylinder can be closed, and easy to collect dust.
5. Various plate and mesh sizes.
6. Screen drums made to customer specification.
Company Information:About HENGCHANG
Hengchang headquarters is located in the industrial park in Gongyi City. It covers a total area of 150,000 square meters, including 100,000 square meters of standarized workshop. There are more than 200 sets of various large and medium-sized metal processing lathe, riveting machine, welding equipment and assembly equipment. We have more than 300 workers, including more than 20 middle and senior technicians. Hengchang is mainly focus on 4 series products: stone crusher machines, sand making equipment,
powder grinding mills, mineral processing equipment and their spare parts. Every year,
powder grinding mills, mineral processing equipment and their spare parts. Every year,
Hengchang can turn out 1,000 sets of crushers and 10,000 tons of crusher parts.
Customer Site
Our machine has been sold to Germany, Australia, Japan, Mexico, Philippines, Indonesia, Russia, Uganda, Uzbekistan, Zimbabwe, etc. and our products are well received by customers. Welcome to inquiry!
Our Services
Before-sale services:We guide customers to choose the best and applicable device; provide the advanced, energy-saving and practical technological processes, as well as we are responsible for the planning and design of the site.
Sale services:
Products must be inspected strictly before being sold; customers are invited to simulate and test machine on-the-spot and raise objections; in accordance with the agreements stipulated in the contract, we will arrange delivery.
After-sale services:
Our Company will send professional engineers to guide device installation, debug and train operators until customers are fully satisfied. Moreover, we will design and produce machines according to the special requirements of customers.
Solemn Promise:
The quality guarantee period of machines is one year except the wearing parts
Tips:
The prices in the web only to be reference,according to raw material's price fluctuations; Specific price is subject to the negotiation.
Not find same as you want ? Please Click here !
Exhibition & Customer Visit
Product & Packaging
Packaging Details:
Normally the machines are taken apart before delivery and are packed by suitable packing ways, the packing ways are as below: Nude packing. Bundle packing. Grass rope packing. Water proof packing. Wooden pallets packing. Wooden box or carton box packing.
Delivery Time:
Delivery Time:
We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 15 to 25working days.
RFQ
Q:Why we believe in Gongyi Hengchang company?
A: 1.More than 28 years’ experience.
2.Hengchang is the leading professional supplier of solution, equipment’s and service for crushing and grinding industry.
3.Products achieved ISO9001:2000 quality management certificate and EU CE certificate.
Q: Delivery time .
A: The lead time is 10-20 days, Delivery time will vary depending on the type of the machine, shipping method selected and part availability.
Q: Payment terms ?
A: Accepted Payment Type: T/T, L/C, Western Union, Cash and so on. After sign
the contract, pay the 10%-30% deposit of total purchase price and pay the full payment before delivery.
Q:What will you do if the machine is broken down?
A:The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.
Q:What should i do if I want to get a best quotation?
A:If you want a suitable type for you, please let us know your material and capacity.
