Home > Products > Filling Line > High Speed Biodegradable Capsule Cup Filling Sealing Machieve Tea Powder Probiotics Powder Cup Filling Packing Machine
High Speed Biodegradable Capsule Cup Filling Sealing Machieve Tea Powder Probiotics Powder Cup Filling Packing Machine
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
High Speed Automatic coffee Powder Cup Filling Sealing Machine K-cup Coffee Cup Packing Machine
-
High Speed 4 Lane Coffee Capsule Packing Machine Dolce Gusto Coffee Capsule Filling Sealing Machine
-
High Speed Biodegradable Multi-Lane Nespresso Coffee Capsule Packing Machine 4 Lane Coffee Capsule Filling Sealing Machine
-
Automatic Cosmetic Bottle Filling Machine Toner Liquid Foundation Filling Machine Makeup Remover Bottle Filling Machine
-
3500 BPH High Speed Glass Bottle Liquid Filling Machine Olive Oil Coconut Oil Bottle Filling Machine Wine Bottle Filling Machine
-
Hot Sales Automatic Spices Sauce Bottle Filling Machine Fish Sauce Bottle Filling Machine Vinegar Bottle Filling Capping Machine
Product Description
High Speed Automatic
Multi-Lane Coffee Capsule Packing Machine 4 Lane
Coffee Capsule Filling Sealing Machine
Products Description
Application
>What can this machine pack?
Rotary Type Coffee Capsule Filling Sealing Machine is suitable for filling various types of coffee capsules ( such as nesspresso / k-cup / lavazza).
Can automatically complete the capsule cup's automatic drop cup, automatic filling, automatic suction film, sealing, automatic cup and other functions. The machine uses the Japanese ohm long programmable logic controller, pneumatic control element, intelligent digital display temperature control system, with the features of high sealing strength, good sealing performance, low failure rate and small floor space.
Machine Information
Coffee Capsule Filling Sealing Machine | ||||||
Model | JK-2CC | JK-4CC | JK-8CC | |||
Packing speed | 1500~1800 Pieces/hour | 2800~3000 Pieces/hour | 6000~6400 Pieces/hour | |||
Filling volume | 1~20g | |||||
Machine power | 220V/380V，50HZ，4~10KW | 220V, 50HZ | ||||
Machine size（L*W*H) | 2800*500*1700 | 3000*800*1700 | 4000*800*1700 | |||
Machine weight | 400KG | 600KG | 800KG | |||
Main Features
1. The whole machine with advanced design, reasonable structure, reliable performance.
2. Automatic operation, the production rate can be adjustable, simple and safe operation, increase productivity, reduce labor costs.
3. Photocell eye calibration, ensure the accuracy of filling.
4. Twice of sealing, the pressure of sealing can be adjustable. Can be sealed according to customer' requirements for easy to tear and not easy to tear, which embodies a higher level of human design.
5. The sealing edges are smooth and flawless.
6. The machine can be customized according to customer' needs and add other auxiliary functions.
3. Photocell eye calibration, ensure the accuracy of filling.
4. Twice of sealing, the pressure of sealing can be adjustable. Can be sealed according to customer' requirements for easy to tear and not easy to tear, which embodies a higher level of human design.
5. The sealing edges are smooth and flawless.
6. The machine can be customized according to customer' needs and add other auxiliary functions.
Machine Working Process
Automatic Capusle Feeding Device
Fully automatic vibration feeding device, fast conveying, the contact surface is made of food-grade 304 stainless steel, safe and hygienic.
Nitrogen Flushing Device
Nitrogen flushes the capsules to keep them clean and refills after the back end is filled with ground coffee. Ensure product quality.
Coffee Powder Measuring Filling Device
High-precision 4-head powder filling machine with weighing accuracy of 99%.
The front end is equipped with an ultraviolet disinfection device, and the rear end is equipped with a dust removal device to ensure a good packaging effect.
Capsule Aluminum Film Cutting Device
Specially used for linear multi-column coffee capsule machine, which has more advantages than traditional types. It is more convenient to use, and the size of the aluminum film can be adjusted according to the size of the capsule, which can be used for a variety of capsules.
Capsule Film Heat Sealing Device
The capsule heat sealing device controlled by the intelligent temperature control system can set the temperature according to the material of the film, and perfectly complete the sealing process of the capsule.

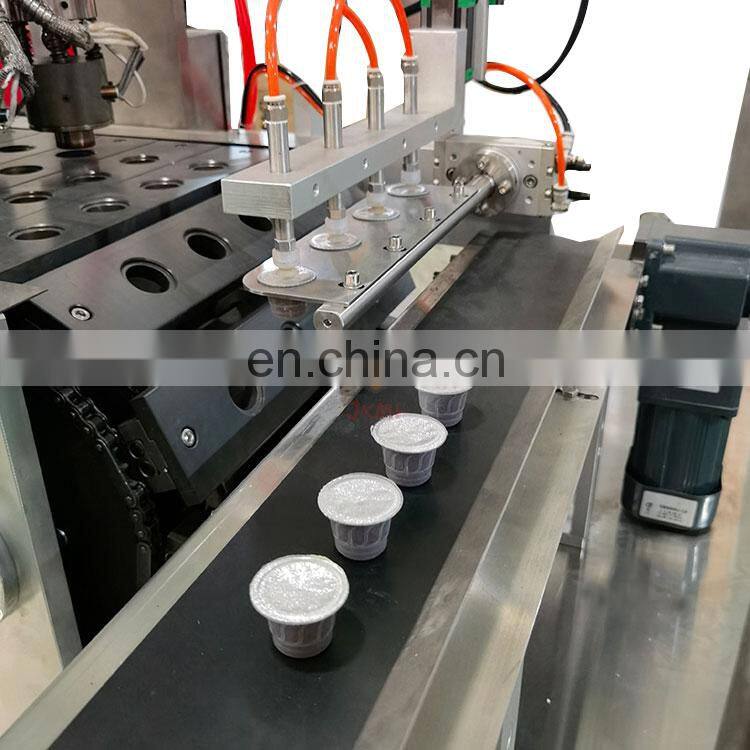

Finished Product Automatic Output Device
After the capsule is sealed, the capsule is automatically taken out by the suction cup device and placed horizontally on the conveyor belt, and the back end can be replaced with a link packaging device, such as a cartoning machine.
Why Choose Us
JIKE BEE MACHINERY has a professional team to provide customers with various packaging solutions. Fully understanding the needs of customers,engineers design the most suitable solution. We have our own processing and assembly workshop and quality inspection and debugging process to ensure the quality of the machine.
After acceptance by the customer, they are packed in international standard wooden cases and shipped.
Our technical team has carefully filmed more than 100 installation and commissioning videos of various accessories and complete machines, providing video training guarantee services for the equipment permanently.
We will package the machine's instruction manual and a USB flash drive with machine operation videos together with the machine.Ensure that you can use the machine as soon
as you receive it. If you have something you don't understand, our after-sales team will also help you answer in time.
as you receive it. If you have something you don't understand, our after-sales team will also help you answer in time.
Company Profile
Foshan Jike Bee Automation Equipment Co., Ltd. is a manufacturer of automatic packaging equipment.We are a production-oriented enterprises focused on product innovation, factory direct sales and perfect after-sales service in one.The automatic packaging equipment for granule, powder, liquid and sauce produced by the Jason company is at the advanced level of the industry,it can be customized production automatic material packaging line for all kinds of products .Mainly applicable to: food, hardware, drugs, daily chemicals, pesticides, fruits and vegetables, cosmetics, other industries.The company has its own patent and product technical certification, which can bring customers high quality equipment and worthy of customer trust.
FAQ
Q1:Do you have manual or operation video for us to know more about the machine?
Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make of testing the material from our packaging machine if your packing goods easier for us to find from our local market.
Q2:How can I trust you for the first time business ?
Please note our above business license and certificate. And if you don't trust us, then we can use trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q3:Is engineer available to serve oversea?
Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q4:How can we make sure about the machine quality after we put the order?
Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
Q5:Will you provides the door to door service?
Yes. Please offer us your final destination, we will check with our agent to see if it available, and most of the area is ok for us to clearing and sending in your countries.
Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make of testing the material from our packaging machine if your packing goods easier for us to find from our local market.
Q2:How can I trust you for the first time business ?
Please note our above business license and certificate. And if you don't trust us, then we can use trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q3:Is engineer available to serve oversea?
Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q4:How can we make sure about the machine quality after we put the order?
Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
Q5:Will you provides the door to door service?
Yes. Please offer us your final destination, we will check with our agent to see if it available, and most of the area is ok for us to clearing and sending in your countries.
