Product Description

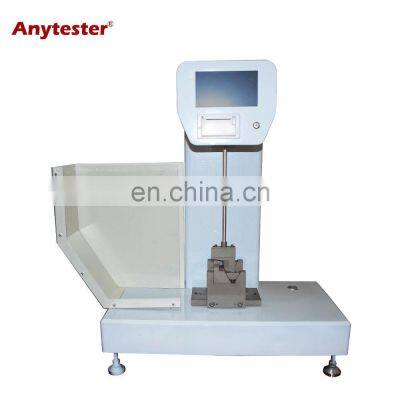

AT421D Series Digital Charpy Impact Tester (original HY4251D) is used to determine the impact toughness of non-metallic material such as rigid plastics, fibre reinforced composite material, nylon, glass, ceramics, cast stone, asbestos board, electrical insulating material, etc. It is suitable for notched and unnotched specimen.

Standard

ISO 179	GB/T 1043, 18743, 3808	BS EN 20811
JJG 45	JB/T 8762	ERT 120-2-02
Note: For more standards, please contact us

Specification

Model	AT421DA	AT421DB
Impact velocity	2.9m/s	3.8m/s
Impact energy	(0.5J), 1J, 2J, 4J, 5J	7.5J, 15J, 25J, 50J
Impact center distance	230mm	380mm
Pendulum angle	150°	160°
Radius of striking edge	R=2±0.5mm	R=2±0.5mm
Radius of jaw	R=1±0.1mm	R=1±0.1mm
Inclined angle of striking edge	30±l°	30±l°
Energy display resolution	0.01J	0.01J
Jaw support spacing	40, 60, 62, 70mm	40, 60, 70, 95mm
Power supply	AC220V 50Hz	AC220V 50Hz
Dimensions	420×260×630mm	460×330×745mm
Weight	60kg	70kg

Details & Features

★ SCM control, LCD display, touch screen control, easy to operate, accurate and reliable

★ Automatically correct the energy loss caused by friction and wind resistance, no need to manually calculate and correct

★ Automatically calculate and display impact energy and also mean value after test finishing

★ Data with U disk storage function, can be exported to edit and print accurate and reliable

Our Company

History

Since 1982 with more than 20 years’ experience

Warranty

Two Year Warranty for whole product

Training

Video and user manual for training

Onsite service

Installation and training service is available

Testing service

Free sample testing before order is available

Lead time

15 working days lead time for most product

Packing & Delivery

Packaging
Dimensions	420×260×630mm
Weight	60kg
Packaging Details	1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated.

Payment

Payment Term	T/T	EXW	30% T/T in advance, paid the balance before shipment
			30% T/T in advance, paid the balance before shipment		FOB
				CFR(C&F)	30% T/T in advance, paid the balance against copy of B/L
				CIF	30% T/T in advance, paid the balance against copy of B/L
		L/C	L/C amount above 50,000 usd, we can accept L/C at sight
		West Union	Amount lower than 5000usd
		West Union	Amount lower than 5000usd
Delivery Time	7~10days after receiving payment for one container
