Lab Scale Single Screw Extruder System Plastic Extruders
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
Electric Falling Dart Impact Tester with Large LCD display
-
Rubber Plastic Universal Sample Maker
-
800mm End Closure For Time to Failure of Big Size Plastic Pipe Under Constant Internal Pressure Comply with ASTTM D1598
-
Notched Constant Tensile Load Tester
-
UL94&ISO1210 Horizontal And Vertical Flammability Tester
-
ISO379 & ASTMD5132 Automotive Interior Flammability Tester With Keyboard Control
Product Description
Product Description

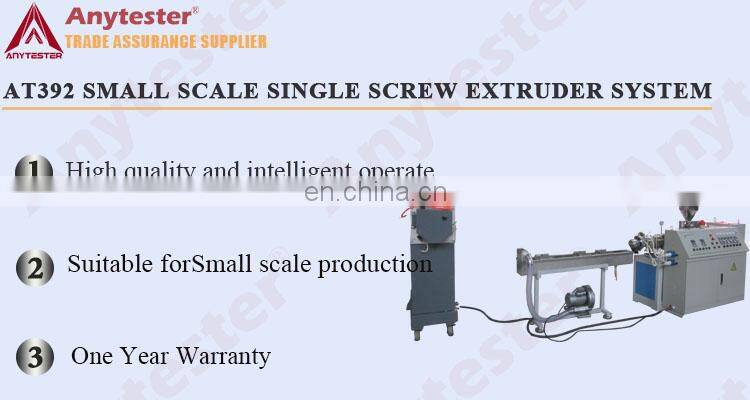

AT392 Small scale Single Screw Extruder System is used for mixing and processing of high molecular polymers such as engineering plastics, modified plastics and color master batches. It is suitable forSmall scale production.
Specification
Model | AT392 |
Speed | 5-65 rpm adjustable |
Output | 4~15kg/h |
A. Reduction ratio: 16:1 | |
B. Maximum input power: 11KW | |
C. Forced oil immersion circulation system, Grinding gear with hardtooth surface, low noise and high life, reliable operation | |
A. Material for screw and barrel is 38CrMoAlA | |
B. Nitriding layer depth: 0.4-0.7mm, nitriding hardness: screw 850HV, barrel 920HV, exhaust type | |
C. Screw diameter: 40mm, exhaust type | |
D. Aspect ratio: L/D=30:1 | |
E. Screw speed: 5-65 rpm | |
F. Surface roughness of screw flight: 0.4um | |
G. The inner surface roughness of the barrel: 0.4um | |
Temperature range | A. Using 4 sets of inner air trough cast aluminum heater |
B. Heating power supply: AC220V, 50 HZ, 1.3KW per group | |
C. Heater thickness: 20mm | |
Cooling device | A. Cooling with 3 sets of fans |
B. Fan power supply: 3-AC380V, 50HZ, | |
C. Cooling fan power 150W | |
A. Motor power: 7.5KW | |
B. Electric form: AC motor, 1450rpm | |
C. Motor and host transmission, V-belt drive | |
D. The motor and the host are installed separately (the direct connection can also be used) | |
4 Hole Strand Extrusion Die | A. Mold material: stainless steel |
B. Number of discharge holes: 4 | |
C. Discharge aperture: 3.5mm | |
A. Material: Stainless steel | |
B. Length: 2.5 meters | |
C. Cross bar: 3 groups | |
D. Water inlet and outlet: each set | |
E. Diameter of stainless steel pipe: | |
F″ for inlet pipe, 1″ for outlet pipe. | |
A. Machine base | |
B. Water suction port material: stainless steel | |
C. Air-drying chamber material: stainless steel | |
D. Power: 0.37KW | |
Motor power (kw): 1.1 | |
Speed regulation mode: electromagnetic speed regulation | |
Number of diced strips (root): ≤8 | |
Pellet size (mm): φ3×7 | |
Rotary knife diameter & length mm: φ100×60 | |
Rubber roller diameter & length mm: φ80×60 (wear-resistant and high-temperature resistant synthetic rubber roller) | |
Power supply | 3phase, AC380V, 50Hz |
Details & Features
★Rack is welded by section steel and treated by response force. It has high rigidity and small deformation
★ PID/LED/RKC intelligent digital temperature controller, high precision digital instrument display all the parameters of the extrusion
★ Material for Screw and Barrel: 38CrMoAl chromium molybdenum alloy, surface quenched, nitride, chromium plating, polishing and ultra-precision honing process, hardness HRV850~920, roughness Ra is less than or equal to 0.4 mu m, depth of reach more than 0.6mm
Our Company
History
Since 1982 with more than 20 years’ experience
Warranty
Two Year Warranty for whole product
Training
Video and user manual for training
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
Packing & Delivery
Packaging | ||
Dimensions | 1160x510x1050mm | |
Weight | Approx. 80kg | |
Packaging Details | 1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. | |
Payment
Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | ||
FOB | |||||
CFR(C&F) | |||||
CIF | |||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
West Union | Amount lower than 5000usd | ||||
West Union | |||||
Delivery Time | 7~10days after receiving payment for one container | ||||
