HYE-300B Concrete bending and compression testing machine
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
HYE-300B Automatic Cement Mortar Compression Flexural Testing Machine
-
HYE-3000 Electro-Hydraulic Compression Testing Machine Factory Price
-
Digital Compression Testing Machine Capacity 2000 kN
-
Electro-hydraulic servo compression machine tester price
-
high quality compression testing machine/ lab concrete equipment
-
2000kn capacity digital compression test machine
Product Description
Product Usage and Features

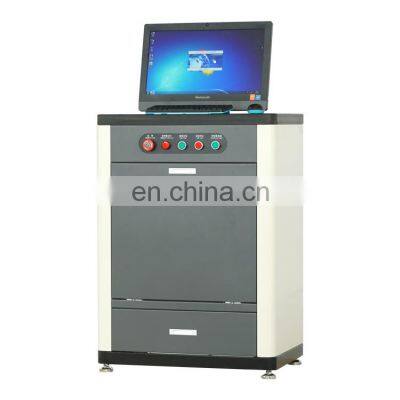

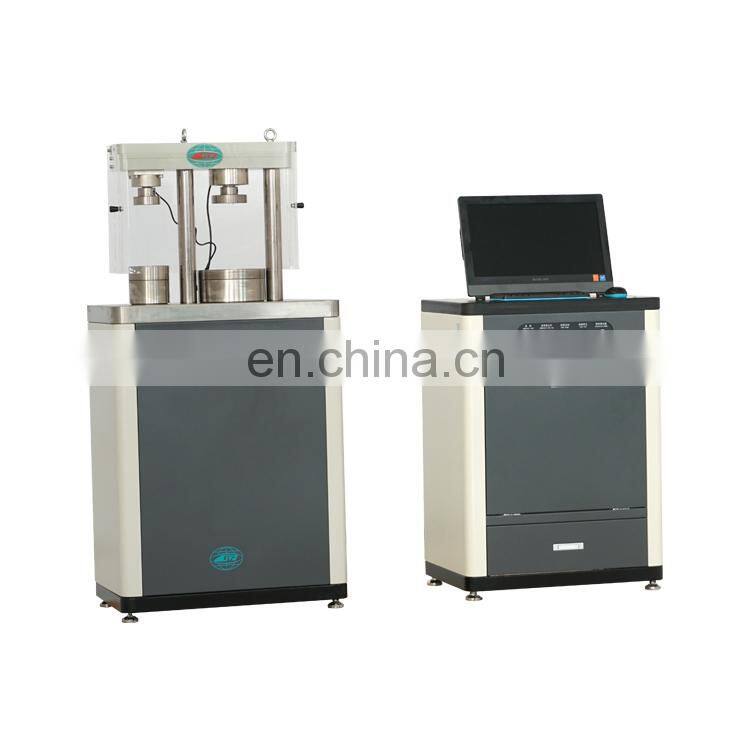

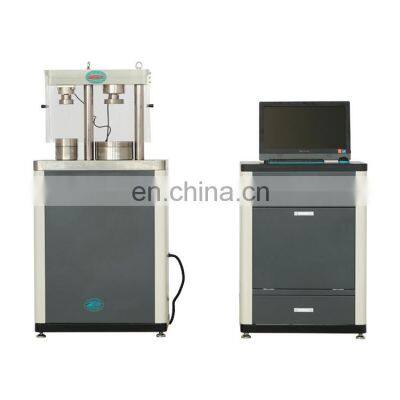

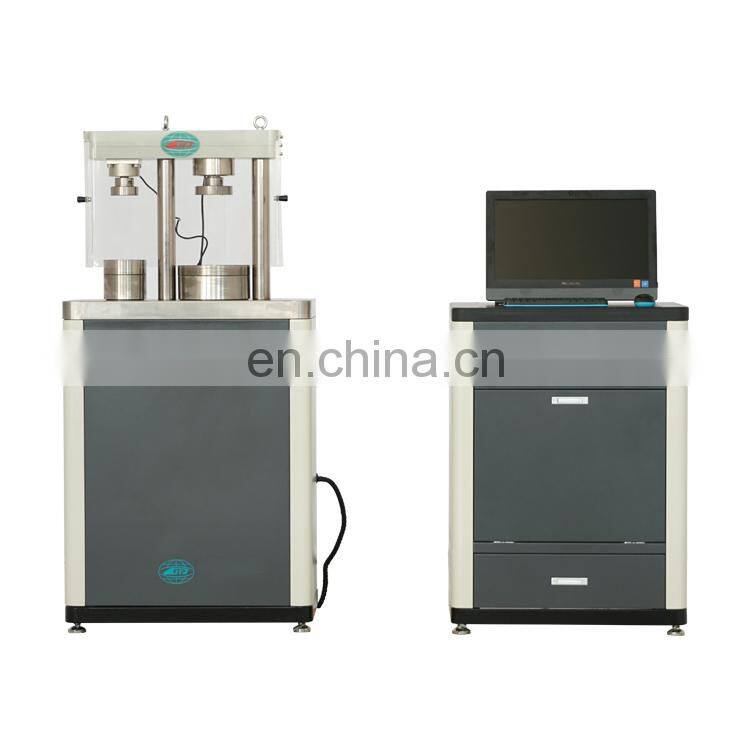

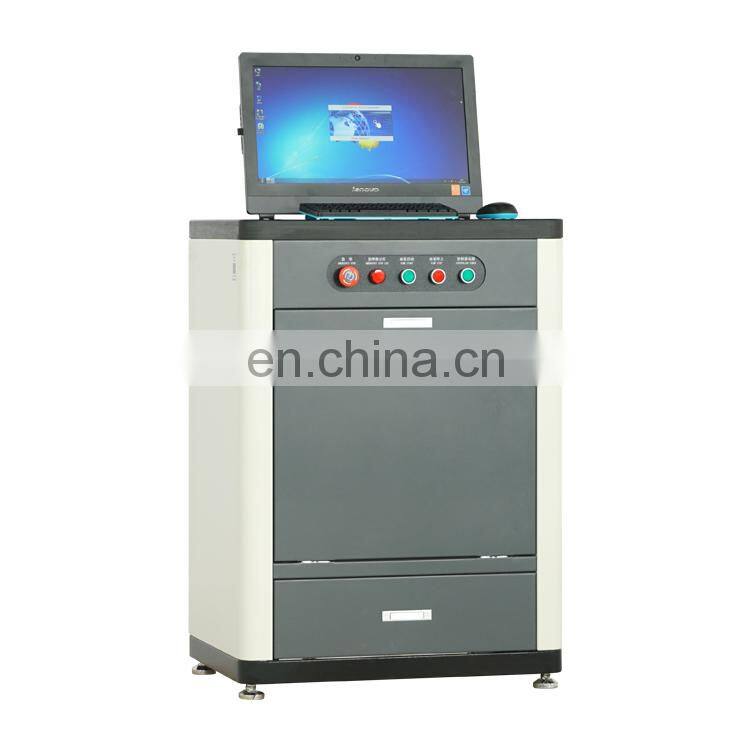

HYE-300B Anti-bending and Auto Compression Testing Machine
EQUIPMENT INTRODUCTION
The series of testing machines are powered by hydraulic pressure. Electro-hydraulic servo control technology is used to test the mechanical properties of cement, mortar, brick, concrete and other building materials. It shows the loading force value, loading speed and loading curve. The test data is automatically processed, stored, and printed.
CHARACTERISTICS
1.Using 300KN and 10KN high precision load cells;
2.Use special anti-pressure and anti-folding fixtures for cement;
3.Adopt a plexiglass protective cover with novel appearance.
APPLICATION STANDARD
GBT、ISO、ASTM、DIN、JIS etc.
Parameters
Model | HYE-300B | HYE-300D |
Name | Microcomputer Servo Compression Testing Machine | Microcomputer Servo Compression Testing Machine |
Max. Test Force (KN) | 300kn/ 10kn | 300kn/ 10kn |
Test accuracy | Level 1 /Level 0.5 | Level 1 /Level 0.5 |
Compressive piston strock(mm) | 80 | 80 |
Anti-folding Piston Strock (mm) | 60 | 60 |
Compressive compression space (mm) | 180 | 180 |
Flexural compression space (mm) | 180 | 180 |
Fixed upper platen size (mm) | φ108/φ60 | φ108/φ60 |
Lower platen size (mm) | φ207 | φ207 |
Power | 0.75 KW | 0.75 KW |
Machine weight(kg) | 520 | 520 |
Product Details
Application
Company information
Cangzhou Lovely Technology Co., Ltd
Cangzhou Lovely Technology Co., Ltd. is specialize in Nondestructive Test Instrument and Material Test Machine over 12 years. With advanced technologies and best customer service, our product has exported to over 100 countries and regions, which win favorable comments from customers worldwide.
Our equipment is used throughout the world for testing soil, concrete, cement, asphalt and aggregate materials. This testing involves evaluations of materials, which are used in construction projects ranging from roads, bridges and tunnels to dams, earthworks, airports, railways, etc.
We adhere to the high standards of product quality, strict requirements, adopting the world-class production equipment, advanced management and production experience, developing the high-quality testing equipment.
We have has strong sales team and a comprehensive service process to serve end customers around the world.If you have any inquiry or concern,Sales and after service department will reply you within 24 hours.
Our Customers and patent certificate
Our Services
1. Get our in-time reply via email or telephone or instant messenge. Our product specialist will guide you find the suitable product according to your requirement;
2. Get best product with excellent quality and competitive price;
3. One year guarantee for whole machine and in time technical support by video or email. Always enjoy our considerable & full-side after-sales service;
4. Feeling very convenient since we can help you source and ship products from different factories via one shipment, which is significant to save your time and cost;
5. Easily make the payment via West Union, Paypal, Credit Card for small value order;
Packing & Delivery
