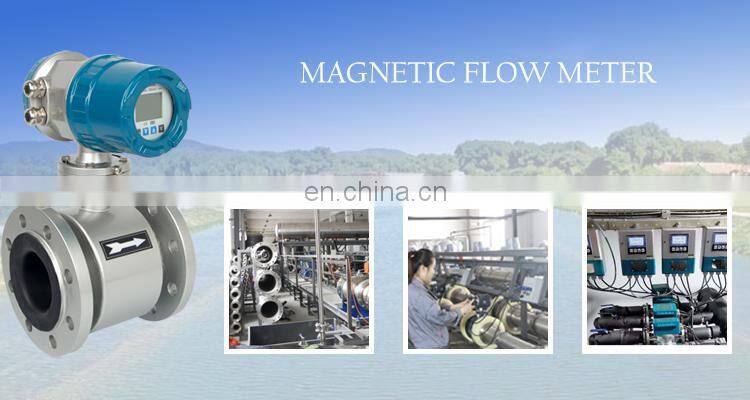

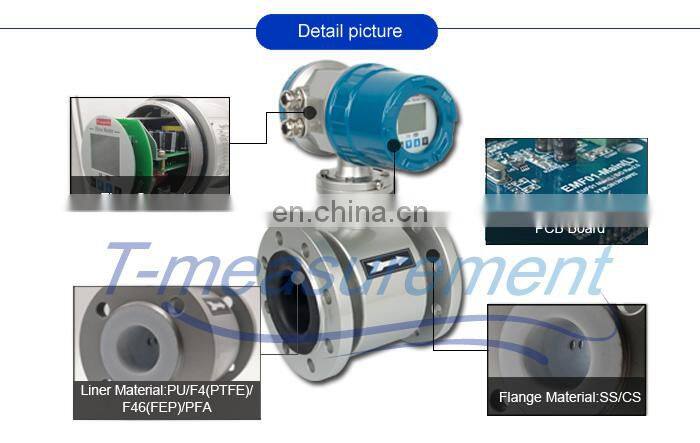

TEM82E Magnetic Type Flow Meter Stainless Steel Flow Meter Electormagnetic Flow Meter Price

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Description

The magneric flow meter is one of the most flexible and unversally applicable flow measurement systems available. It is volumtric flow meter which does not have any moving parts and is ideal for waste water applications or any dirty liquid which is conductive or waste based. Magnetic flow meter is also ideal for the applications where low meter is also ideal for the applications where low pressure drop and low maintrnance are reequired.

Specification

Place of Origin	China
Brand Name	Tmeasurement
Model Number	TEM82E
Type	magneric flow meter
Certificates	ISO9001:2008;CE
Flow direction	positive; negative
Accuracy	±0.5%/0.2% of rate
Comsumed power	<20W
Relative humidity	5%~95%
Velocity	0.3-10m/s
Ambient temperature	-20...+60℃
Diameter	PTFE:DN6-DN600
High-temp rubber liner	-20...+90℃
Item	TEM82E MAGNETIC FLOW METER

Detail

Following Faraday's law of magnetic introduction, a voltage is included in a conductor moving through a magnetic field. In the electoromagnetic measuring principle, the following medium is the moving conductor. The voltage induced is proportion to the flow velocity and is supplied to the amplifier by means of two measuring electrodes. The flow volume is calculated by means of the pipe cross section area.

Application

Company Profile

Dalian Taijia Technology Co.,Ltd is a high technology company which specializes in supplying and supporting of ultrasonic measurement equipment. prime products include ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thickness meter etc. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical. We have sold product in more than 30 countries, such as America. Italy. India. Korea. Germany. Canada. Australia etc. We thank you for visiting our Web Site and look forward to the opportunity of being of service to you.
