Product Description
TEM912 digital rebound tester, digital part adopts modular design and non-contact grating optocoupler sensor collection, with automatic recording, automatic storage, automatic calculation, automatic data processing; and voice broadcast; later data analysis and processing, according to the specifications automatically Data analysis, test report. It improves the work efficiency of rebound testing, reduces the labor intensity of testing personnel, embodies the scientificity, advancedness, fairness and accuracy of rebound testing, and leads non-destructive testing to a new stage of digitization and intelligence.

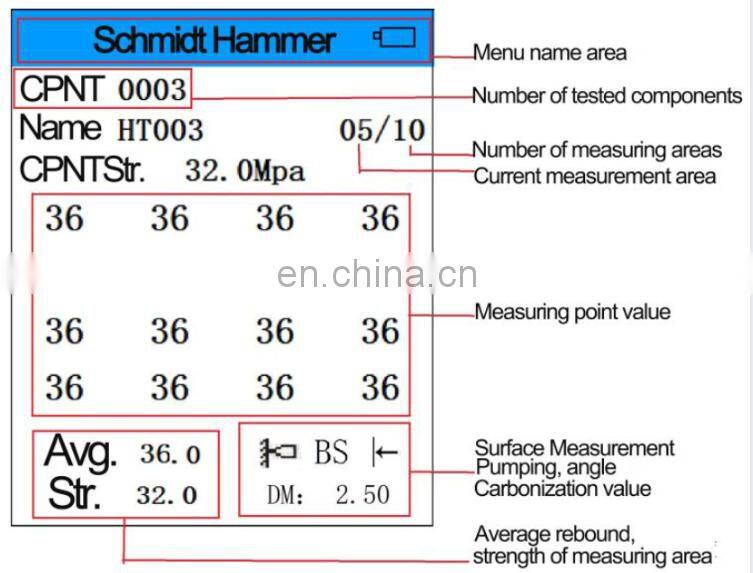

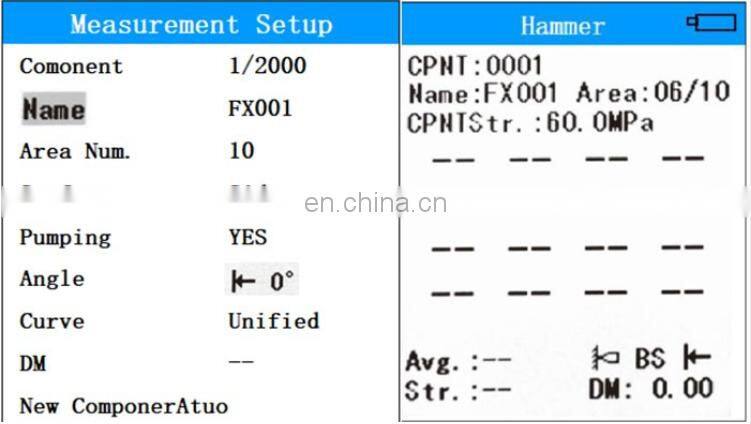

1) Automatically display and record the rebound value, and calculate the converted strength value of each measurement area and the estimated strength of the component according to the relevant testing specifications;
2) 2.0-inch color LCD screen (220×176 pixels), the detection data can be clearly seen in any situation;

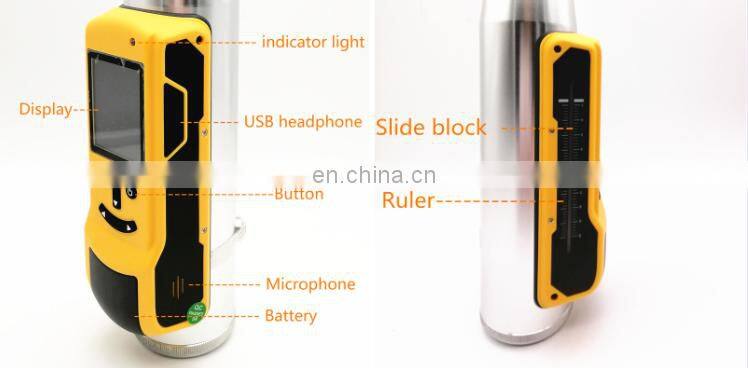

3) The color digital module and mechanical rebound meter can be disassembled at will;
4)Silicone button design, flexible use; ergonomic design, comfortable and warm heart; streamlined and elegant design, smile look and feel;
5) Support display in English;
6) Multiple data transmission modes, easy to operate, accurate and convenient;
7) The carbonization value of the measurement area can be input 3 times, and the average value is automatically calculated;
8) Selective transmission, printing, exporting and deleting functions of test components, easy to operate;
9) Built-in steel anvil rate setting function, record rate setting information; support check function of rebound times;
10) Support the internal program update function of the instrument to facilitate the upgrade of new functions;
11) Noisy situation on site, you can use a universal headset, plug into the dedicated port of the headset, to avoid outside interference;
12) Equipped with business diagonal leather bag, easy to carry, easy to operate, easy to use, and durable and wear-resistant;
13) Any on-site operator of this product can freely disassemble and replace the rebound hammer without training.
Specification
item
TEM-912 Digital concrete test hammer
Place of Origin
China
Brand Name
Tmeasurement
Model Number
TEM-912
Standard impact energy
2.207J
Rigidity of tension spring
785.0±40.0(N/m)
Pointer length
20.0±0.2(mm)
Pointer friction
0.65±0.15(N)
Working length of bounce tension spring
61.5.0±0.3(mm)
Power supply
3.7V Lithium battery, 1050 mA
Port
USB (update type and WIFI. )
Collection Mode
Automatic display and record data
Size(mm）
150×62×39
Weight（kg）
0.1kg（include battery）
Color
Yellow
Rebound Hammer type
Digital concrete test hammer
