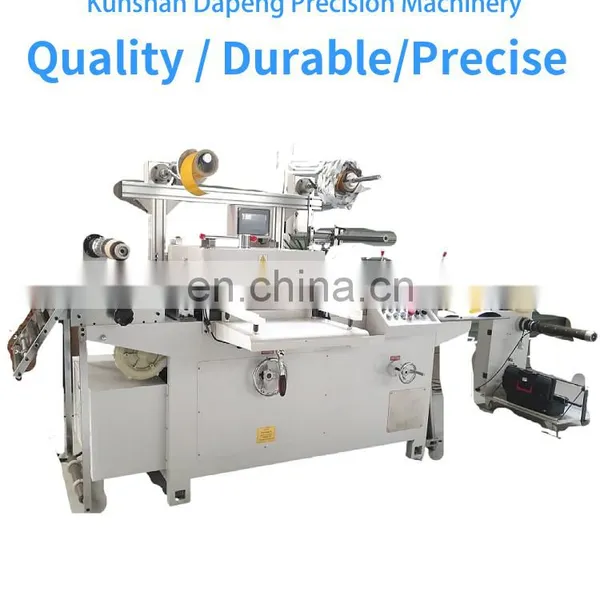

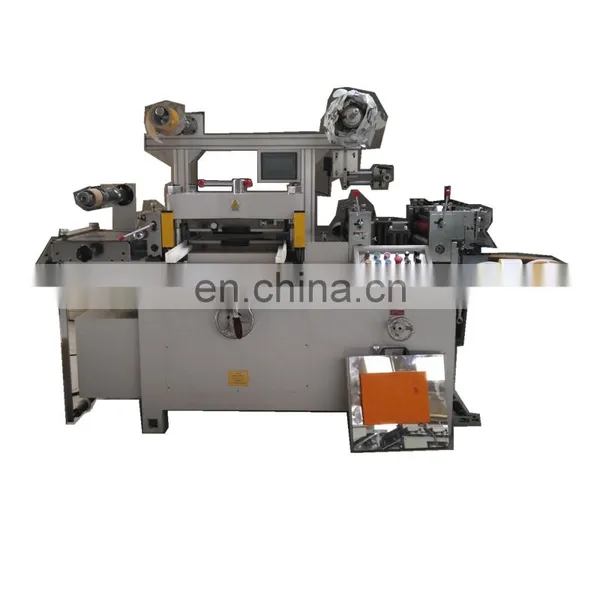

Automatic Roll Film, Foam, Sticker Label Die Cutting Machine

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Description

SPECIFICATIONS FOR HIGH EFFICIENT ADHESIVE TAG LABEL FLAT BED DIE-CUTTING MACHINE
Model	DP-320B	DP-350B	DP-420B
Die Cutting speed	20-200 pcs/min	20-200 pcs/min	20-200 pcs/min
Max. unwinding diameter	450mm	450mm	450mm
Max. web width	320mm	350mm	420mm
Max. die cutting size	300x300mm	320x380mm	420x420mm
Precision	±0.10mm	±0.10mm	±0.10mm
Power	3kw	3kw	4kw
Voltage	380v±10%	380v±10%	380v±10%
Machine weight	2000kg	2200kg	2800kg
Dimension	2500x900x1400mm	2600x950x1400mm	2600x1050x1800mm

Our Advantages

Main Features

1)Multi-function in ONE machine: Laminating / partial laminating+unwinding+laminating+die cutting +discharging +sheet cutting/rewinding

2) Photo Cell if necessary

3)Sucking device during material feeding process

4) Waste discharge shaft

5)Sheet cutting station

6)Rewinding station

7)Safety curtain device

8) Optional function: Conveyor belt device for full-cut use

Application products
Application for flat bed high adhesive tag label flat bed die-cutting machine
1. Glue-based products: 3C parts, foot pad, silicone, hook and loop backing, conductive tape, double-side tape,3M tape and all kinds of glue-based products.

2. Dustproof materials: cosmetic cotton, camera cotton, high density sponge, filtering sponge, dustproof filter, non-woven fabric, etc.

3. Shockproof materials: EVA tape, rubber cushion, PORON cushion,3M, flame-resistant EVA, EPDM,etc.

4. Insulation/shielding materials : EMI Shielding material, fireproof paper, aluminum foil, copper foil, PVC,PET, k paper, sponge sheath, pearl cotton sheath and so on.

5. Heat-conductive/ heat-proof materials : silicon sheet, transparent mica, fiber cloth, heat insulation cotton and so on.

6. Other materials which are suitable for die cutting.

Space are not enough to list all kinds of materials ,if you are not sure if your material can be die cut by this machine ,please send photo for reference or send material for testing ,we will test and send you working video .

Product Description

Unwinding side with laminating function

Sheeting to pieces

Die cutting station

This unit is used to die cut material , you can install the die from here .When material bypass , it pounch and die cut the products . The speed is adjustable , the deepth and power is adjustable too .

Discharge waste shaft

This shaft is used for discharge waste after die cutting . The speed and direction of rolling can be control at the control panel . You can increase slowly to test the discharge tension ,make sure it discharge well with nice products .

Cutting tools

Both wood die and metal die could be used for this machine .You can design your moulds according to your products .We also can introduce die supplier for you in China .

After Sales Service

After sale service for high efficient adhesive tag label flat bed die cutting machine is as follow :

1. Free sample testing and video for your reference

2. Prompt delivery within 24 hours

3. One year warranty ,whole life technical support

4. Free training in our factory available before delivering machines

5. Engineers available to service machinery overseas

6. Technical support: Professional engineers team to help you design a drawing of machine to get highest profit with lowest cost and offer you technical support any time.

7. Other demanded spare part or equipment support: Plenty of cooperated professional supplier for spare parts or other necessary equipment make it possible for us to offer our customers big convenience to complete their production line in high quality with low cost in a short time.

8.Every customer can get one piece of English operation manual , a total working video for machines ,details on every button function ,normal notice when operation .
