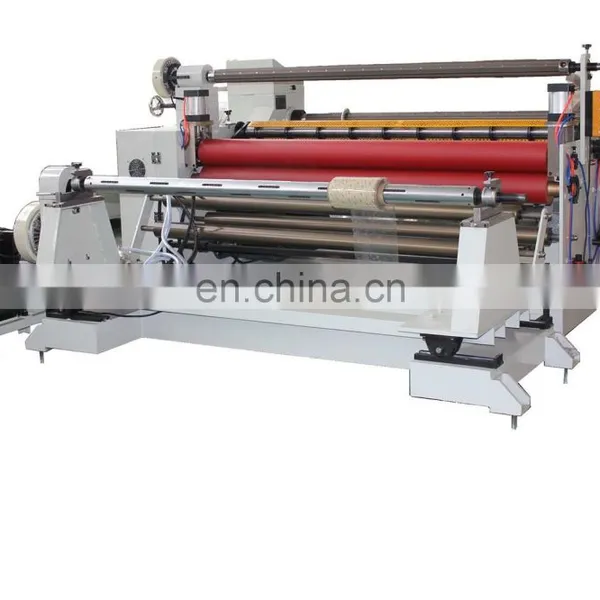

Insulation paper slitting and rewinding machine

Insulation paper slitting and rewinding machine

1. Technique Data

Machine Speed : 110m/min

Max material feeding width : 1800mm

Feeding Diameter : 800 mm

Film Diameter : 400mm

Rewinding diameter : 450mm

Slitting accuracy :±0.1mm

Voltage:380V 50HZ

Main Motor Power :3kw (1 motor power)      ( if running reversible need 2 motor)

Total Power: 8kw

Raw material Max hole diameter: 3”

compress air source:(0.4-0.6)Mpa(customer-owned)

Finished products Min. Width by standard slitting :25MM

Main Machine size :2600*2300*1300mm

Feeding Machine size : 2150*880*780mm

Weight : 2.5T

2. Function Profile

1) frequency control of motor speed, operation more easy. Control more accurate.

2) Double receiving roller  center take up , rewinding

3) Double receiving magnetic powder tension independent control, can rewinding at the same time , and also can individual use

4) Electronic meter counter with the function of automaticly count the meter and setting length, automatic stopping ,accuracy 0.01, error ±0.15M

5) Independent fan waste discharge.

6) If Double motor configuration,The scroll of rewinding can be positive and negative transfer .

DP-1300/1600/1800 multifunction laminating and slitting machine

Funcional characteristics:

This machine is sticking and slitting equipment of high precision and high sensitivity, with inflatable bearing is used for feeding and receiving materials.

Imported magnetic powder clutch is adopted to control the tension. Imported gas sensitive device is adopted to detect the rectification of rolling,

with fully automatic hydraulic rectification control. Automatic detection, rectification and metering can be realized.

It is characterized by accurate slitting, fast slitting speed, ease of operation and maintenance, etc.

Purpose:

It is applicable for the laminating and slitting tooling of industrial adhesive tape, cellophane tape, protective film,

copper foil, aluminum foil, OPP, PE, PVC, sheet, cloth, etc.

This mahcine is widely used in the industries such as printing, packing, electronics, leather, clothes making, plastic, etc.

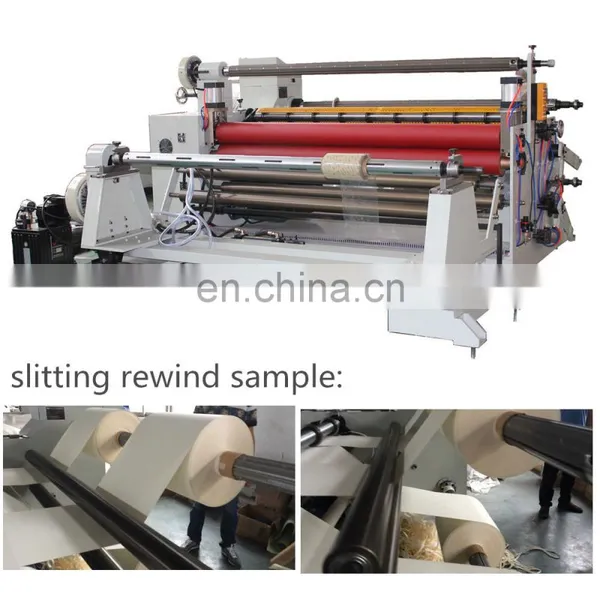

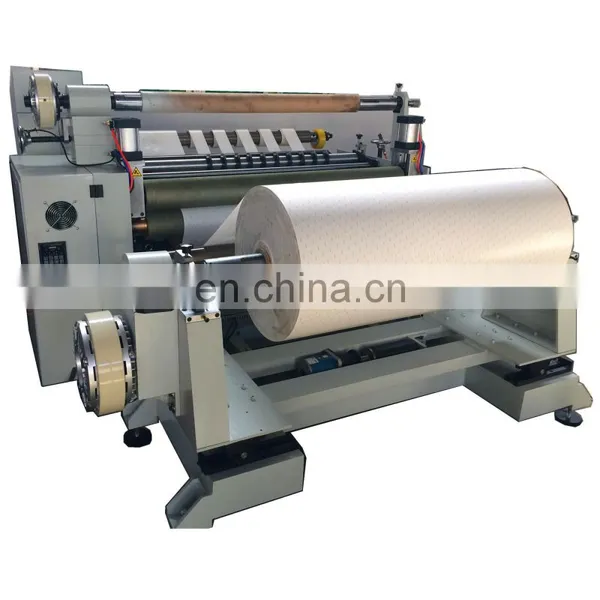

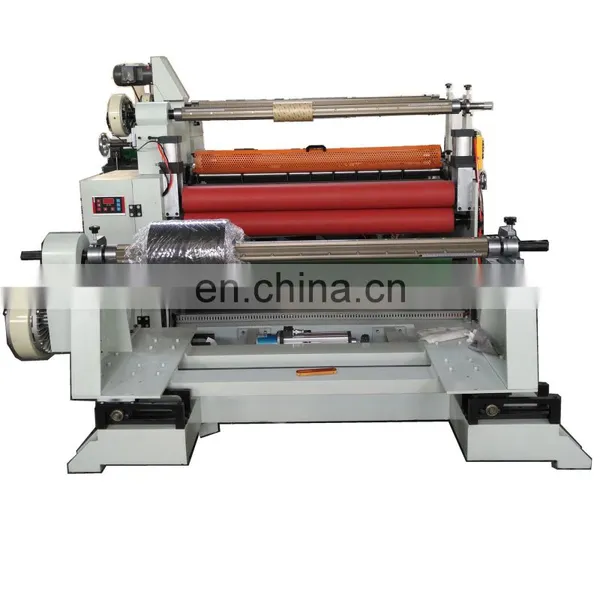

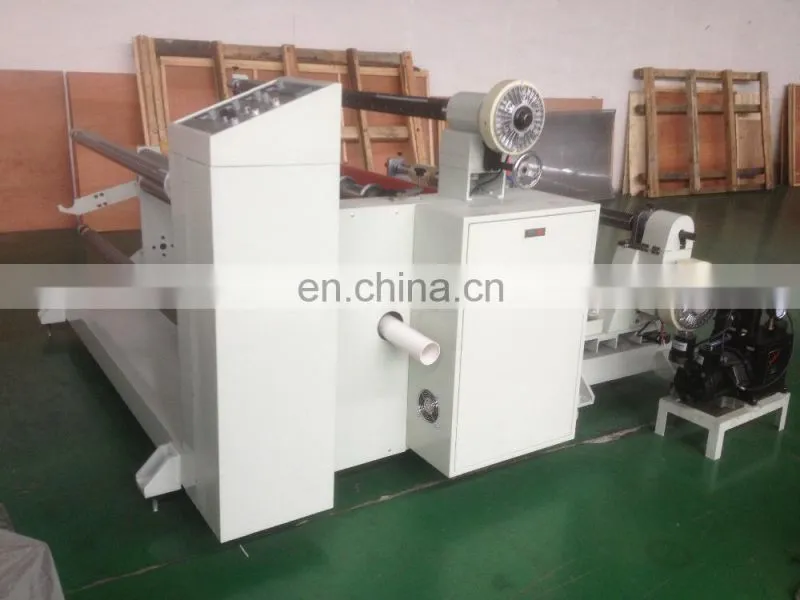

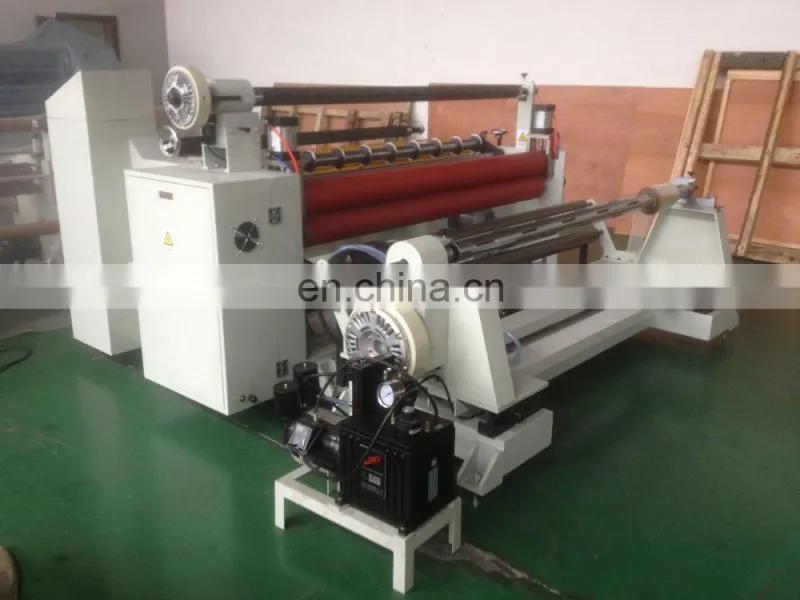

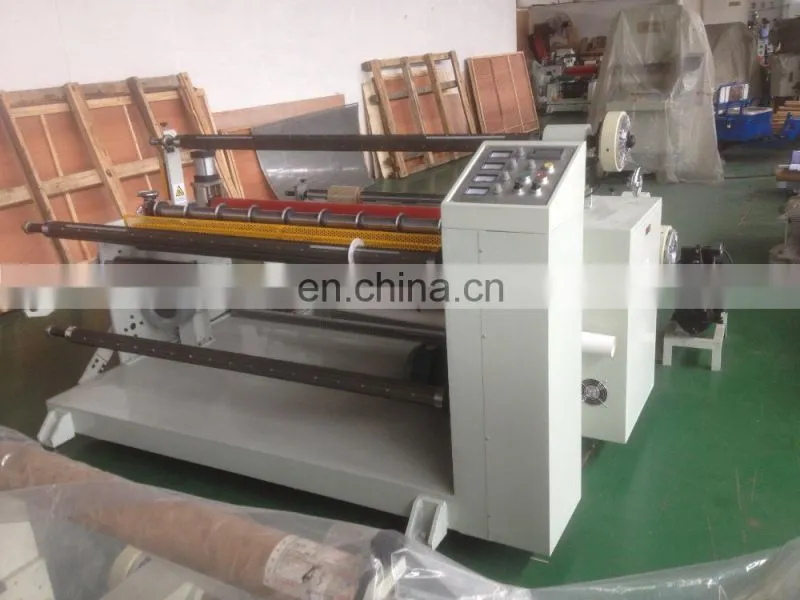

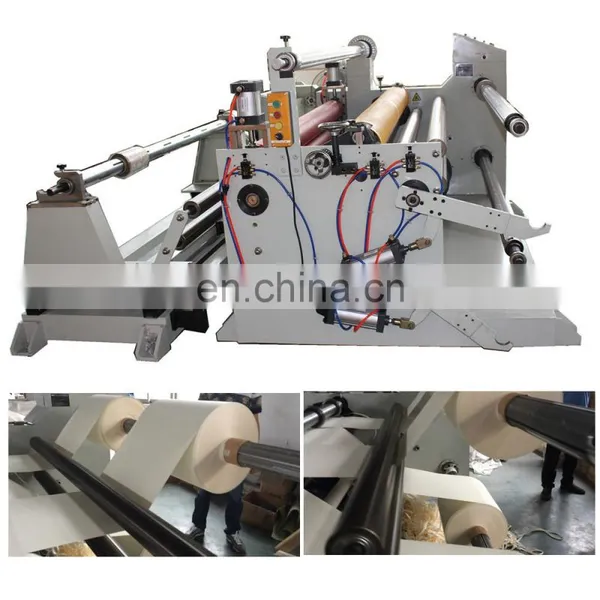

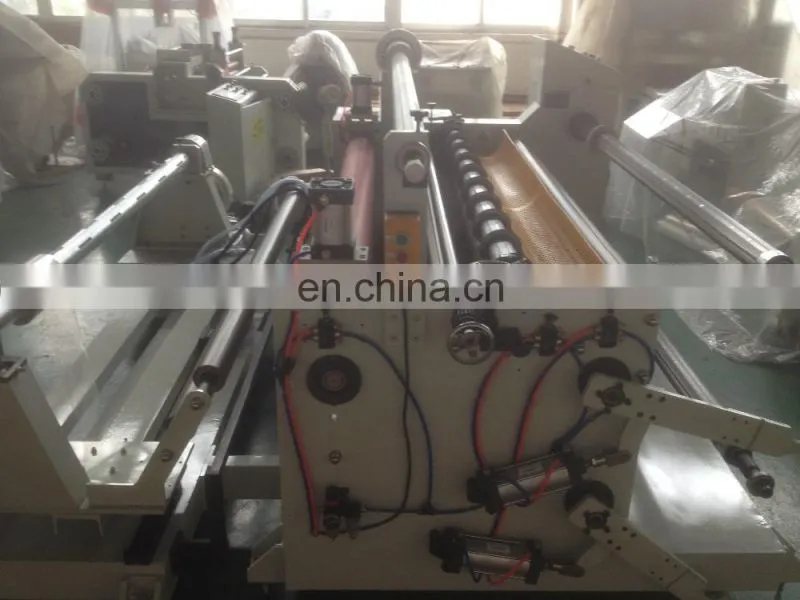

 Slitting Machine More Detail Picture
