plastic film and paper Slitting Rewinding Machine

plastic film and paper slitting rewinding machine

Functional characteristics:

Electric Laminating machine Complex for the sticking of material withou tbase glue and other materials .

This machine is applicable to the Laminating of material of wide breadth ,and characterized by automatic powder  brake controlling  over the unreeing tension ,frequency change stepless regulation ,and magnetic power braken's constant torque controlling over the winding ension ,and therefore ,it is fast in lamination speed and simple to operate,hence a necessary equipment matching the lable printing machine.

Main technical parameters:

1. Technique Data

Machine Speed : 110m/min

Max material feeding width : 1800mm

Feeding Diameter : 800 mm

Film Diameter : 400mm

Rewinding diameter : 450mm

Slitting accuracy :±0.1mm

Voltage:380V 50HZ

Main Motor Power :3kw (1 motor power)      ( if running reversible need 2 motor)

Total Power: 8kw

Raw material Max hole diameter: 3”

compress air source:(0.4-0.6)Mpa(customer-owned)

Finished products Min. Width by standard slitting :25MM

Main Machine size :2600*2300*1300mm

Feeding Machine size : 2150*880*780mm

Weight : 2.5T

2, Feeding Device

Feeding Air Expansion Shaft (3”Pad Shaft)                    2 Sets

magnetic powder brake 100N                                 1 Set

   Film release Magnetic Powder Brake 50N                      1 Set

Feeding Tension Control System                              2 Sets

Correction System(Taiwan Gas and Liquid correction)         1 set

3, Renewal Material Laminating Part :

Upper Laminating COTS  Dia.135(PU)                       1 Set

Under Laminating COTS  Dia.135(PU)                          1 Set

Aluminum guide roller(hard Oxygen surface treatment)          1 Set

Pressure roller pneumatic type top and bottom system adjustable :          1 Set

electronic counter                                             1 Set

Film Release tensioning adjustable system

4. Slitting Part

Upper Circular knife shaft Dia 65(upper slitter Dia 110*75*1)   1 Set

Under Circular knife shaft Dia 65(upper slitter Dia.90*65*10)1 set

Manual fine-tuning lock device

5. Rewinding  end

Receiving Flatulence axis(3″Pad shaft)               2 Sets

magnetic powder clutch 50N                            2 Sets

he receiving tension control system                   2 Sets

Main electrical machine (double motor)                     1 Set

Main Power inverter                        1 Set

Winding shaft and pneumatic up and down device(Rise,descend ,support)  1 Set

6. Operator control box                                 1 Set

7.Electric control panel                                 1 Set

8. Function Profile

frequency control of motor speed, operation more easy. Control more accurate.

Double receiving roller  center take up , rewinding

Double receiving magnetic powder tension independent control, can rewinding at the same time , and also can individual use

Electronic meter counter with the function of automaticly count the meter and setting length, automatic stopping ,accuracy 0.01, error ±0.15M

Independent fan waste discharge.

If Double motor configuration,The scroll of rewinding can be positive and negative transfer .

9. Slitting part

Slitting up and down cutter    10 sets

Circle tool apron            10 sets

Slitting up and down cutter gasket:1/2/5/20/30/50 each 13 pieces,10MM 12pcs

10. FOB SHANGHAI PRICE : USD18500 / SET  (for 1800 width)

10. Packing : Wooden case packing

11. Size : 2400X3000X1300mm  Weight : 1500KG

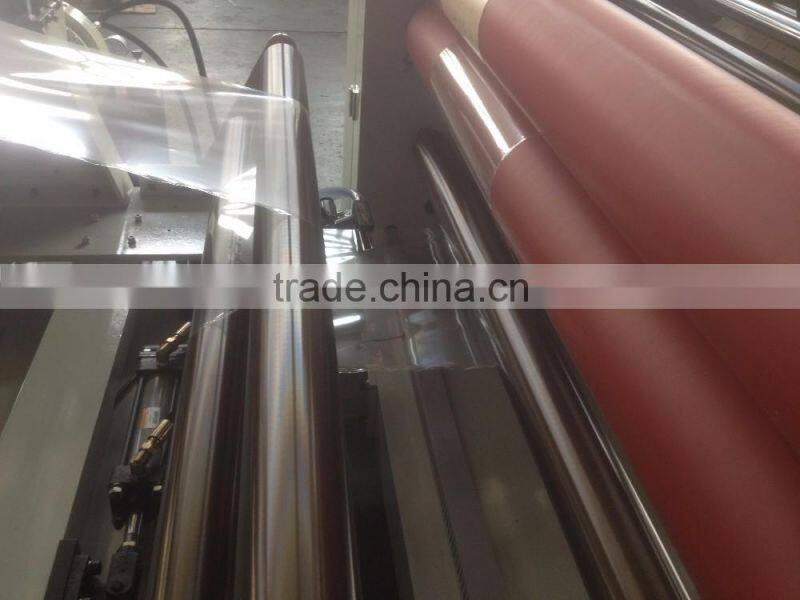

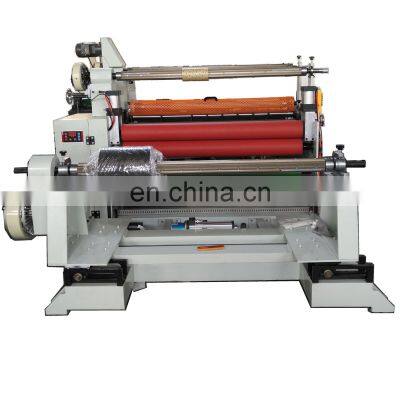

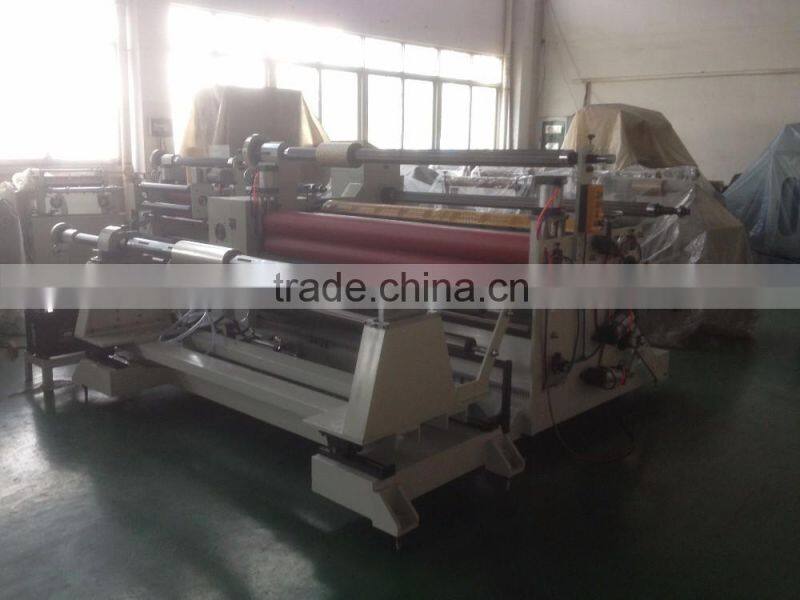

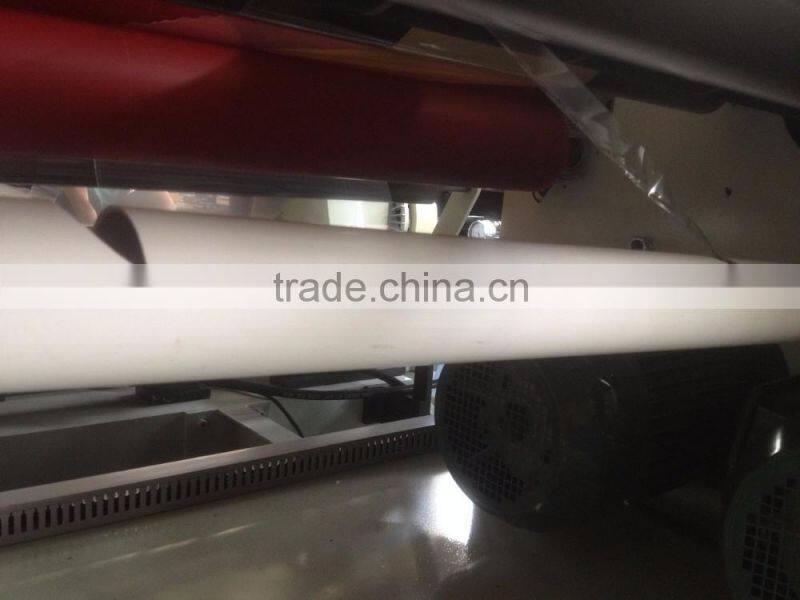

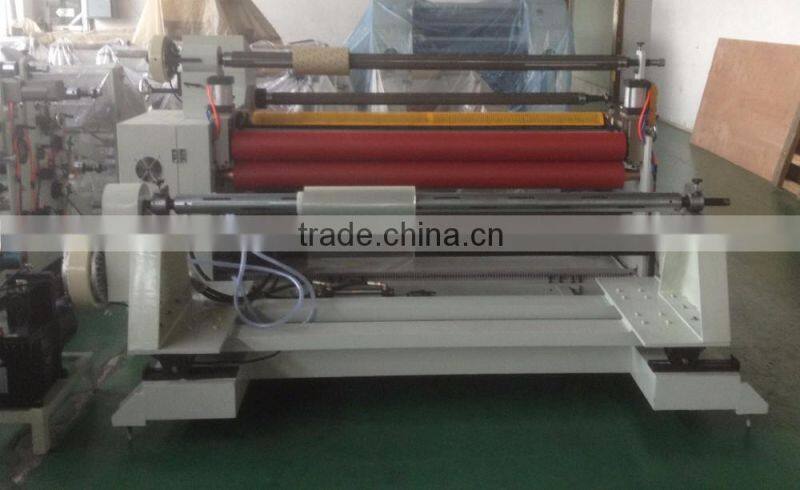

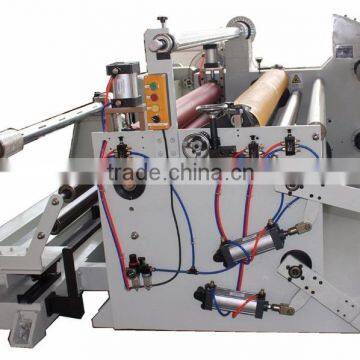

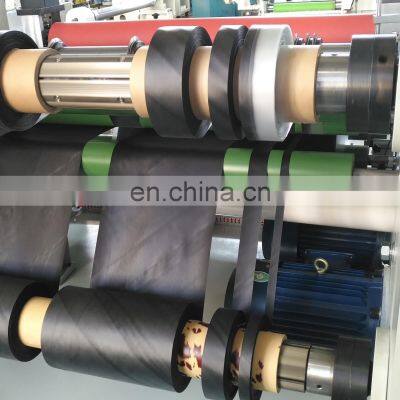

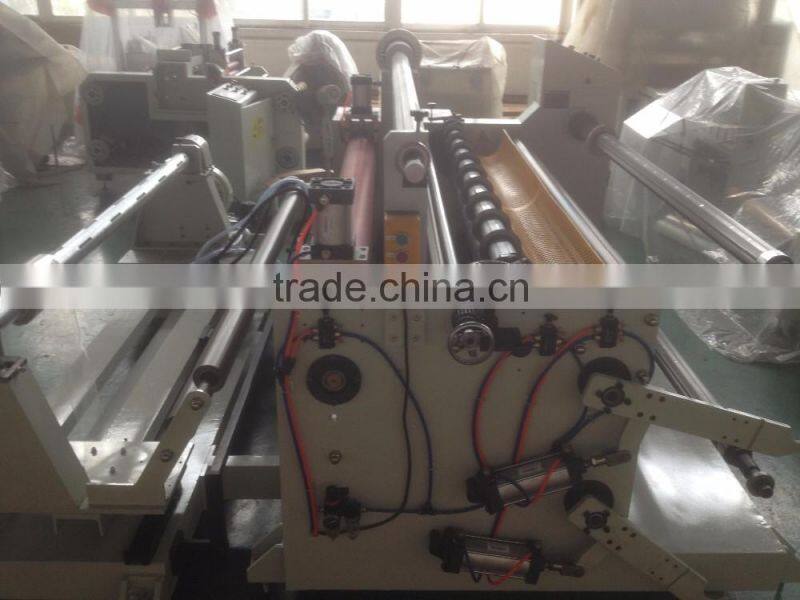

12, Pictures
