computer control barley Release paper slitting cross cutting machine

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Description

Specification

item	value
Applicable Industries	slitting cross cutting machine
Showroom Location	None
Condition	New
Type	Paper Cutting Machine
Computerized	Yes
Place of Origin	China
	Jiangsu
Brand Name	DAPENG
Voltage	220V/380V
Dimension(LWH)	225010901230mm
Weight	1500kg
Warranty	12 Months
Production Capacity	100 m/min
Key Selling Points	slitting cross cutting machine
Max. workable width	800mm
Machinery Test Report	Provided
Video outgoing-inspection	Provided
Marketing Type	Ordinary Product
Warranty of core components	1 Year
Core Components	Pressure vessel, Motor, PLC
PLC Brand	Schneider, MITSUBISHI, Siemens
Max cutting width	600mm
Length are defaulted	as 5 digits
cutting method	half cutting or full cutting
driver	servo driver
Certification	CE Certificate

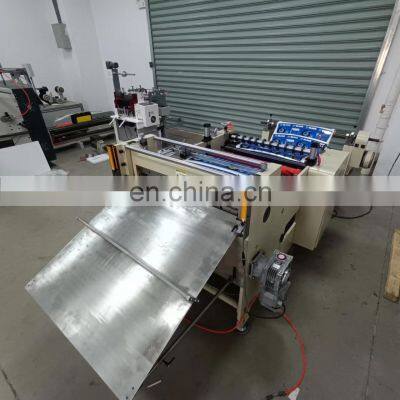

computer control piece cutting machine With Automatic Unwinding System

Feature:

This machine employs servo motor to feed material, import PLC touch screen operation to set any length, quantity, speed and finish
singleness cutting , equipped with automatic unwinding system and air shaft, which will be easy to load and unload.

Application:

Sizing cutting for aluminum foil, copper foil, PET, PC, PVC, PCB, FPC, Lithium battery film, flannelette, metal foil and all kinds
of material in roll form.

Optional:

·static electricity eliminator · Conveyor belt

Main functions of belt cutting machine:

Feed material and return material by pressing the button on touch screen
Preset total cutting quantity
Preset cutting length
Preset cutting speed
Preset cut quantity each time ( applied for hot cutting)
Flash cutting quantity finished
Half cut-off with multi-cut
Full cut-off with one-cut
Five different cutting length can be set
Different cutting quantity and circulation time can be set
Return to ZERO

After-service computer control piece cutting machine:

1. Warranty for machines is 12 months
2. A promptly reply within 24 hours
3. Free usage training before delivering machines in factory

Item No	Voltage	Power	Gross weight	Cutting speed
DP-800	380V 50HZ	3 KW	1800kgs	90 cuts per minute （5400 pieces per hour）
Cutting length	Cutting width	MACHINE Unit price	Packing size	Unwinding diameter
0.1-9999.9mm	1-800mm	008613732669376	2050x1750x1550mm	800mm
