FRP Grille Fiberglass Molded Catwalk Grating Plastic FRP Grating Sheet
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2000
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
For Chemical Industry Used High Quality FRP Deck Floor Platform Grating Plastic Walkway GratingNegotiableMOQ: 1 -
Yellow Color Grp Platform Plastic Walkway Grating FRP Floor Mesh GratingNegotiableMOQ: 1
-
Anti Skid Corrosion Resistant FRP Molded Covered Grating High Strength Glass Fiber Grating PriceNegotiableMOQ: 1
-
Factory Supply High Quality High Strength 38*38*38 mm 25*25*25 mm Fiberglass FRP Molded GratingNegotiableMOQ: 1
-
Anti Slip Yellow FRP Nosing for Stair GRP/FRP Tread Cover NosingNegotiableMOQ: 1
Product Description

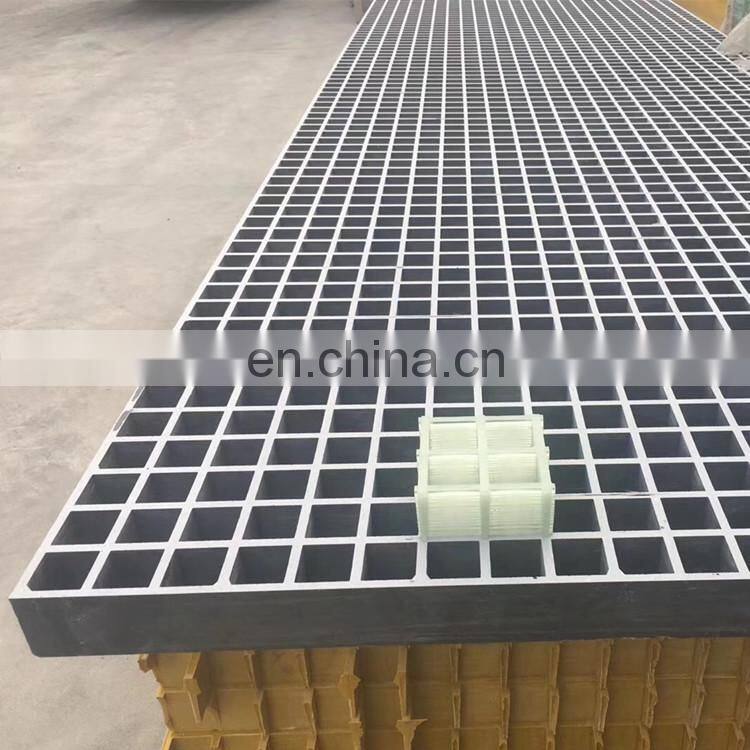

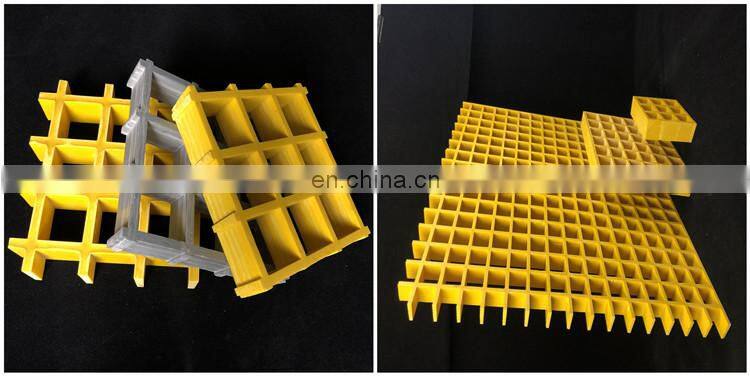

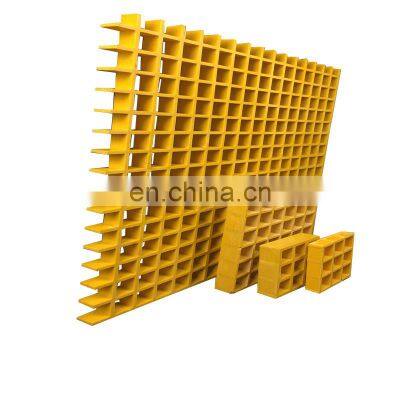

FRP Grille Fiberglass Molded Catwalk Grating Plastic FRP Grating Sheet
Why Fiber Tech FRP/GRP Grating
The use of FRP grating contributes significantly to safety, corrosion resistance, durability and low maintenance control of
e.G.Platforms and installations. Furthermore, FRP grating is also an excellent alternative to steel, wooden and concrete grating.
* CORROSION RESISTANT - It gives resistance against almost all chemicals & in most hostile environments.
* LIGHT WEIGHT - Density compared to steel is 4 times less.
* NON-CONDUCTIVE - It does not carry any electric current.
* MAINTENANCE FREE - No rework, like painting or cleaning required.
* LIFE CYCLE - long durability ensures the lowest in life cycle cost.
* EASY TO INSTALL - no welding required while installing.
* AESTHETIC - attractive color improves plant look.
* EASY TO CLEAN - totally washable as it is completely rust & corrosion-proof.
* UV RESISTANT - Inbuilt UV resistance gives protection from direct sunlight exposure.
* LOW INSTALLATION COST - Being lightweight, it can be installed by anybody.
* No rusting no painting required as the color is inbuilt and different color options are available to suit you.
* Very high strength to weight ratio which helps in structural saving
* It is resistant to microbial growth.
The use of FRP grating contributes significantly to safety, corrosion resistance, durability and low maintenance control of
e.G.Platforms and installations. Furthermore, FRP grating is also an excellent alternative to steel, wooden and concrete grating.
* CORROSION RESISTANT - It gives resistance against almost all chemicals & in most hostile environments.
* LIGHT WEIGHT - Density compared to steel is 4 times less.
* NON-CONDUCTIVE - It does not carry any electric current.
* MAINTENANCE FREE - No rework, like painting or cleaning required.
* LIFE CYCLE - long durability ensures the lowest in life cycle cost.
* EASY TO INSTALL - no welding required while installing.
* AESTHETIC - attractive color improves plant look.
* EASY TO CLEAN - totally washable as it is completely rust & corrosion-proof.
* UV RESISTANT - Inbuilt UV resistance gives protection from direct sunlight exposure.
* LOW INSTALLATION COST - Being lightweight, it can be installed by anybody.
* No rusting no painting required as the color is inbuilt and different color options are available to suit you.
* Very high strength to weight ratio which helps in structural saving
* It is resistant to microbial growth.

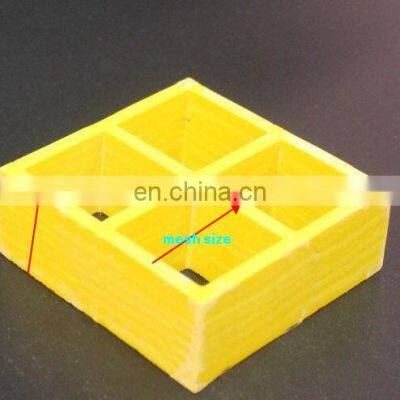

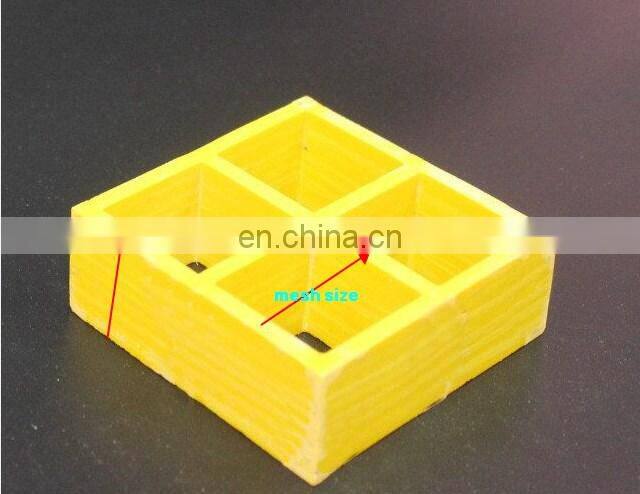

38*38*25 mm
Inner thickness (top/r bottom):6.4 mm / 5.0 mm
Center distance of bearing rod:38 mm
Aperture ratio:68%
Weight / square meter:12.3 kg/m²
Inner thickness (top/r bottom):6.4 mm / 5.0 mm
Center distance of bearing rod:38 mm
Aperture ratio:68%
Weight / square meter:12.3 kg/m²
Specification

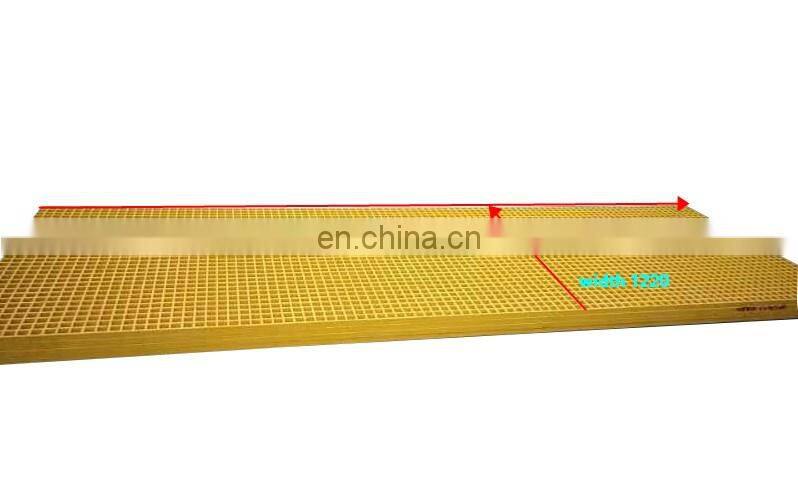

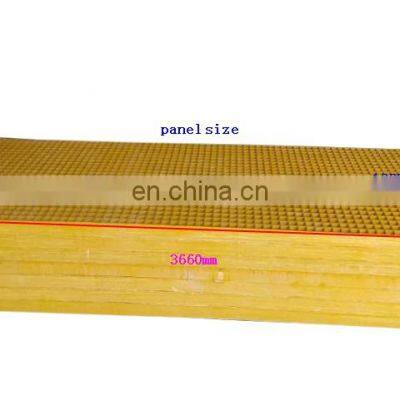

No. | Mesh/Thick (mm) | Thick (mm) | Open Area (%) | Weight (KG/m2) | Panel size (mm) | Usage |
1 | 38mm x 38mm | 25mm | 68% | 12.5kg | Customzied | Pedestrian walkway, trench cover plate, tree cover, breeding |
2 | 30mm | 68% | 16kg | Customized | Machine Platform | |
3 | 38mm | 65% | 20kg | Customized | Car Wash Room | |
4 | 40mm x 40mm | 25mm | 67% | 11.5kg | Customized | Pedestrian walkway, trench cover plate, tree cover, breeding |
5 | 30mm | 67% | 14kg | Customized | Machine Platform | |
6 | 38mm | 67% | 18kg | Customized | Car Wash Room |
Symbol | Resin Basic | Corrosion Resistance | Applied Occasions |
VE | Vinyl ester | Very good | Severely corroded environment by acid and solvent |
ISO | ISO-phthalic | Good | Acid resistant very good,alkali resistant is general and solvent |
Ortho | Ortho-phthalic | common | General acid and alkali environment |
A. Ortho resin: It has general corrosion resistance, can resist atmospheric aging, seawater corrosion, etc., long-term use
temperature is -50~60 ℃, and it can withstand general acid and alkali corrosion environment.】
B. ISO resin: It has good corrosion resistance, can withstand medium-concentration inorganic acids and alkalis, various salts and other environments, long-term use temperature -50 ~ 90 ℃, has the characteristics of excellent acid resistance, moderate alkali resistance and solvent resistance .
C. VE (for chemical industry): It has excellent corrosion resistance and can be resistant to acid, alkali, salt, solvent, or
acid-base replacement and other harsh corrosive environments. The long-term use temperature is -50~110 °C, and the price higher.
temperature is -50~60 ℃, and it can withstand general acid and alkali corrosion environment.】
B. ISO resin: It has good corrosion resistance, can withstand medium-concentration inorganic acids and alkalis, various salts and other environments, long-term use temperature -50 ~ 90 ℃, has the characteristics of excellent acid resistance, moderate alkali resistance and solvent resistance .
C. VE (for chemical industry): It has excellent corrosion resistance and can be resistant to acid, alkali, salt, solvent, or
acid-base replacement and other harsh corrosive environments. The long-term use temperature is -50~110 °C, and the price higher.

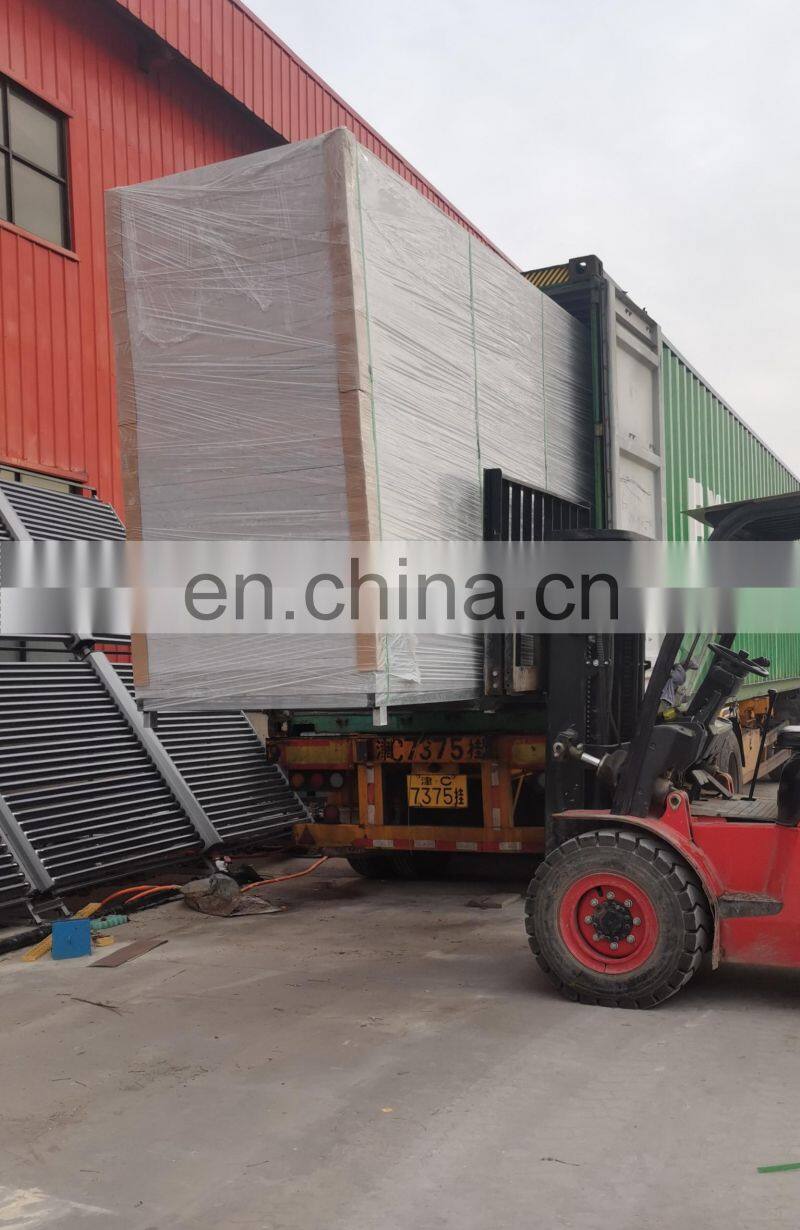

Packing & Delivery
