Composite Warning Spheres Aerial Warning Ball Warning Marker Aircraft
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2000
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Fiberglass Aerial Marker Ball / FRP Warning BallNegotiableMOQ: 1 -
FRP Warning Spheres, Aircraft Marking Balls for High Voltage LinesNegotiableMOQ: 1
-
Fiberglass Warning Ball Sphere/aviation Obstruction LightsNegotiableMOQ: 1
-
China Manufacturer Aircraft Warning Sphere/power Line Aircraft Marker BallNegotiableMOQ: 1
-
Direct Factory 300mm Diameter FRP Aerial Marker Balls for Power LineNegotiableMOQ: 1
Product Description

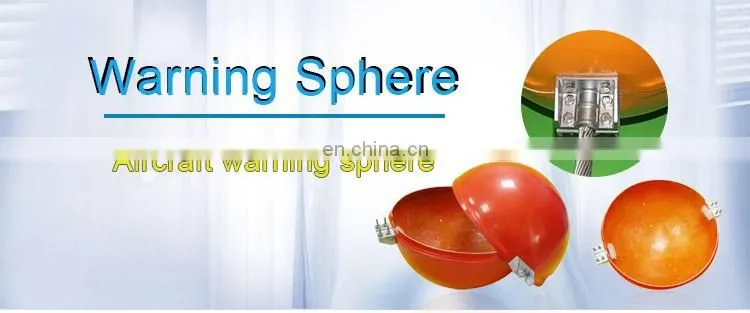

Composite Warning Spheres aerial warning ball warning marker aircraft
Products description
Warning globe is attached to the lines for warning.Warning area is between 25-40 meters.Warning globe is made of aluminum and is very light.Construction of the connectors provides easiness and safety to attach warning globe to the various lines.

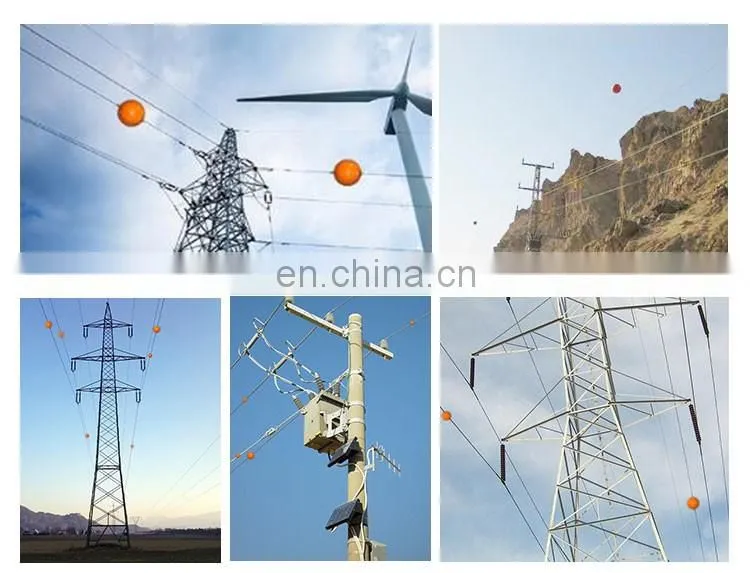

Aircraft Warning Sphere is Designed to use for high-rise transmission lines, eg. 110KV, 220KV, 500KV, transmission cables,
river-crossing transmission lines to provide the warning marks.
river-crossing transmission lines to provide the warning marks.
Opearation | ||||||
Visible Distance | 1200mm | |||||
Voltage Range | 35KV-1000KV | |||||
Conductor Diameter | 6.5-55mm | |||||

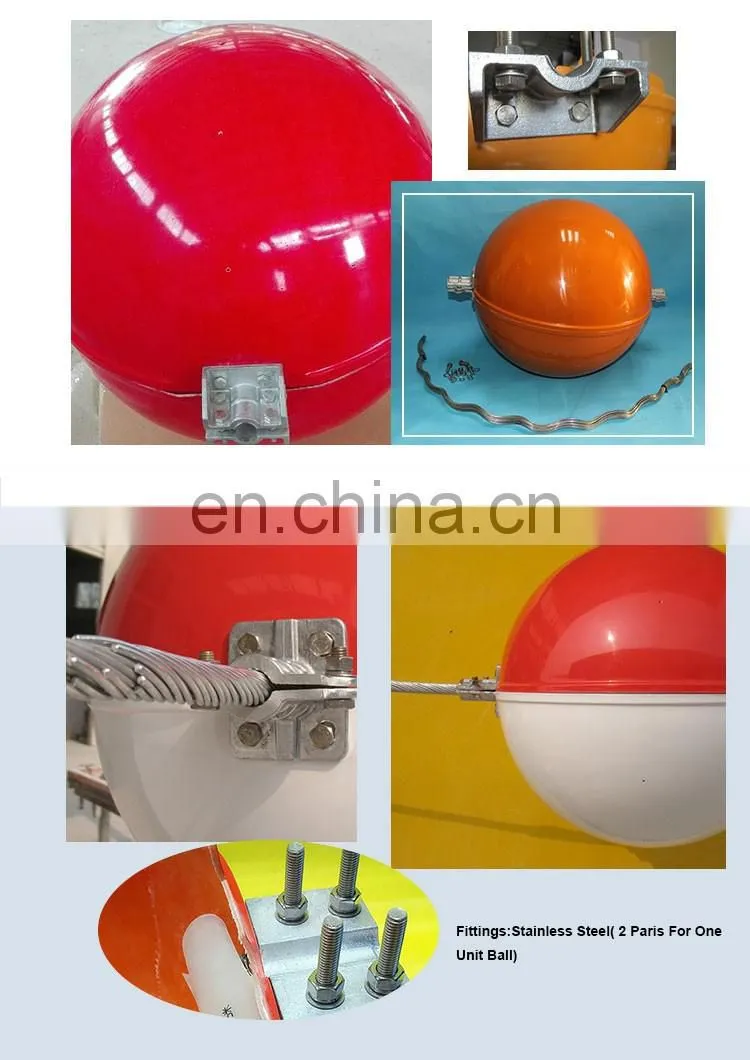

Mechanical Structure | ||||||

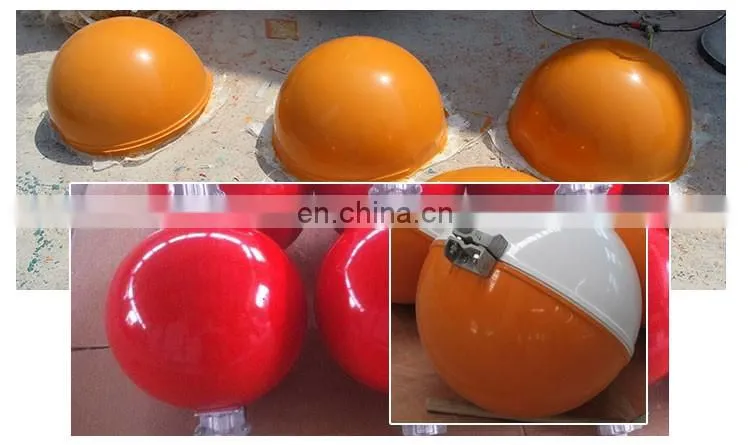

Color | Orange,Red,White,Orange/White,Red/White | |||||

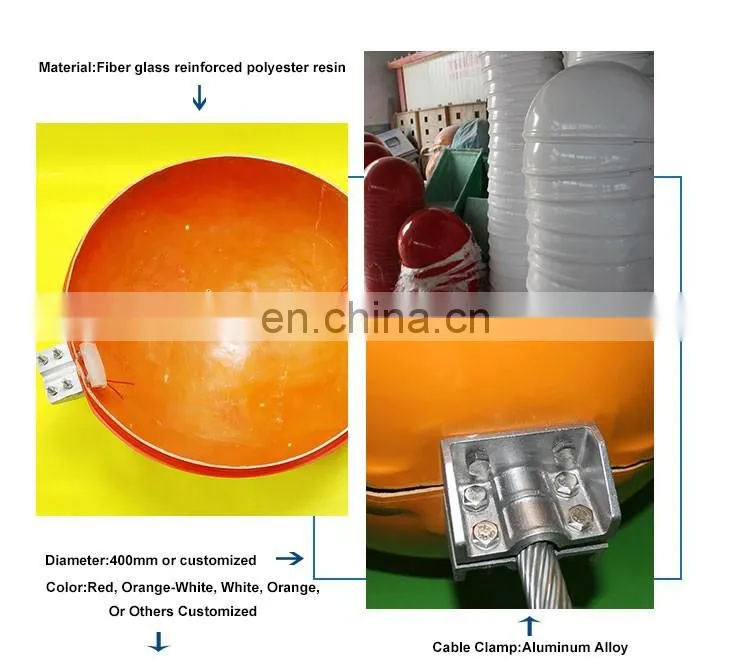

Sphere body | FRP(Fiberglass Reinforced Polyester) | |||||

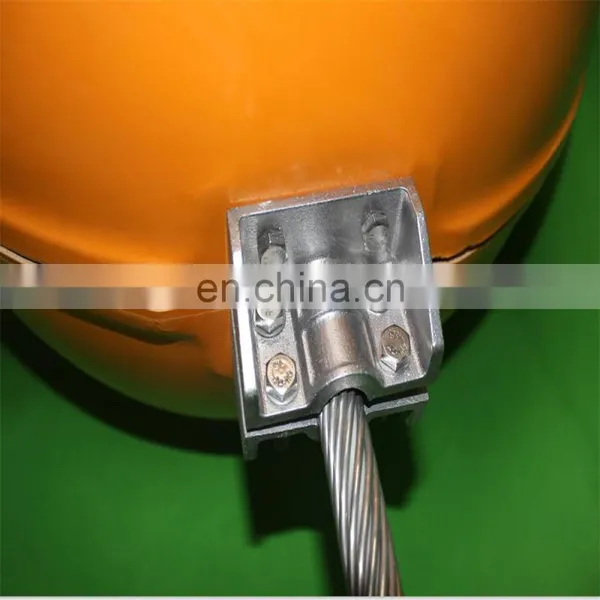

Cable Clamp | Aluminum alloy | |||||
Bolts/Nuts/Washers | Stainless steel 304 | |||||
Diameter | •300mm/400mm/600MM/800mm/1000mm/1200MM •340(Rotational) | |||||
Weight | 6.9KG/9.0KG | |||||
Thickness | 3mm | |||||
Drain Holes | Yes | |||||
Optional | •Prefromed Armor Rods •Reflective Strip | |||||
Warranty | 2Years | |||||
Specification

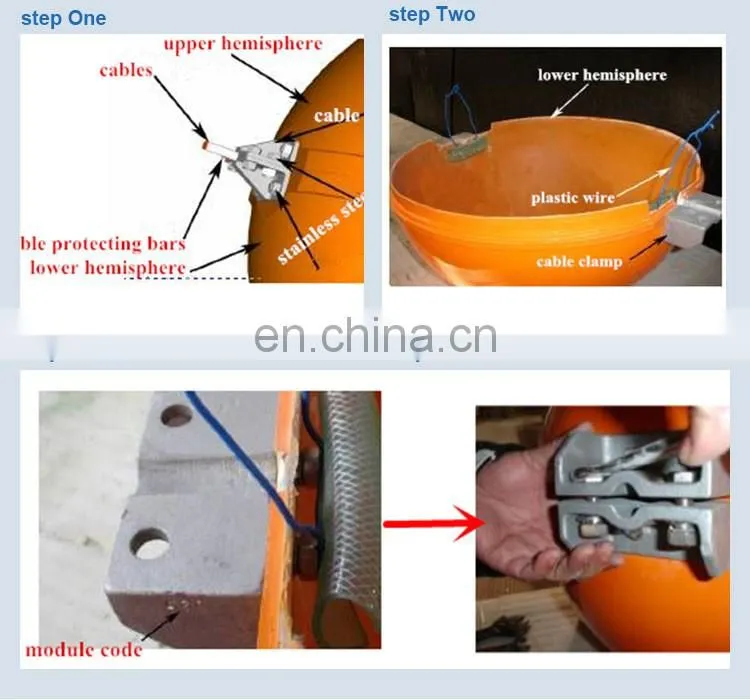

1.At the mount point on the alerting ball, wrap cable protecting bars round cables for 1000-1200mm long, with two ends of
protecting bars extending 200-300mm beyond the surface of the ball.
2.Fix the plastic wires which are mounted on lower hemisphere of the ball onto the cables and twist them.
3.Combine the lower hemisphere with the upper hemisphere according to module codes. Turn the hemisphere during the assembly and
make sure two hemispheres are joined into position .
4.Insert stainless steel bolt(M12*35) and then put flat washers and spring washers around each bolt. Tighten each nut at last.
protecting bars extending 200-300mm beyond the surface of the ball.
2.Fix the plastic wires which are mounted on lower hemisphere of the ball onto the cables and twist them.
3.Combine the lower hemisphere with the upper hemisphere according to module codes. Turn the hemisphere during the assembly and
make sure two hemispheres are joined into position .
4.Insert stainless steel bolt(M12*35) and then put flat washers and spring washers around each bolt. Tighten each nut at last.
Product Specialties
Installation process
1. Aviation obstruction ball(Aviation warning ball) installed in the wire rope with thunder protected ground wire of the overhead tower, each obstacle ball's distance can't exceed 30 meters, and equal Interval setting.
2. Aviation obstruction ball(Aviation warning ball) have red(orange) or white, should be interphase setting.
3. Involved multiterm lines, cables situation, the height of the balls should not be lower than the height of the highest marked overhead line.
2. Aviation obstruction ball(Aviation warning ball) have red(orange) or white, should be interphase setting.
3. Involved multiterm lines, cables situation, the height of the balls should not be lower than the height of the highest marked overhead line.
