Product Description

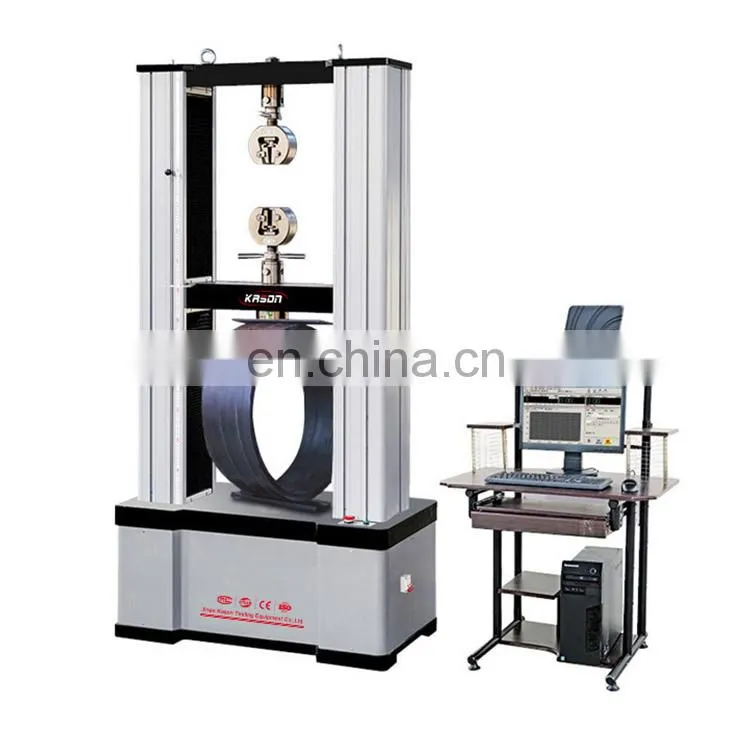

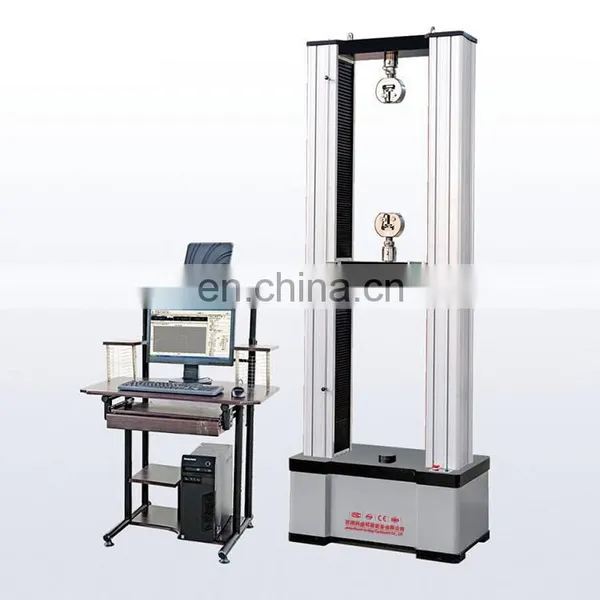

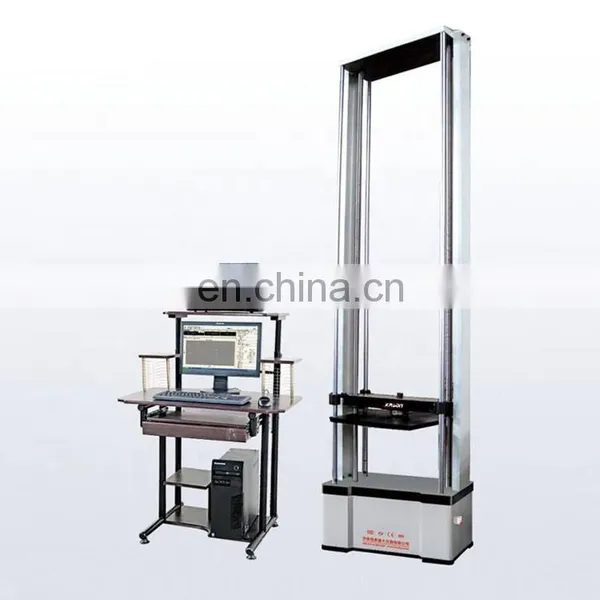

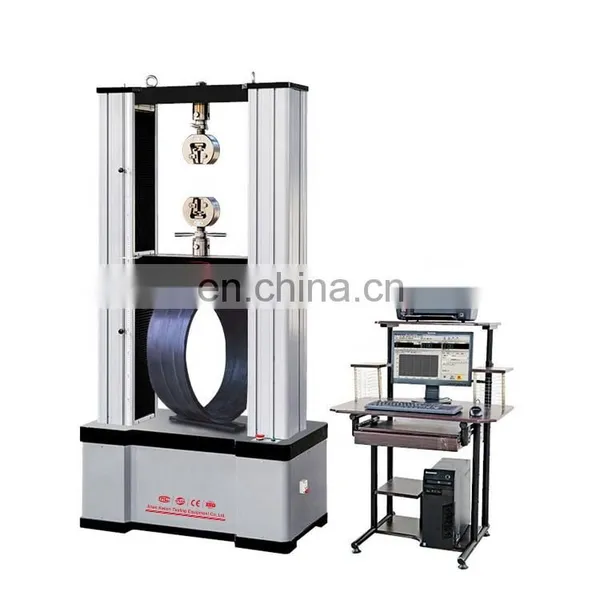

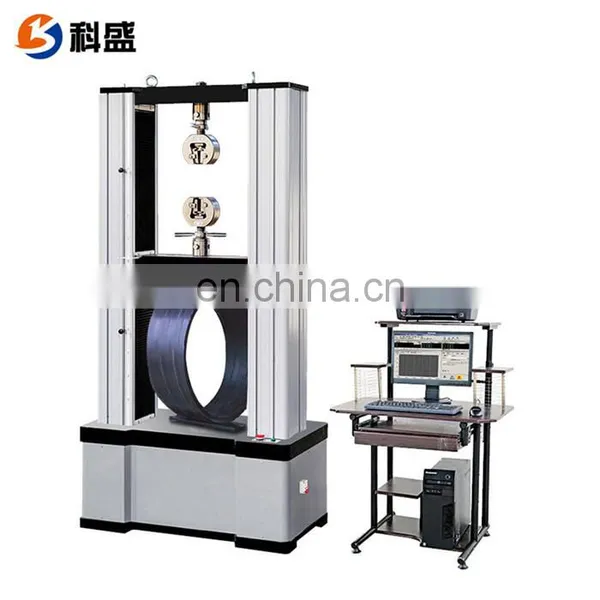

HGW Series Pipe Ring Stiffness Compression Testing Machine
1. Application:

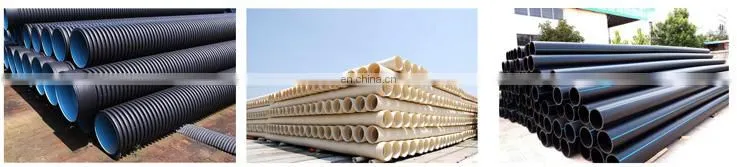

HGW series (Dual Space) Pipe Ring Stiffness Testing Machine, is mainly used to determine ring stiffness,ring softness and compression of thermoplastic pies having circular cross-section. It conforms to the requirements of all kinds of plastic pipes, such as structured-wall pipes,PE corrugated pipes, helically wound pipes,etc.
2. Main Specifications:
|
Model |
HGW-20E |
HGW-50E |
HGW-100E |
HGW-200E |
HGW-300E |
|
Max. Load(KN) |
20 |
50 |
100 |
200 |
300 |
|
Calibration standard |
Class 0.5 |
||||
|
Testing Load Accuracy |
±0.5% |
||||
|
Load range |
0.4%~100% F.S |
||||
|
Load Resolution |
1/500,000FS
|
||||
|
Deformation accuracy
|
≤±0.5% of 0.4%~100% of rated capacity
|
||||
|
Test speed(mm/min) |
0.001-1000 |
0.001-1000 |
0.001-500 |
0.001-500 |
0.001-500 |
|
Pipe diameter range |
Customized(110mm-3000mmm) |
||||
|
Position limit switch |
Upper and lower lights |
||||
|
Power supply |
AC220V±10%, 50Hz/60Hz |
||||
