KS-200 Computer Control Wire Rotating Bending Fatigue Testing Machine

FOB Price

Negotiable

1 (Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

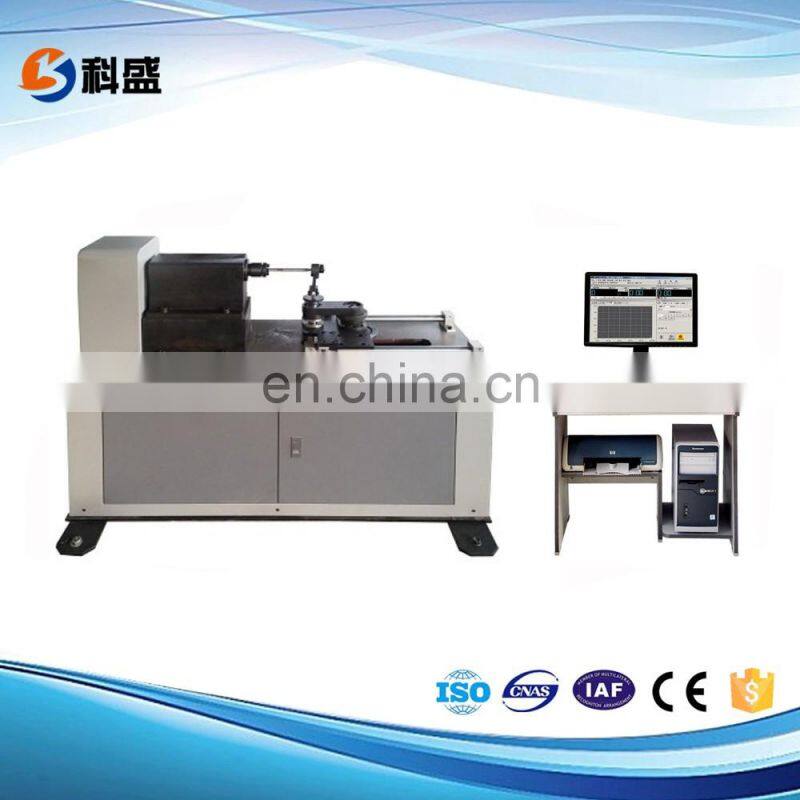

KS-200 Computer Control Wire Rotating Bending Fatigue Testing Machine

1.Application:

KS-200 Computer Control Bending Fatigue Testing Machine is mainly used for specimens

(usually rods) do cantilever-type rotation, and applied the prescribed bending moment, to test

the specimen rotation under constant bending moment (or force), under the alternating stress,

to analyse specimen anti-cyclical bending stress mechanical properties.

Widely used in automobiles, locomotives, quality supervision, research institutes and so on, it is

the ideal equipment to detect the material or workpiece to withstand the bending fatigue stress.

2.Applicable Standards:

GB / T4337-2008 "Metallic Materials - Fatigue Test - Rotary Bending Method"

BS EN 13261: 2009 "Railway Applications-Wheelsets and Bogies-Axles-Product Requirements"

3.Main Specifications:

Model	KS-200
Max.Bending Moment	200 Kg .cm (20 N.m)
Bending Moment Adjustable	25-200 Kg.cm (2.5-20 N.m)
Gripping Diameter	12 mm
Testing Diameter	8 mm
Rotating Speed	4200 rpm
Accuracy Of Applied Bending Moment	±1%
Number Of Fatigue	2*10⁶
Loading Type	Pure Bending Moment Of Cantilever
Loading Method	Weight
