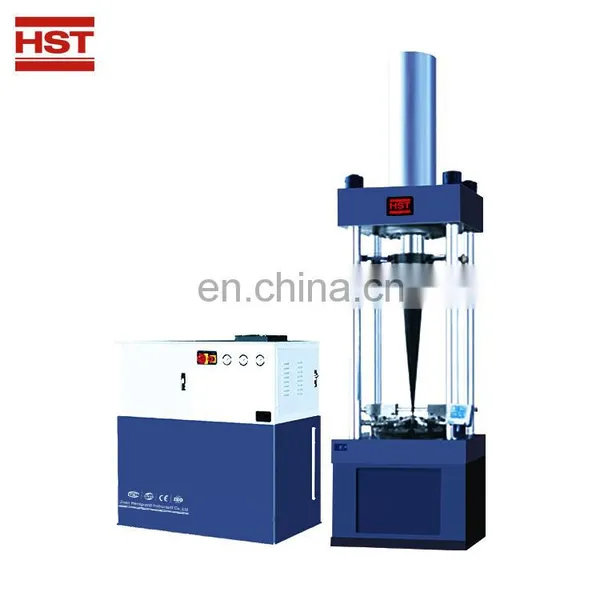

New design universal compression bending 1000kn tensile test machine hydraulic oil testing equipment with low price

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Description

New design universal compression bending 1000kn tensile test machine hydraulic oil testing equipment with low price

Product Description

1. Application

The machine adopts hydraulic loading, Computer Display, easy and convenient to operate. It is mainly used to execute the tension, compression, bending, flexural etc. test for metal materials. Attached with simple accessories and devices, it can be used to test wood, concrete, cement, rubber, and so on.It is very suitable for making test to different metal or nonmetal materials under high toughness and hardness against extreme big loading force.

2. Standards

ISO6892, BS4449,ASTM C39,ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards.

3.Specifications:

Model	WAW-100D WEW-100D	WAW-300D WEW-300D	WAW-600D WEW-600D	WAW-1000D WEW-1000D	WAW-2000D WEW-2000D
Number of Screw drivers	4
Max. Load (KN)	100	300	600	1000	2000
Load Accuracy	≤± 1%/ ≤± 0.5%
Load Range	2%~100%FS/ 0.4%~100%FS
Load Resolution	1/300000
Deformation Measurement Range	2%~100%FS
Deformation Accuracy	≤± 1%
Max. Piston Stroke(mm)	200	200	250	250	250
Max. Tension Test Space(mm)	780	780	800	950	1000
Max. Compression Test Space(mm)	550	550	550	700	750
Clamping Method	Hydraulic Automatic Clamp
Tensile fixture	round :Φ10-Φ20,Φ20-Φ32 Flat :0-15mm	round :Φ10-Φ20,Φ20-Φ32 Flat :0-15mm	round :Φ13-Φ26,Φ26-Φ40 Flat :0-15mm	round :Φ13-Φ26,Φ26-Φ40 Flat :0-15mm	round :Φ15-Φ30,Φ30-Φ55,55-Φ70, Flat :10-40,40-70mm
Flat Specimen Clamping Width	80mm	80mm	90mm	100mm	150*120
Compression Plate Size	Φ 160mm

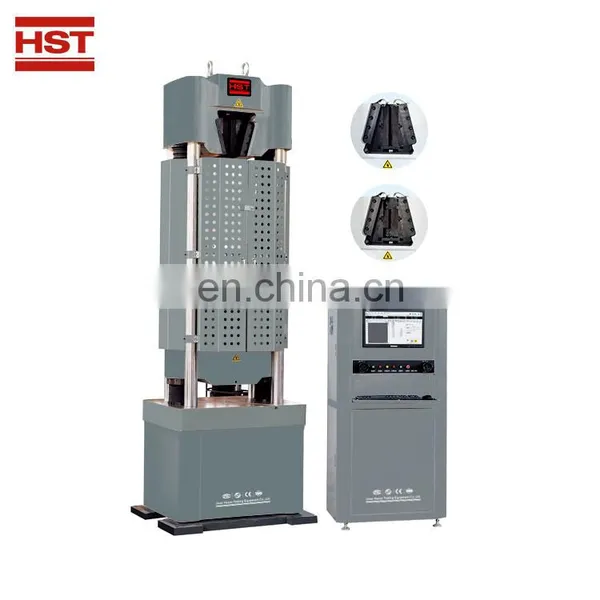

Detailed Images

Test Report (could edit from excel):
