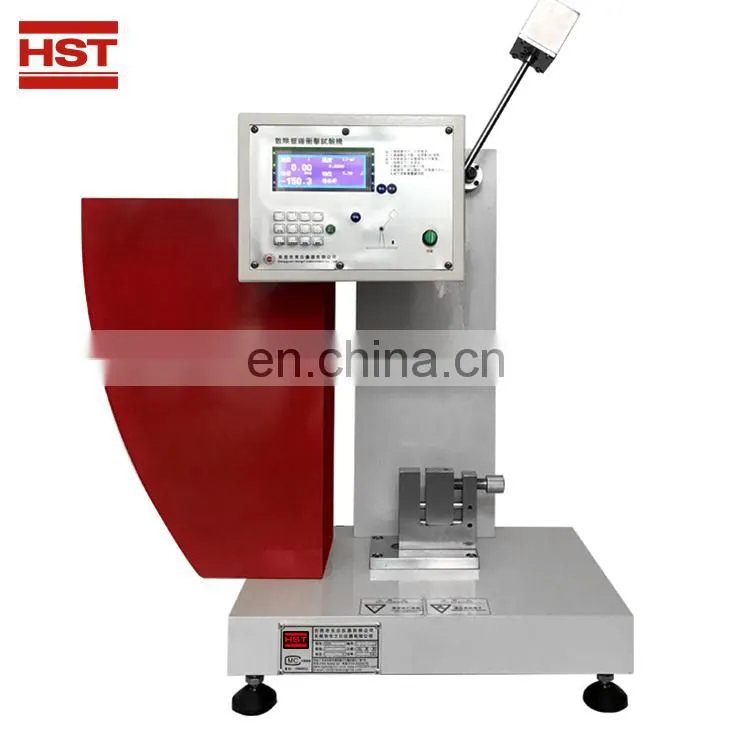

XJJD 50J Non Metal Material Digital Display Plastic Charpy Impact Testing Machine Tester Test Equipment
- 1000 per Month
- T/T Credit Card
You May Like
-
XJXD-5 ASTMD256 IS0180 Touch Screen PLC Control Plastic Charpy And Izod Impact Testing Machine
-
XJXD-5 Touch Screen Plastic Charpy And Izod Impact Testing Machine
-
XJUD-5.5T ISO 180-1993 GB/T 2611-2007 Touch Screen Control Izod Impact Testing Machine
-
XJUD-22T Touch Screen Control Izod Plastic Impact Testing Machine
-
XJJD-50T Non-metallic Material Touch Screen Display PLC Control Plastic Charpy Impact Testing Machine
-
XJJD-5/50T IS0179 GB/T1043 Touch Screen Impact Charpy Impact Testing Machine
Product Description
XJXD-5 2J 4J 5J 2.75J 5.5J Touch Screen Plastic Charpy Izod Impact Tester Testing Machine
XJXD-5 series impact testing machine is mainly used for the determination of the impact toughness of non-metallic materials such as hard plastics (including plates, pipes, and plastic profiles), reinforced nylon, glass fiber reinforced plastic, ceramics, cast stone, and electrical insulating materials. This testing machine is an ideal testing equipment for the chemical industry, scientific research institutions, quality inspection departments of colleges and universities, etc.
|
act TestiTouch Screen Plastic Charpy & Izod Impact Testing Machine
|
|||
|
Charpy |
Izod |
||
|
Pendulum Energy |
2J,4J,5J |
Pendulum Energy |
2.75J,5.5J |
|
Impact Speed |
2.9m/s |
Impact Speed |
3.5m/s |
|
Rising Angle Of Pendulum |
150° |
Rising Angle Of Pendulum |
150° |
|
Pendulum Center To Sample Center Distance |
230mm |
Pendulum Center To Sample Center Distance |
335mm |
|
Impact Cutting Edge Radius |
(2±0.5)mm |
Impact Cutting Edge Radius |
R=0.8mm±0.2mm |
|
Power supply |
100VA 220VAC 50HZ |
||
|
Dimensions |
420mm*250mm*650mm |
||
|
Required space |
0.4m front and rear, 1.5m left and right, 1.5m upper part |
||
|
4. Technical Parameter:
|
||
|
Model: |
XJJD—5T |
XJJD-50T |
|
Impact speed |
2.9m/s |
3.8m/s |
|
Impact energy |
2.0,4.0,5.0J |
7.5,15.0,25.0,50.0J |
|
Impact pendulum moment |
Pd0.5=0.26795Nm Pd1=0.53590Nm Pd2=1.07180Nm Pd4=2.14359Nm Pd5=2.67949Nm |
Pd7.5=4.01924Nm Pd15=8.03848Nm Pd25=13.39746Nm Pd50=26.79492Nm
|
|
Rising Angle Of Pendulum |
1500 |
|
|
Pendulum Impact Center To Impact Blade Distance: 230mm |
||
|
Blade Corner Radius |
(2±0.5)mm |
|
|
Impact angle of blade |
(30±1)0 |
|
|
Supporting Blade Corner Radius |
(1.0±0.1)mm |
|
|
Distance between jaw support lines |
62 |
62 |
|
Power |
220VAC+10%,50Hz |
|
Izod Impact universal Testing Machine: ---- CLICK BELOW PICTURE FOR MORE DETAILS:

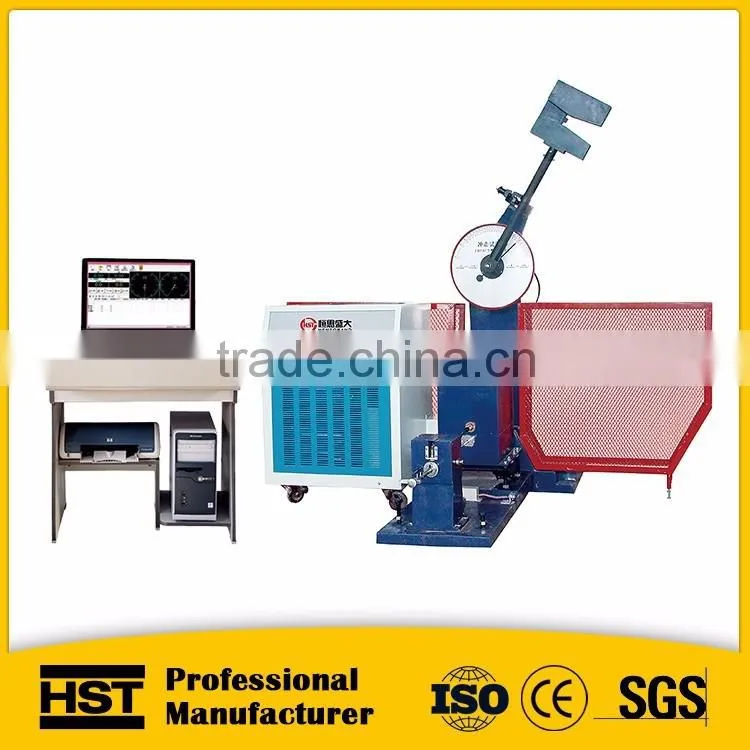

Low temperature impact testing machine Digital semi-automatic impact testing machine
Impact Specimen Gap Broaching Machine: CST-50 Charpy Projector

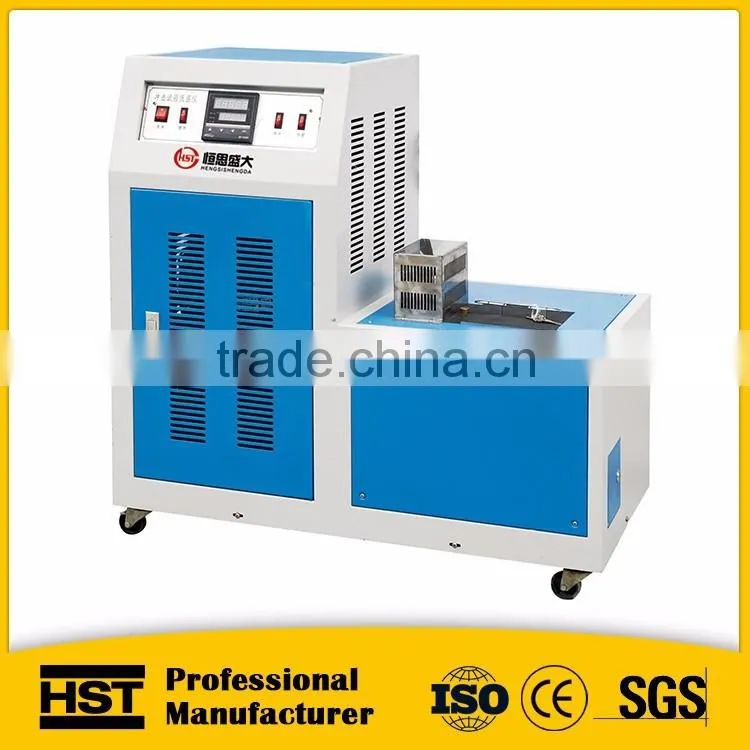

DWC series Low Temperature Chamber --- use for cooling the impact sample before low temperate imapct test . ------click picture for more details
Compressor Cooling Chamber Liquid Nitrogen Cooling Chamber
-------------
