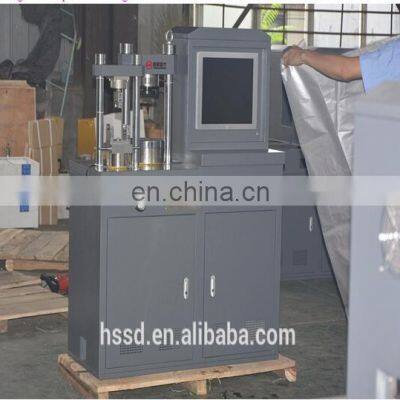

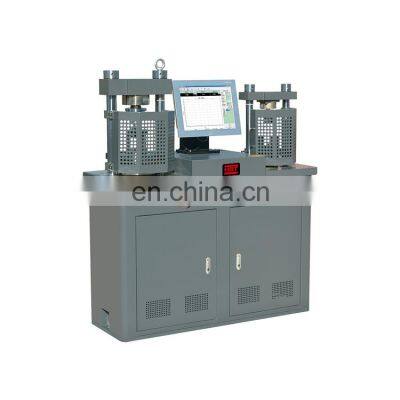

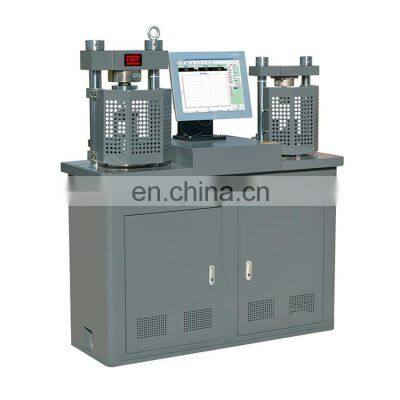

YAW-300B Hydraulic Cement Brick Automatic compression test machine
Application:
Hydraulic Press Pressure Testing Machine is mainly used for the compression, bending
and other mechanical property tests for the nonmental materials.Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements.
Features:
1. Computer control up, down, test, stop and loading progress
2. Computer automatically control the loading progress
3. This machine consist of the host machine, oil source and control system.
4. Adopt two oil cylinders to achieve anti compression and anti rupture test
5. High precision digital servo valve with closed-loop control function
6. Can realize the load rate, such as load or stress rate loading
7. Can auto printing
Technical parameter:
|
Model |
YAW-300B |
YAW-300C |
||
|
Max compression test force |
300kN |
300kN |
||
|
Max rupture test force |
/ |
10KN |
||
|
Test class |
1 class |
|||
|
Test measurement range |
2%-100%FS |
|||
|
Test force value relative error |
Better than ±1% |
|||
|
Control way |
Computer control auto loading progress |
|||
|
Anti compression oil cylinder stroke |
80mm |
|||
|
Max compression space between upper and lower pressure plates |
180mm |
|||
|
Test space adjustment method |
Block adjustment test space |
|||
|
Max distance between the right and left columns |
190mm |
|||
|
Upper compression plates diameter |
170mm |
|||
|
Lower compression plates diameter |
205mm |
|||
|
The distance between the upper and lower anti rupture fixture |
/ |
180mm |
||
|
Anti rupture oil cylinder stroke |
/ |
50mm |
||
|
Size |
1200×550×1400mm |
|||
YES-1000/2000/3000 YAW-1000/2000/3000D YES-100/200/300 YES-1000/2000/3000D
