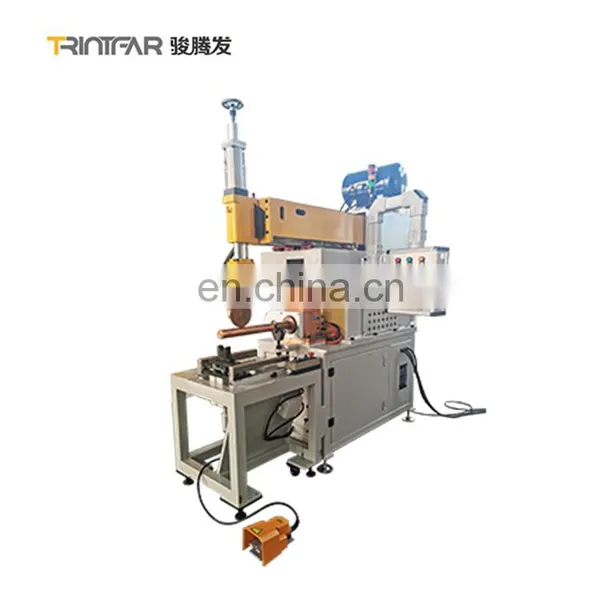

Pneumatic Rolling Seam Welding Machine Transversal Seam Welding Machine and Longitudinal Seam Welding Machine
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
Good Quality Straight Longitudinal Seam Welder Welding Machine
-
Automatic Narrow Lap Seam Welder/Metal Butt Seam Welding Machine
-
Motorcycle Fuel Tank Seam Welding Machine Iron and Aluminum Seam Welder Medium Frequency Spot Welder
-
Automatic Straight Seam Welding Machine Medium Frequency Seam Welder For Solar Water Heater Tank
-
Automatic Pneumatic Capacitor Discharge Panels Stainless Steel Pneumatic Metal Foot Pedal Seam Muffler Welding Machine
-
Longitudinal Resistance Seam Welder Machine Seam Welding Equipment
Product Description
Product Description
Feature
The power supply unit's duty are balanced. Three phase power make MD frequency inverter more adaptable in winding and pressure
of wire.
More preaser, faster current control, can analyse parameters more and faster compare with power frequency system.
Faster to set up current, the speed is 20folds quicker than traditional technic
Process more reliable: the majority of the application of solder DC welding metal effect will be even better.
Reduce operating costs, including energy savings each and every point of welding as well as shortening the welding cycle.
Save energy :especially suitable for welding thick workpieces and high-conductivity metal .such as aluminum and galvanized
steel sheet.etc.
of wire.
More preaser, faster current control, can analyse parameters more and faster compare with power frequency system.
Faster to set up current, the speed is 20folds quicker than traditional technic
Process more reliable: the majority of the application of solder DC welding metal effect will be even better.
Reduce operating costs, including energy savings each and every point of welding as well as shortening the welding cycle.
Save energy :especially suitable for welding thick workpieces and high-conductivity metal .such as aluminum and galvanized
steel sheet.etc.
Specification
Item Model | Maximum Short Current KA | Rated Duty Cycle % | Secondary Voilage V | Rated Power KVA | Electrode Pressure N | Electrode Stroke mm | Cooling Water Lmim |
FM-20 | 20 | 50 | ≈9.8 | ≤50 | 4700 | 80 | 24 |
FM-25 | 25 | 50 | ≈9.8 | ≤70 | 4700 | 80 | 24 |
FM-40 | 40 | 50 | ≈11.6 | ≤120 | 7300 | 80 | 30 |
FM-60 | 60 | 50 | ≈11.6 | ≤160 | 12000/18000 | 100 | 50 |
FM-80 | 80 | 50 | ≈11.6 | ≤240 | 12000/18000 | 100 | 50 |
FM-120 | 120 | 50 | ≈11.6 | ≤300 | 18000 | 100 | 60 |
