Cheap price Steel Structure poulty shed storage buildings small Prefab space frame steel Structure Warehouse Hangar for sale

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Description

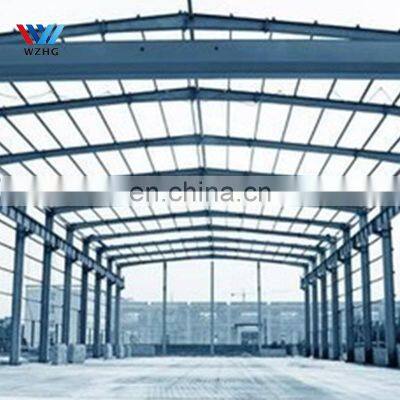

Prefab Warehouse Building / Steel Structure Hangar

A: Components of galvanized light steel structure

1)Wall panel: sandwich panel with color steel two sides and EPS foam filling width:1200mm 1k=1200
2)Column: C style steel, H shape
3)Floor beam: C style steel,200*40*2.0mm
4)Floor: light magnesium board (our patent)
5)Stair: metal
6)Roof truss: angle steel
7)Purling tube metal
8)Roof panel: corrugated sandwich panel with color steel two sides
9)Door: aluminum frame with panel same as wall, with lock

Remark: this list is for your reference but the elements can vary.

Technique Index
Earthquake resistante: 8 fission intensity
Wind pressure: <31m/s about 10 grade
Roofing snow load; <80kg/m2
Roofing live load: 50kg/m2

B: The advantages of light steel structure

1)Economic : quick installed and saving the cost of construction
2)Reliable quality: mainly produced in the factory and control the quality
3)big space: the max span of prefab steel structure can reach 80meters
4)antiseismic: because the weight is light
5)Beautiful appearance: can use different colors
6)Long lifespan: can be used more than 50 years

C:Steel structure warehouse

Specifications	1)Size:MOQ is 10m2, width X length X eave height, roof slope
		2)Span: 9-180m,type:Single slope, double slope, muti slope; Single span, double-span, Multi-span, single floor, double floors!
		3)Height: 3-10m
		4)Slope: 1/20, 1/10,1/5,1/3
		5)column distance: 6-9m
		6) Base:Cement and steel foundation bolts
		7) Column and beam:Material Q345(S355JR)or Q235(S235JR) steel, all bolts connection! Straight cross-section or Variable
		8) Bracing: X or V or other type bracing made from angle, round pipe, etc
		9) C or z purlin:Size from C120~C320, Z100~Z200
		10) Roof and wall panel:Single colorfull corrugated steel sheet0.2 ~1.2mm thick, such as YX25-207-828 or sandwich panel :sandwich panel with EPS, ROCK WOOL, PU etc insulation thickness around 50mm~150mm, YX40-320-960
		11)Accessories:Semi-transparent skylight belts, Ventilators, down pipe, outer gutter, etc
We are glad to bulid steel structre as your given drawing.If you need we design for you, pls supply us the following parameter together with detail size:
Design Parameters	1)Live load on roof(KN/M2)
		2)Wind speed(KM/H)
		3)Snow load (KG/M2) if have
		4)Earthquake load if have
		5)Crane (if have) ,Crane span, crane lift height, max lift capacity
		6)Doors and windows: dimension, quantity, position
		7)The materials on the roof and the wall
		8)Crane need or not. if yes, please tell me the max lifting weight and max lifting height.
		9) If you have other requirements,please also inform us.
		10) It is better if you have your own drawings. please send them to me.

Detailed Images

Our professional design engineer team can use modern design softwarehouse, such as AutoCAD, PKPM, 3D3S, SAP2000, TSSD, TEKLA Structure, 3DS Max, to provide you with full design and details.
We can do complex industrial, commercial, residential buildings like, office mansion, shopping mall, supermarket, warehouse, hotels, poultry farm, workshop, 4S shop etc

A. Main Steel: Q345, Q235, Q345B, Q235B Etc
B. Colomn & Beam: Welded or hot rolled H section
C. Connection Method of Steel Structure: Welding Connection or Bolt Connection
D. Wall & Roof: EPS, Rockwool, Glasswool, PU sandwich panels; Or corrugated Steel Sheet
E. Door: Rolling Door or Sliding Door
F. Window: UPVC window or Aluminum Alloy Window
G. Surface: Hot dipped galvanized Or grey color painted
H. Crane: 5MT, 10MT, 15MT and more

Steel Structure design and detailing

We have professional and normalized design team, through AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (Xsteel) and etc, we can design complex industrial building like office building, supermarket, shopping mall, apartment, retail shop, workshop, warehouse, chicken shed and so on. Professional working team have been the basement for us to devote ourselves to build a world brand "WZHGROUP".

In order to supply the most suitable drawing and best price for you, our design team need to confirm some information with you, as below:
1 Location (where will it be built? ) _____country, city_____
2 Size: Length*width*height _____mm*_____mm*_____mm
3 Wind load (max. Wind speed) _____kn/m2, _____km/h, _____m/s
4 Snow load (max. Snow thickness)_____kn/m2, _____mm
5 Anti-earthquake grade_____
6 Brick wall needed or not. If yes, 1.2m high or 1.5m high?
7 Thermal insulation requirement. If yes, EPS/fiberglass wool/rock wool/PU sandwich panels will be suggested; If not, the metal steel sheets will be OK. The cost of the latter will be much lower than the former.
8 Door quantity & size _____units, _____(width)mm*_____(height)mm
9 Window quantity & size _____units, _____(width)mm*_____(height)mm
10 Crane needed or not. If yes, _____units, max. Lifting weight____tons; Max. Lifting height _____m

Other Contections

Roof Span

Case Show

Install Information

Packing & Delivery

Our Company

FAQ

1. You are manufacture factory or trading company?
We are manufacture factory. And you are welcomed to visit us at any time. The quality control flow and sales team will show you our professionalism. Also you will can get best and most competitive price after visiting us.
2. Is your price competitive compared with other companies?
Our business objectives are to give the best price with same quality and best quality with the same price. We will do everything we can to reduce your cost and guarantee you get the best product that you paid for.
3. Can you send engineers or whole team to install my project?
We will give detailed installation drawings and video for free. We can send engineers as installation director or a team upon request.
4. Do you accept container loading inspection?
You are welcomed to send an inspector, not only for the container loading, but any time during the production time.
5. Do you offer designing service for us?
Yes, we could design full solution drawings as your requirements. By using AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (Xsteel) and etc. we can design complex industrial building like office mansion, super marker, auto dealer shop, shipping mall, 5 star hotel.
6. What is the delivery time?
Delivery time depends on order quantities. In general the delivery time to nearest seaport in China will be 30 days after receiving deposit.
7. How can you get a quotation for your projects?
You can contact us by email, phone, Alibaba TM, WhatsApp, Skype, Viber and so on 24*7 and you will get reply within 8 hours.

Our clients and exhibitions.

Established in 2001, Weizhengheng Group covers an area of over 48,000 sqm, with more than 1,000 employees from 9 subsidiary companies together with offices. Each company enjoys its own feature.

Shijiazhuang Weizhengheng Light Steel Color Plate Co., Ltd, professional in export trade business, has more than six years of experience in this field. Hebei Weizhengheng Modular House Teck Co., Ltd., located in Shijiazhuang and specialized in steel frame villa and container houses design, product, sell and construction. Heilongjiang Weizhengheng Steel Structure Engineering Co., Ltd, located in Harbin, benefits from freight economy when exported to Russia. Beijing Weizhengheng Metal Structure Engineering Co., located in the capital city of China, may receive clients from the abroad while saving their time and energy. Other branch companies are Shenyang Tianying Light Steel Color Plate Co., Ltd, Hulun Buir Weizhengheng Light Steel Color Plate Co., Ltd, Ulanhot Weizhengheng Light Steel Color Plate Co., Ltd, Shandong Office, Manzhouli Office and Uganda Office.
