433mhz rf module 3 button 433 92MHZ high power remote 1000m remote control

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Description

Remote control technical parameters

Working voltage: DC12V/23A Working frequency: 315/433.92MHz±0.2MHz (other frequencies can be customized) Working current: 34mA Coding method:

fixed code (PT2262 chip) address code pad can be programmed with more than 5,000 sets of different codes Learning code (eV1527) million sets of chips come with different ID address codes Rolling Code (HCS301) Transmission distance: >100m (the sensitivity of the receiving board in the open field is above -103dBm) Output power: 16dBm (40mW) Transmission rate: <10Kbps Modulation method: OOK (amplitude modulation) Working temperature: -10℃~+70℃ Size: 96×43×16mm

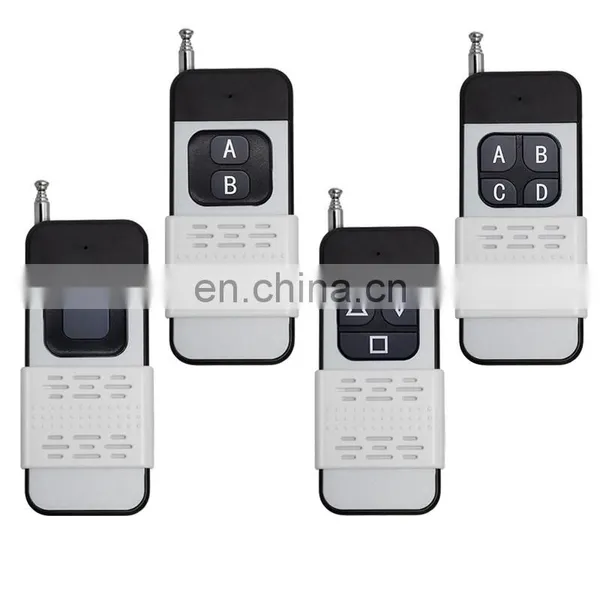

Multiple buttons are remotely selectable

2 buttons remote

Detailed Images

Remote control + a variety of applicable models of receiving module matching

4 button remote +5V fixed code receiving module

4 buttons remote +5V learning code receiving module

4 buttons remote +5V learning code (small size) receiving module

Introduction of product advantages or application effect or application mode

产品优点or使用效果or使用方式的介绍说明

1~4 key remote options

Working voltage: DC12V/23A Working frequency: 315/433.92MHz±0.2MHz (other frequencies can be customized) Coding method: fixed code (PT2262 chip) 8-bit address coding pad Learning code (eV1527) million group ID address code Transmission distance: >100m (the sensitivity of the receiving board in the open field is above -103dBm) Size: 96×43×16mm

Multiple buttons are remotely selectable

Working voltage: DC3.3~5V Working frequency: 433MHz (others can be customized) Receive sensitivity: -108dB Output: 4-channel CMOS level signal corresponding to the ABCD 4 button of the remote control. Standard decoding program, learning type, compatible with PT2262/EV1527 chip remote control

5V learning code receiving module

5V fixed code receiving module

Working voltage: DC3.3~5V Working frequency: 433MHz (others can be customized) Receive sensitivity: -108dB Output: 4-channel CMOS level signal corresponding to the ABCD 4 button of the remote control. 2272-M4 chip decoding, fixed code, suitable for PT2262/2260 remote control

Product Presentation

It can communicate with 12V four-way relay remote control switch, which can realize remote control equipment switch

Product Name	12V four-way remote control switch
Material
Power
Voltage
Type of Lamp-house
Model
Style

Related product pictures

尺寸介绍货尺寸图片
