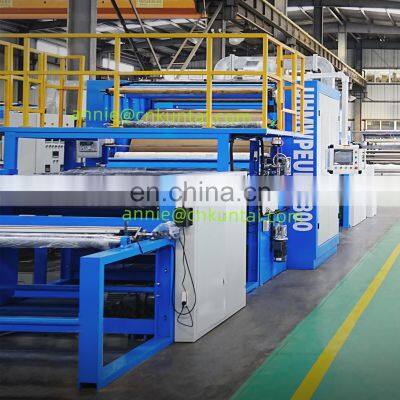

Bulletproof UD Laminating Machine for UHMWPE Fiber
- 1000 per Month
- T/T Credit Card
- UHMWPE FABRIC PRODUCTION LINE FOR BULLETPROOF PRODUCTS
- Bulletproof UD non-weft fabric production line
- Ballistic Systems Bulletproof Body Armor Vest Tactical Vest Production Line
- Military Quick Release Bulletproof Vest Production Line
- UD Non-Weft Fabric Production Line for Bulletproof Armor Plate
- Automotive leather cutting machine for car seat cover
Product Description
UD Non-Weft Fabric Production Line
Military Quick Release Bulletproof Vest Production Line
Ballistic Systems Bulletproof Body Armor Vest Tactical Vest Production Line
Bulletproof UD Laminating Machine Aramid Weft Free Fabric Production Line for UHMWPE Fiber
Productive Rubber Mat Laminating Machine
Double Belt Press Laminating Machine
UD Non-Weft Fabric Production Line

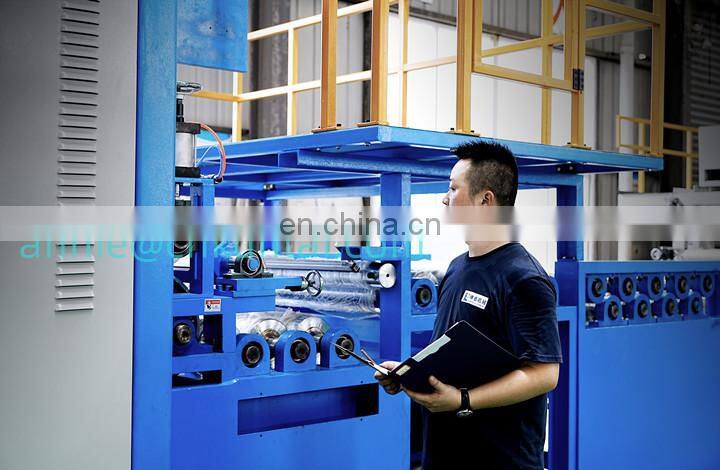

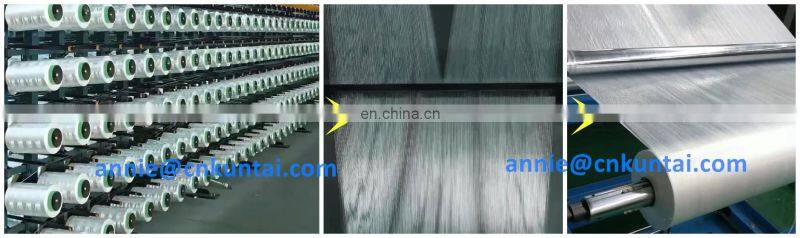

1. The UD non-weft fabric production line adopts stable mechanical operation rollers and special-shaped devices to spread the yarn evenly, impregnate with resin glue and lamination with the carrier PE film, dry and solidify, and then go through the 0/90º orthogonal lamination in the back. The product has excellent properties such as low density, abrasion resistance, impact resistance, and strong cutting resistance. The product is widely used in special protective materials such as soft bulletproof vests, lightweight bulletproof helmets, lightweight bulletproof armor plates, and stab-proof and cut-proof clothing. Lining and special public anti-riot facilities, etc.
2. The equipment uses water-based or oil-based resin adhesives to produce PEUD non-weft fabrics.
3. Adopt HMI+PLC control system, easy operation, high production efficiency, and reduce the tedious operation.
4. The mirror surface processing rollers are used for thread pulling and thread laying to ensure that the damage to the fiber performance is reduced to the greatest extent during the operation.
5. The whole machine adopts gear transmission, which has strong torque transmission and stability.

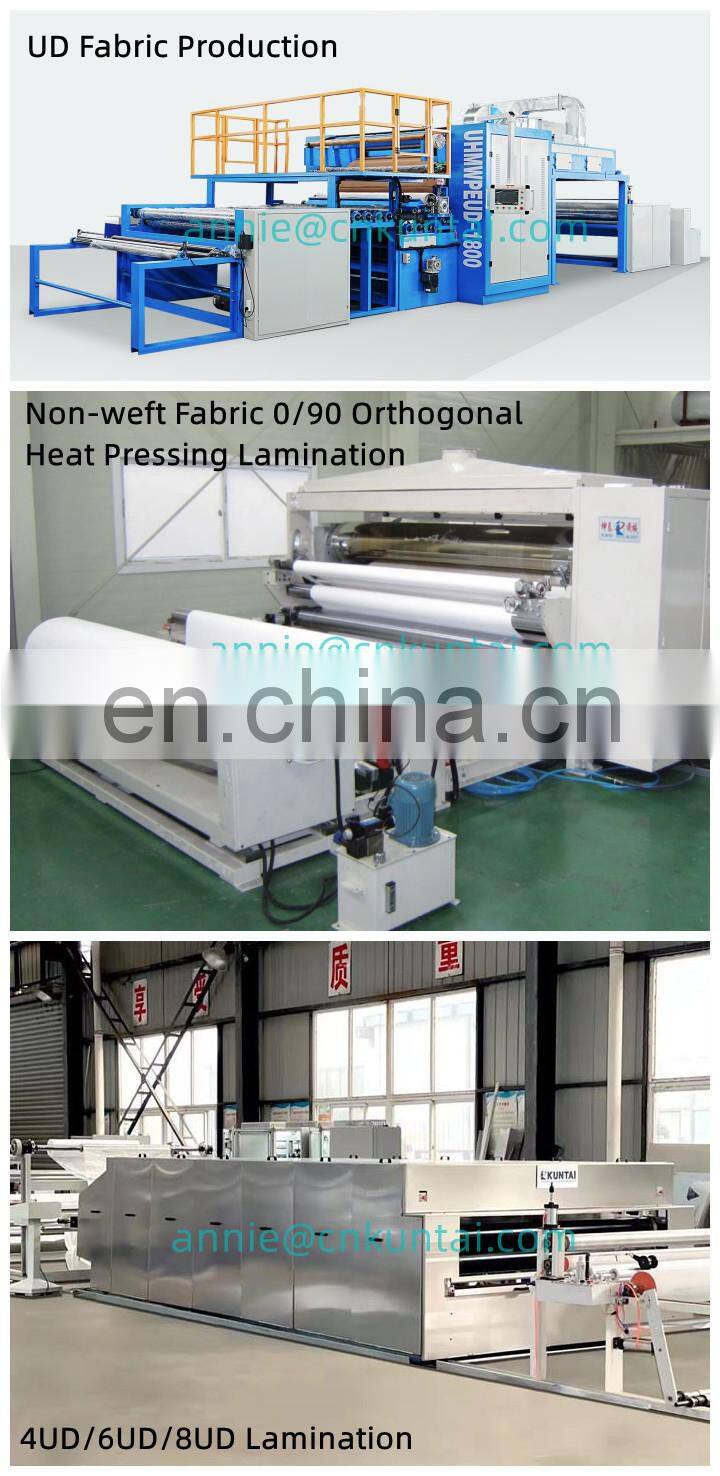

Main Process: Yarn creel--UD unidirectional fabric production line--cutting machine--2UD laminating machine(0/90º complex)--4/6/8 UD laminating machine--tear film machine.
Standard Technical Parameters (Customizable):
Width of Fabric |
1600mm,1800mm,2000mm according to customers' requirement |
Machine Roller Width | 1800mm,2000mm,2200mm according to customers' requirement |
Machine Speed | 1-15m per min |
Machine Heating Power | 95kw, Customizable |
Voltage | 220v, 380v, Customizable |
Estimated Machine Dimension | 11000*3000*2830mm |
Estimated Machine Weight | 4600kg-18500kg |

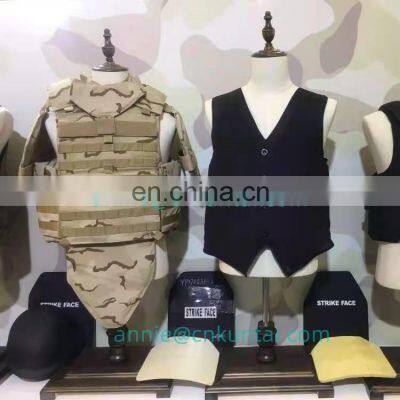

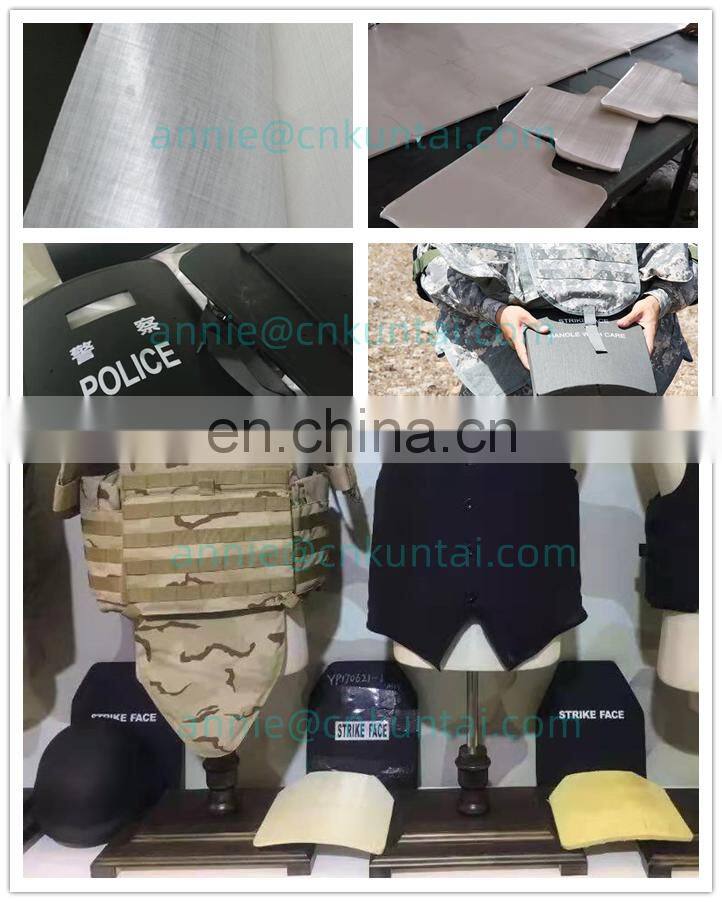

Application: This production line is typically used for production of bulletproof vests, shields, helmets, armored vehicles interior decoration, chest flaps, antiexplosion blankets, etc.
- UD Non-Weft Fabric Production Line
Inner Package: Protective Film, etc
Outside Package: Standard Export Container
- Machines well packed with protective film and loaded in export container;
- English version operation manual and technical data;
- One-Year-Period wear parts;
- Tool kit
Why choose us?
1. Historical precipitation technological innovation.
37 years of rich experience for various industries to provide lamination, cutting equipment, fabric finishing equipment and other industry solutions.
2,Globalization after sales
Covering 5 continents with over 60 countries complete after sales service, no matter where you are, Kuntai's service time is at your side.
3,Industry-specific customization
A strong team of engineers will make the best one-to-one customization for your product requirements to maximize the advantages of your product equipment.
4,Strong technical support.
The technical support of southeast university, the practice training of German engineers, and the team of dozens of experts are the technical guarantee for you to purchase the machine in Kuntai.
5,High quality standards.
The ISO system certification, the EU CE certification are the quality assurance for us. CTPM refined management is our guideline for high quality standards.
