HDPE LDPE 2 Layer Plastic Film Blowing Printing Machine with High Quality
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
ABA Three-Layer Co-extruder Pe Film Blowing Machine
-
New Automatic High Quality Cheap Non Woven Fabric Paper Bopp Tape Label Jumbo Plastic Film Roll Slitting Machine
-
Automatic slitting machine price
-
Rewinder and Slitter Machine
-
AUTOMATIC HORIZONTAL PVC LABEL FILM PAPER CLOTH NON WOVEN ROLL SLITTER DIE CUTTING SLITTING REWINDING MACHINE
-
AUTOMATIC HORIZONTAL PE BOPP PVC PLASTIC FILM PAPER CLOTH NON WOVEN ROLL SLITTER DIE CUTTING SLIITING REWINDER MACHINE
Product Description
Products Description

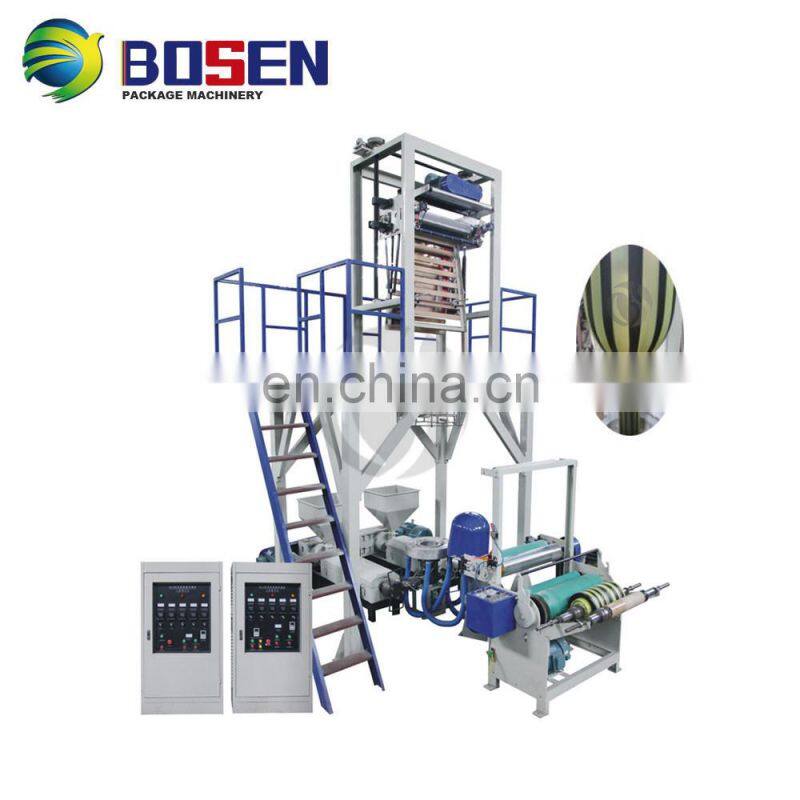

BSJ-2L Film Blowing Machine
It is used for blowing PE(HDPE LDPE) film,which is widely used for water package bag,laminating film,packing film,agriculture film,film for textile,clothing bag,etc.
Main Feature
1.The main motor is controlled by inverter, which is not only increase the stability for speed adjustment,but also can save 30%'s energy.
2.Both the screw and barrel adopt 38CrMoAl,with nitrided treatment.
3.You could choice machine options like printing online,folding online,slitting online,bag making online as you like.We could design machine as you needs.
Specification
Model | BSJ-2L600 | BSJ-2L800 | BSJ-2L1000 | BSJ-2L1200 | BSJ-2L1500 | BSJ-2L2000 | |||||
Suitable Material | LDPE LLDPE HDPE | ||||||||||
Max.Layflat Width | 600mm | 800mm | 100mm | 1200mm | 1500mm | 2000mm | |||||
Film Thickness | 0.008-0.25 mm | ||||||||||
Max.Output | 60kg/h | 70kg/h | 80kg/h | 90kg/h | 120kg/h | 140kg/h | |||||
Extruder Driving Power | 11*2kw | 11*2kw | 15*2kw | 15*2kw | 22*2kw | 30*2kw | |||||
Screw Diameter | Φ45*2mm | Φ50*2mm | Φ55*2mm | Φ55*2mm | Φ65*2mm | Φ70*2mm | |||||
Die Size | Φ120mm | Φ180mm | Φ220mm | Φ250mm | Φ350mm | Φ500mm | |||||
Cove Dimensions | 5.8*2.3*4.5m | 6*2.5*4.8m | 6.2*2.7*5.2m | 6.5*2.9*5.5m | 6.8*3.2*6.2m | 7*3.7*7.5m | |||||

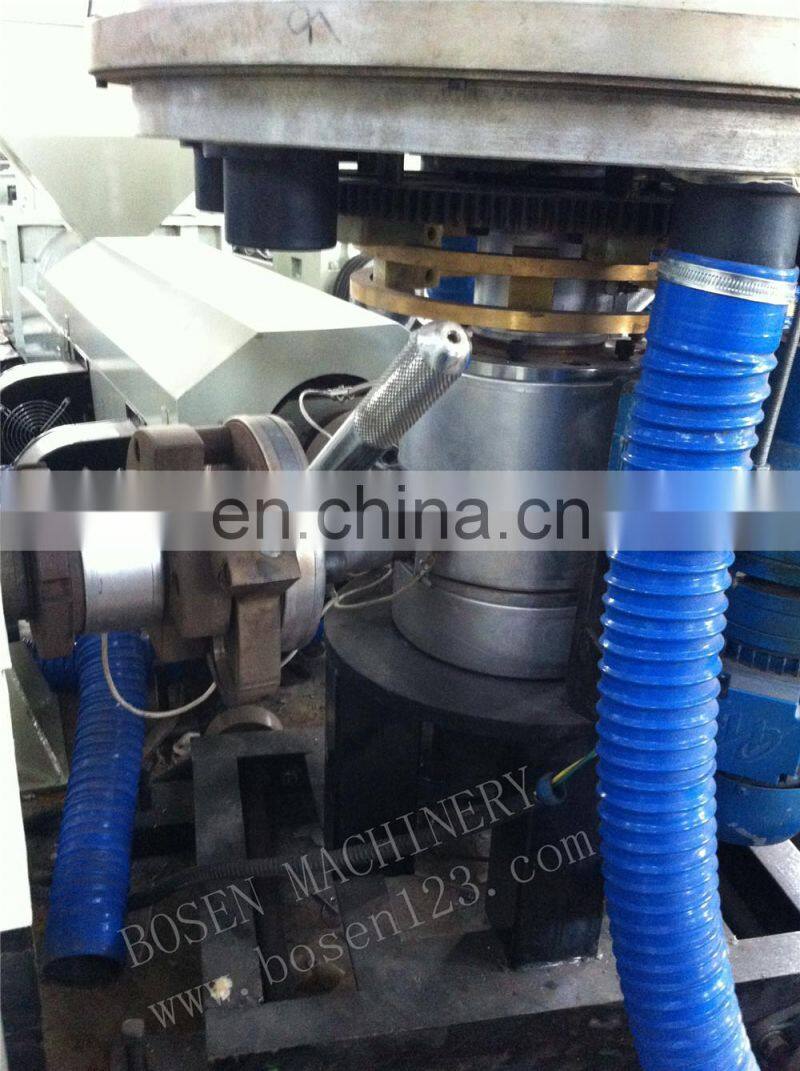

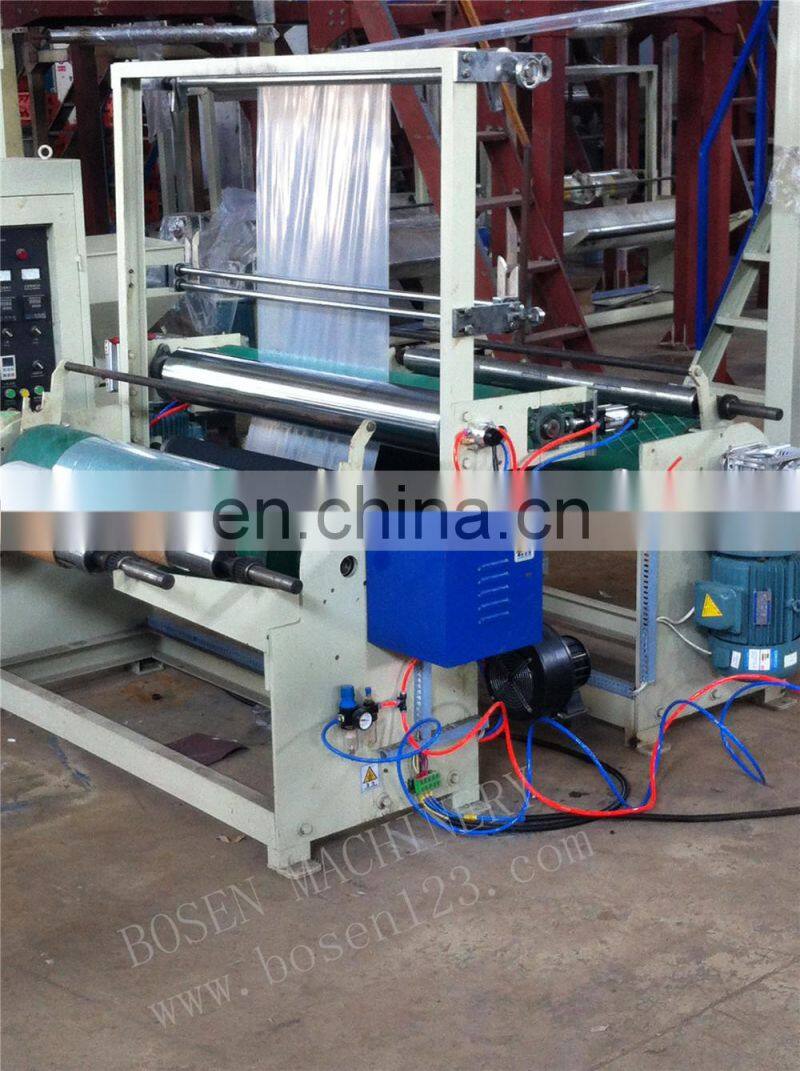

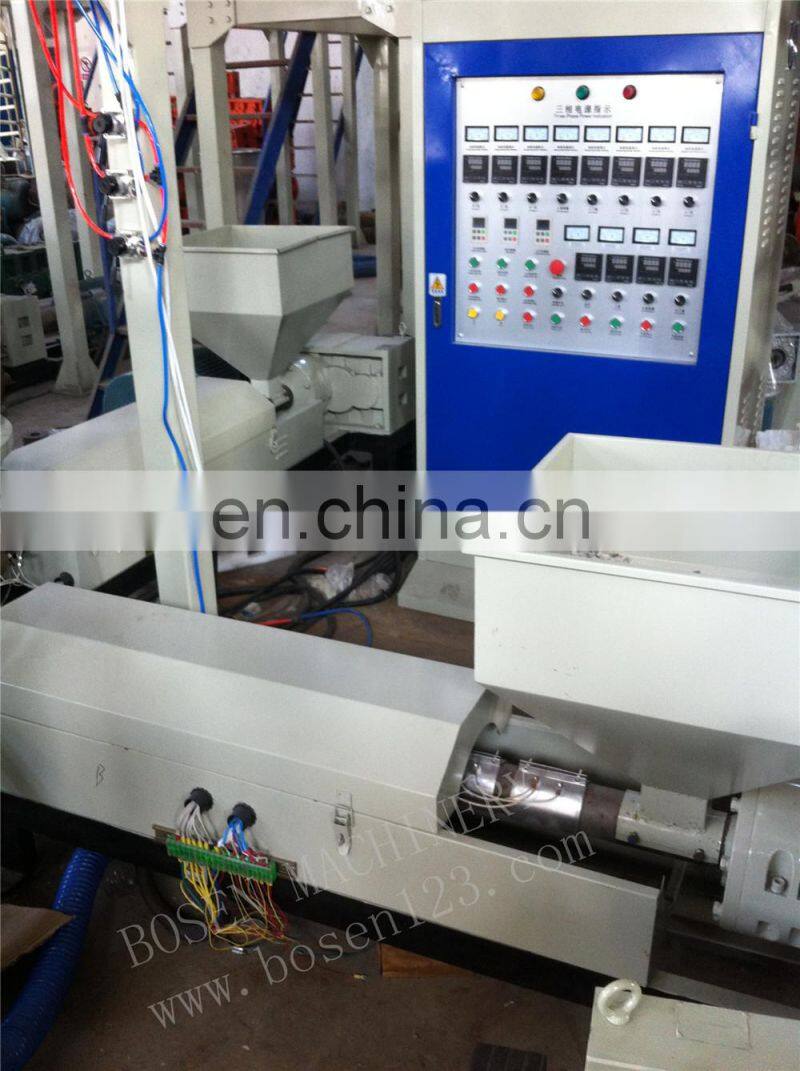

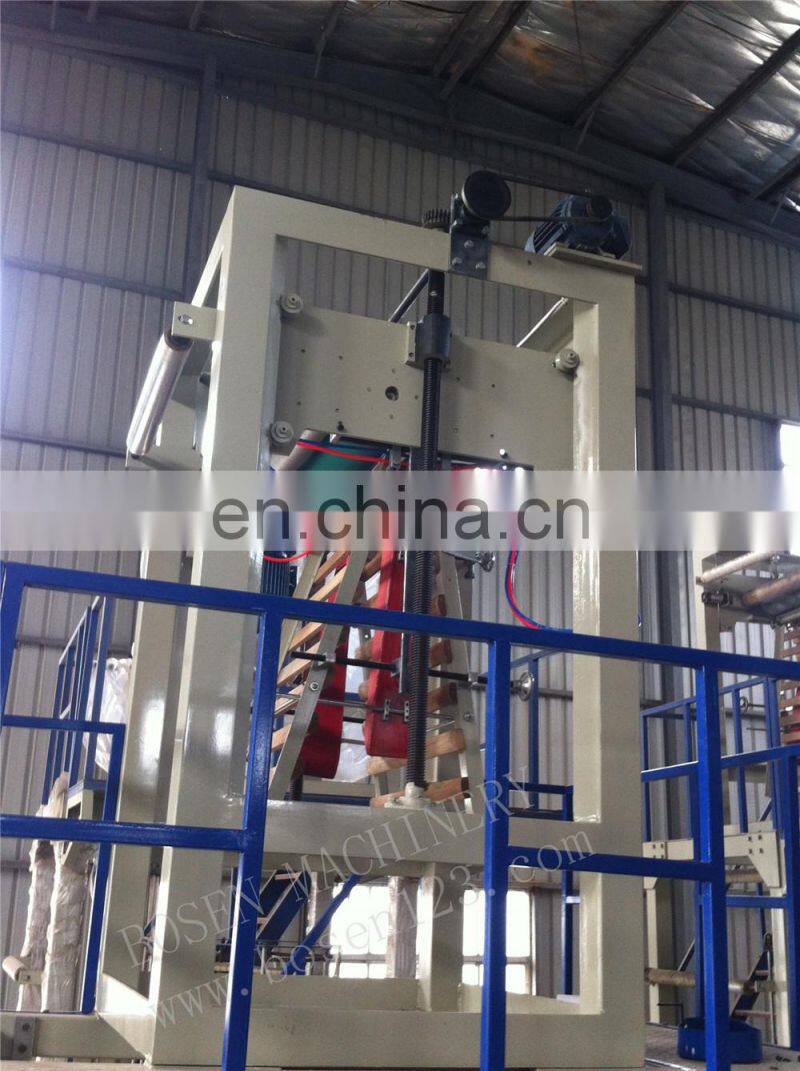

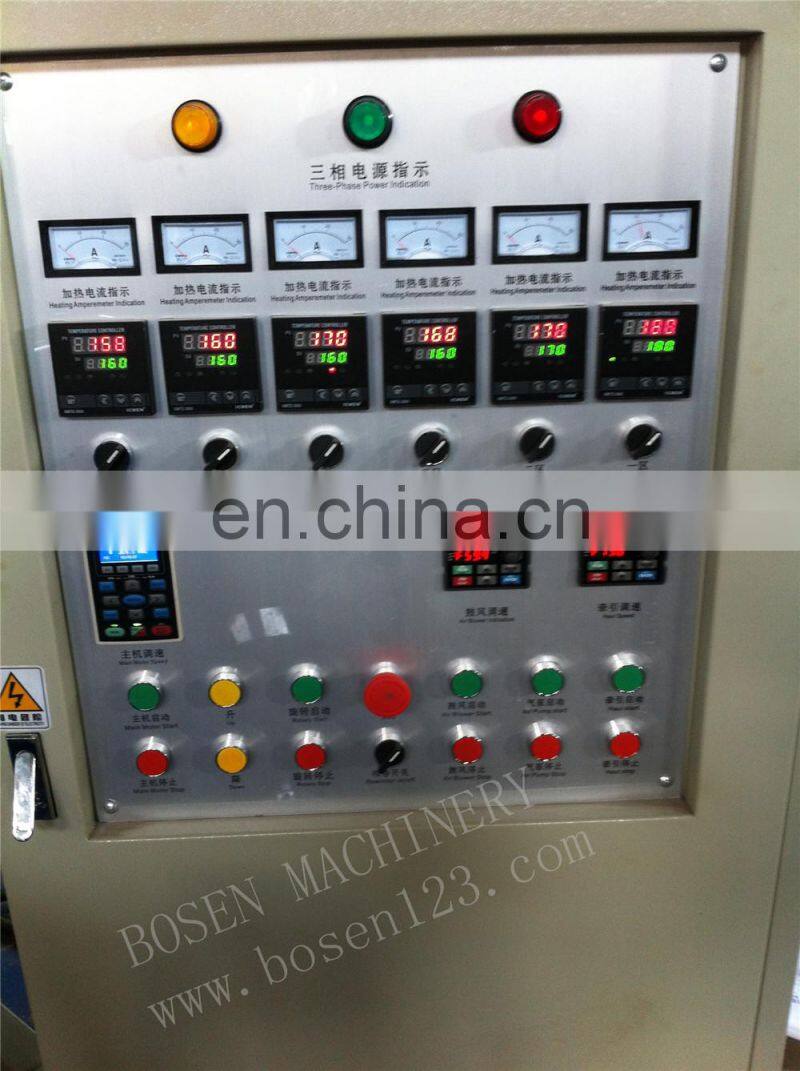

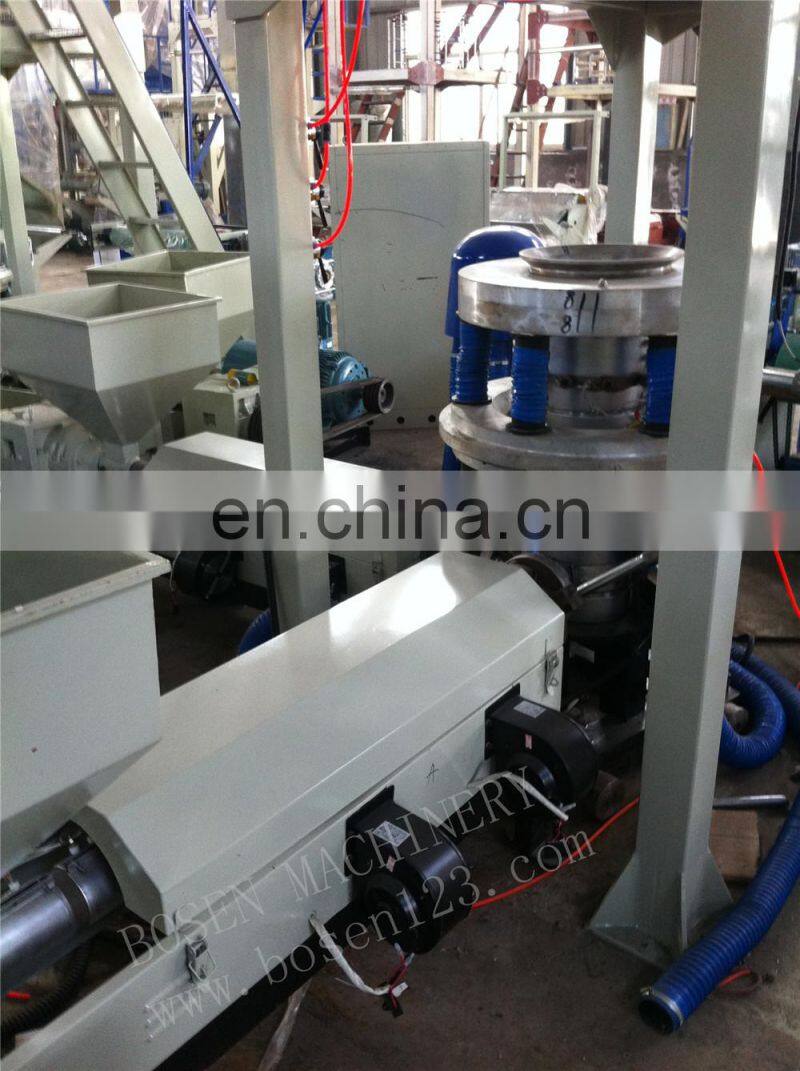

Details Images
Our film blowing machine has many types, like ziplock film, mini type , economic type , lift traction type, rotary die head type,high speed type, imported brand type, automatic type, greenhouse big film type, multi-layer co-extrusion type, hot shrinkable type, stretch cling type.
Packing&Delivery
Carefully Perfect Packing
1.Packing with bubble film&stretch film
2. Wooden case as customer required
3.Load machines one by one carefully
4. Delivery team is professional on all the machine inspection
5.Clearance documents will be made according to customer requirement
6.Insurance all products safe when transportation
Company Profile
Good After Sale Service
1. Video
Watch the machine running by our Bosen Machinery engineer professional guide in the video. the videos are including the machine testing videos, training videos and maintain videos. Easy to operate and work.
2.Manual
Manual book in English with electric drawing. How to protect the machine, How to run the machine, What problem you may meet.
3.Engineer Overseas
Send engineers to your factory, according to your request.
4.On-the-spot Teaching
You could come to our factory to test and learn machines after you placing a order.
5.Online Service
You could contact with us 24 hours. We will promise reply you in 6 hours.
Watch the machine running by our Bosen Machinery engineer professional guide in the video. the videos are including the machine testing videos, training videos and maintain videos. Easy to operate and work.
2.Manual
Manual book in English with electric drawing. How to protect the machine, How to run the machine, What problem you may meet.
3.Engineer Overseas
Send engineers to your factory, according to your request.
4.On-the-spot Teaching
You could come to our factory to test and learn machines after you placing a order.
5.Online Service
You could contact with us 24 hours. We will promise reply you in 6 hours.
Certifications
FAQ
Q1: Are you a manufacturer or a factory?
A1: Yes,we are the manufacturer which has over 15 years experience.
Q2: Do you accept special design?
A2: Yes,we accept design and manufacturer products according to client's special requirements.
Q3: What about your package?
A3: We use ploywooden case normally, but if you have special requirement we can change and add special shipping mark.
Q4: How long will you take before shipping?
A4: It's depends on the products that you need,but we guarantee for shipping as fast as we could.Normally it will takes 10 days after we receive the payment.
Q2: Do you accept special design?
A2: Yes,we accept design and manufacturer products according to client's special requirements.
Q3: What about your package?
A3: We use ploywooden case normally, but if you have special requirement we can change and add special shipping mark.
Q4: How long will you take before shipping?
A4: It's depends on the products that you need,but we guarantee for shipping as fast as we could.Normally it will takes 10 days after we receive the payment.
