Food Machines Commercial Automatic Spring Roll Making Machines

Food Machines Commercial Automatic Spring Roll Making Machines

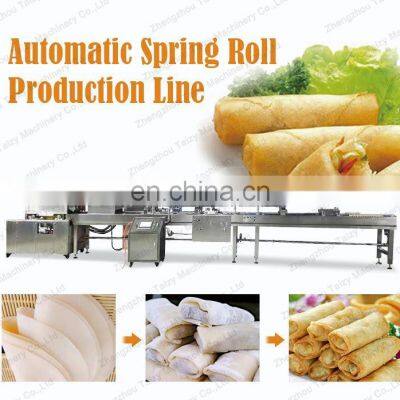

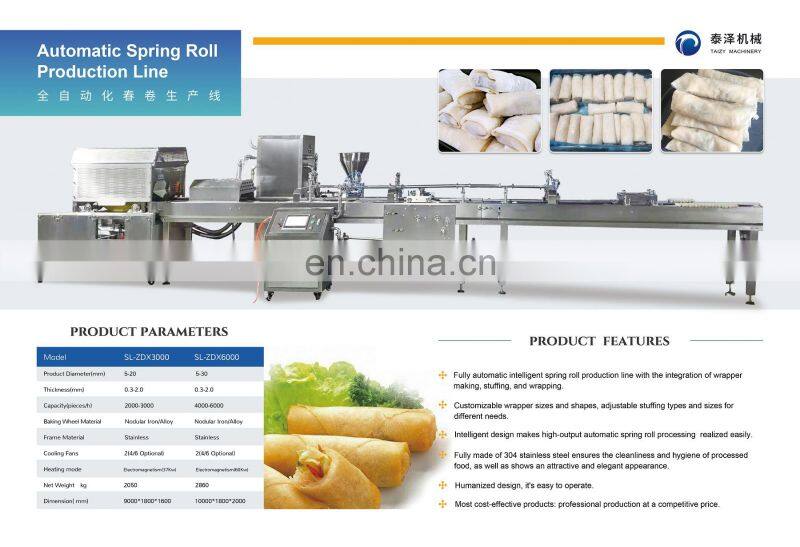

Working flow of Commercial Spring Roll Production Line equipment

The continuous spring roll production line includes feeding flour paste, heating lumpia wrapper, cooling spring roll sheet, stuffing the wrapper, folding the sheet, and finishing spring roll making. The production line could produce 3000 pieces to 9000 pieces of spring roll per hour. And customers could customize a processing plant.

· Machine material

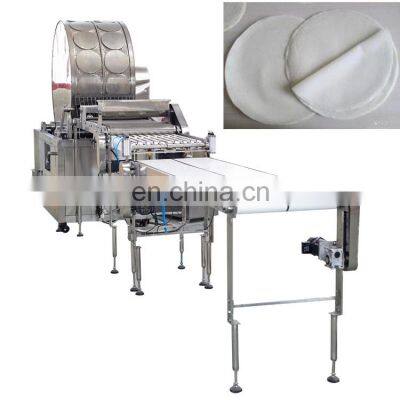

The large automatic spring roll making machine is mainly made of 304 stainless steel. The molding part is aluminum alloy.

· Heat method

The production line can heat through electricity and gas.

· Product details

The folding part should match with an air compressor. The processing speed and the size of the spring roll can adjust.

Mostly, the spring roll sheet is in an irregular shape to make the folding more convenient.

Working principle and workflow of commercial spring roll production line equipment

Prepare the flour paste according to the requirements of the production process. After the batter is heated and baked by the round baking wheel, it becomes a custom-shaped spring roll wrapper with a fixed thickness.

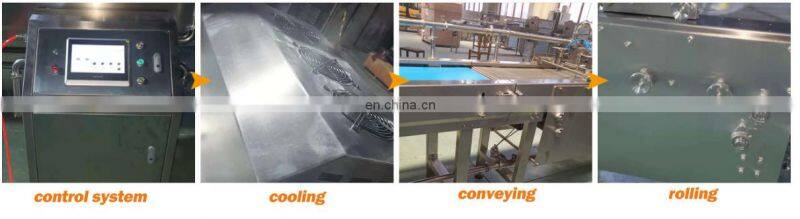

Working process of spring roll processing line

Feeding-spraying & baking-cooling-cutting-stuffing-folding-rolling.

1. Put the prepared flour paste into the pulp bucket and heat the roasting wheel to 90°C.

2. Start the batter pump to send the batter to the baking mold. The shape can be customized according to customer requirements.

3. The baking wheel rotates and matures the batter.

4. Separate the spring roll wrappers onto the wrapping conveyor belt with a shoveling knife.

5. When the spring roll wrappers pass the exit of the stuffing machine, the stuffing machine will distribute the filling evenly (the number of filling grams can be adjusted) on each spring roll wrapper.

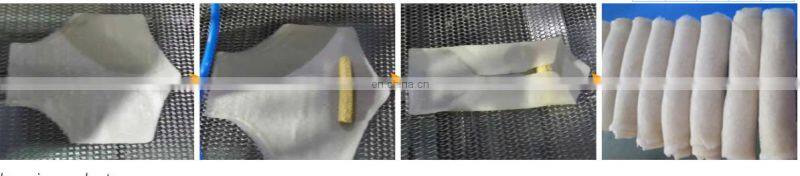

6. In the post-combination part, fold the fillings with spring roll wrappers.

7. Finally, the spring rolls are formed. At last spring rolls fall directly onto the cooling conveyor belt.

8. At this time, the spring rolls can be manually sorted into the packaging box and put into refrigeration, or they can be directly fried in the fryer.

How to cook delicious spring roll pastry?

The lumpia wrapper making machine can make spring rolls, Vietnamese egg rolls, crepes, samosa, lumpia, etc. And many kinds of fruits and vegetables can be filled into the spring roll.
