Home > Products > Tapered roller bearing > 7707A 6-7707 U 7707 2101-2403036 rear axle front axle bearing for VAZ-2121 VAZ-21213 VAZ-2123

7707A 6-7707 U 7707 2101-2403036 rear axle front axle bearing for VAZ-2121 VAZ-21213 VAZ-2123

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Description

Specification

Product name	7707A 6-7707 U 7707 2101-2403036 rear axle front axle bearing for VAZ-2121 VAZ-21213 VAZ-2123
Usage	Single-row Taper Roller Bearing

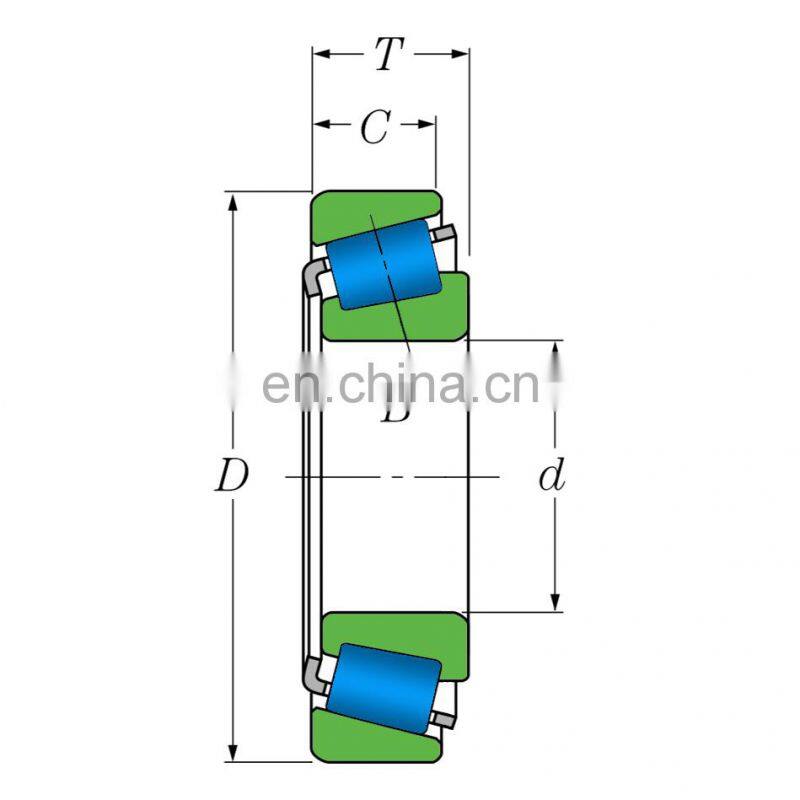

Size	33x62x16
Car Make	VAZ-2101 VAZ-2102 VAZ-2103 VAZ-2105 VAZ-2106 VAZ-2107 VAZ-21213 VAZ-2123 VAZ-2121
Place of Origin	China
Brand Name	VLBG
Model Number	7707 OEM 2101-2403036 6-7707y
Warranty	24Months
Inner diameter	33MM
Outside diameter	62MM
Height	16MM
Bearing type	Friction bearings
Certificate	ISO9001/TS16949
Roller body material	SHX15
Weight	0.211 kg
Number of rolling bodies	19
Standard	TU 37.006.170-90
Roller length	11.04
Type of perceived loads	Radial thrust
Roller Body diameter	6.36

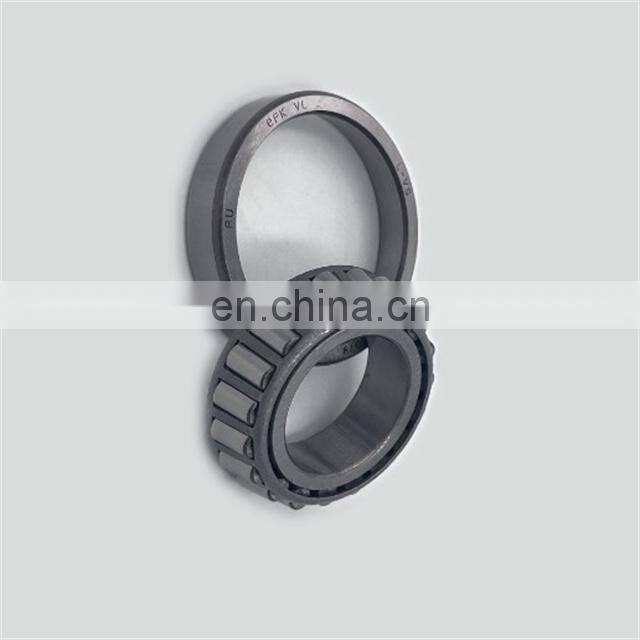

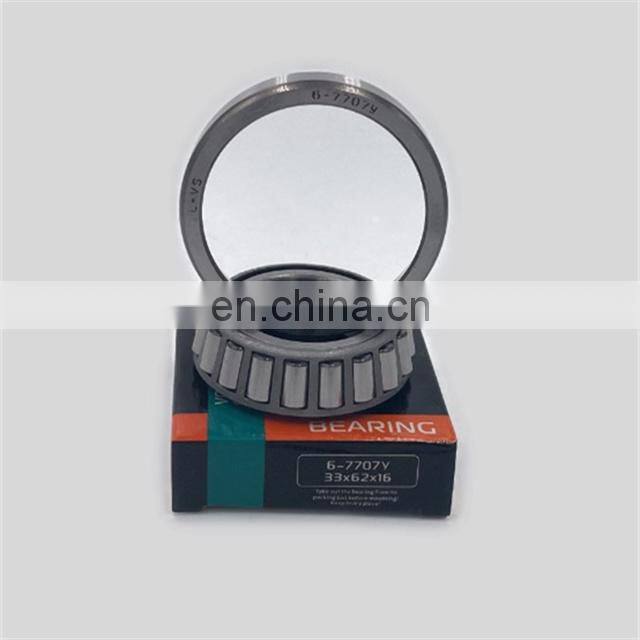

single-row tapered angular contact roller bearing 7707 2101-2403036

Angular contact roller bearing 7707designed for the simultaneous perception of axial and axial loads, which allows you to expand the scope of its application and significantly simplify the design of the supporting units of mechanisms and equipment. In application Angular contact roller bearing 7707 reduces the alignment requirements, which is very important in the production of products, especially large-sized ones. Mounting a single bearing provides the ability to take a radial load together with an axial load acting in one direction (paired installation, with axial bidirectional). Angular contact roller bearing 7707 has a wide range of applications: in general mechanical engineering equipment, in transmissions of tractor and automotive equipment, in wheel hubs, in metalworking machines.

Bearing 7707 (Niva bridge)

Tapered roller bearings, angular contact, single-row. A modification is made with a steel cage (letter Y to the right of the number) or polyamide (letter E is additionally indicated). If a bearing with a polyamide cage is damaged, it is less likely to damage other parts of the car than with a steel one. Contact angle from 10 to 18 °. In Russia, this type is manufactured at the Volzhsky Bearing Plant (formerly 15 GPPs, products are now labeled VPZ). and also at the Samara Bearing Plant - 9 GPPs. Bearing 7707, along with bearing 7705, is intended for use only in VAZ cars - "classic" (models 2101, 2102, 2103, 2104, 2105, 2106, 2107) (rear axle) and Niva 2121 4x4 (front and rear axles, differential box) ... Here they are installed in pairs. Another unit where this type is installed is the VAZ 1111 "Oka" differential. This standard size does not have an exact foreign analogue. Technical characteristics of the bearing 7707 Inner diameter - 33 mm; Outside diameter - 62 mm; Width - 16 mm; Weight - 0.211 kg; Number of rollers - 19 pcs.; Roller dimensions - 6.36 / 7.0x11.04 mm; Dynamic lifting capacity - 76 kN; Static lifting capacity - 82 kN; The maximum rated speed is 6300 rpm.

6-7707 U Rear axle bearings for VAZ-2101 VAZ-2102 VAZ-2103 VAZ-2105 VAZ-2106 VAZ-2107 car Passenger car

7707 Mechanical Equipment Parts Tapered Roller Bearings Sizes 7707(30607）OEM 2101-2403036 6-7707y for Russian VAZ car

Truck mounted cranes tapered roller bearing 6- 7707 y OEM 2101-2403036 7707 Reliable Quality Single-row Taper Roller Bearing 30607 For Rolling Mill Size

7707 2101-2403036 bearings for Car Automobile transport , Cranes and Loaders Truck Crane,Cranes and Loaders Loader, Tractor. 6-7707 U Rear axle bearings for VAZ-2101 VAZ-2102 VAZ-2103 VAZ-2105 VAZ-2106 VAZ-2107 car Passenger car 7707A 6-7707 U rear axle front axle bearing for Off-road cars VAZ-2121 7707A 6-7707 U Rear axle, differential Front axle, differential for VAZ-21213 VAZ-2123

Bearing 7707 of the LADA 2101 rear axle reducer side (differential) (roller tapered) 2101-2403036
