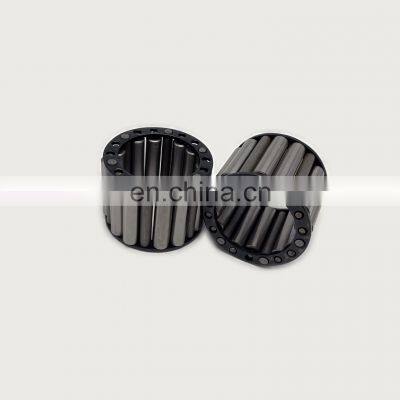

Competitive Price 22477-RP Needle Roller Bearings 264706
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
64706 Creeper bearing Reserve Shaft Front bearing needle roller bearing for DT-75 tractors
-
Rear PTO bearing needle roller bearing 942/40 for tractors MTZ-50 MTZ-52
-
Needle roller bearing 943/50 Gearbox intermediate shaft bearing rear support for tractors MTZ-50 MTZ-52
-
904700 needle roller bearing RU bearing cardan drive for tractors MTZ-50 MTZ-52
-
20*26*34mm Rear PTO needle bearing needle roller bearing for tractors MTZ-50 MTZ-52
-
Needle roller bearing 40*50*32 942/40 Rear power take-off shaft bearing drive shaft for tractors MTZ-50 MTZ-52
Product Description
Product name | 264706 Needle Roller Bearings |
Place of Origin | China |
Brand Name | VLBG |
Warranty | 12 Months |
Certificate | ISO9001/TS16949 |
Row | Single row |
Tolerance code | P0 P6 P5 P4 P2 |
Application | Needle roller bearings are widely used in cars, compressors, construction, electric motors, food industry, home appliances etc. As a rolling element, it turns the world. |
Available models | Gearbox bearing GAZ (truck models 3301, 3306, 3309, 4301, 4509); KAMAZ gearbox bearing (drive shaft, front support) models 5320, 53211, 53212, 53213, 53222, 5325, 5410, 54112, 54122, 5425, 55102, 5511, 55111. Gearbox bearing ZIL, driven shaft, front support (models 130, 131, 133, 137, 157, 4331 and derivatives, 5301 Bychok and others); |
OE NO. | 22477-RP |
Needle roller bearings
Needle Roller Bearings are a type of roller bearings and are classified as either radial or thrust depending on the direction of the load they support.
They include bearings whose rollers are three to ten times longer than their diameter and exhibit a relatively large radial load capability.
Needle Roller Bearings are used, for example, in automotive applications such as transmission or A/C compressors.
Product Features and Benefits:
Range includes solid, drawn cup or cage and roller options
High quality steel - ultra clean steel to extend bearing life by up to 80%
Needle roller bearings 264706
Dimensions, mm: 29.96x43.98x33
d - inner diameter, mm: 29.96
D - outer diameter, mm: 43.98
B/c - height, mm: 33
Weight, kg: 0.144
Roller dimensions: 7x28.5 mm;
Number of rollers: 12 pieces;
Load capacity dynamic: 53 kN;
Load capacity static: 20 kN;
Maximum rotational speed: 14,000 rpm
d - inner diameter, mm: 29.96
D - outer diameter, mm: 43.98
B/c - height, mm: 33
Weight, kg: 0.144
Roller dimensions: 7x28.5 mm;
Number of rollers: 12 pieces;
Load capacity dynamic: 53 kN;
Load capacity static: 20 kN;
Maximum rotational speed: 14,000 rpm
Needle roller bearings
Applicability:
Bearing Gearbox GAZ (truck models 3301, 3306, 3309, 4301, 4509);Bearing Gearbox, k.amaz (drive shaft, front support) models 5320, 53211, 53212, 53213, 53222, 5325, 5410, 54112, 54122, 5425,55102, 5511, 55111.
Gearbox bearing ZIL, Drive shaft, Front support (models 130, 131, 133, 137, 157, 4331 and derivatives, 5301 Bull and others);Gearbox bearing of LAZ buses, Ural trucks and other equipment of domestic and foreign production
Bearing Gearbox GAZ (truck models 3301, 3306, 3309, 4301, 4509);Bearing Gearbox, k.amaz (drive shaft, front support) models 5320, 53211, 53212, 53213, 53222, 5325, 5410, 54112, 54122, 5425,55102, 5511, 55111.
Gearbox bearing ZIL, Drive shaft, Front support (models 130, 131, 133, 137, 157, 4331 and derivatives, 5301 Bull and others);Gearbox bearing of LAZ buses, Ural trucks and other equipment of domestic and foreign production
